'fake 3D' in Motion5 / logo animation

last update:

http://www.fcp.co/forum/7-fcpx-how-to-tutorials/25381-converting-logos-into-shin y-3d-a-cooking-recipe-in-6-easy-steps#76…

I describe a method to convert logos into fonts to utilize FCPX vers.10.2.x real 3D titles


addendum, meanwhile ...



This method still works, 'poor man's 3D'

but there's

http://www.motionvfx.com/mplugs-33.html?utm_source=MotionVFX&utm_campaign=1a2cb0 69cb-mObject_1.3&utm_medium=email&utm_term=0_225ac4a91b-1a2cb069cb-95813689



a commercial (not cheap, but worth every penny) plug-in offering 'real' 3D for Motion



and

there's an updated version of Motion v5.2 avail.

which offers 3D titles out-of-the-box

so, a little change in my description:

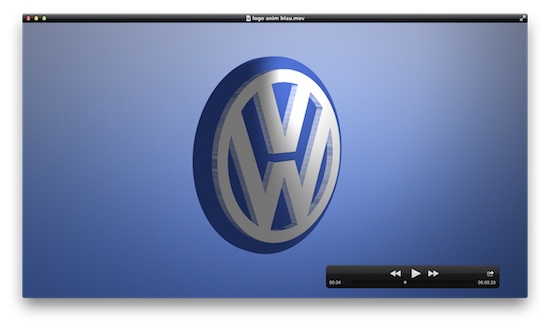

Motion5 isn't able to create real 3D objects (plugins are in the making), but sometimes you just need 'a bit 3D', like here:



3d logo.jpg



To create 'depth' the trick is to staple 'tons of' layers - by using Replicators.

Here's how I made this example:

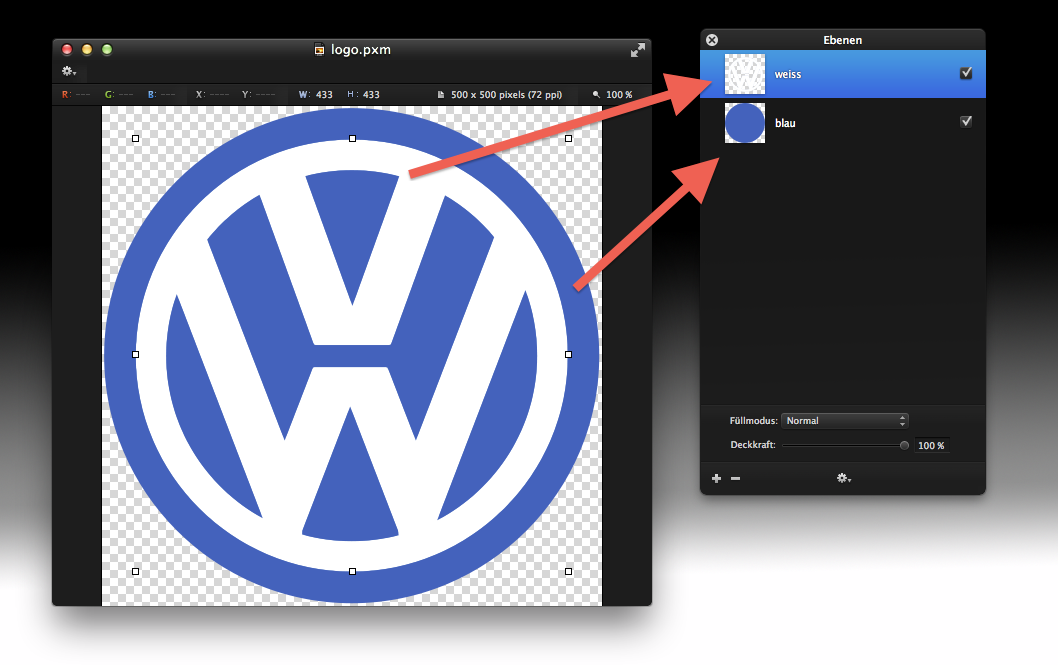

In Pixelmator (or any other picture-processor) I separated the two colors into two layers



ebenen 1.png

a blue one (for the background), and a white one (with the two letters V and W)



save it as .psd, to keep the layers info ..

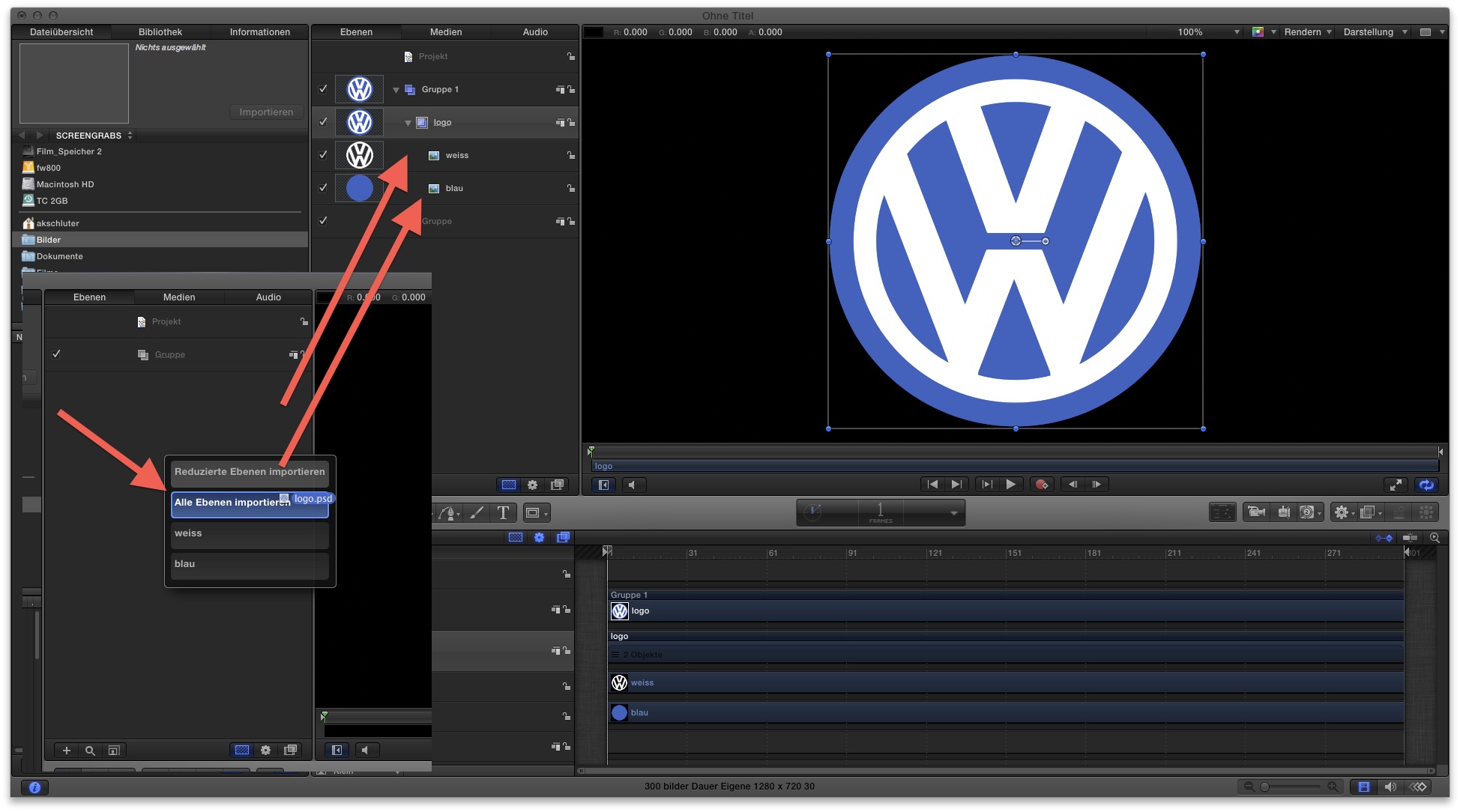

drag it into Motion5, it will prompt you, how to import - for sure, all layers, and as layers.



psd import.jpg



you see: two layers = two tracks.

actually, all flat.



so, set Group to 3D

apply a camera …

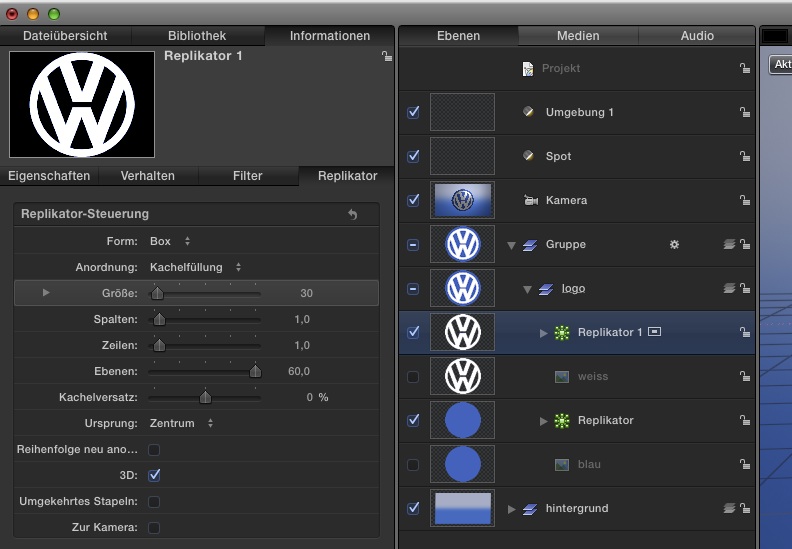

repeat steps for each track:

• select track, click L = repLicator

• check, track is '3d' …

• set Shape to Box - we want it 'thick'

• set Columns and Rows to '1' - we want just one logo

• set Ranks to, e.g. 60 - this is how often that layer will be repeated, the thicker, the higher the numbers

• set Size to, I like half of Ranks, this will 'melt' the replicated layers ......






you have to push one Replicator in the z-axis to separate the two 'blocks'.





for eye-candy, I added a gradient background, a global light, an off-centered spot-light, and a turn behavior:
