Lantronix EPSx-100 to ImageWriter II cable

Last modified: May 21, 2014 8:21 PM
1 1620 Last modified May 21, 2014 8:21 PM

Preliminary Document to be used for Reference only


Subject to change


Not to be used for fabrication

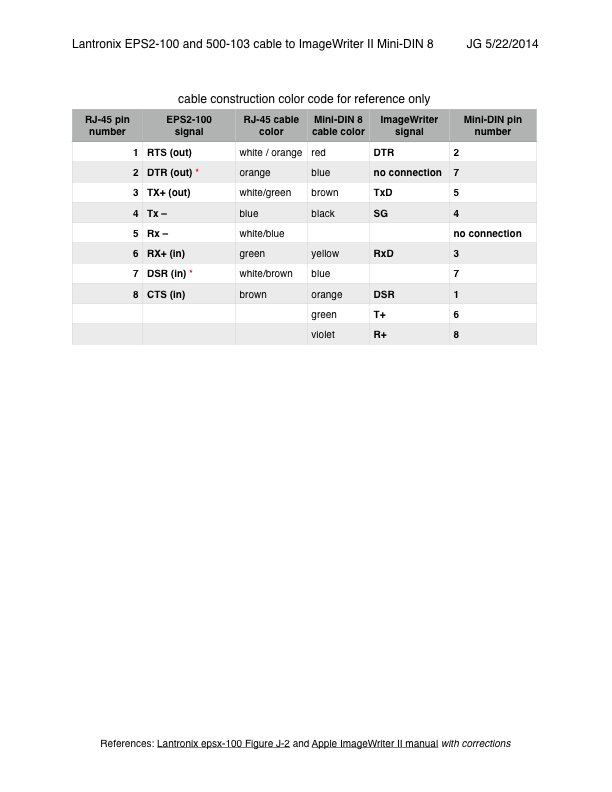

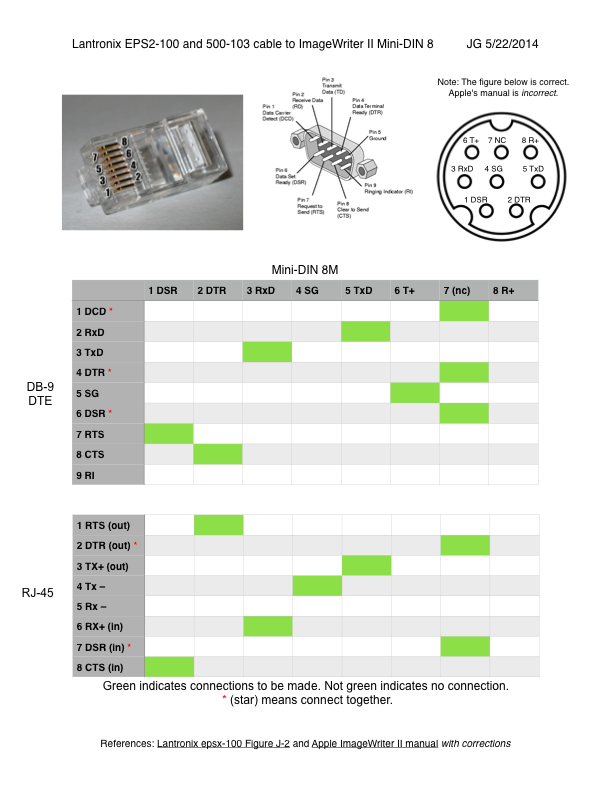

This drawing describes a serial data cable connection for the Lantronix EPS2-100 print server to an Apple ImageWriter II printer. Both a direct connection from the print server's serial port and a connection using the print server's cable part number 500-103 are described.


The print server uses an RJ-45 receptacle. The cable terminates in a DB-9F.




User uploaded file


User uploaded file


references


www.lantronix.com/pdf/epsx-100.pdf

manuals.info.apple.com/MANUALS/0/MA673/en_US/0302002IWIIUG.pdf


Note the Apple manual contains the incorrect pinout table. The correct version is shown in the above drawing.
