Lantronix WiBox WBX2100E to ImageWriter II Mini-DIN 8 cable

Last modified: Sep 6, 2025 4:38 PM
1 7311 Last modified Sep 6, 2025 4:38 PM

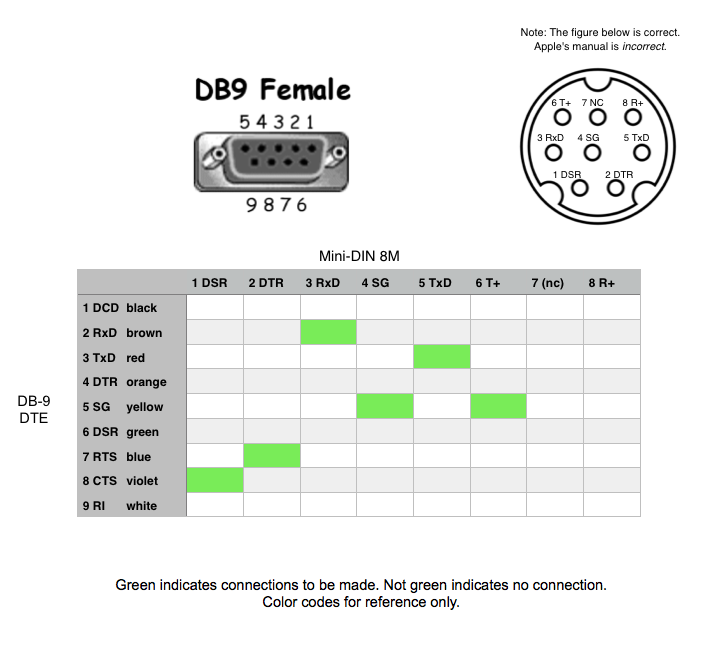

This drawing describes a serial data cable connection for the Lantronix WiBox 2100E serial device server to an Apple ImageWriter II printer.


References: Lantronix manual figure 2-5 and Apple documents below.


The Apple ImageWriter II manual is no longer available from Apple (broken link). Several archived versions are below:


https://archive.org/details/imagewriter-ii-guide


Note its reference to Figure D-1 is looking at the back of the computer. The figure above is for the cable that plugs into it. This document describes the cable. Other ImageWriter manuals (below) are unclear but it can be assumed they are also describing the back of the computer, so use caution.


https://archive.org/details/Apple_Image_Writer_II_Owners_Manual/mode/2up


Additional hard to find and potentially helpful ImageWriter II printer references:


https://mirrors.apple2.org.za/ftp.apple.asimov.net/documentation/hardware/printers/Apple%20ImageWriter%20II%20Technical%20Reference%20Manual.pdf


https://mirrors.apple2.org.za/Apple%20II%20Documentation%20Project/Peripherals/Printers/Apple%20ImageWriter%20II/Manuals/Apple%20ImageWriter%20II%20-%20Owner's%20Manual%20Text.pdf


Commercially available cable substitutes:


C2G (formerly Cables To Go) 25041 DB9 Female To 8-Pin Mini-DIN Serial RS232 Male Adapter Cable
