2017 iMac 27" Fusion Drive question

I just got a new (2017) 27" iMac with a 2TB Fusion drive. I can't find any evidence of there being an SSD component to the drive. All I see is the rotational HDD. Do I have an SSD component and how do I access and manage it?


System report under About this Mac shows:


Intel 10 Series Chipset:


  Vendor: Intel

  Product: 10 Series Chipset

  Link Speed: 6 Gigabit

  Negotiated Link Speed: 6 Gigabit

  Physical Interconnect: SATA


  Description: AHCI Version 1.31 Supported


APPLE HDD ST2000DM001:


  Capacity: 2 TB (2,000,398,934,016 bytes)

  Model: APPLE HDD ST2000DM001

  Revision: AQ03

  Serial Number: Z8E18KQ6

  Native Command Queuing: Yes

  Queue Depth: 32

  Removable Media: No

  Detachable Drive: No


  BSD Name: disk1


  Rotational Rate: 7200

  Medium Type: Rotational

  Partition Map Type: GPT (GUID Partition Table)

  S.M.A.R.T. status: Verified

  Volumes:


EFI:


  Capacity: 209.7 MB (209,715,200 bytes)

  File System: MS-DOS FAT32

  BSD Name: disk1s1

  Content: EFI

  Volume UUID: 0E239BC6-F960-3107-89CF-1C97F78BB46B


disk1s2:


  Capacity: 2 TB (2,000,189,177,856 bytes)

  BSD Name: disk1s2

  Content: Apple_APFS



Posted on Sep 8, 2019 11:51 AM

Reply
Question marked as Top-ranking reply

Posted on Sep 8, 2019 1:14 PM

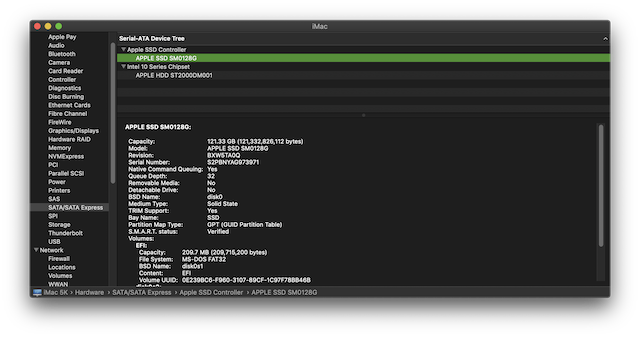

Funny, my spouse's late 2015 also did not show the SSD portion in "SATA/SATA express" under "About this Mac"

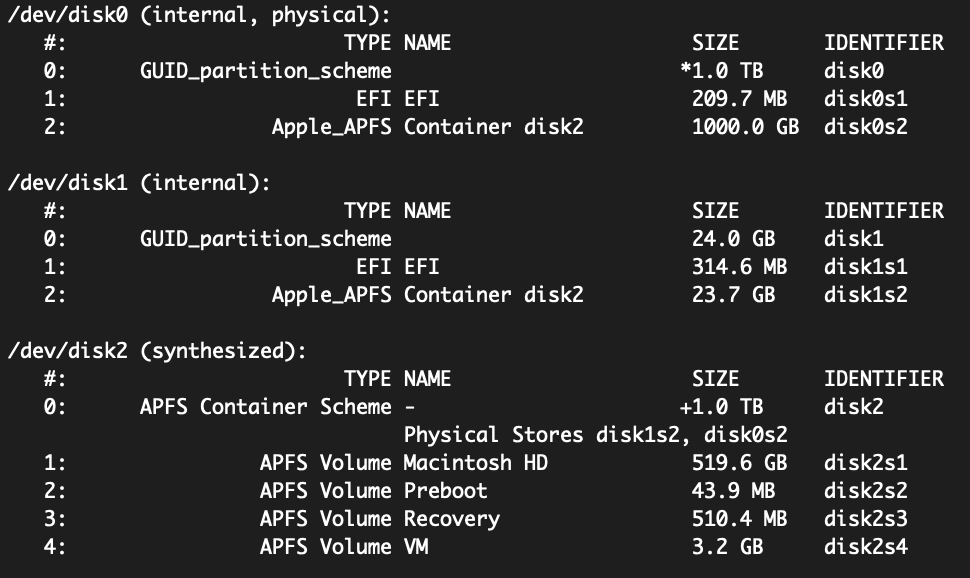

If you really want to know the SSD part/size, you can access via "terminal" by typing "diskutil list"


Disk0 will be the fusion drive -- contains disk1 as the SSD and disk2 as the 2T mechanical drive.


Sam


Similar questions

13 replies
Question marked as Top-ranking reply

Sep 8, 2019 1:14 PM in response to HMB Mac Guy

Funny, my spouse's late 2015 also did not show the SSD portion in "SATA/SATA express" under "About this Mac"


If you really want to know the SSD part/size, you can access via "terminal" by typing "diskutil list"


Disk0 will be the fusion drive -- contains disk1 as the SSD and disk2 as the 2T mechanical drive.


Sam


Sep 8, 2019 4:56 PM in response to samtenor

Thanks, Samtenor. This is what I got:


/dev/disk0 (internal):


   #:                       TYPE NAME                    SIZE       IDENTIFIER

   0:      GUID_partition_scheme                         121.3 GB   disk0

   1:                        EFI EFI                     314.6 MB   disk0s1

   2:                 Apple_APFS Container disk2         120.9 GB   disk0s2

/dev/disk1 (internal, physical):

   #:                       TYPE NAME                    SIZE       IDENTIFIER

   0:      GUID_partition_scheme                        *2.0 TB     disk1

   1:                        EFI EFI                     209.7 MB   disk1s1

   2:                 Apple_APFS Container disk2         2.0 TB     disk1s2



/dev/disk2 (synthesized):


   #:                       TYPE NAME                    SIZE       IDENTIFIER

   0:      APFS Container Scheme -                      +2.1 TB     disk2

                                 Physical Stores disk0s2, disk1s2

   1:                APFS Volume Macintosh HD            32.5 GB    disk2s1

   2:                APFS Volume Preboot                 45.2 MB    disk2s2

   3:                APFS Volume Recovery                510.4 MB   disk2s3

   4:                APFS Volume VM                      3.2 GB     disk2s4


Does this show an ssd?
