So, currently have an Airport Extreme has my wireless router. It is wired to my modem and has some decent coverage. I have access to another Airport Extreme, so my question is as follows. Can I used the second AE as an Access Point? Now, not sure if this matters the Access Point router can be wired to the main "WIRED" router if that help and or makes a difference. If so, which is the best way to go about this. Thank you.
Let's review what La Pastenague has advised.
1) Reset the extra AirPort Extreme that will be added to your network back to its default settings. To do this.....power up the AirPort Extreme and let it run for a minute. Then, hold in the reset button on the back of the AirPort Extreme for 7-8 seconds and release. Allow a full minute for the AirPort Extreme to restart to a slow, blinking amber light status.
2) Plug it from its WAN port to the main airport LAN port. So, you would connect an Ethernet cable from the WAN "O" port on the extra AirPort Extreme to one of the three LAN <--> ports on your main AirPort Extreme. Choose any of the three ports that you want.
3) Just run through the setup in the airport utility. To do this, you would.......
Open Airport Utility

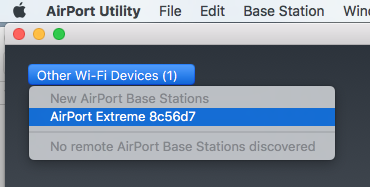

Click on the Other Wi-Fi Devices option
Click directly on AirPort Extreme

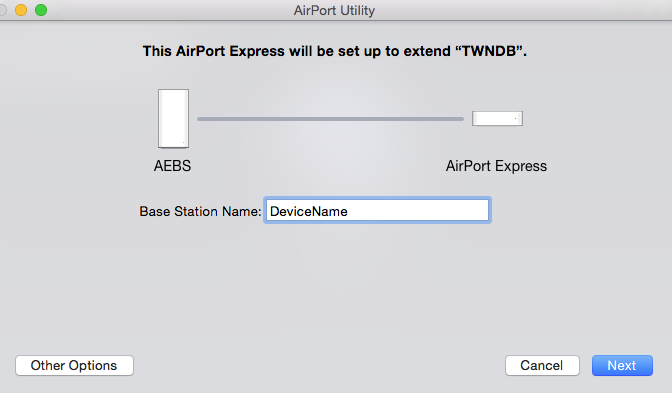

When you click on AirPort Extreme, that will start up the AirPort Utility setup "wizard". The wizard will take a few seconds to analyze the network and then display the correct setup with a screen that will look similar to the example below, except that you will see AirPort Extremes displayed and the name of your wireless network
Type in a device name that you want to call the extra AirPort Extreme. Example.......AirPort2
Click Next

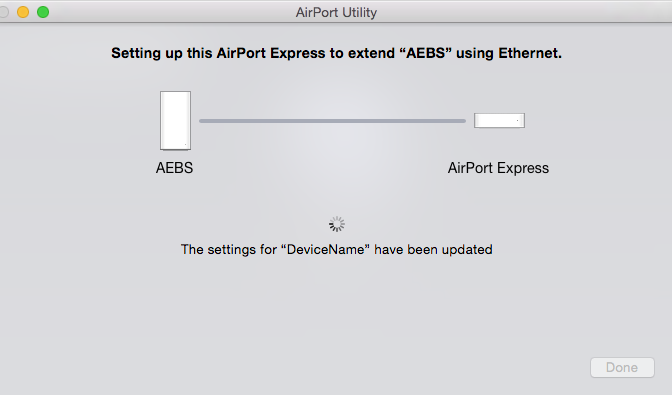

Watch the next screen very carefully to see that the AirPort Extreme is being configured to extend using Ethernet. This will confirm that the setup wizard is applying the correct settings to AirPort2.
When you see the message of Setup Complete, click Done.......and you are done.
Let's review what La Pastenague has advised.
1) Reset the extra AirPort Extreme that will be added to your network back to its default settings. To do this.....power up the AirPort Extreme and let it run for a minute. Then, hold in the reset button on the back of the AirPort Extreme for 7-8 seconds and release. Allow a full minute for the AirPort Extreme to restart to a slow, blinking amber light status.
2) Plug it from its WAN port to the main airport LAN port. So, you would connect an Ethernet cable from the WAN "O" port on the extra AirPort Extreme to one of the three LAN <--> ports on your main AirPort Extreme. Choose any of the three ports that you want.
3) Just run through the setup in the airport utility. To do this, you would.......
Open Airport Utility
Click on the Other Wi-Fi Devices option
Click directly on AirPort Extreme
When you click on AirPort Extreme, that will start up the AirPort Utility setup "wizard". The wizard will take a few seconds to analyze the network and then display the correct setup with a screen that will look similar to the example below, except that you will see AirPort Extremes displayed and the name of your wireless network
Type in a device name that you want to call the extra AirPort Extreme. Example.......AirPort2
Click Next
Watch the next screen very carefully to see that the AirPort Extreme is being configured to extend using Ethernet. This will confirm that the setup wizard is applying the correct settings to AirPort2.
When you see the message of Setup Complete, click Done.......and you are done.
You have reset to factory so you need to configure the second airport.

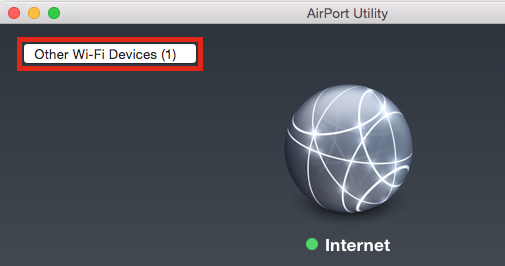

Configuration is pretty much automagical. The reconfigured AE shows up as Other WiFi Devices (1)
Click it
The airport utility then will suggest what it is going to do.. agree.
Even if it says wireless extend instead of extend by ethernet or wire.. just finish out the wizard and go back to fix it later.
If you get an error.. fairly common or the wrong selection .. unplug the ethernet from the second AE and we will fix it manually.. just tell us which step you get up to.
Yes, wired is much the best way.
Reset the extra Airport Extreme to factory. Then plug it from its WAN port to the main airport LAN port.
Just run through the setup in the airport utility and it should be able to extend by wire.. that means it will create a network of the same name and password as your main airport.
If you have issues ask.. we can give you more info on the setup.
Thanks for the reply. Not sure on what to do once in the airport utility. Thanks!
