Logic Pro X Midi Mapping

I have a drum midi track from Roland TD-11. When I import it into Logic by dragging and dropping, the drum kit So Cal is auto selected. A few questions:


a) some of the midi notes are not mapped.

b) How do I separate the individual parts of the drum into their own tracks. When I apply Separate by Midi Channel option, individual tracks are created but they are all linked. Turning the level down on one turns the level down on all tracks.

iMac with Retina 5K display, macOS 10.15

Posted on May 5, 2020 7:09 AM

Reply
Question marked as ⚠️ Top-ranking reply

Posted on May 5, 2020 4:06 PM

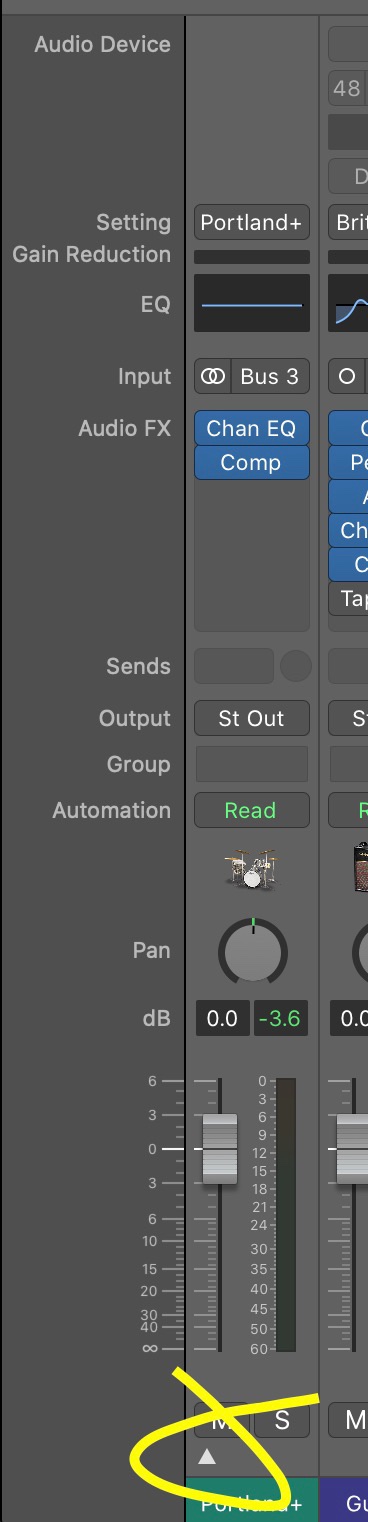

Thanks mate. That's a solution, though a better option is to use producer kits. However, it is not intuitive. So what you do is apply the producer kit and then in the mixer you will find a little arrow at the bottom of the channel strip. Click on it and voila, it opens up the (sub)mix to the kit.

Similar questions

4 replies
Sort By:
Question marked as ⚠️ Top-ranking reply

May 5, 2020 4:06 PM in response to Pancenter

Thanks mate. That's a solution, though a better option is to use producer kits. However, it is not intuitive. So what you do is apply the producer kit and then in the mixer you will find a little arrow at the bottom of the channel strip. Click on it and voila, it opens up the (sub)mix to the kit.

Reply

May 5, 2020 9:18 AM in response to makemywish

Because you're actually changing the level (Volume CC=7) down on the instrument not the note.


Try using velocity. If you don't split the midi track open it in the Piano Roll editor, click a corresponding not on the left side piano kybrd graphic and it selects all notes, then raise lower the velocity level.


Reply

May 5, 2020 9:29 AM in response to Pancenter

That would change the very character of the sound rather than the level. Surely there has to be some other way of achieving this. To borrow from live recording, when all the parts of the drum kit are mic-ed up, we can turn the level down on individual bits of the drum without impacting the character of the sound.

Reply
