Help with partition problem (Macbook Pro 13")

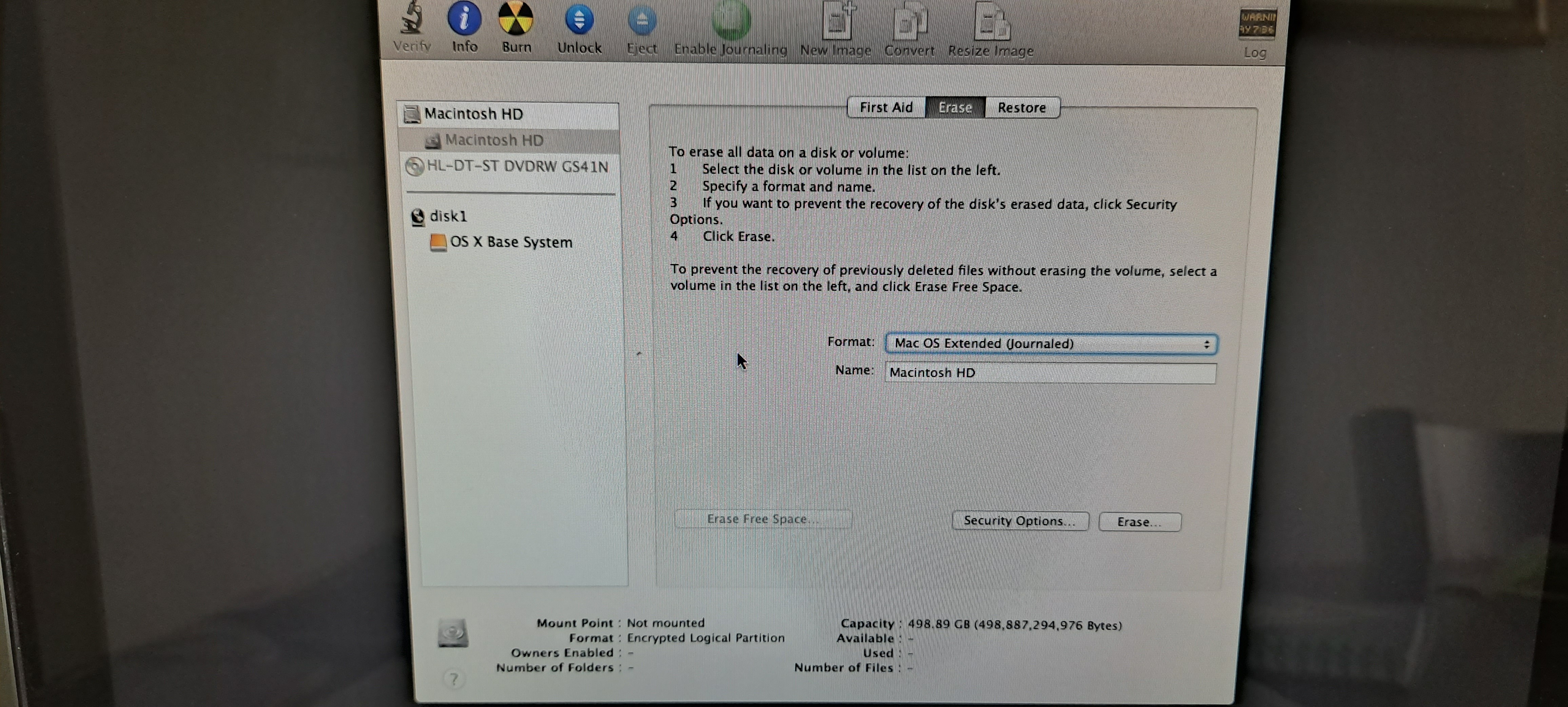

Hi, I am having trouble starting up my macbook pro 13". I followed the instructions I found in Google, but Disk Utility keeps telling me to repair the disk. I did, but it still gives me the same message.

I think there is a problem with partition, but I dont know what to do.


Posted on Sep 12, 2020 7:27 PM

Reply
Question marked as Top-ranking reply

Posted on Sep 13, 2020 8:21 PM

If you are referring to the Macintosh HD (indented) entry, then you need to reformat the drive. I'm not sure what version of OS X you have installed but I think this will do the trick: Note that you will select the physical drive entry (out-dented) that is the topmost entry.


Install Lion Through Yosemite from Scratch


If possible, back up your files.


  1. Restart the computer. Immediately, at or before the chime, hold down the Command and R keys until the Apple logo and progress bar appear. Wait until the Utility Menu appears. This is slower than a normal start, so be patient.
  2. Select Disk Utility from the main menu and click on the Continue button.
  3. After Disk Utility loads select the target drive (out-dented entry with the mfgr.'s ID and size) from the side list. . Click on the Erase button in Disk Utility's toolbar.
  4. Click on the Partition button in Disk Utility's toolbar.
  5. Set the number of partitions to one (1) from the Partition Scheme drop-down menu.
  6. Set the Format type to Mac OS Extended (Journaled.)
  7. Click on the Apply button.
  8. Quit Disk Utility after the process is completed.
  9. Select Install OS X from the Utility Menu, then click on the Continue button.



Similar questions

13 replies
Question marked as Top-ranking reply

Sep 13, 2020 8:21 PM in response to jungkim123

If you are referring to the Macintosh HD (indented) entry, then you need to reformat the drive. I'm not sure what version of OS X you have installed but I think this will do the trick: Note that you will select the physical drive entry (out-dented) that is the topmost entry.


Install Lion Through Yosemite from Scratch


If possible, back up your files.


  1. Restart the computer. Immediately, at or before the chime, hold down the Command and R keys until the Apple logo and progress bar appear. Wait until the Utility Menu appears. This is slower than a normal start, so be patient.
  2. Select Disk Utility from the main menu and click on the Continue button.
  3. After Disk Utility loads select the target drive (out-dented entry with the mfgr.'s ID and size) from the side list. . Click on the Erase button in Disk Utility's toolbar.
  4. Click on the Partition button in Disk Utility's toolbar.
  5. Set the number of partitions to one (1) from the Partition Scheme drop-down menu.
  6. Set the Format type to Mac OS Extended (Journaled.)
  7. Click on the Apply button.
  8. Quit Disk Utility after the process is completed.
  9. Select Install OS X from the Utility Menu, then click on the Continue button.



Sep 14, 2020 8:42 AM in response to jungkim123

OK. Stick with the physical, out-dented entry. Click on the Partition button. That should produce the Partition Scheme dropdown menu. It will also show the formatting selections, too.


I'm sorry for the confusion but there are different versions of Disk Utility, and I'm not always sure of the right directions for another's Disk Utility. Thank you for being patient with me.


Sep 14, 2020 6:32 PM in response to Kappy

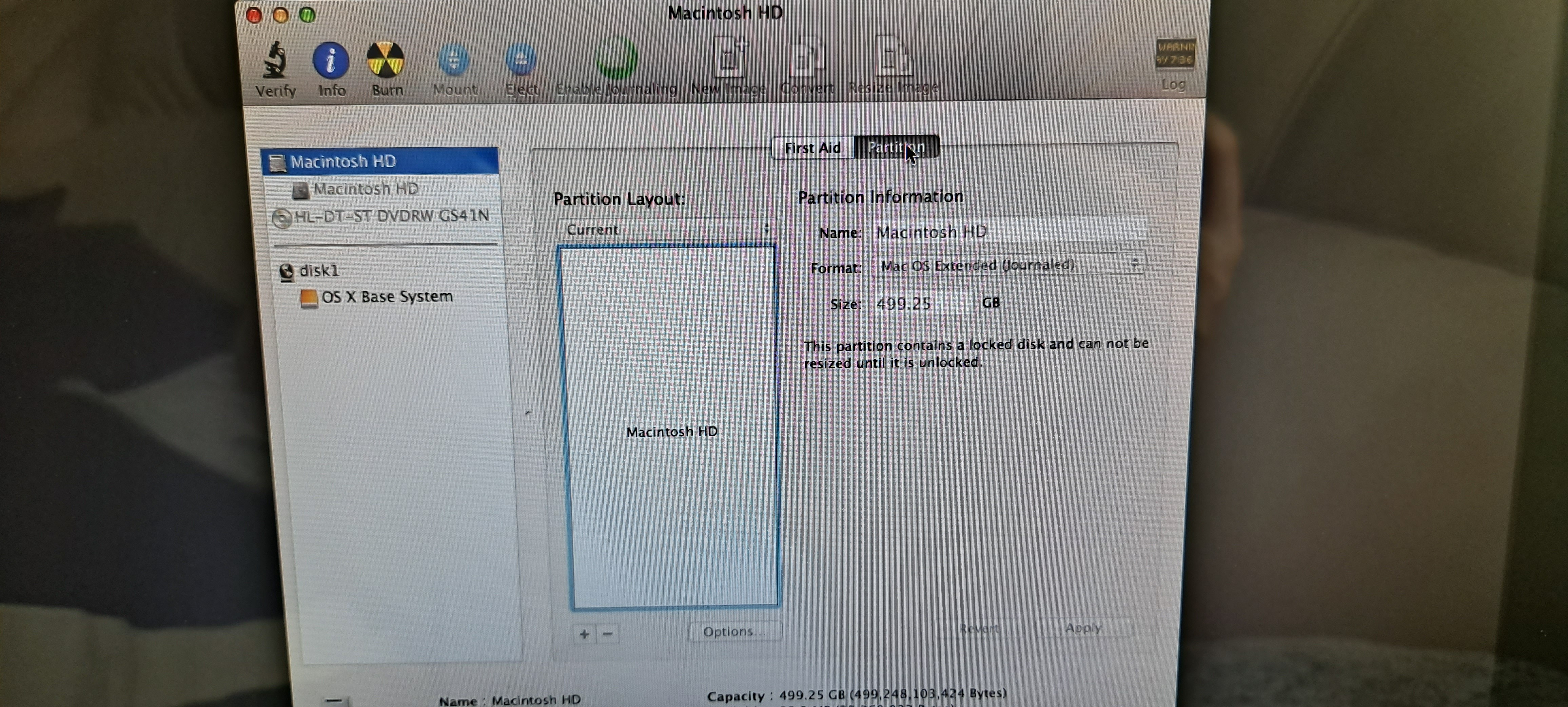

Unfortunately, I can't do anything in this Partition section... I can't click any of the buttons. Also, it says "the partition contains a locked disk and can not be resized until it is unlocked." My options are limited in the physical drive one.


Oh, you don't have to be sorry! You have been very helpful and patient. I highly appreciate your help and effort.
