screen will not fit external display

hello everyone.. I have a problem that i've been trying to fix for the last 2 weeks with no success.


I am trying to connect my MacBook Pro (purchased in 2019) to an external monitor (MSI Modern MD241 Series). but when the second display appears it does not fit the entire screen, leaving black borders.


I have tried changing the all the possible resolutions available in the display settings but it did not help. Its as if it doesn't know that the screen is bigger.


I have this issue with additional screens i tried to connect


when i try connecting a windows laptop there is no problem and the screen is properly filled.

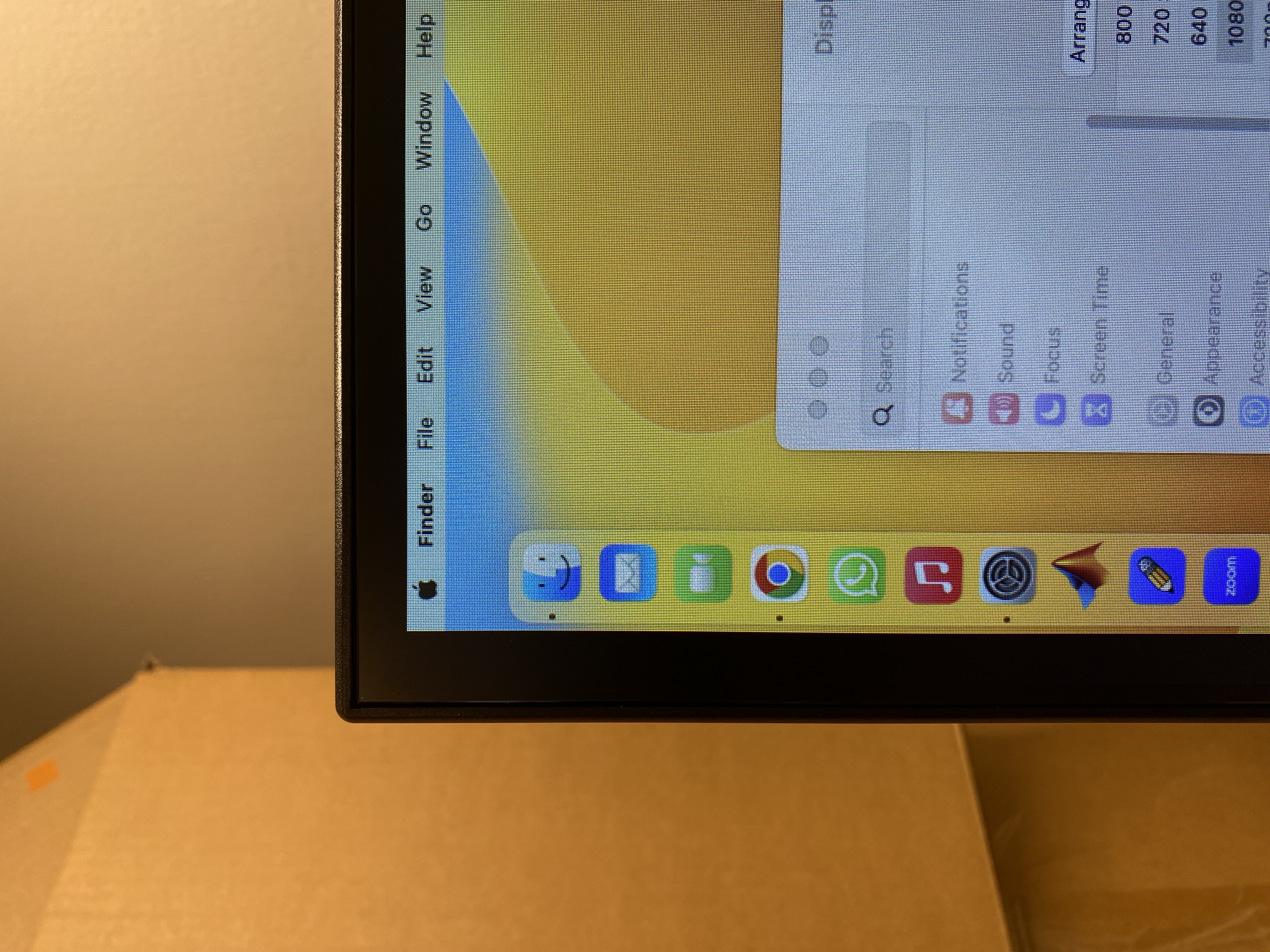

here are some pictures to showcase my problem



i will be very grateful if someone could help me resolve this



thank you :)

MacBook Pro (2017 – 2020)

Posted on May 12, 2023 1:45 AM

Reply

Similar questions

3 replies

May 14, 2023 5:39 PM in response to talkrava1997

Hi talkrava1997,


Check out the guidance below for the best steps to take:


"Check cables and connections

Make sure that your external display's power cable and video cable are connected securely and correctly at both ends. Learn more about how to connect a display to your Mac.

Your external display will be dark or use a lower resolution or refresh rate if your video cable or any adapter you may be using with it doesn't support the resolution and refresh rate of the display. If you're using a Thunderbolt or USB-C adapter, it must also be compliant with DisplayPort Alt Mode, Thunderbolt 3, or Thunderbolt 4.

If the display is connected to a Mac laptop computer with a closed lid, make sure that the Mac is connected to power and using an external keyboard and mouse.




Find out what your Mac supports

Your external display will be dark if it exceeds the maximum number of external displays that your Mac can use at the same time. This limit varies by Mac model.

Your external display will be dark or use a lower resolution or refresh rate if you configure it to exceed the maximum supported resolution or refresh rate. This limit varies by Mac model, display, the video cable and adapter used with the display, and the resolution and refresh rate of other connected displays. Learn what to do if your screen became dark after you changed its resolution or refresh rate.

To find out how many external displays your Mac supports, and at which resolutions and refresh rates, check the specifications for your Mac model:




Detect your display

If your Mac can't detect your external display, your external display will be dark. Use one or more of these steps to try again to detect your display.

  • Disconnect the display from your Mac, then reconnect it. It might help to turn off the display first.
  • Put your Mac to sleep, then wake it. On Mac laptop computers, you can close the lid for a few seconds, then open the lid again.
  • Choose Apple menu  > System Settings (or System Preferences), then click Displays. Press and hold the Option key to show the Detect Displays button, then click the button.
  • Restart your Mac. If you can't restart your Mac, press and hold its power button for about 10 seconds to turn it off. Then press and release the power button to turn it back on.




Allow your display to connect

When connecting a display to a Mac laptop computer with Apple silicon, your Mac might ask you to allow this accessory (your display) to connect. If you don't allow it to connect, your display remains dark. Learn more about allowing accessories to connect to Mac laptop computers.




Check display brightness

If your external display is dark, make sure that its brightness hasn't been turned down.

  • If your keyboard and external display are made by Apple, you can use the Brightness Up key  on the keyboard to increase brightness. Or choose Apple menu  > System Settings (or System Preferences), then click Displays and use the brightness control there.
  • If your external display is not made by Apple, you might need to use its built-in controls and menu system to adjust brightness. If you can't do that and your display is dark, the display might not have power, or it might be malfunctioning.




Update software

Software can affect display detection, the quality of the image on your display, and the resolutions and refresh rates available to your display.

  • Install the latest macOS updates, which also deliver firmware updates for displays made by Apple.
  • If your display is not made by Apple, make sure that it's using the latest firmware from the manufacturer. Check your display's documentation or the manufacturer's website for details.




If you still need help



If your external display is dark or low resolution - Apple Support


Cheers.


May 14, 2023 6:52 PM in response to talkrava1997

when you connect an external display, it may "Mirror" the built-in display. This is a Perfect synchronization between the two displays, such that BOTH are set to a computed 'compromise' resolution and BOTH are run at the same refresh rate from ONE display-generator

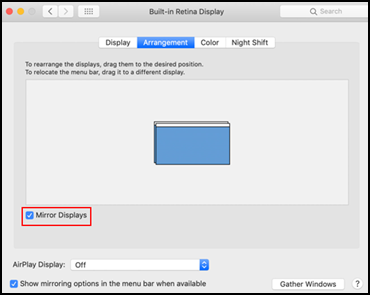

In this illustration, the TWO blue icons representing the TWO Mirrored displays are nearly co-incident.


May 14, 2023 6:56 PM in response to Grant Bennet-Alder

if you turn off Mirror displays, the two displays are allowed to have distinct resolutions, and are concatenated along an edge, which you can change. The mouse moves freely across the virtual boundary, and can carry a window with it. not that there are now TWO blue boxes, proprtional the resolution of each display, concatenated along an edge:




.
