Zooming in on data in an existing scatter plot

I have an existing scatter plot in numbers that represents a weight history. It has weight on the Y axis and the date on the X axis. It has several years worth of data. When lookin at the plot, I would like to "zoom in" on a smaller section of the plot so as to better see the data in a small date range and pick off the Y values. Is there a way to zoom in, for instance by drawing a zoom box around the desired data? Or is there a way to easily see the Y values on the plot? Excel allows this by hovering the cursor over a data point and it shows the XY data for that point. Thanks in advance.

Paul

MacBook Air (M2, 2023)

Posted on Mar 2, 2024 9:25 PM

Reply
Question marked as Top-ranking reply
User profile for user: Yellowbox
Yellowbox
User level: Level 7
21,915 points

Posted on Mar 3, 2024 2:40 AM

Hi Paul,


No. Numbers does not have a feature to show XY data when hovering over a point in a scatter plot.

There is a way to zoom in to a scatter plot by hiding the unwanted rows in the source table.

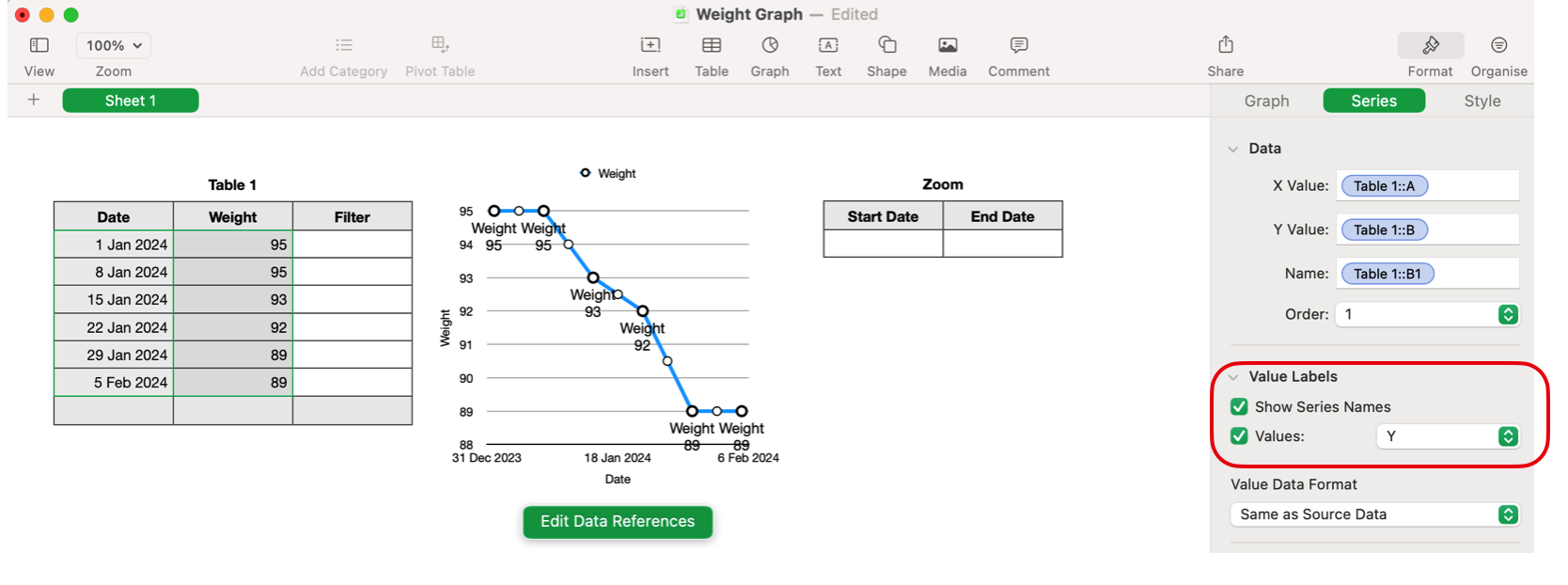

Some made-up data in Table 1. The scatter plot is created from the visible rows in Columns A and B.



Formula in Table 1 C2 is

IF(
OR(
Zoom::A$2="",Zoom::B$2=""),"",
 IF(
AND(A2≥Zoom::A$2,A2≤Zoom::B$2
),
"Show",""
)
)


Now enter Start and End dates into the Zoom table:



Apply a Filter to Table 1:



Have we zoomed in to a relevant part of the scatter plot?


Regards,

Ian.

View in context

Similar questions

3 replies
Question marked as Top-ranking reply
User profile for user: Yellowbox
Yellowbox
User level: Level 7
21,915 points

Mar 3, 2024 2:40 AM in response to Paul Wilke

Hi Paul,


No. Numbers does not have a feature to show XY data when hovering over a point in a scatter plot.

There is a way to zoom in to a scatter plot by hiding the unwanted rows in the source table.


Some made-up data in Table 1. The scatter plot is created from the visible rows in Columns A and B.



Formula in Table 1 C2 is

IF(
OR(
Zoom::A$2="",Zoom::B$2=""),"",
 IF(
AND(A2≥Zoom::A$2,A2≤Zoom::B$2
),
"Show",""
)
)


Now enter Start and End dates into the Zoom table:



Apply a Filter to Table 1:



Have we zoomed in to a relevant part of the scatter plot?


Regards,

Ian.
