AVB/EAV mode Network Disconnects in Mac Silicon

Question

AVB/EAV mode Network Disconnects in Mac Silicon

Network disconnects to ethernet connected NAS servers are a common problem.

AVB/EAV mode can cause network ethernet disconnects under certain circumstances.

First of all, what is it?

AVB/EAV provides synchronization and low latency for Audio and Video. Why? Collaboration between remote users. Examples - recording music with multiple users in remote locations - or Video Conferencing with Zoom Rooms. So if you are not performing these or similar activities, you can safely turn if off, or only turn it on when you need it.

How to enable and disable.

In System Setting choose Network. Now choose Ethernet from the right column and then click on Details at upper right. Choose Hardware at the bottom of the list on the left. In the right column set Configure to Manual. You can now enable or disable AVB/EAV mode with the button.

Mac mini (M4)

Posted on Dec 6, 2024 1:51 PM

Reply

Answer 1

Dec 17, 2024 11:30 PM in response to Fuller_Smith-1842

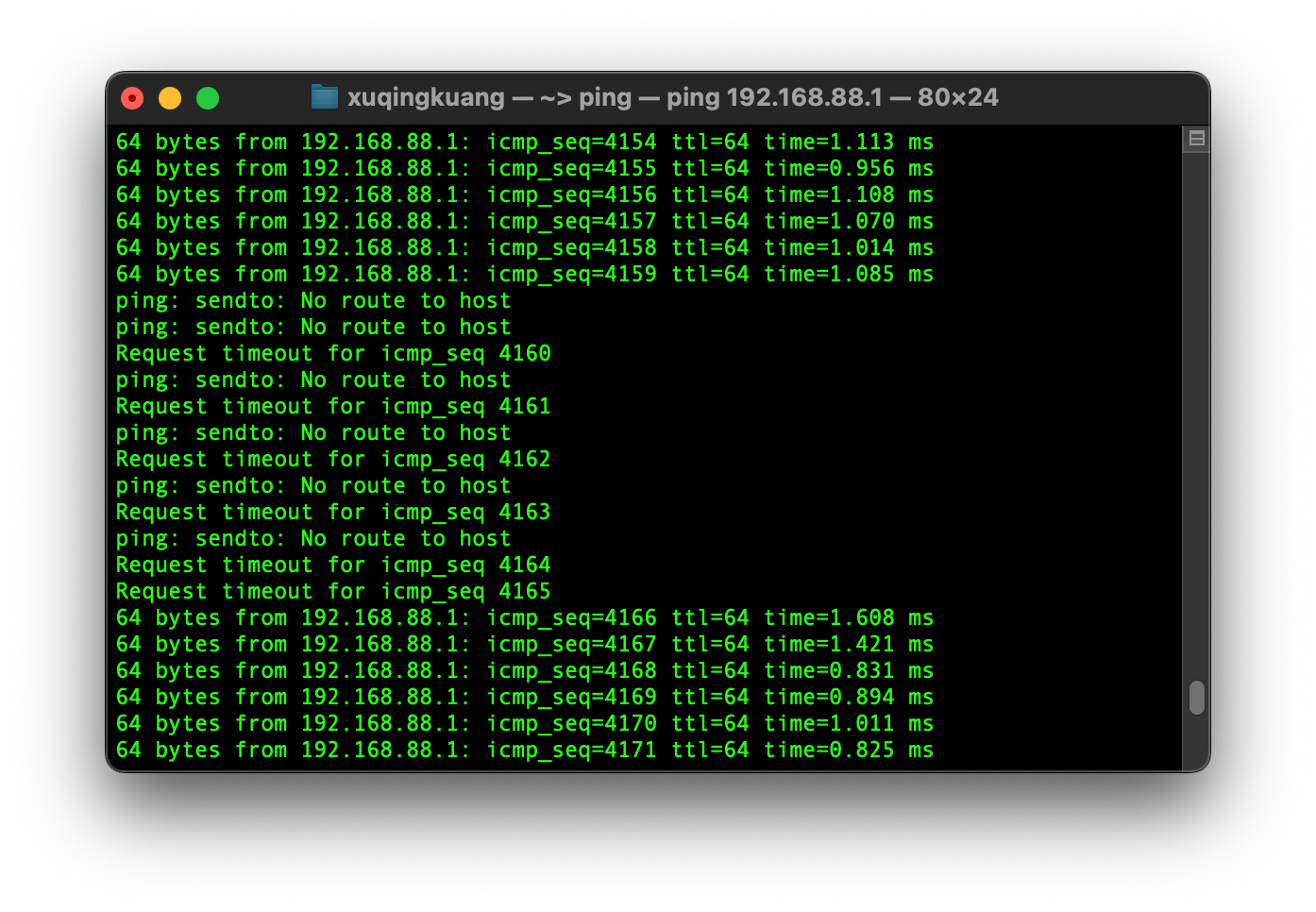

I encountered a similar issue. I had a Mac mini M4 with 10Gb Ethernet upgraded, and connected to a 2.5G switch, but the connection would randomly drop, and the Ethernet icon in system preferences was turned to red from green in a short period.

After disabling the AVB/EAV mode, everything looks fine so far.

Reply

Answer 2

Dec 18, 2024 12:03 AM in response to Fuller_Smith-1842

I have an experience where I have to keep AVB/EAV enabled to fix an issue where if I AirPlay from the Apple Music app on my MacStudio running Sequoia to HomePods the audio would stop after about 5 seconds. I would then start the AirPlay to HomePods again and the audio would again stop after 5 seconds. This was a repeatable issue every time I tried to AirPlay to HomePods.

Reply
