Can I install TWO Boot Camp Paritions for Windows on one drive?

I would backup or plan for a full reinstall and then it would be easy to have a Windows only drive with 2 or 3 separate Windows partitions.

And if you wanted - and could afford to - a 2nd SSD for Windows would also work.

Installing or booting Windows from USB-DVD is a 50/50, sometimes people manage, but not everyone, sometimes editing the plist in the driver or in Boot Camp Assistant works but never a 100% guarantee.

Format the 500GB drive with Windows DVD.

Restore the Windows system image you made before.

Install add'l versions.

You would do what people not just PCs but Mac Pro workstation where Windows resides on its own drive, no GPT and format with Windows, not Boot Camp Assistant even (but you could tell BCA to treat the drive as FAT, not that it buys you anything).

During install of Windows on 2nd drive you need to unplug the SSD so Windows does not see it and GPT is all. And may as well yes, put optical drive in unless or if USB-DVD gives you trouble.

When you moved Mac OS to SSD, did you format and install Lion? that would be ideal, then use Setup Assistant to import. Insures the SSD has Lion Recovery partition.

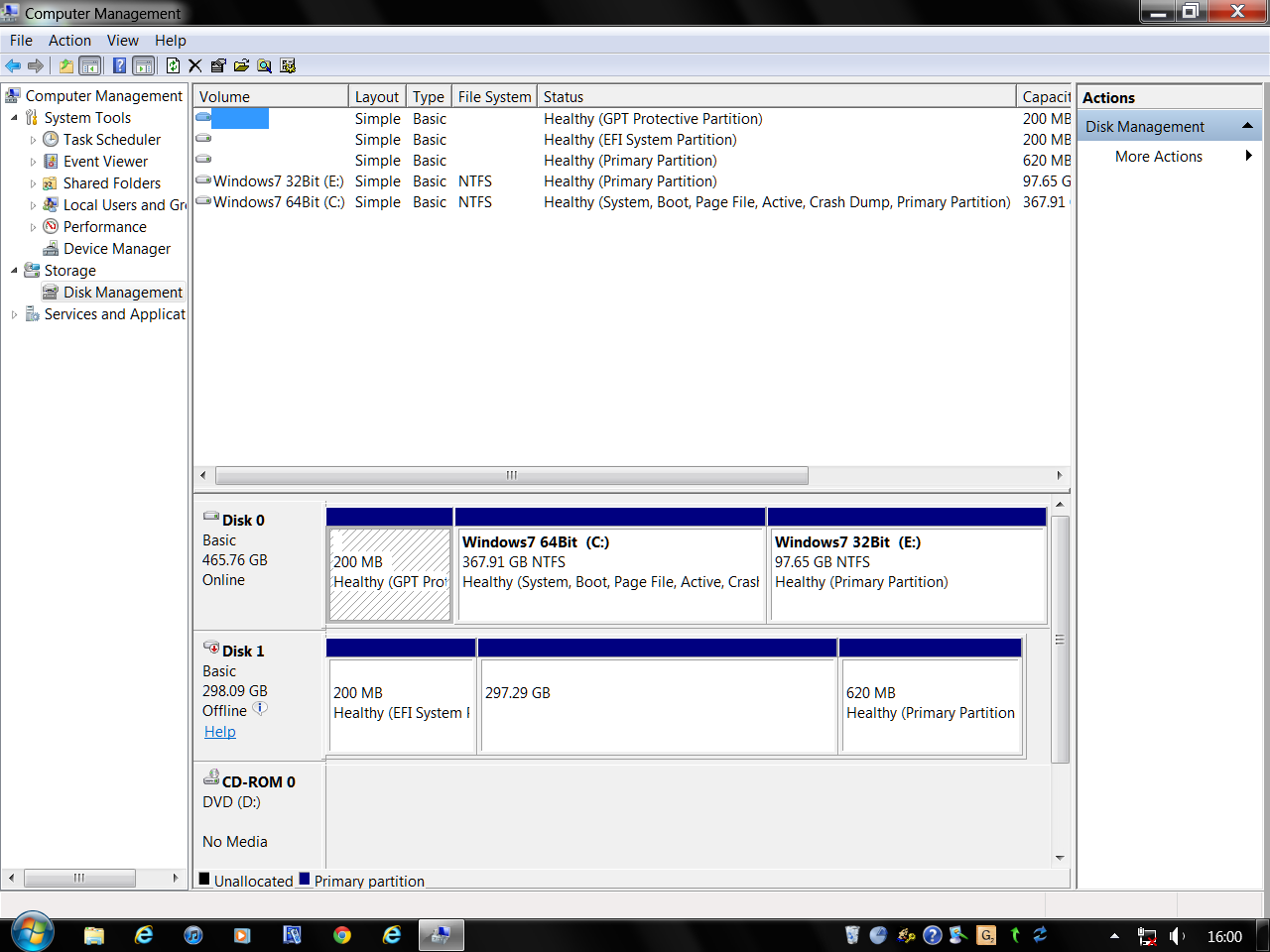

Already having C:Win 7 Pro 64bit, on a 2nd internal Mac Pro HD that was allocated to by Bootcamp, I recently installed Win 7 Home 32bit to a 100GB "Shrink" of the C: space using Windows "Disk Managament". Shrink is a mouse on the C: space right click drop-down menu option. You can then format & name the (E:) partition; reboot into Mac Option, selecting, in my case the Win 7 Home 32bit DVD.

With internet disabled after install I ran Bootcamp CD/DVD updates done against original Windows OS then ran previously downloaded 32bit Security Essentials, enabled the internet & did Windows update (~120 items).

When there are multiple Windows OS's, before you see the windows startup graphics, a choice menu is presented.

In my case, when in Lion, the Windows drive is (C:) same as before, but with less space in info view. This means that if I want to get someting from E: to Lion, I have to first copy it to C:

In your case, I think? you have to have to reallocate 500GB drive in Lion bootcamp since it thinks BC space is 120GB.

Then as Hatter says, {I think a) & b) can be done in same session}
a) Format the 500GB drive with Windows DVD.
b) Restore the Windows system image you made before with Windows DVD.

Install add'l versions.

Nice ot have screen shots.

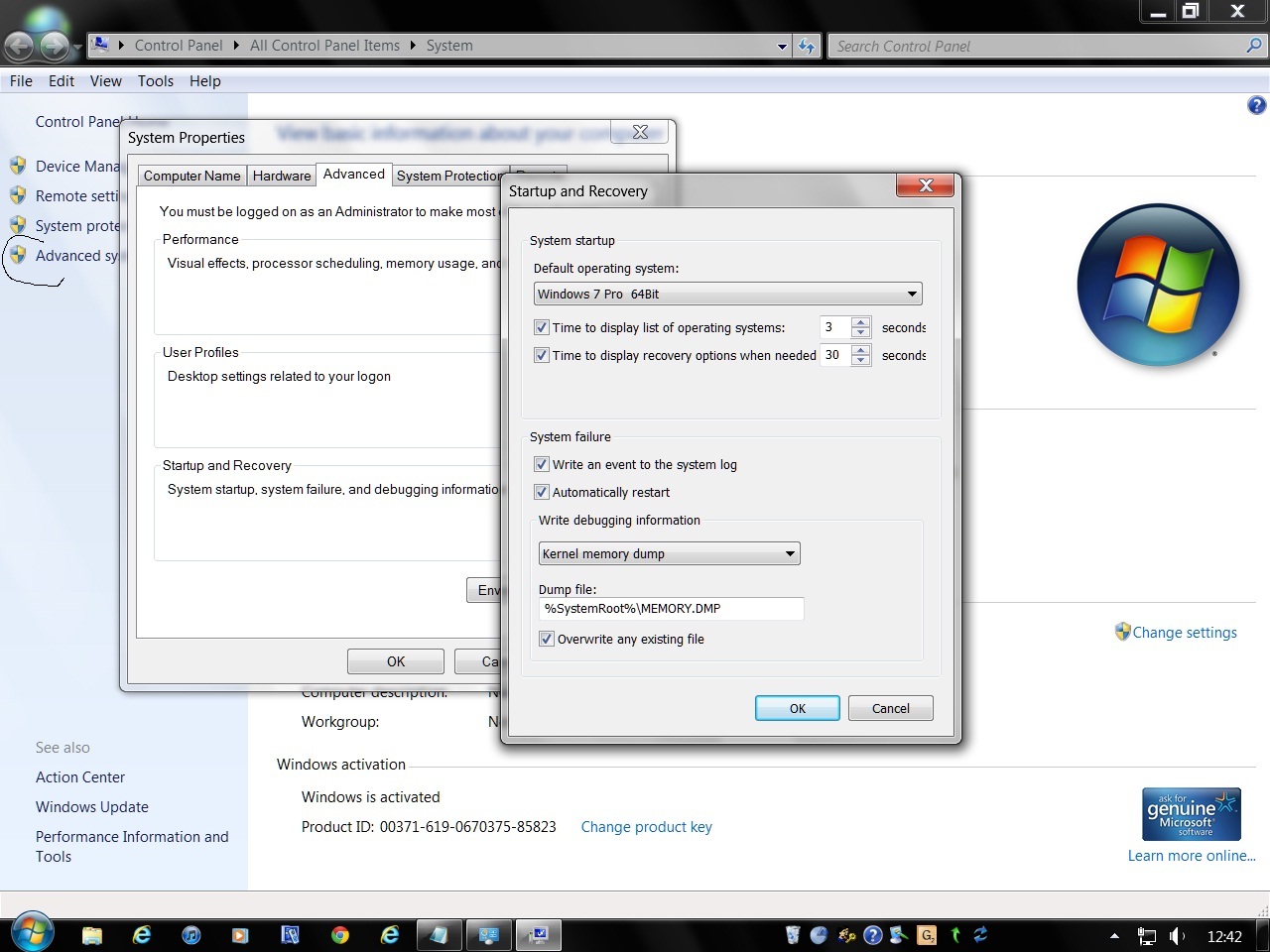

The Windows boot manager, if you go in and change it the pause can be very short and set that to the default Windows OS.

Then use Windows msconfig if you want to change the default or make the delay longer.

Yes you can shrink, though I would plan to just reformat and have 2-3 partitions and you may even be able to use Mac Startup Disk. The 2-3 partitions will also show on desktop, which doing it by shrink will not.

Thanks Hatter: I tried to edit pic just now, seeing my P. ID which should not be there and can not, nor do I see a way to remove it.
