essandess Level 1 Level 1 (0 points)

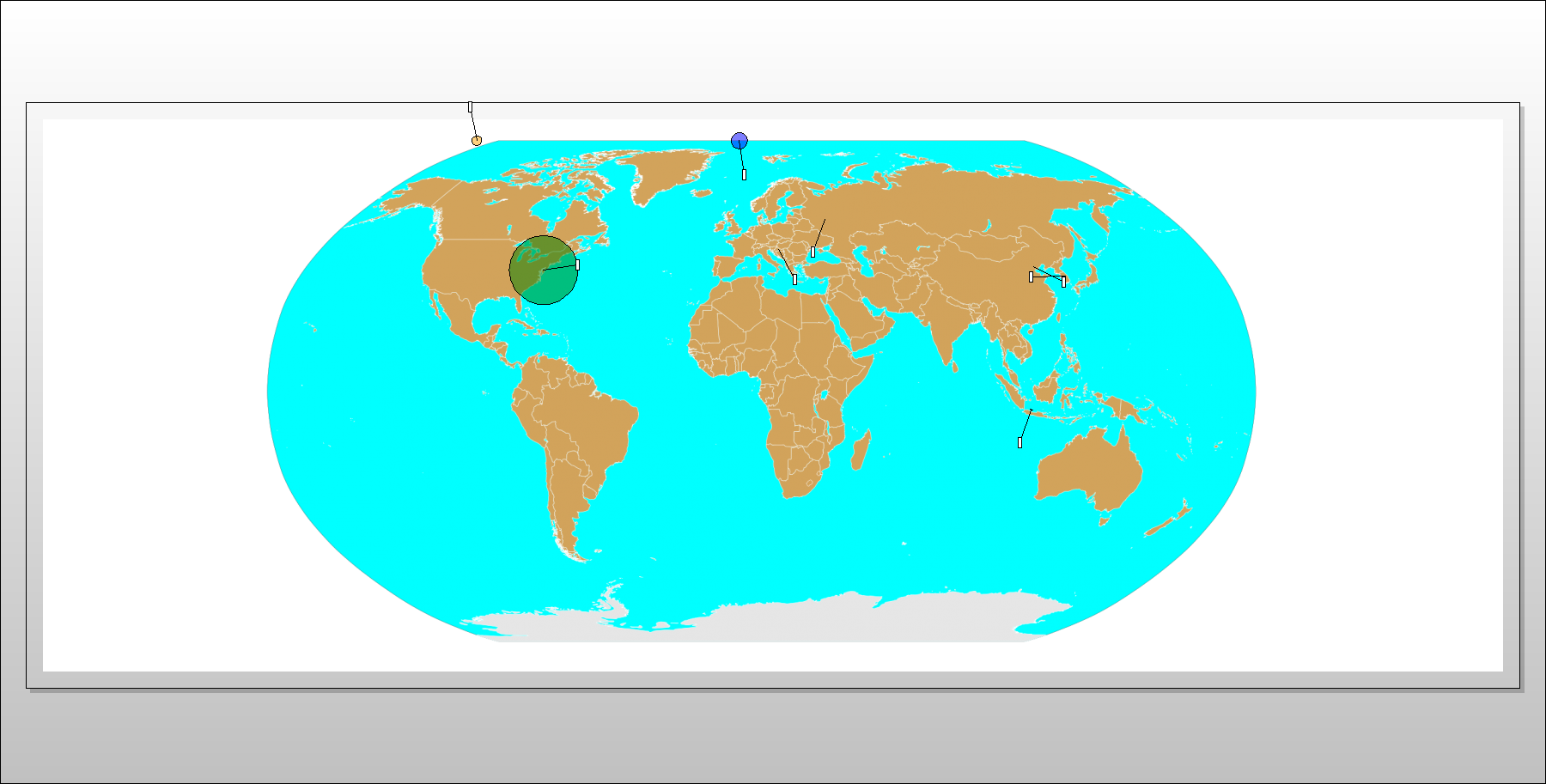

An intrusion prevention and detection system (IPS/IDS) is a must-have if you run a server. I've installed a snort/barnyard/base/swatch system on Mountain Lion OS X Server and post the step-by-step below. There are significant enough changes in both snort and and Mountain Lion that a thorough rework of the previous solution for Lion Server <https://discussions.apple.com/thread/3370709?start=0&tstart=0> is necessary.



Involved, but the payoff is an effective IPS/IDS that includes features like emailing Level I alerts to ad admin account and a World Map of attacks. Here's a map of attacks on my server occurring over the last couple days:






It's also possible to drill down and see, e.g., specific ssh attacks:



< Src IP address > FQDN Sensor # < Total # > < Unique Alerts > < Dest. Addr. >
       14.0.19.33      dcenter.cuocsongmoi.vn   1 2 1 1
       189.26.255.11      189.26.255.11.static.gvt.net.br   1 1 1 1
       112.116.125.138      138.125.116.112.broad.km.yn.dynamic.163data.com.cn   1 1 1 1
       175.136.230.54       Unable to resolve address    1 1 1 1
       10.0.1.114      sts-ipad.domainname.com   1 5 1 1
       90.80.92.217      217-92.80-90.static-ip.oleane.fr   1 1 1 1
       109.3.134.102      102.134.3.109.rev.sfr.net   1 1 1 1
       112.114.63.139      139.63.114.112.broad.km.yn.dynamic.163data.com.cn   1 2 1 1
       123.138.30.219       Unable to resolve address    1 9 1 1
       189.4.1.213      bd0401d5.ctb.static.virtua.com.br   1 1 1 1
       202.46.14.104       Unable to resolve address    1 10 1 1



This is what's being built:



snort: IPS/IDS that watches all packets on en0, saves alerts in its own database

barnyard: Asynchronously copies the snort alert database into a PostGreSQL db

base: Web interface viewer for the PostGreSQL db

swatch: Log file watcher for Level 1 alerts





Preliminaries



I'm assuming you've installed Xcode and MacPorts for Lion. I use vi to edit, others prefer nano or emacs. Your choice.





Snort and Barnyard



# Build snort -- see http://www.snort.org/snort-downloads for latest versions



# Do NOT use macports snort or base, but DO use snort's dependencies from macports

sudo port install daq libdnet

curl -O -L http://www.snort.org/dl/snort-current/snort-2.9.3.1.tar.gz

curl -O -L http://www.snort.org/dl/snort-current/snort-2.9.3.1.tar.gz.sig

gpg --verify snort-2.9.3.1.tar.gz.sig snort-2.9.3.1.tar.gz

tar xzfvp ./snort-2.9.3.1.tar.gz

cd snort-2.9.3.1

./configure --enable-ipv6 --enable-gre --enable-mpls --enable-targetbased --enable-decoder-preprocessor-rules --enable-ppm --enable-perfprofiling --enable-zlib --enable-active-response --enable-normalizer --enable-reload --enable-react --enable-flexresp3

make && sudo make install



# Use latest rules from snort.org



# Register at snort.org and download latest ruleset: snortrules-snapshot-2931.tar.gz, snortrules-snapshot-2931.tar.gz.md5.txt

openssl md5 snortrules-snapshot-2931.tar.gz

cat snortrules-snapshot-2931.tar.gz.md5

tar -xzvf snortrules-snapshot-2931.tar.gz

sudo rsync -va --del ./etc /etc/snort

sudo rsync -va --del ./preproc_rules /etc/snort

sudo rsync -va --del ./rules /etc/snort

sudo rsync -va --del ./so_rules /etc/snort

sudo chown -R root:wheel /etc/snort





# Modify snort.conf and syslog.conf



sudo vi /etc/snort/snort.conf



var RULE_PATH rules

var SO_RULE_PATH so_rules

var PREPROC_RULE_PATH preproc_rules

var WHITE_LIST_PATH /etc/snort/rules

var BLACK_LIST_PATH /etc/snort/rules

preprocessor sfportscan: proto  { all } \

                         memcap { 10000000 } \

                         scan_type { all } \

                         sense_level { low }

output unified2: filename snort.u2, limit 128

include $RULE_PATH/file-office.rules

include $RULE_PATH/file-other.rules

include $RULE_PATH/file-pdf.rules

include $RULE_PATH/indicator-compromise.rules

include $RULE_PATH/indicator-obfuscation.rules

include $RULE_PATH/policy-multimedia.rules

include $RULE_PATH/policy-other.rules

include $RULE_PATH/policy-social.rules

include $RULE_PATH/pua-p2p.rules

include $RULE_PATH/pua-toolbars.rules

include $RULE_PATH/server-mail.rules

include $PREPROC_RULE_PATH/preprocessor.rules

include $PREPROC_RULE_PATH/decoder.rules

include $PREPROC_RULE_PATH/sensitive-data.rules

include $SO_RULE_PATH/bad-traffic.rules

include $SO_RULE_PATH/chat.rules

include $SO_RULE_PATH/dos.rules

include $SO_RULE_PATH/exploit.rules

include $SO_RULE_PATH/icmp.rules

include $SO_RULE_PATH/imap.rules

include $SO_RULE_PATH/misc.rules

include $SO_RULE_PATH/multimedia.rules

include $SO_RULE_PATH/netbios.rules

include $SO_RULE_PATH/nntp.rules

include $SO_RULE_PATH/p2p.rules

include $SO_RULE_PATH/smtp.rules

include $SO_RULE_PATH/snmp.rules

include $SO_RULE_PATH/specific-threats.rules

include $SO_RULE_PATH/web-activex.rules

include $SO_RULE_PATH/web-client.rules

include $SO_RULE_PATH/web-iis.rules

include $SO_RULE_PATH/web-misc.rules



sudo touch /etc/snort/rules/white_list.rules

sudo touch /etc/snort/rules/black_list.rules



sudo mkdir /usr/local/lib/snort_dynamicrules



# Create org.snort.Snort.plist

sudo vi /Library/LaunchDaemons/org.snort.Snort.plist



<?xml version="1.0" encoding="UTF-8"?>

<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">

<plist version="1.0">

<dict>

    <key>Label</key>

    <string>org.snort.Snort</string>

    <key>KeepAlive</key>

    <true/>

    <key>RunAtLoad</key>

    <true/>

    <key>ProgramArguments</key>

    <array>

        <string>/usr/local/bin/snort</string>

        <string>-D</string>

        <string>-d</string>

        <string>-e</string>

        <string>-i</string>

        <string>en0</string>

        <string>-c</string>

        <string>/etc/snort/snort.conf</string>

    </array>

    <key>ServiceDescription</key>

    <string>Snort Ethernet</string>

</dict>

</plist>



# Create snort user. The intention is to let user snort have access only to the snort database.



sudo createuser -U _postgres -P snort



Password:

Enter password for new role:

Enter it again:

Shall the new role be a superuser? (y/n) n

Shall the new role be allowed to create databases? (y/n) n

Shall the new role be allowed to create more new roles? (y/n) n





# Create snort PostgreSQL database owned by user snort and has all owner privileges for to-be-created database snort



sudo createdb -U _postgres -O snort -W snort

cd /usr/local/pgsql

sudo psql -U snort snort < ./create_postgresql



# To clean up tests, errors: $ sudo serveradmin stop postgres ; sudo serveradmin start postgres ; sudo dropdb -U _postgres snort

# inspect snort PostgreSQL database

sudo psql -q -d snort snort --password



snort=# \d



# check the tables, indices, privileges, etc.

sudo psql -q -d snort _postgres --password

snort=# \dt

snort=# \dp



# Mountain Lion: Tell postgres to listen on 127.0.0.1

sudo serveradmin settings postgres:listen_addresses = "127.0.0.1" && sudo serveradmin stop postgres && sudo serveradmin start postgres

sudo serveradmin settings postgres:hba_file = /Library/Server/PostgreSQL/Config/pg_hba.conf && sudo serveradmin stop postgres && sudo serveradmin start postgres



sudo vi /Library/Server/PostgreSQL/Config/pg_hba.conf

# Append these lines:



# Admin added dbs

host    snort           snort           127.0.0.1/32            password



# Restart postgresql on OS X Server

sudo serveradmin status postgres

sudo serveradmin stop postgres

sudo serveradmin start postgres

sudo less /Library/Logs/PostgreSQL/PostgreSQL.log

ps -ef | grep postgres | grep -v grep

nmap -p 5432 localhost



Starting Nmap 6.01 ( http://nmap.org ) at 2012-10-28 06:34 EDT

Nmap scan report for localhost (127.0.0.1)

Host is up (0.00012s latency).

PORT     STATE SERVICE

5432/tcp open  postgresql



# Sanity check that snort can connect to the database with non-daemon call

sudo /usr/local/bin/snort -d -e -i en0 -c /etc/snort/snort.conf



# Success looks like:



        --== Initialization Complete ==--



   ,,_     -*> Snort! <*-

  o"  )~   Version 2.9.3.1 IPv6 GRE (Build 40)

   ''''    By Martin Roesch & The Snort Team: http://www.snort.org/snort/snort-team

           Copyright (C) 1998-2012 Sourcefire, Inc., et al.

           Using libpcap version 1.3.0

           Using PCRE version: 8.31 2012-07-06

           Using ZLIB version: 1.2.7



           Rules Engine: SF_SNORT_DETECTION_ENGINE  Version 1.16  <Build 18>

           Preprocessor Object: SF_SSLPP (IPV6)  Version 1.1  <Build 4>

           Preprocessor Object: SF_SSH (IPV6)  Version 1.1  <Build 3>

           Preprocessor Object: SF_SMTP (IPV6)  Version 1.1  <Build 9>

           Preprocessor Object: SF_SIP (IPV6)  Version 1.1  <Build 1>

           Preprocessor Object: SF_SDF (IPV6)  Version 1.1  <Build 1>

           Preprocessor Object: SF_REPUTATION (IPV6)  Version 1.1  <Build 1>

           Preprocessor Object: SF_POP (IPV6)  Version 1.0  <Build 1>

           Preprocessor Object: SF_MODBUS (IPV6)  Version 1.1  <Build 1>

           Preprocessor Object: SF_IMAP (IPV6)  Version 1.0  <Build 1>

           Preprocessor Object: SF_GTP (IPV6)  Version 1.1  <Build 1>

           Preprocessor Object: SF_FTPTELNET (IPV6)  Version 1.2  <Build 13>

           Preprocessor Object: SF_DNS (IPV6)  Version 1.1  <Build 4>

           Preprocessor Object: SF_DNP3 (IPV6)  Version 1.1  <Build 1>

           Preprocessor Object: SF_DCERPC2 (IPV6)  Version 1.0  <Build 3>

Commencing packet processing (pid=69660)



# Tweak snort to limit and/or ignore false alarms (after a day or so of collecting stats)

# /etc/snort/threshold.conf: add these lines to end

sudo vi /etc/snort/threshold.conf



# domainname.com rules

# See http://taosecurity.blogspot.com/2006/08/more-snort-and-sguil-tuning.html

# How to find the gid, sid: $ grep "Reset" /etc/snort/*.map

# Confirm at http://snortid.com/, e.g.



# To clear and restart the snort/barnyard/BASE system:

# $ sudo SystemStarter stop Swatch

# $ ps -ef | grep tail | grep -v grep    # kill -9 all Swatch's tail processes

# $ sudo launchctl unload -w /Library/LaunchDaemons/org.opensource.barnyard.plist

# $ sudo launchctl unload -w /Library/LaunchDaemons/org.snort.Snort.plist

# BASE > Cache & Status > Database: Clear Data Tables

# $ sudo rm /var/log/snort/snort.u2*

# $ sudo rm /etc/barnyard2/barnyard2.waldo

# $ sudo launchctl load -w /Library/LaunchDaemons/org.snort.Snort.plist

# $ sudo launchctl load -w /Library/LaunchDaemons/org.opensource.barnyard.plist

# $ sudo SystemStarter start Swatch



# Other, more drastic methods

# BASE > Cache & Status > Database: Clear Data Tables

# $ sudo SystemStarter stop Swatch && sudo serveradmin stop postgres && sudo launchctl unload -w /Library/LaunchDaemons/org.snort.Snort.plist

# $ ps -ef | grep snort | grep -v grep

# ### $ sudo rm /var/log/snort/*

# $ sudo serveradmin start postgres && sudo serveradmin status postgres

# sudo launchctl load -w /Library/LaunchDaemons/org.snort.Snort.plist

# $ sudo SystemStarter start Swatch



# 128 || 4 || ssh: Protocol mismatch

event_filter gen_id 128, sig_id 4, type limit, track by_src, count 1, seconds 180



# 129 || 4 || stream5: TCP Timestamp is outside of PAWS window

event_filter gen_id 129, sig_id 4, type limit, track by_src, count 1, seconds 180



# 129 || 15 || stream5: Reset outside window

event_filter gen_id 129, sig_id 15, type limit, track by_src, count 1, seconds 180

suppress gen_id 129, sig_id 15, track by_src, ip 10.0.1.0/24



# 399 || ICMP Destination Unreachable Host Unreachable

event_filter gen_id 1, sig_id 399, type limit, track by_src, count 1, seconds 180



# 408 || ICMP Echo Reply

event_filter gen_id 1, sig_id 408, type limit, track by_src, count 1, seconds 180



# 648 || SHELLCODE x86 NOOP || arachnids,181

event_filter gen_id 1, sig_id 648, type limit, track by_src, count 1, seconds 180

suppress gen_id 1, sig_id 648, track by_src, ip 10.0.1.2

suppress gen_id 1, sig_id 648, track by_src, ip 169.254.0.0/16



# 1390 || SHELLCODE x86 inc ebx NOOP

event_filter gen_id 1, sig_id 1390, type limit, track by_src, count 1, seconds 180

suppress gen_id 1, sig_id 1390, track by_src, ip 10.0.1.2

suppress gen_id 1, sig_id 1390, track by_src, ip 169.254.0.0/16



# 1394 || SHELLCODE x86 inc ecx NOOP

event_filter gen_id 1, sig_id 1394, type limit, track by_src, count 1, seconds 180

suppress gen_id 1, sig_id 1394, track by_src, ip 10.0.1.2

suppress gen_id 1, sig_id 1394, track by_src, ip 169.254.0.0/16



# 12798 || SHELLCODE base64 x86 NOOP

event_filter gen_id 1, sig_id 12798, type limit, track by_src, count 1, seconds 180

suppress gen_id 1, sig_id 12798, track by_src, ip 10.0.1.2

suppress gen_id 1, sig_id 12798, track by_src, ip 169.254.0.0/16



# 12799 || SHELLCODE base64 x86 NOOP

event_filter gen_id 1, sig_id 12799, type limit, track by_src, count 1, seconds 180

suppress gen_id 1, sig_id 12799, track by_src, ip 10.0.1.2

suppress gen_id 1, sig_id 12799, track by_src, ip 169.254.0.0/16



# 12800 || SHELLCODE base64 x86 NOOP

event_filter gen_id 1, sig_id 12800, type limit, track by_src, count 1, seconds 180

suppress gen_id 1, sig_id 12800, track by_src, ip 10.0.1.2

suppress gen_id 1, sig_id 12800, track by_src, ip 169.254.0.0/16



# 12801 || SHELLCODE base64 x86 NOOP

event_filter gen_id 1, sig_id 12801, type limit, track by_src, count 1, seconds 180

suppress gen_id 1, sig_id 12801, track by_src, ip 10.0.1.2

suppress gen_id 1, sig_id 12801, track by_src, ip 169.254.0.0/16



# 12802 || SHELLCODE base64 x86 NOOP

event_filter gen_id 1, sig_id 12802, type limit, track by_src, count 1, seconds 180

suppress gen_id 1, sig_id 12802, track by_src, ip 10.0.1.2

suppress gen_id 1, sig_id 12802, track by_src, ip 169.254.0.0/16





Barnyard2



# Build barnyard2 -- see http://www.securixlive.com/barnyard2/download.php

curl -O -L http://www.securixlive.com/download/barnyard2/barnyard2-1.9.tar.gz

curl -O -L http://www.securixlive.com/download/barnyard2/org.opensource.barnyard.plist

openssl md5 barnyard2-1.9.tar.gz

openssl md5 org.opensource.barnyard.plist

cd barnyard2-1.9

./configure

make && sudo make install



# Configure barnyard2

sudo vi /etc/barnyard2/barnyard2.conf



config logdir: /var/log/barny

config hostname:    myhostname

config interface:    eth0

output alert_syslog

output database: log, postgresql, user=snort password=snort_db_password_used_above dbname=snort host=localhost



# Create org.opensource.barnyard.plist

sudo vi /Library/LaunchDaemons/org.opensource.barnyard.plist



<?xml version="1.0" encoding="UTF-8"?>

<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">

<plist version="1.0">

<dict>

    <key>KeepAlive</key>

    <true/>

    <key>Label</key>

    <string>org.opensource.barnyard.plist</string>

    <key>ProgramArguments</key>

    <array>

        <string>/usr/local/bin/barnyard2</string>

        <string>-c</string>

        <string>/etc/barnyard2/barnyard2.conf</string>

        <string>-n</string>

        <string>-d</string>

        <string>/var/log/snort</string>

        <string>-f</string>

        <string>snort.u2</string>

        <string>-w</string>

        <string>/etc/barnyard2/barnyard2.waldo</string>

    </array>

</dict>

</plist>



Base



# Download from http://sourceforge.net/projects/secureideas/

# don't use Macports base -- currently 5 years out-of-date



tar xvzf base-1.4.5.tar.gz

sudo rsync -va --del ./base-1.4.5 /etc/base



# install adodb5 , PEAR

sudo port self update ; sudo port install adodb5 pear-Graph



# Add a bunch of PHP symlinks to base for graphing/mapping



cd /etc/base

sudo ln -s /opt/local/lib/php/pear/Console Console

sudo ln -s /opt/local/lib/php/pear/Image Image

sudo ln -s /opt/local/lib/php/pear/OS OS

sudo ln -s /opt/local/lib/php/pear/PEAR PEAR

sudo ln -s /opt/local/lib/php/pear/PEAR.php PEAR.php

sudo ln -s /opt/local/lib/php/pear/PHPUnit PHPUnit

sudo ln -s /opt/local/lib/php/pear/Structures Structures

sudo ln -s /opt/local/lib/php/pear/System.php System.php

sudo ln -s /opt/local/lib/php/pear/XML XML





# Add base schema to database snort



cd /etc/base/sql

sudo psql -U snort snort < ./create_base_tbls_pgsql.sql



# Configure base

sudo vi /etc/base/base_conf.php



$BASE_urlpath = '/base';

$DBlib_path = '/opt/local/share/adodb5';

$DBtype = 'postgres';

$alert_dbname   = 'snort';

$alert_password = 'snort_db_password_used_above';

$archive_password = 'snort_db_password_used_above';

$action_email_smtp_host = 'smtp.domainname.com';

$use_sig_list = 2;

$resolve_IP = 1;

$show_expanded_query = 1;

$show_summary_stats = 1;

$colored_alerts = 1;

$Geo_IPfree_file_ascii = "/etc/base/ips-ascii.txt";

$IP2CC = "/usr/bin/ip2cc";





Webserver (Mountain Lion)



# Add the following line to /Library/Server/Web/Config/apache2/httpd_server_app.conf

sudo vi /Library/Server/Web/Config/apache2/httpd_server_app.conf



Include /Library/Server/Web/Config/apache2/domainname/*.conf



# Create the file /Library/Server/Web/Config/apache2/domainname/snort-base.conf

sudo vi /Library/Server/Web/Config/apache2/domainname/snort-base.conf



Alias /base /etc/base

<Directory "/etc/base">

    Options Indexes MultiViews FollowSymLinks

    AuthType Digest

    AuthName "Base"

    AuthUserFile /etc/base/.htdigest

    AuthGroupFile /dev/null

    Require user Snort

    AllowOverride All

    Order allow,deny

    Allow from all

</Directory>

Alias /adodb /opt/local/share/adodb5

<Directory "/opt/local/share/adodb5">

    AuthType Digest

    AuthName "ADODB"

    AuthUserFile /etc/base/.htdigest

    AuthGroupFile /dev/null

    Require user Snort

    Options Indexes MultiViews

    AllowOverride All

    Order allow,deny

    Allow from all

</Directory>



# Apache web server for base: Create password

sudo htdigest /etc/base/.htdigest Snort Base



# Restart Apache using either serveradmin or Server.app

sudo serveradmin stop web && sudo serveradmin start web



Swatch



See <https://discussions.apple.com/thread/3370709?start=0&tstart=0> .



Launch It All



sudo launchctl load -w /Library/LaunchDaemons/org.snort.Snort.plist

sudo launchctl load -w /Library/LaunchDaemons/org.opensource.barnyard.plist

sudo SystemStarter start Swatch





One final note: my Lion's web server returns a 400 Bad Request error for web pages that use a hex %23 (ascii #) in their urls, which affects some BASE queries. Any pointers to a fix to this problem would be greatly appreciated.


Mac mini Server (Mid 2010), OS X Mountain Lion (10.8.2), OS X Server, EyeTV HD, Turbo.264 HD
