Activating Dock auto-hide feature from command line

Question

Level 3

519 points

Activating Dock auto-hide feature from command line

I'm trying to put a script together that enables autohide when I use my laptop as the main screen, and disable when it's connected to an external display. I've got the detection bit working now. But what I can't seem to get working, is turning the autohide feature on and off.

I find this all over the web ...

Hide-command: defaults write com.apple.Dock autohide -bool TRUE; killall Dock

Show-command: defaults write com.apple.Dock autohide -bool FALSE; killall Dock

And the hide-command works.

But the show-command seems to not be working for some reason.

Also, my desktop flashes when I run either command.

When I hit Opt-Cmd-D, this doesn't happen.

Any recommendations on how I can trigger that shortkey?

Or other thoughts on how to make this work?

MacBook Air, OS X Mountain Lion (10.8.3), 2GHz i7, 8GB RAM, 256GB SSD

Posted on May 10, 2013 2:58 AM

Reply

Answer 1

Top-ranking reply

Rob de Jonge Author

Level 3

519 points

May 10, 2013 7:01 PM in response to Rob de Jonge

I used to be a big fan of Marco Polo, but have not been able to find a good replacement for it. So I now have a script which runs a number of checks every 10 seconds, to see if anything in the environment has changed. I've just added the following to it, which I figured I'd share back to the community as the community helped me write it. Thanks, Mark!

#!/bin/bash

# Hides the dock when external display is connected

if [ `system_profiler SPDisplaysDataType | grep 'Cinema\|Thunderbolt' | wc -l` -eq "1" ]; then

osascript -e "tell application \"System Events\" to set the autohide of the dock preferences to false"

else

osascript -e "tell application \"System Events\" to set the autohide of the dock preferences to true"

fi

Make sure you change the grep statement for your own circumstances, the \| is an OR statement I need because I have a Cinema Display at home and a Thunderbolt Display at the office.

Reply

Answer 2

May 11, 2013 6:04 AM in response to Rob de Jonge

Hi Rob, I have a few suggestion for you

if [ `system_profiler SPDisplaysDataType | grep 'Cinema\|Thunderbolt' | wc -l` -eq "1" ]; then

# loose the backtick and write your command substition like $(command|command|.....)

if [ $(system_profiler SPDisplaysDataType | grep 'Cinema\|Thunderbolt' | wc -l) -eq "1" ]; then

# doesn't that read better


# Any time that I pipe more that once in a statement,
# the little voices inside my head tell me there must be a better way

if [ $(system_profiler SPDisplaysDataType | grep -c 'Cinema\|Thunderbolt') -eq "1" ]; then

# All non-Apple command line tool produce a
# non-zero exit status if they fail. So the following
# should work without producing a sub-shell (faster execution).
# You don't have to test "[" either.


if system_profiler SPDisplaysDataType | grep -q 'Cinema\|Thunderbolt'; then

# Does the following write to the dock preference file every 10 seconds
# if the display is not connected?


else
  osascript -e "tell application \"System Events\" to set the autohide of the dock preferences to true"

# May be something like this if it is

else
     osascript <<-EOF
          tell application "System Events"
               set results to get the autohide of the dock preferences
               if resutls = false then
                    set the autohide of the dock preferences to true
               end if
          end tell
EOF

Reply

Answer 3

May 10, 2013 3:29 AM in response to Rob de Jonge

This may be handled better with AppleScript.

tell application "System Events" to set the autohide of the dock preferences to true

tell application "System Events" to set the autohide of the dock preferences to false

Reply

Answer 4

BobHarris

Level 9

56,789 points

May 10, 2013 8:16 PM in response to Rob de Jonge

Try "Control Plane". It is suppose to be a Marco Polo descendent.

Reply

Answer 5

May 10, 2013 9:18 AM in response to Rob de Jonge

The display command is:

defaults read com.apple.Dock autohide

That's a read, and there's no need to restart the Dock.

The following (intentionally) isn't complete, but is pretty close (as I don't want to kill my Dock right now, due to an unrelated factor)...

if [[ `defaults read com.apple.Dock autohide` = 0 ]] ; then defaults write com.apple.Dock autohide 1 ; fi ;

Reply

Answer 6

sprale

Level 1

4 points

Oct 3, 2014 11:19 AM in response to Rob de Jonge

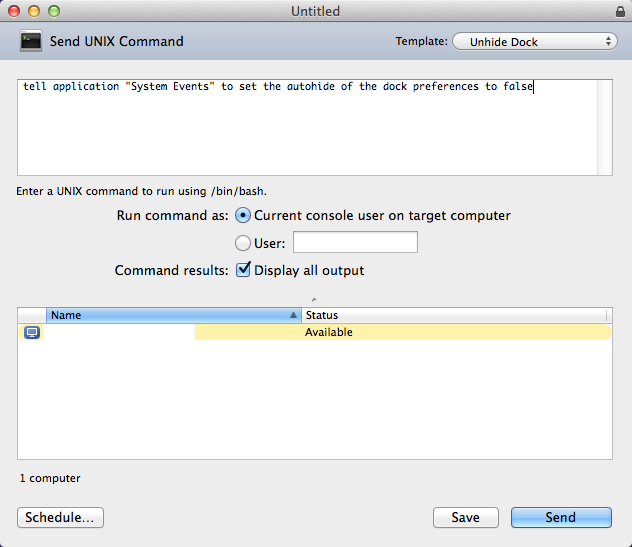

I've been thinking about this for a while as a remote admin. I run ARD to admin remote Macs, but many users enable auto-hide for the dock, making it difficult to navigate. I used Mark's suggestion and send it as a UNIX command when I connect to one that is hidden, set up as a template for convenience.
