VPN connected but no internet access

Question

Level 1

19 points

VPN connected but no internet access

I bought an application called iVPN to setup a VPN server on my home iMac. The setup went fine, I had some issues in getting the portforwarding to work on my airport extreme.

Soo now I'm travelling and the whole thing is a bit strange. I can connect to my iMac through VPN without ANY issues. It logs me in and I can use screen sharing to access the iMac. Other than that nothing; the rest of my connection drops. Dropbox almost instantly loses the green checkmark. Web and eMail are down.

What I don't know is where my mistake is. Do I need to add extra portforwarding to my airport extreme? I did add the checkmark to route all traffic through the VPN. When I check the internet connection through the screen sharing, there is no problem.

Where am I going wrong?

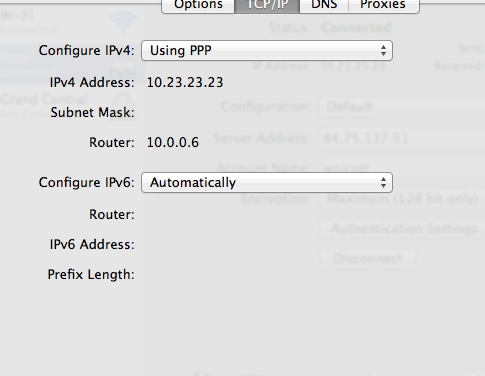

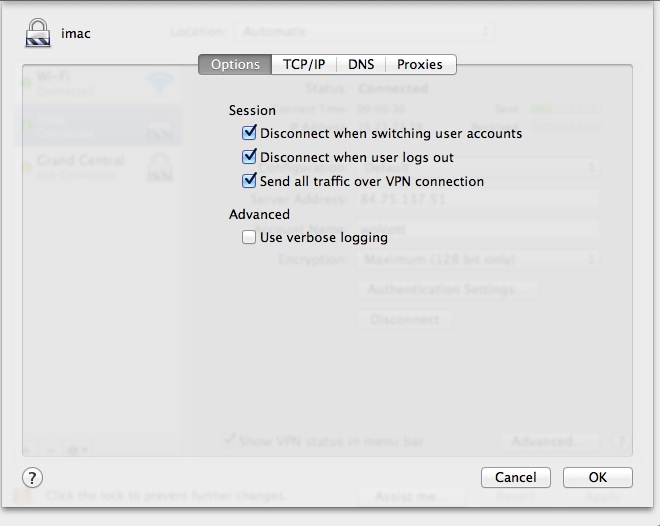

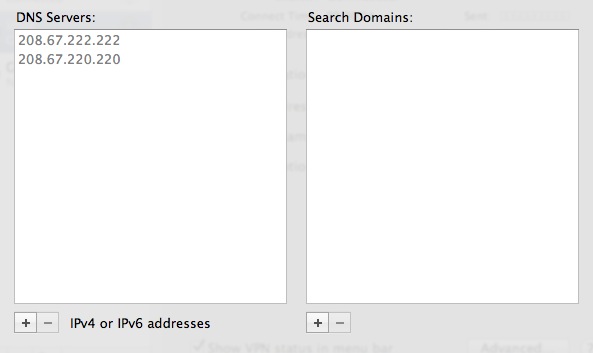

Below some screen shots of my VPN settings when connected:

the IPV4 address is from the range I picked ( no clue if that is right) and the router is the IP address from the iMac hosting the VPN connection.

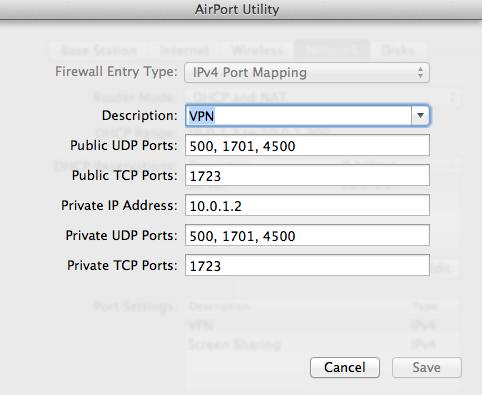

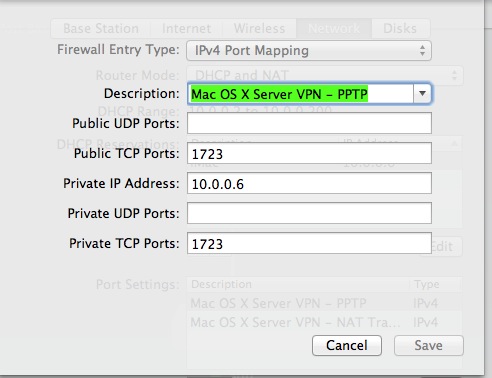

Here some screen shots from the host computer (log) and airport extreme:

Mon May 20 18:04:02 2013 : sent [IPCP ConfReq id=0x1 <addr 10.0.0.6>]

Mon May 20 18:04:02 2013 : sent [ACSCP ConfReq id=0x1]

Mon May 20 18:04:02 2013 : rcvd [IPCP ConfReq id=0x1 <addr 0.0.0.0> <ms-dns1 0.0.0.0> <ms-dns3 0.0.0.0>]

Mon May 20 18:04:02 2013 : ipcp: returning Configure-NAK

Mon May 20 18:04:02 2013 : sent [IPCP ConfNak id=0x1 <addr 10.23.23.24> <ms-dns1 208.67.222.222> <ms-dns3 208.67.220.220>]

Mon May 20 18:04:02 2013 : rcvd [IPV6CP ConfReq id=0x1 <addr fe80::ba8d:12ff:fe13:5a78>]

Mon May 20 18:04:02 2013 : Unsupported protocol 0x8057 received

Mon May 20 18:04:02 2013 : sent [LCP ProtRej id=0x2 80 57 01 01 00 0e 01 0a ba 8d 12 ff fe 13 5a 78]

Mon May 20 18:04:02 2013 : rcvd [IPCP ConfAck id=0x1 <addr 10.0.0.6>]

Mon May 20 18:04:02 2013 : rcvd [LCP ProtRej id=0x2 82 35 01 01 00 04]

Mon May 20 18:04:02 2013 : rcvd [IPCP ConfReq id=0x2 <addr 10.23.23.24> <ms-dns1 208.67.222.222> <ms-dns3 208.67.220.220>]

Mon May 20 18:04:02 2013 : ipcp: returning Configure-ACK

Mon May 20 18:04:02 2013 : sent [IPCP ConfAck id=0x2 <addr 10.23.23.24> <ms-dns1 208.67.222.222> <ms-dns3 208.67.220.220>]

Mon May 20 18:04:02 2013 : ipcp: up

Mon May 20 18:04:02 2013 : Cannot determine ethernet address for proxy ARP

Mon May 20 18:04:02 2013 : local IP address 10.0.0.6

Mon May 20 18:04:02 2013 : remote IP address 10.23.23.24

Mon May 20 18:04:02 2013 : pptp_wait_input: Address added. previous interface setting (name: en0, address: 10.0.0.6), current interface setting (name: ppp0, family: PPP, address: 10.0.0.6, subnet: 255.255.255.0, destination: 10.23.23.24).

User uploaded file

My guess is something is wrong with the DNS, not enough ports opened or do I need to setup a proxy?

Thanks for any and all help,

philly

Message was edited by: Phillyman (added missing screen shots)

Posted on May 20, 2013 9:16 AM

Reply

Answer 1

keg55

Level 6

11,755 points

May 20, 2013 10:03 AM in response to Phillyman

I think you only need 1 VPN entry in your AEBS. I don't use iVPN. Instead, I have my Mac Mini running OS X Server and I have the VPN Service running. It all works fine when I VPN from my rMBP to the Mac Mini locally AND away from my LAN.

Reply

Answer 2

Phillyman Author

Level 1

19 points

May 20, 2013 10:38 AM in response to keg55

Thanks for the reply. I changed the settings to yours and it still is a no go :-( ! I might try the server edition. Since all I need is the VPN part I thought this would be easier.

I wonder what it could be? I don't think it directly has to do with portforwarding since the VPN service works. I wonder what could be blocking the web traffic. Maybe there is a DNS error?

Hmm, again thanks it was worth a try,

Regards,

Philly

Reply

Answer 3

keg55

Level 6

11,755 points

May 20, 2013 11:08 AM in response to Phillyman

Do you have 'Send all traffic' checked on the client Mac's Network VPN connection setting? I have that checked on my rMBP to send ALL traffic via the VPN connection. I don't know the exact place in the VPN Network setting that is as I'm not on my rMBP at the moment.

EDIT: Just did a Google and it should be after clicking the Advanced button to the right of "Show VPN status in menu bar" in Network.

Reply

Answer 4

Phillyman Author

Level 1

19 points

May 20, 2013 1:35 PM in response to keg55

Sorry for getting back to you a bit later... Yes, I think I might have mentioned it that I do have all traffic routed through the VPN.

Interestingly though my advanced page looks a bit different...

I feel that it must be the traffic not being routed correctly on the imac but I don't know where it's going wrong.

I'll see if we can come up with something or i just might try out the server version and see if that solves my problem.

Regards,

Philly

Reply
