connecting kurzweil sp88 to GB I want to connect my Kurzweil sp88 to GB. The Kurzweil has a baffling array of buttons and possible MIDI channels. It also has the old style MIDI plug ins. I've got the MIDI out connected to my MacBook Pro via USB adapter.

I have my Kurzweil connected to my MacBook Pro via an adapter (old style MIDI from Kurzweil to USB adapter connecting to Mac). The Kurzweil has a baffling array of buttons and possible MIDI channels. Can anyone please tell me which of the channels I should use? Also, should I leave the MIDI In cable out of the Kurzweil? Thanks for as detailed an answer as possible. If you like you can respond directly to me at kalapaki3000@yahoo.com

GarageBand '09

Posted on Nov 20, 2013 12:04 AM

Reply
6 replies

Nov 20, 2013 12:09 PM in response to gregoryfromkapaa

You would use the Midi Out Port on the Kurz SP88. You'll be able to use it as a Midi Controller only. Garageband does not support External Midi so you will not be able to play/trigger the Internal Midi Sounds inside the keyboard. To transmit Midi Out from the Keyboard you may need to go into the Global Midi Menu and make sure it is sending Midi Out. To hear the sounds from your keyboard you would need an Audio Interface and record live into Garageband.


FYI - Logic Pro 9 and Logic Pro X both do support External Midi.

Nov 21, 2013 11:16 AM in response to mdee

Many thanks for your reply. Could you please tell me how to get to the Global Midi Menu on the Kurz? It's just so incredibly complex I can't even figure out what the instructional manual is saying. Also, with any setting I've tried (strictly by trial and error) I haven't been able to get the little light indicator on GB to go on, even though it says it recognizes that I have a Midi keyboard plugged in. Thanks again.

Nov 21, 2013 12:49 PM in response to gregoryfromkapaa

First of all I do not own this keyboard. But a quick look at the manual (found on the internet) says that when first powered up the SP88 is in Internal Sounds mode. Meaning you hear the sounds selected when playing the keyboard. It also stated that the default Midi Transmit Channel is Midi Channel #1.


Looks like you would need to go to the SP88 Keyboard's MIDI SETUP and simply select LOCAL OFF. Now the keyboard should be ready to transmit Midi Out only and no internal sounds should be heard.

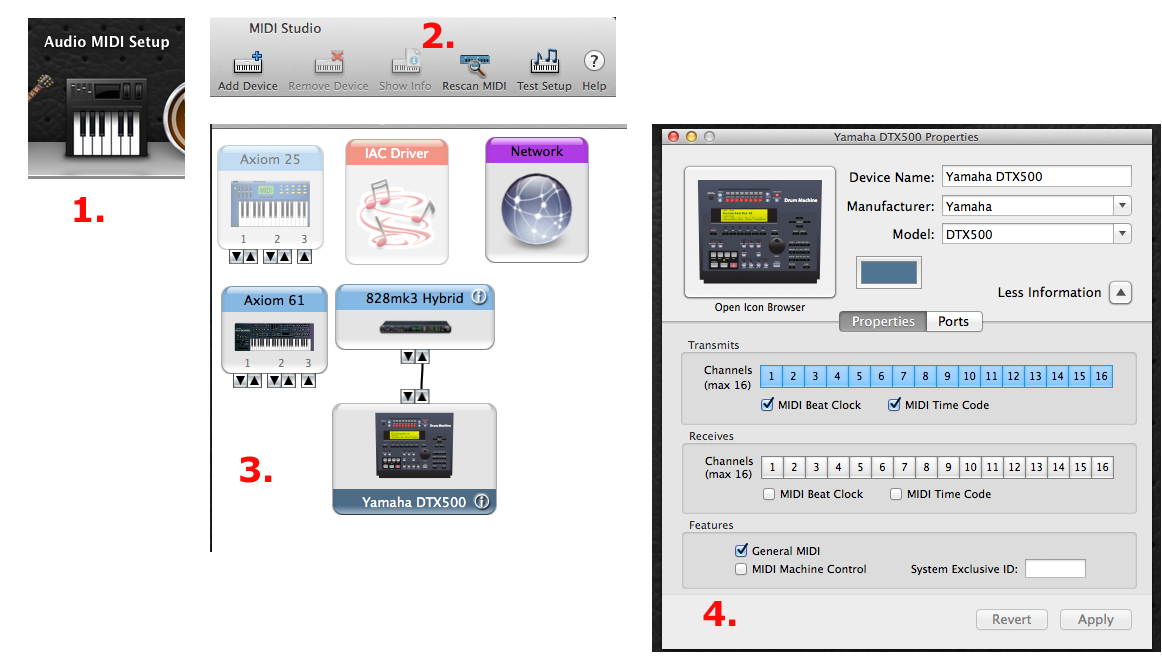

Next you may or may not need to do this but you might need to go into the Utilities Folder found in your Applications Folder on your Mac and double click AUDIO MIDI SETUP the keyboard Icon. Figure #1 below.


Next you need to make a physical connection from the Midi Out of the SP88 to the Midi In on your Midi Interface. Figure #3 below. You may need to Click on Add Device first. Figure #2 below.


In the examples shown below I have a Yamaha Electronic Drum Kit that is Midi Out only... not USB out. I had to plug a Midi cable from the Midi Out Port on the back of my Drum Module to the Midi In Port on the back of my Motu 828 Audio Inferface which is connected to my Mac. Next I created the Audio Interface and Drum Module "Devices" as mentioned above.


I then double clicked on the Drum Module and made my Midi Out Selections. Figure #4 Below. And once it was setup and the icons closed I used my mouse to draw a virtual cable connection from the Drum Module Out to the Audio Interface In. Figure #3 below. This is how I got my Midi Devices to talk to one another.


Once you have made your setup as I have outlined create a MIDI Instrument Track in Garageband, select an instrument for example a Piano then Record Enable that track in Garageband and see if you now hear what you are playing. In this example the SP88 is a Midi Controller only and you will only hear sounds selected in Garageband which is what you want.


Keep in midi your setup may be different than mine. You can keep your SP88 Keyboard on the default Midi Channel #1. That would be a good place to start. Garageband receives Midi on all channels.


User uploaded file

Nov 21, 2013 11:35 PM in response to mdee

Thank you so much for taking the time to give such a detailed response. However, even after following the above directions to the letter, whenever I plug the Midi adapter into the Mac, the "out" light on the adapter goes off (when it's not plugged into the Mac, the "out" light is on). I'm beginning to wonder if there's something wrong with the adapter itself. If you think it might be something else, could you please let me know? Again, I so appreciate your generosity with your time in the very detailed responses you've given. My sincere thanks.
