Airplay mirroring broke in 10.9.2

i just updated to 10.9.2 and now when i try and airplay mirror to my Apple TV, it sends the audio but just shows a black screen and i can't drag anything to it. It doesn't show any of the options for external displays in the displays section of System Preferences.



Any ideas? i tried reapplying the combo update with no luck

iMac, OS X Mavericks (10.9.1)

Posted on Feb 25, 2014 11:36 AM

Reply
197 replies

Mar 1, 2014 9:56 AM in response to casein2006

I dont have airparrot installed & dont have any start-up items (apart from ituneshelper).

AppleTV will not display any windows moved to it when in extended desktop mode. Sound can be heard, but window is invisible. It will loose connection soon afterwards & the macbook will then refuse to connect until appletv restarted.

I can see the mouse pointer going across the TV, but never any windows that are moved to it.

Worked fine before update. I only tried it again after hearing people where having problem & it appears to effect me also.

Mar 1, 2014 10:20 AM in response to Joseph Rose

Anyone suffering from this issue, please do the following:


1. Open up System Information (located in /Applications/Utilities, or option+click the apple logo in the menu bar and select it).

2. On the left side bar locate "Extensions" (you'll have to scroll down a bit)

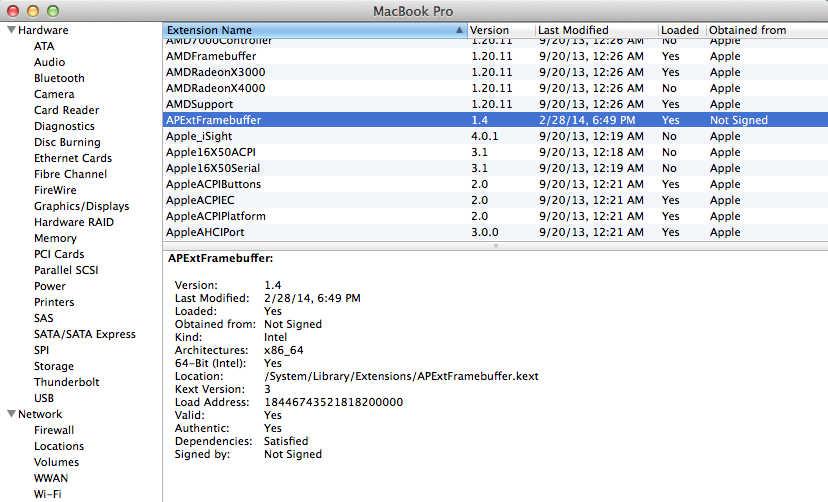

3. Look in the list of extensions for "APExtFrameBuffer" as shown in the screenshot.


User uploaded file


Also look for "AirParrotDriver". I had two of them listed, one in /System/Library/Extensions and one in /Library/Extensions.


User uploaded file


4. If any of these items are found, open Terminal (in Applications>Utilities) and copy/paste these (respectively):


sudo rm -rf /System/Library/Extensions/APExtFramebuffer.kext

sudo rm -rf /System/Library/Extensions/AirParrotDriver.kext

sudo rm -rf /Library/Extensions/APExtFramebuffer.kext

sudo rm -rf /Library/Extensions/AirParrotDriver.kext


If they yield an error, then the file probably doesn't exist. Any one of these could cause the issue, so make sure they are all deleted.


5. Enter your administrative password when prompted.

6. Restart your computer.

Mar 1, 2014 1:56 PM in response to casein2006

casein2006 wrote:


are there any menubar caches etc that i could clear?


How easily can you reproduce the problem? If you can make it happen pretty easily, then try testing in another user account and see if you can make it happen there. If yes, then it is system-wide. If no, then it is isolated to your user account. The first thing I would try is to remove Finder-related prefs.


1. In Finder, go to the menubar > Go, hold down the option key and go to "Library".

2. Open the "Preferences" folder.

3. Pull these files (and any files related with similar names) out to your desktop:

com.apple.dashboard.plist

com.apple.desktop.plist

com.apple.dock.plist

com.apple.finder.plist


4. Restart your computer to have these files recreated.


Post your results.


*Note that removing these preference files will reset the corresponding preferences back to the default template, so you will have to redo your dock icons and other settings.

Mar 2, 2014 2:28 AM in response to casein2006

Hi everyone...Same problem here, on my iMac Mid 2011 black screen, only audio (removed airparrot nothing resolved)...on my MacBook Air Mid 2011, with the update to 10.9.2, no problems (had airparrot too, a while ago - still keeps promting me at startup with "Do you want the application “com.squirrels.kextinstaller” to accept incoming network connections?" which sems to be airparrot related)

Mar 2, 2014 5:54 AM in response to casein2006

I'am experiencing similar issues with my older MacBookPro3,1 (2007) (15' LED Display):

- internal camera does not work any more (is not found)

- external USB camera (from Microsoft) is not recognized any more

- in the activity monitor i always see a process "ReportCrash" using 100% CPU which is not finishing

- fan is running at max speed due to high cpu usage

- FaceTime, Skype say "no camera found", Photo Booth only shows black window

- console logs shows (depending on app, restart,...) the following output:




01.03.14 19:44:30,799com.apple.launchd[1](com.apple.cmio.VDCAssistant[15366]) Job appears to have crashed: Abort trap: 6
01.03.14 19:44:30,849VDCAssistant[15367]AVF error: AVDLoadAllAccelerators machine not supported
01.03.14 19:44:30,850VDCAssistant[15367]AVF warning: failed to get a service for display id: 4128828
01.03.14 19:44:30,850VDCAssistant[15367]AVF warning: failed to get a service for display id: 4128829
01.03.14 19:44:30,851VDCAssistant[15367]AVF warning: failed to get a service for display id: 4128830
01.03.14 19:44:30,851VDCAssistant[15367]AVF warning: failed to get a service for display id: 4128831
01.03.14 19:44:30,867VDCAssistant[15367]CGSDisplayID: App trying to enumerate [0 to CGSGetNumberOfDisplays()] instead of using CGSGetDisplayList(). Compensating...
01.03.14 19:44:30,867VDCAssistant[15367]Client is attempting to access a display by index (4) instead of display ID.
01.03.14 19:44:31,002ReportCrash[13727]Saved crash report for VDCAssistant[15366] version 4561 to /Library/Logs/DiagnosticReports/VDCAssistant_2014-03-01-194431_Macintosh.crash


I already deinstalled AirParrot and reinstalled 10.9.2 from AppStore on top again without any change.
