middaparka

Q: External monitor stopped working after 10.9.2 update installation

I've been using a Dell U2712H display for about a year with a mini-display port to display port cable.



However, after installing the 10.9.2 update, the monitor is going into sleep mode when connected to the MacBook Pro (as it doesn't think it's getting a signal), even though the laptop thinks it's correctly connected. (If I turn the monitor off, the menu bar, etc. revert to the MBP screen.)



About the only related Mavericks default I've changed is to disable the "Displays have seperate Spaces" option within Mission Control, although I've tried re-enabling this and logging off/on again to no avail.



I've also tried resetting the NVRAM and the SMC, neither of which appear to have made any difference.

MacBook Pro (15-inch Mid 2010), OS X Mavericks (10.9.2)

Posted on Feb 25, 2014 2:16 PM

Close

Q: External monitor stopped working after 10.9.2 update installation

  • All replies
  • Helpful answers

Page 1 of 4 last Next
  • by thavith,

    thavith thavith Feb 25, 2014 4:52 PM in response to middaparka
    Level 1 (0 points)
    Feb 25, 2014 4:52 PM in response to middaparka

    Yes, I have the exact same thing (except a different monitor).



    I have a Kogan 27" monitor attached, and before the update had disabled "Displays have separate Spaces" as well (which I tried to re-enable).



    I am using a 17-inch Early 2011 MacBook Pro 2.2Ghz i7 +, 16Gb Ram

  • by xvrdmng,

    xvrdmng xvrdmng Feb 25, 2014 5:21 PM in response to middaparka
    Level 1 (0 points)
    Feb 25, 2014 5:21 PM in response to middaparka

    My cinema display have the same problem but not all the time, most of the time when i plug/unplug the external monitor my graphics lag

  • by thavith,

    thavith thavith Feb 25, 2014 6:20 PM in response to middaparka
    Level 1 (0 points)
    Feb 25, 2014 6:20 PM in response to middaparka

    I was using MBP::display port -> Monitor::display port on the Kogan monitor.



    I have just tried MBP.display port -> Monitor.HDMI and had some success.  The resolution is now 1080p (not 2560 x 1440), but it's at least displaying something now...

  • by David Durkee,

    David Durkee David Durkee Feb 25, 2014 9:08 PM in response to middaparka
    Level 1 (0 points)
    Feb 25, 2014 9:08 PM in response to middaparka

    I'm using a 2.7 Ghz Core i5 iMac (27") with an external 27" Yamakasi display connected via the Apple Mini DisplayPort To Dual-Link DVI Adapter with a firmware version of 1.03.



    System report is showing:



    Displays:

    iMac:

      Display Type:    LCD

      Resolution:    2560 x 1440

      Pixel Depth:    32-Bit Color (ARGB8888)

      Main Display:    Yes

      Mirror:    Off

      Online:    Yes

      Built-In:    Yes

    DUAL-DVI:

      Resolution:    1 x 1

      Pixel Depth:    32-Bit Color (ARGB8888)

      Mirror:    Off

      Online:    Yes

      Rotation:    Supported

      Adapter Type:    Apple Mini DisplayPort To Dual-Link DVI Adapter

      Adapter Firmware Version:    1.03

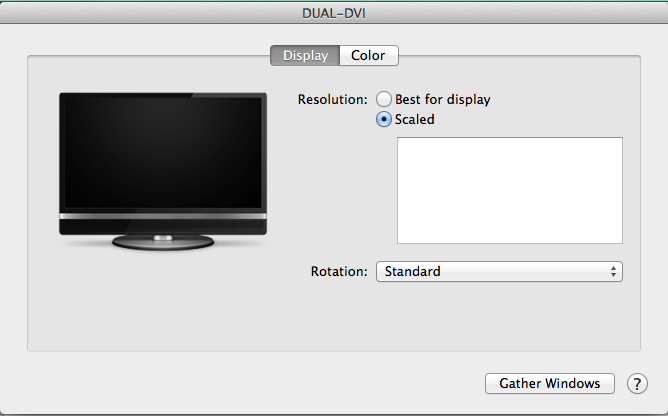

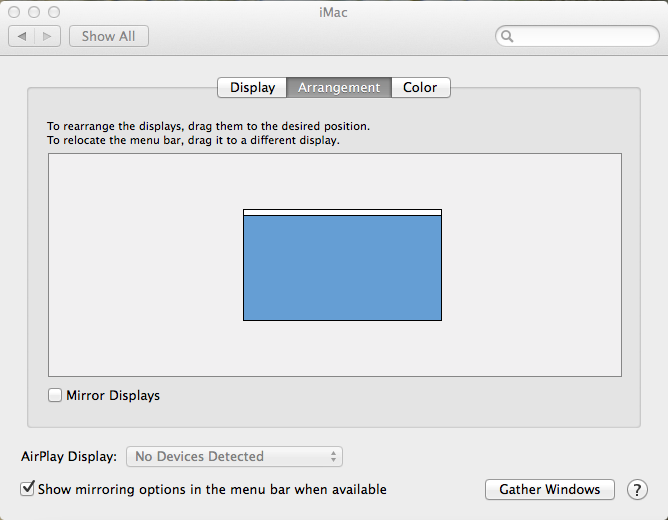

    After running the 10.9.2 update, the system restarted then hung on the Apple Logo with the spinning lines in a circle for about an hour.  I finally gave up and powered eveything down, unplugged all externals (display adapter, time machine drive, etc.) and restarted without a hitch.  Powered down again, plugged everyting back in and powered up the external display before powering the iMac on.  System starts normally but second display does not light up and the the system report is as shown.  It sees something there, it just doesn't know what it is.  I tried the mirroring checkbox and the iMac screen went dark.  It wouldn't come back and just displayed a small white dot in the center.  I restarted and zapped the PRAM (NVRAM) and it came back with mirroring off on the system preferences.  One display shows up on the System preferences->Displays->Arrangement tab.  Both displays show up on the System preferences->Displays->Display tab but the second display (Window shows DUAL-DVI in the title of the window) shows a dark screen and no brightness slider.



    Screen Shot 2014-02-25 at 8.59.11 PM.png

    Screen Shot 2014-02-25 at 9.04.41 PM.png

    Screen Shot 2014-02-25 at 9.08.00 PM.png



    I really hope they get this fixed soon as I use it heavily for photo editing.

  • by Michael Paine,

    Michael Paine Michael Paine Feb 25, 2014 11:45 PM in response to middaparka
    Level 2 (348 points)
    Feb 25, 2014 11:45 PM in response to middaparka

    The upgrade (10.9.2)  has killed Airplay mirroring/external display for me.



    Strangely, it still works well with a Retina Macbook Pro



    However my late-2012 iMac no longer sends any video to the AppleTV via Airplay. I have tried a variety of settings with no solution. A telling sign is that the "Mirror iMac" selection on the Airplay menu does not work (it stays on the "Extend Desktop" setting and the AppleTV display is black)



    Note this system uses all Apple hardware and software so the problem is not confined to non-Apple displays.



    Update: The external display (Airplay/AppleTV mirroring) works with an older iMac using Airparrot. Airplay video does not work with Macs this old. So, in my case, one out of 3 Macs is affected.



    Grrr

  • by seyfoyun,

    seyfoyun seyfoyun Feb 26, 2014 12:54 AM in response to middaparka
    Level 1 (0 points)
    Feb 26, 2014 12:54 AM in response to middaparka

    I'm having the same problem here with a Dell U2713H.

  • by georgeo2,

    georgeo2 georgeo2 Feb 26, 2014 2:24 AM in response to middaparka
    Level 1 (0 points)
    Feb 26, 2014 2:24 AM in response to middaparka

    I used gfxCardStatus, forced the discrete graphics and the external display is working again !

  • by middaparka,

    middaparka middaparka Feb 26, 2014 4:00 AM in response to georgeo2
    Level 1 (0 points)
    Feb 26, 2014 4:00 AM in response to georgeo2

    I've just tried using gfxCardStatus to force the chipset in use and it unfortunately didn't make any difference. (Likewise, using the Energy Saver option.)



    This was the case irrespective of the "Displays have seperate Spaces" option within Mission Control.

  • by andrewnez,Helpful

    andrewnez andrewnez Feb 26, 2014 4:57 AM in response to thavith
    Level 1 (5 points)
    Feb 26, 2014 4:57 AM in response to thavith

    I'm using the Kogan 27" monitors as well. One with my iMac and one on a MacBook Air. The iMac was updated today and the screen for that machine is now dark. Checked using the other Kogan 27" and same deal. Tested both on the Air and they both work fine at their 2560x1440 res (Air is not yet updated to 10.9.2).



    Also tested both monitors on my Asus laptop using the same mini-display cable and they both worked fine at 2560x1440. It's definitely not our screens.

  • by alexanderlippling,

    alexanderlippling alexanderlippling Feb 26, 2014 6:11 AM in response to middaparka
    Level 1 (0 points)
    Feb 26, 2014 6:11 AM in response to middaparka

    I updated today to 10.9.2. I restarted the system, the Apple logo shows up with the spinner. Then the iMac (late 2009) display goes black and the external FSM-270YG display as well.

    I tried several things: SMC reset, Rescue System etc, but nothing worked.



    I can only start Mac OS if I unplug the external display.

  • by C.Hurshai,

    C.Hurshai C.Hurshai Feb 26, 2014 6:25 AM in response to middaparka
    Level 1 (0 points)
    Feb 26, 2014 6:25 AM in response to middaparka

    As mentioned in this other thread:



    https://discussions.apple.com/message/24985815#24985815



    Send feedback if you are experiencing this issue:



    http://www.apple.com/feedback/macosx.html

  • by middaparka,

    middaparka middaparka Feb 26, 2014 6:28 AM in response to C.Hurshai
    Level 1 (0 points)
    Feb 26, 2014 6:28 AM in response to C.Hurshai

    Have done and also filed issue as a bug via the developer bug reporter.

  • by nAPPster84,

    nAPPster84 nAPPster84 Feb 26, 2014 11:20 AM in response to middaparka
    Level 1 (0 points)
    Feb 26, 2014 11:20 AM in response to middaparka

    Filed a bug ticket through the bug reporter, too. Other discussion on this topic - where I reported my issue - is here: https://discussions.apple.com/message/24995564#24995564



    Regards,

    t.

  • by middaparka,

    middaparka middaparka Feb 27, 2014 6:07 AM in response to middaparka
    Level 1 (0 points)
    Feb 27, 2014 6:07 AM in response to middaparka

    As an bit of an update, I've also tried:



    • Re-installing the 10.9.2 update
    • Creating a new user account to see if there was a user specific problem
    • Booting in safe mode to ensure no 3rd party apps were affecting things
    • Forcing a re-detect
    • Deleting the /Library/Preferences/com.apple.windowserver.plist file (getting desperate here)


    All to no avail.



    As my laptop is primairly used for iOS development purposes, I could re-install from scratch but I'd really rather not have to go there, especially as I've zero confidence in arriving at a different outcome.
