Wiring harness (iMac 2011 27") help

Question

Level 1

8 points

Wiring harness (iMac 2011 27") help

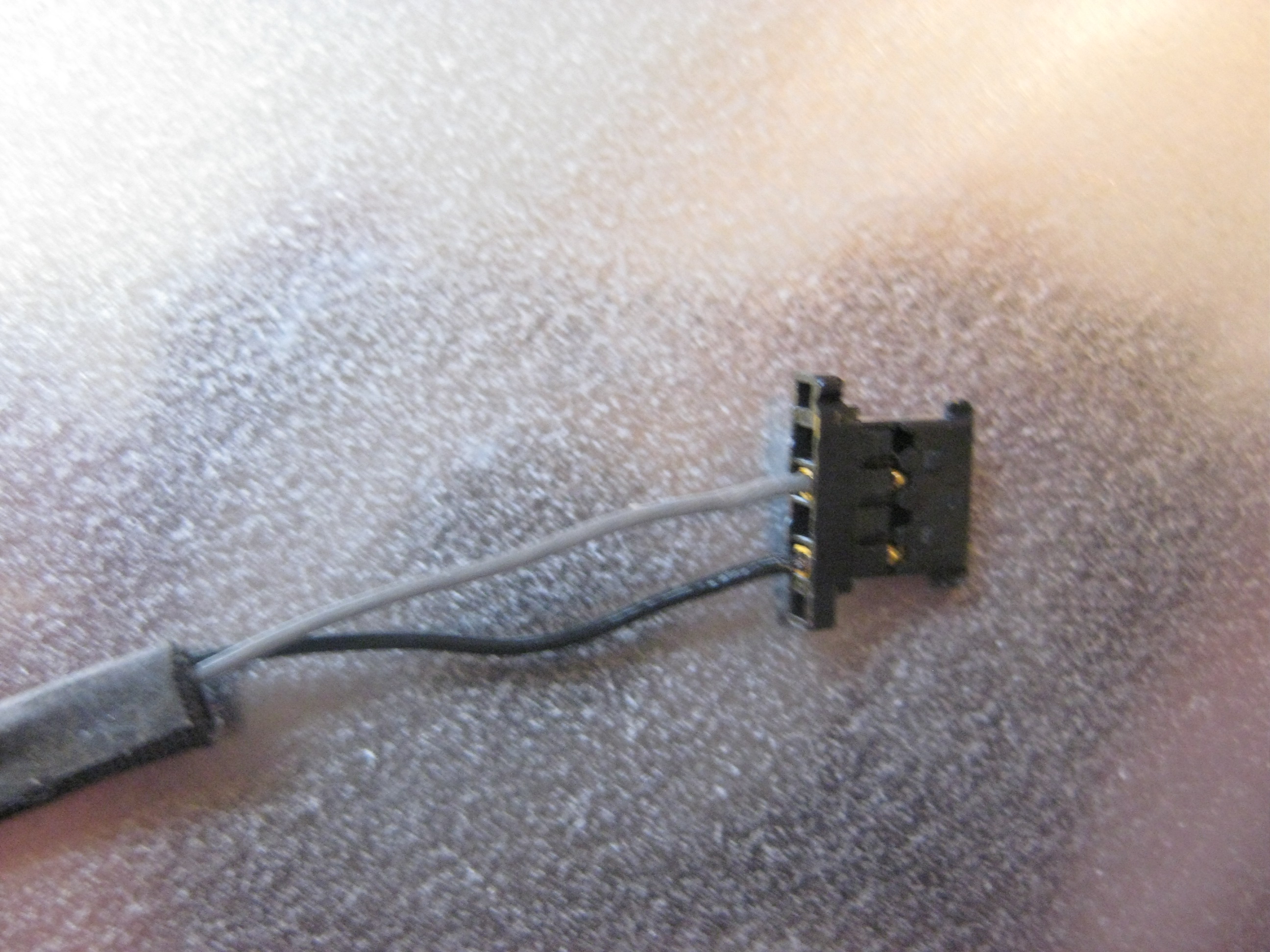

The 2wires (one grey, the other black), part of the "V-Sync/LCD Temp. Sensor Cable, has come out of the connector that connects to the LED Backlight Board.

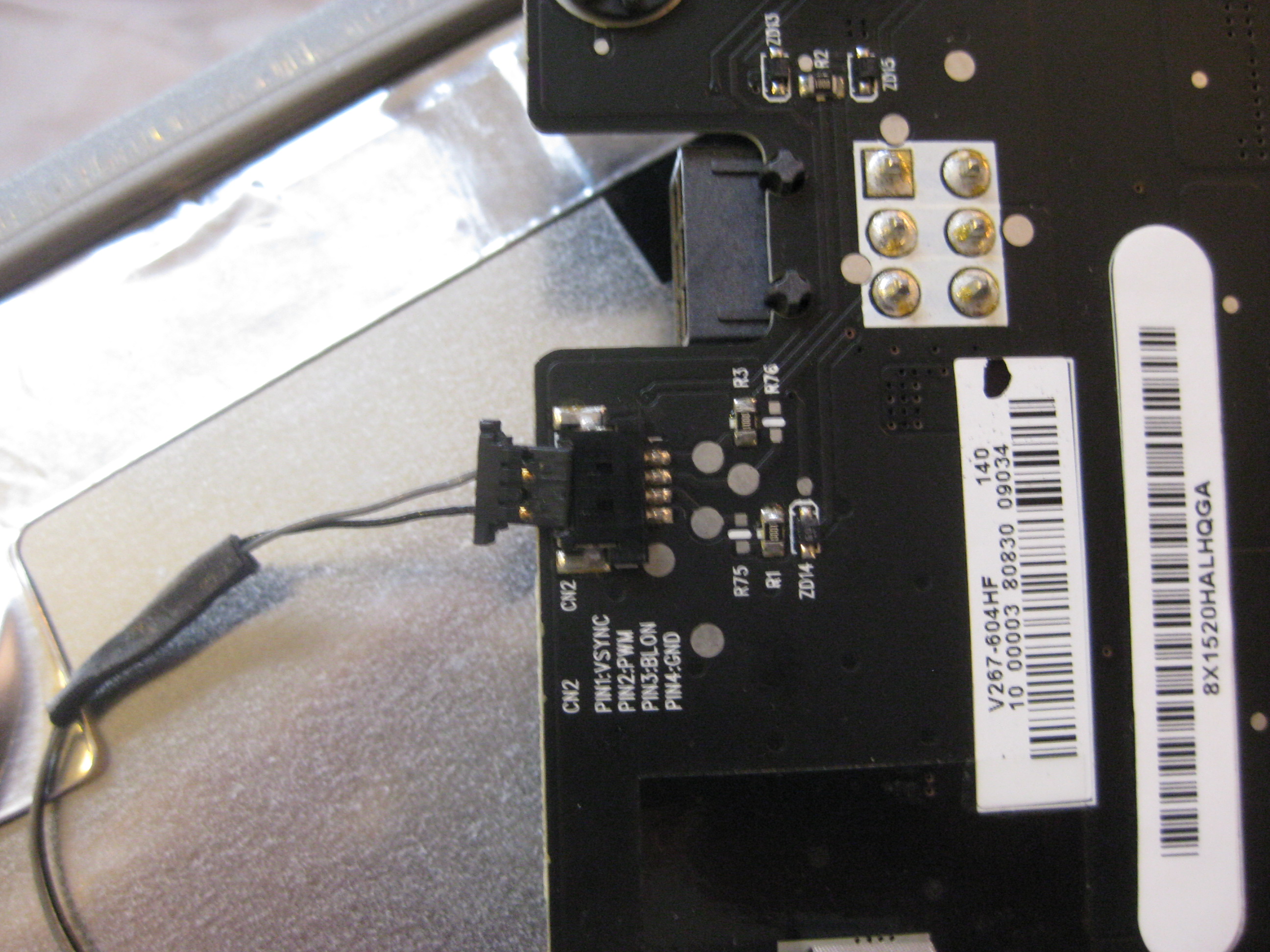

The female connection on the LED Backlight Board has four pins; whereas the male connector only has 2 wires that can fit into 4 different locations inside the connector. Unable to find any diagram for reference to help me reconnect them. The wires are just randomly reinstalled back into the connector to protect the pins. Have not reconnect the harness back to the LED Backlight Board

I think the sensor cable senses the LCD Display Screen temperature and turns on the fan when / if display gets too hot. Am I right?

See image attached. Can anyone help?

iMac (27-inch Mid 2011)

Posted on Mar 1, 2014 3:00 PM

Reply

Answer 1

Nov 23, 2017 4:23 PM in response to sugarandduke

Good day,

Have 2011 27inch. heated the AMD video card and now have video instead of white screen issue. When I powered it up have very high fan speed. I have tried to install the Vsync/Temp cable both ways, only one way allows insertion. With this cable disconnected I get the same issue high fan speed. I believe I am inserting it correctly however, after 4x I am still getting the high fans. Does anyone else have any insight?

Reply

Answer 2

LowLuster

Level 6

12,105 points

Mar 1, 2014 3:03 PM in response to sugarandduke

Go to iFixit.com and search for your model. They may have a service guide for it.

Reply

Answer 3

den.thed

Level 10

82,168 points

Mar 1, 2014 5:11 PM in response to sugarandduke

LowLuster is spot on.

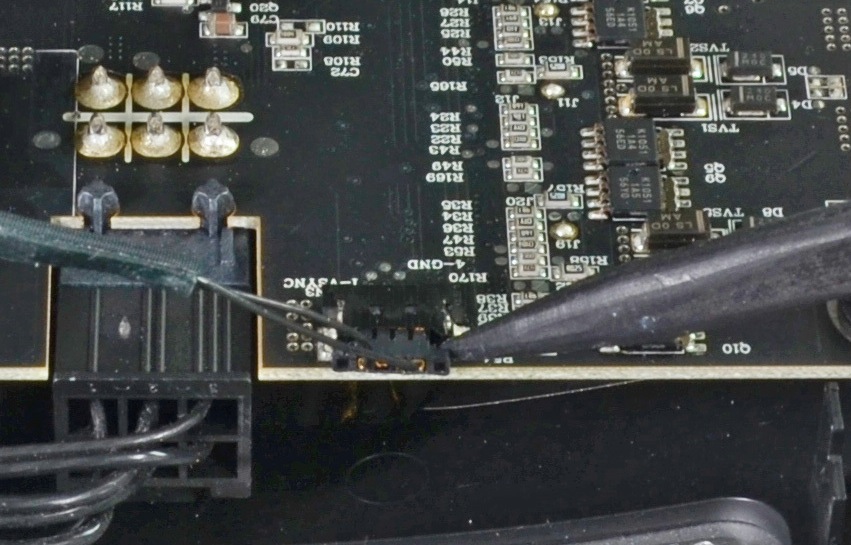

see > iMac Intel 27" EMC 2429 Display Replacement - iFixit

Click on the following image to inlarge it.

From the left, it looks like the 2nd and 4th pins to me.

Reply

Answer 4

sugarandduke Author

Level 1

8 points

Mar 3, 2014 11:36 AM in response to den.thed

Thanks for your reply and the other similar reply. I had examine your recommended photo in my earliar research prior to posting for assistance on the Forum. I concurred with your observation on the position of the wires; but unfortunately, both wires in the "Ifixit" photo appears to be black in colour, whereas my harness wires are grey and black.

My research on the internet for pictures of this harness (V-Sinc LCD temperature sensor harness) shows this harness available for sale from numerouse sources, but the clarity of the pictures leaves identification of the locations of the two different colour wires impossible.

Thanks again, hopefully someone out there has a 2011 27 inch iMac apart and can sent a photo of the connector in question.

Reply
