Hi,

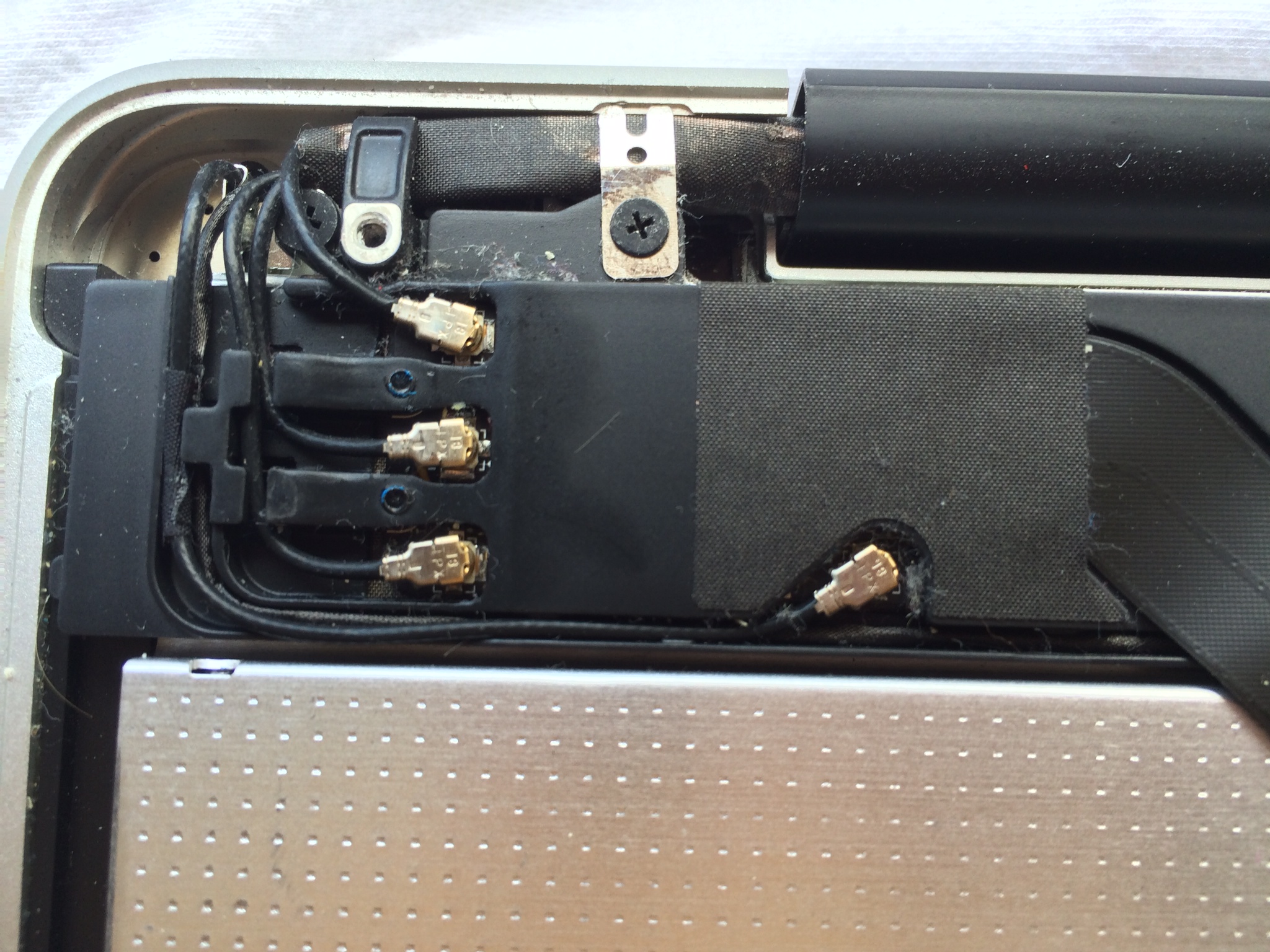

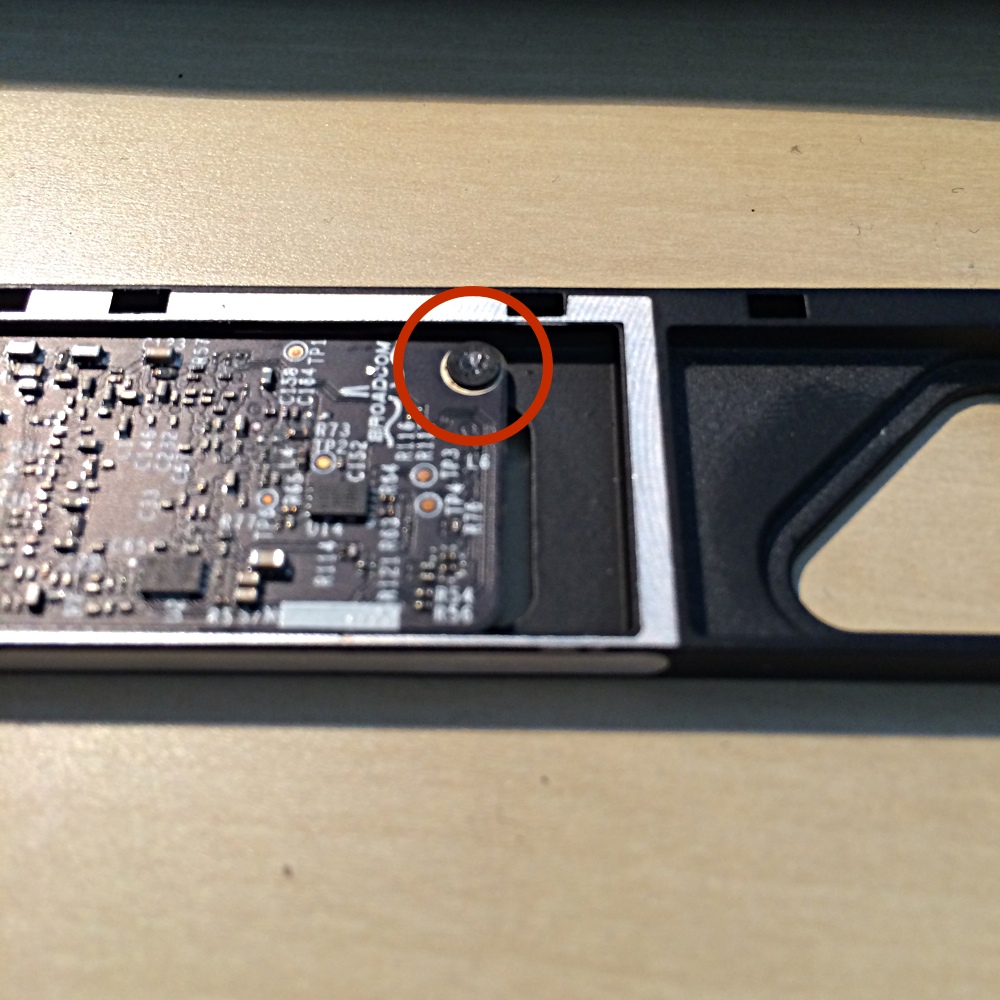

I have succesfully replaced BT/Wifi module on my Macbook pro 13" late 2011 for BT4.0 module. Handoff works great even AirDrop devices are visible on Mac. But I have this problem with this new BT/Wifi module. Notebook wakes up immediately after going to sleep. It completes sleep sequence, white heartbeat led will fade out then the HDD starts spinning.
I have tried switching BT/Wifi modules together with deactivating Handoff via Continuity activation tool.
Here is the results:
- With old BT/Wifi module Macbook sleeps without problems.
- With new BT/Wifi module with old driver Macbook awakes after one second. Same with the new driver after activating via Continuity activation tool.
Here is the console log from All messages.
Pay attention at line 363. Wake reason: ?
16.01.15 18:58:59,143
locationd[57]
Location icon should now be in state 'Active'
16.01.15 18:58:59,461
sharingd[235]
18:58:59.461 : Stopping Handoff advertising
16.01.15 18:59:01,203
locationd[57]
Location icon should now be in state 'Inactive'
16.01.15 18:59:02,149
login[12186]
USER_PROCESS: 12186 ttys000
16.01.15 18:59:06,000
kernel[0]
Sandbox: Terminal(12184) System Policy: deny file-write-unlink /Users/hernap/Library/Saved Application State/com.apple.Terminal.savedState/restorecount.plist
16.01.15 19:02:35,178
login[12202]
USER_PROCESS: 12202 ttys001
16.01.15 19:06:08,637
watchdogd[147]
[watchdog_daemon] @( pm_callback) - ref=0x0 msg_type=0xe0000280 msg=0x3f0009
16.01.15 19:06:08,637
watchdogd[147]
[watchdog_daemon] @( wd_daemon_thread) - events buffer: 54r1459 4278s1459 4318r194696 4942s194696
16.01.15 19:06:08,639
coreaudiod[225]
2015-01-16 07:06:08.638556 PM [AirPlay] Power: SystemWillSleep
16.01.15 19:06:08,639
coreaudiod[225]
2015-01-16 07:06:08.638725 PM [AirPlay] BTLE client stopping to browse for AirPlay Solo Target Presence.
16.01.15 19:06:08,639
coreaudiod[225]
2015-01-16 07:06:08.639020 PM [AirPlay] BTLE discovery removing all devices
16.01.15 19:06:08,640
sharingd[235]
19:06:08.639 : Stopping Handoff advertising
16.01.15 19:06:08,640
coreaudiod[225]
2015-01-16 07:06:08.639924 PM [AirPlay] BTLE client stopped to browse for AirPlay Solo Target Presence.
16.01.15 19:06:08,640
sharingd[235]
19:06:08.640 : Stopping Handoff scanning
16.01.15 19:06:09,708
WindowServer[117]
device_generate_desktop_screenshot: authw 0x7f8312c56750(2000), shield 0x7f8312c9b770(2001)
16.01.15 19:06:09,763
WindowServer[117]
device_generate_lock_screen_screenshot: authw 0x7f8312c56750(2000)[0, 0, 1280, 800] shield 0x7f8312c9b770(2001), dev [1280,800]
16.01.15 19:06:09,811
apsd[52]
Peer [pid=194] requested push wake but lacks APSPushWakeEntitlement
16.01.15 19:06:09,812
identityservicesd[210]
<IMMacNotificationCenterManager: 0x7f928bc33830>: notification observer: com.apple.iChat notification: __CFNotification 0x7f928be3e230 {name = _NSDoNotDisturbEnabledNotification}
16.01.15 19:06:09,828
identityservicesd[210]
<IMMacNotificationCenterManager: 0x7f928bc33830>: NC Disabled: NO
16.01.15 19:06:09,828
sharingd[235]
19:06:09.828 : Discoverable mode changed to Off
16.01.15 19:06:09,828
sharingd[235]
19:06:09.828 : BTLE scanning stopped
16.01.15 19:06:09,841
identityservicesd[210]
<IMMacNotificationCenterManager: 0x7f928bc33830>: DND Enabled: YES
16.01.15 19:06:09,841
identityservicesd[210]
<IMMacNotificationCenterManager: 0x7f928bc33830>: Updating enabled: NO (Topics: (null))
16.01.15 19:06:10,073
com.apple.xpc.launchd[1]
(com.apple.xpc.launchd.domain.user.501) Service "com.apple.xpc.launchd.unmanaged.loginwindow.67" tried to hijack endpoint "com.apple.tsm.uiserver" from owner: com.apple.SystemUIServer.agent
16.01.15 19:06:10,074
com.apple.xpc.launchd[1]
(com.apple.xpc.launchd.domain.user.501) Service "com.apple.xpc.launchd.unmanaged.loginwindow.67" tried to hijack endpoint "com.apple.tsm.uiserver" from owner: com.apple.SystemUIServer.agent
16.01.15 19:06:26,000
kernel[0]
PM response took 2989 ms (27, powerd)
16.01.15 19:06:26,000
kernel[0]
ARPT: 4960.080073: AirPort_Brcm43xx::powerChange: System Sleep
16.01.15 19:06:26,000
kernel[0]
ARPT: 4960.080086: wl0: powerChange: *** BONJOUR/MDNS OFFLOADS ARE NOT RUNNING.
16.01.15 19:06:26,000
kernel[0]
[0x256a185000, 0x1000]
16.01.15 19:06:26,000
kernel[0]
[0x396d956000, 0x40000000]
16.01.15 19:06:26,000
kernel[0]
[0x39ad956000, 0x3ffff000]
16.01.15 19:06:26,000
kernel[0]
[0x0, 0x0]
16.01.15 19:06:29,000
kernel[0]
hibernate image path: /var/vm/sleepimage
16.01.15 19:06:29,000
kernel[0]
efi pagecount 43
16.01.15 19:06:29,000
kernel[0]
hibernate_page_list_setall(preflight 1) start 0xffffff8071345000, 0xffffff8071365000
16.01.15 19:06:29,000
kernel[0]
hibernate_page_list_setall time: 125 ms
16.01.15 19:06:29,000
kernel[0]
pages 787384, wire 215153, act 95945, inact 13, cleaned 0 spec 2, zf 125548, throt 0, compr 23259, xpmapped 40000
16.01.15 19:06:29,000
kernel[0]
could discard act 230711 inact 66024 purgeable 446 spec 30283 cleaned 0
16.01.15 19:06:29,000
kernel[0]
WARNING: hibernate_page_list_setall skipped 150189 xpmapped pages
16.01.15 19:06:29,000
kernel[0]
hibernate_page_list_setall preflight pageCount 459920 est comp 47 setfile 953155584 min 2147483648
16.01.15 19:06:29,000
kernel[0]
AppleThunderboltGenericHAL::earlyWake - complete - took 0 milliseconds
16.01.15 19:06:29,000
kernel[0]
[0x256a185000, 0x1000]
16.01.15 19:06:29,000
kernel[0]
[0x396d956000, 0x40000000]
16.01.15 19:06:29,000
kernel[0]
[0x39ad956000, 0x3ffff000]
16.01.15 19:06:29,000
kernel[0]
[0x0, 0x0]
16.01.15 19:06:29,000
kernel[0]
kern_open_file_for_direct_io(0) took 48 ms
16.01.15 19:06:29,000
kernel[0]
Opened file /var/vm/sleepimage, size 2147483648, partition base 0x0, maxio 2000000 ssd 0
16.01.15 19:06:29,000
kernel[0]
hibernate image major 1, minor 0, blocksize 4096, pollers 5
16.01.15 19:06:29,000
kernel[0]
hibernate_alloc_pages act 327064, inact 191622, anon 144649, throt 0, spec 30287, wire 236844, wireinit 76871
16.01.15 19:06:29,000
kernel[0]
hibernate_setup(0) took 0 ms
16.01.15 19:06:29,000
kernel[0]
IO80211AWDLPeerManager::doDisable source [handleSIOCSIFFLAGS]
16.01.15 19:06:29,000
kernel[0]
en1: BSSID changed to ae:29:37:d3:08:86
16.01.15 19:06:29,000
kernel[0]
AirPort: Link Down on awdl0. Reason 1 (Unspecified).
16.01.15 19:06:29,000
kernel[0]
IO80211AWDLPeerManager::doDisable source [setLinkState]
16.01.15 19:06:29,000
kernel[0]
AirPort: Link Down on en1. Reason 8 (Disassociated because station leaving).
16.01.15 19:06:29,000
kernel[0]
en1::IO80211Interface::postMessage bssid changed
16.01.15 19:06:29,000
kernel[0]
en1: 802.11d country code set to 'X3'.
16.01.15 19:06:29,000
kernel[0]
en1: Supported channels 1 2 3 4 5 6 7 8 9 10 11 12 13 36 40 44 48 52 56 60 64 100 104 108 112 116 120 124 128 132 136 140
16.01.15 19:06:29,315
sharingd[235]
19:06:29.314 : SDStatusMonitor::kStatusWirelessPowerChanged
16.01.15 19:06:29,322
discoveryd[51]
Basic DNSResolver UDNS Send(): UDP Sendto() failed to DNSNameServer 172.20.10.1 Port 53 errno 50, fd 35, ErrLogCount 1 ResolverIntf:5
16.01.15 19:06:29,322
discoveryd[51]
Basic DNSResolver UDNS Send(): UDP Sendto() failed to DNSNameServer 172.20.10.1 Port 53 errno 50, fd 35, ErrLogCount 2 ResolverIntf:5
16.01.15 19:06:29,323
discoveryd[51]
Basic DNSResolver UDNS Send(): UDP Sendto() failed to DNSNameServer 172.20.10.1 Port 53 errno 50, fd 35, ErrLogCount 3 ResolverIntf:5
16.01.15 19:06:29,325
discoveryd[51]
Basic DNSResolver UDNS Send(): UDP Sendto() failed to DNSNameServer 172.20.10.1 Port 53 errno 50, fd 35, ErrLogCount 4 ResolverIntf:5
16.01.15 19:06:29,325
discoveryd[51]
Basic DNSResolver UDNS Send(): UDP Sendto() failed to DNSNameServer 172.20.10.1 Port 53 errno 50, fd 35, ErrLogCount 5 ResolverIntf:5
16.01.15 19:06:29,327
airportd[30]
_handleLinkEvent: WiFi is not powered. Resetting state variables.
16.01.15 19:06:29,000
kernel[0]
[AppleMultitouchDevice::willTerminate] entered
16.01.15 19:06:29,000
kernel[0]
[AppleMultitouchDevice::stop] entered
16.01.15 19:06:29,000
kernel[0]
[0xffffff80150b6500][free]()
16.01.15 19:06:29,832
sharingd[235]
19:06:29.832 : SDStatusMonitor::kStatusBluetoothPowerChanged
16.01.15 19:06:29,833
sharingd[235]
19:06:29.832 : SDStatusMonitor::kStatusBluetoothPowerChanged
16.01.15 19:06:40,000
kernel[0]
hibernate_page_list_setall(preflight 0) start 0xffffff8071345000, 0xffffff8071365000
16.01.15 19:06:40,000
kernel[0]
hibernate_page_list_setall time: 163 ms
16.01.15 19:06:40,000
kernel[0]
pages 786864, wire 214473, act 136103, inact 18, cleaned 0 spec 10, zf 125554, throt 0, compr 23259, xpmapped 40000
16.01.15 19:06:40,000
kernel[0]
could discard act 190711 inact 66013 purgeable 446 spec 30277 cleaned 0
16.01.15 19:06:40,000
kernel[0]
WARNING: hibernate_page_list_setall skipped 151329 xpmapped pages
16.01.15 19:06:40,000
kernel[0]
hibernate_page_list_setall found pageCount 499417
16.01.15 19:06:40,000
kernel[0]
IOHibernatePollerOpen, ml_get_interrupts_enabled 0
16.01.15 19:06:40,000
kernel[0]
IOHibernatePollerOpen(0)
16.01.15 19:06:40,000
kernel[0]
encryptStart 14020
16.01.15 19:06:40,000
kernel[0]
bitmap_size 0x1f5a0, previewSize 0x341a08, writing 498277 pages @ 0x374fc8
16.01.15 19:06:40,000
kernel[0]
encryptEnd feada00
16.01.15 19:06:40,000
kernel[0]
image1Size 0x148e1000, encryptStart1 0x14020, End1 0xfeada00
16.01.15 19:06:40,000
kernel[0]
encryptStart 148e1000
16.01.15 19:06:40,000
kernel[0]
encryptEnd 39c33e00
16.01.15 19:06:40,000
kernel[0]
PMStats: Hibernate write took 9581 ms
16.01.15 19:06:40,000
kernel[0]
all time: 9581 ms, comp bytes: 2041360384 time: 1946 ms 1000 Mb/s, crypt bytes: 891209696 time: 1635 ms 519 Mb/s,
16.01.15 19:06:40,000
kernel[0]
image 969097216 (45%), uncompressed 2041360384 (498379), compressed 961662608 (47%), sum1 e7e4907, sum2 da893b12
16.01.15 19:06:40,000
kernel[0]
zeroPageCount 39752, wiredPagesEncrypted 164244, wiredPagesClear 49191, dirtyPagesEncrypted 284944
16.01.15 19:06:40,000
kernel[0]
hibernate_write_image done(0)
16.01.15 19:06:40,000
kernel[0]
sleep
16.01.15 19:06:40,000
kernel[0]
Wake reason: ?
16.01.15 19:06:40,531
discoveryd[51]
Basic DNSResolver UDNS Send(): UDP Sendto() failed to DNSNameServer 172.20.10.1 Port 53 errno 50, fd 35, ErrLogCount 6 ResolverIntf:5
16.01.15 19:06:40,532
discoveryd[51]
Basic DNSResolver UDNS Send(): UDP Sendto() failed to DNSNameServer 172.20.10.1 Port 53 errno 50, fd 35, ErrLogCount 7 ResolverIntf:5
16.01.15 19:06:40,532
discoveryd[51]
Basic DNSResolver UDNS Send(): UDP Sendto() failed to DNSNameServer 172.20.10.1 Port 53 errno 50, fd 35, ErrLogCount 8 ResolverIntf:5
16.01.15 19:06:40,532
discoveryd[51]
Basic DNSResolver UDNS Send(): UDP Sendto() failed to DNSNameServer 172.20.10.1 Port 53 errno 50, fd 35, ErrLogCount 9 ResolverIntf:5
16.01.15 19:06:40,533
discoveryd[51]
Basic DNSResolver UDNS Send(): UDP Sendto() failed to DNSNameServer 172.20.10.1 Port 53 errno 50, fd 35, ErrLogCount 10 ResolverIntf:5
16.01.15 19:06:43,004
discoveryd[51]
Basic Bonjour stop listening on awdl0
16.01.15 19:06:43,000
kernel[0]
RTC: PowerByCalendarDate setting ignored
16.01.15 19:06:43,000
kernel[0]
RTC: PowerByCalendarDate setting ignored
16.01.15 19:06:43,000
kernel[0]
Previous sleep cause: 5
16.01.15 19:06:43,000
kernel[0]
AppleThunderboltGenericHAL::earlyWake - complete - took 1 milliseconds
16.01.15 19:06:43,127
discoveryd[51]
Basic Bonjour,Warn Warning: IPv4 listener multicast send failed en1, 50
16.01.15 19:06:43,127
discoveryd[51]
Basic Bonjour,Warn Warning: IPv6 listener multicast send failed en1, 50
16.01.15 19:06:43,000
kernel[0]
TBT W (1): 0 [x]
16.01.15 19:06:43,248
sharingd[235]
19:06:43.247 : SDStatusMonitor::kStatusWirelessPowerChanged
16.01.15 19:06:43,000
kernel[0]
AirPort: Link Up on awdl0
16.01.15 19:06:43,304
sharingd[235]
19:06:43.303 : SDStatusMonitor::kStatusBluetoothPowerChanged
16.01.15 19:06:43,304
sharingd[235]
19:06:43.304 : SDStatusMonitor::kStatusBluetoothPowerChanged
16.01.15 19:06:43,398
coreaudiod[225]
2015-01-16 07:06:43.398137 PM [AirPlay] BTLE client stopping to browse for AirPlay Solo Target Presence.
16.01.15 19:06:43,398
coreaudiod[225]
2015-01-16 07:06:43.398368 PM [AirPlay] BTLE client starting to browse for AirPlay Solo Target Presence.
16.01.15 19:06:43,399
coreaudiod[225]
2015-01-16 07:06:43.398688 PM [AirPlay] BTLE client stopped to browse for AirPlay Solo Target Presence.
16.01.15 19:06:43,399
coreaudiod[225]
2015-01-16 07:06:43.399031 PM [AirPlay] BTLE client started to browse for AirPlay Solo Target Presence.
I tried to run pmset -g pslog when im putting computer to sleep. I get slightly more debug info. But still cannot find the solution.
machine:~ user$ pmset -g pslog
Logging IORegisterForSystemPower sleep/wake messages
pmset is in logging mode now. Hit ctrl-c to exit.
2015-01-16 19:05:26 +0100 IOPSNotificationCreateRunLoopSource
Now drawing from 'AC Power'
-InternalBattery-0 100%; charged; 0:00 remaining
2015-01-16 19:06:08 +0100 IORegisterForSystemPower: ...Sleeping...
2015-01-16 19:06:45 +0100 com.apple.system.powersources.lowbattery
2015-01-16 19:06:45 +0100 com.apple.system.powersources
2015-01-16 19:07:07 +0100 com.apple.system.powersources.lowbattery
2015-01-16 19:07:07 +0100 com.apple.system.powersources
2015-01-16 19:07:08 +0100 IORegisterForSystemPower: ...HasPoweredOn...
Wake Reason =
wakeType = HID Activity
I thing there can be some problem with hidd process but I'm only guessing.
