Can't format former Boot Camp partition

So I stupidly erased my Boot Camp partition using Disk Utility rather than in the Boot Camp Assistant. And now I the partition is stuck as free space and i can't change it. When i select the free space in Disk Util, I can change it to Mac OS Extended and ExFAT as usual, but when I press apply, the progress bar appears for a brief second and disappears. Then it acts as if I never pressed apply; when I close the window, it says that I have unsaved changes. The free space does not appear as a drive in the left sidebar.

I have tried reinstalling OS X, I've tried returning to a time machine backup, I've verified and repaired the disk, but nothing has worked.

I'm left with 67GB of space unusable on my macbook now.

MacBook Pro with Retina display, OS X Mavericks (10.9.4)

Posted on Oct 11, 2014 9:36 AM

239 replies

Nov 6, 2014 1:53 PM in response to Loner T

Hello to Loner T, I am your new French fan. I had the same problem with the BootCamp disk and read all that you indicated before, i know nothing about terminal but i tried and... i'am busted. 😁

So, i'am looking for a simple explanation, my disks are already erased, i want just to have them in a single volume (Fusion Drive 3To) because now i see four of them, 3To in differents disks and another one with the SSD of the fusion drive.

I take a copy of what i see in the terminal and the disk utilities.

With this single volume, i'am going to install a new Yosemite and recover all of my stuffs with my Time Machine.

Can you help me, please? 😝

PS: My iMac is a Core i7 3To Fusion Drive late 2012.

Terminal:

-bash-3.2# diskutil cs list

CoreStorage logical volume groups (3 found)

+-- Logical Volume Group D28B755F-B6F4-49D7-8B26-9B1782F1E2E4

| =========================================================

| Name: BOOTCAMP

| Status: Online

| Size: 219865403392 B (219.9 GB)

| Free Space: 219513077760 B (219.5 GB)

| |

| +-< Physical Volume 14D8374C-CA87-46A7-8E19-C4EDC9B6701D

| ----------------------------------------------------

| Index: 0

| Disk: disk1s4

| Status: Online

| Size: 219865403392 B (219.9 GB)

+-- Logical Volume Group 82C44DC3-EC88-4ACE-B344-738362EEAE7E

| =========================================================

| Name: Untitled

| Status: Online

| Size: 1978162249728 B (2.0 TB)

| Free Space: 11038720 B (11.0 MB)

| |

| +-< Physical Volume 965CC19F-1664-4CA6-9535-13F6E8360A5C

| | ----------------------------------------------------

| | Index: 0

| | Disk: disk1s2

| | Status: Online

| | Size: 1978162249728 B (2.0 TB)

| |

| +-> Logical Volume Family 8643E364-8856-444B-9AEB-76449F1744F8

| ----------------------------------------------------------

| Encryption Status: Unlocked

| Encryption Type: None

| Conversion Status: NoConversion

| Conversion Direction: -none-

| Has Encrypted Extents: No

| Fully Secure: No

| Passphrase Required: No

| |

| +-> Logical Volume 97357AE4-B74B-4CD7-9738-86D3F8D16D79

| ---------------------------------------------------

| Disk: disk2

| Status: Online

| Size (Total): 1977798885376 B (2.0 TB)

| Conversion Progress: -none-

| Revertible: No

| LV Name: Untitled

| Volume Name: Untitled

| Content Hint: Apple_HFS

+-- Logical Volume Group DA966991-9CE6-4108-B738-CCE9F5B330CC

=========================================================

Name: Untitled

Status: Online

Size: 801436549120 B (801.4 GB)

Free Space: 5713920 B (5.7 MB)

+-< Physical Volume 64797298-74F4-4330-9EB8-5C856FA3CBC9

| ----------------------------------------------------

| Index: 0

| Disk: disk1s6

| Status: Online

| Size: 801436549120 B (801.4 GB)

+-> Logical Volume Family DAF7E49E-8405-41C4-9AB9-E7DD7A502EF4

----------------------------------------------------------

Encryption Status: Unlocked

Encryption Type: None

Conversion Status: NoConversion

Conversion Direction: -none-

Has Encrypted Extents: No

Fully Secure: No

Passphrase Required: No

+-> Logical Volume 23F9F7E6-44F1-4319-ABC2-073D43948E38

---------------------------------------------------

Disk: disk3

Status: Online

Size (Total): 801078509568 B (801.1 GB)

Conversion Progress: -none-

Revertible: No

LV Name: Untitled

Volume Name: Untitled

Content Hint: Apple_HFS

-bash-3.2#

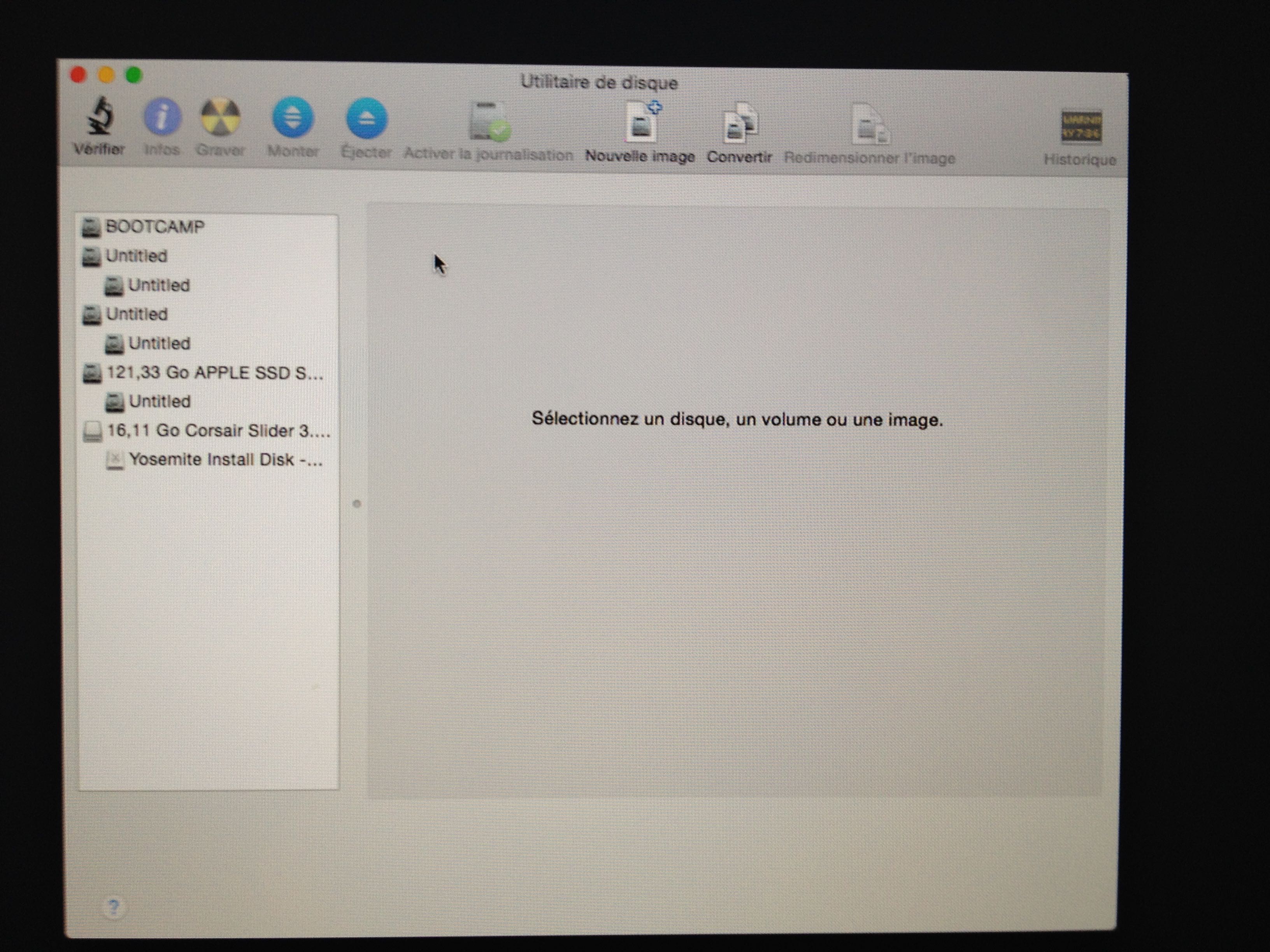

DiskUtil:

Loner T

Level 9

59,513 points

Nov 6, 2014 2:22 PM in response to Baron MARTo

Baron MARTo wrote:

Hello to Loner T, I am your new French fan.

😊.

But may I suggest a new thread containing this diskutil cs list and a diskutil list from the Terminal. You may have to use Command+Opt+R so your internal physical disks have no filesystems or files being accessed.

Nov 6, 2014 3:26 PM in response to Loner T

i'll try "Command+Opt+R" but i'am connected normally with Wifi and i can't see a possibility to select my Wifi, only the globe stop spinning and an error appears. "-2006F"

Loner T

Level 9

59,513 points

Nov 6, 2014 3:29 PM in response to Baron MARTo

It is tricky to use Internet Recovery (Command+Opt+R) and WiFi. Is there a possibility of using a wired connection? It may not be able to download 1.8+ GB over wireless without some errors and may abort repeatedly.

Nov 6, 2014 9:39 PM in response to Loner T

Ok, going to try this evening to connect me wired to internet.

The interest? what favors compared with my usb key?

Loner T

Level 9

59,513 points

Nov 7, 2014 4:41 AM in response to Baron MARTo

If you have OS X Mavericks on an external disk - OS X: Installing OS X on an external volume - Apple Support, it will work too.

Nov 7, 2014 5:30 AM in response to Loner T

Any difference between that solution and my Yosemite Usb key?

Loner T

Level 9

59,513 points

Nov 7, 2014 5:57 AM in response to Baron MARTo

If the USB key has OS X 10.8.5 or higher it should work too.

Nov 7, 2014 10:15 AM in response to Loner T

No, i told you, i cannot format the disk, i take you a picture of the Disk Utility Interface.

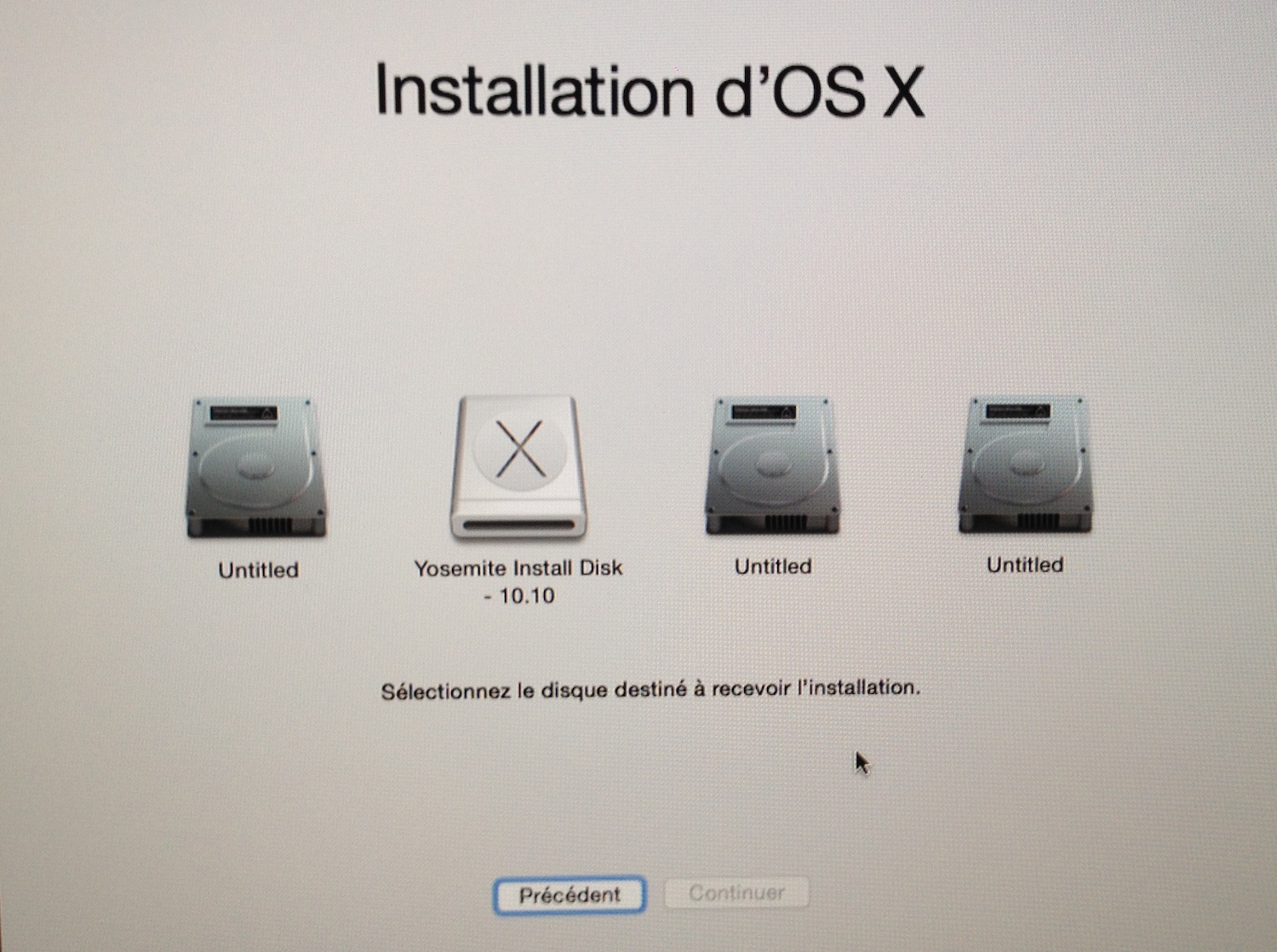

When i launch an installation from the USB Key, I have these choices:

None of them invite me to format the entire HD of the iMac, if i install Yosemite, it would be only on one of them.

Loner T

Level 9

59,513 points

Nov 7, 2014 10:26 AM in response to Baron MARTo

Yosemite DU is broken very badly.

You posted the output of diskutil cs list from Terminal. If you can post the output of diskutil list and boot from the USB key, I can give you commands to create a single 3TB Fusion drive.

Nov 7, 2014 10:44 AM in response to Loner T

Ok, let's do this! 🙂

-bash-3.2# dikutil cs list

-bash: dikutil: command not found

-bash-3.2# diskutil cs list

CoreStorage logical volume groups (3 found)

+-- Logical Volume Group 82C44DC3-EC88-4ACE-B344-738362EEAE7E

| =========================================================

| Name: Untitled

| Status: Online

| Size: 1978162249728 B (2.0 TB)

| Free Space: 11038720 B (11.0 MB)

| |

| +-< Physical Volume 965CC19F-1664-4CA6-9535-13F6E8360A5C

| | ----------------------------------------------------

| | Index: 0

| | Disk: disk1s2

| | Status: Online

| | Size: 1978162249728 B (2.0 TB)

| |

| +-> Logical Volume Family 8643E364-8856-444B-9AEB-76449F1744F8

| ----------------------------------------------------------

| Encryption Status: Unlocked

| Encryption Type: None

| Conversion Status: NoConversion

| Conversion Direction: -none-

| Has Encrypted Extents: No

| Fully Secure: No

| Passphrase Required: No

| |

| +-> Logical Volume 97357AE4-B74B-4CD7-9738-86D3F8D16D79

| ---------------------------------------------------

| Disk: disk3

| Status: Online

| Size (Total): 1977798885376 B (2.0 TB)

| Conversion Progress: -none-

| Revertible: No

| LV Name: Untitled

| Volume Name: Untitled

| Content Hint: Apple_HFS

+-- Logical Volume Group D28B755F-B6F4-49D7-8B26-9B1782F1E2E4

| =========================================================

| Name: BOOTCAMP

| Status: Online

| Size: 219865403392 B (219.9 GB)

| Free Space: 219513077760 B (219.5 GB)

| |

| +-< Physical Volume 14D8374C-CA87-46A7-8E19-C4EDC9B6701D

| ----------------------------------------------------

| Index: 0

| Disk: disk1s4

| Status: Online

| Size: 219865403392 B (219.9 GB)

+-- Logical Volume Group DA966991-9CE6-4108-B738-CCE9F5B330CC

=========================================================

Name: Untitled

Status: Online

Size: 800920764416 B (800.9 GB)

Free Space: 5713920 B (5.7 MB)

+-< Physical Volume 64797298-74F4-4330-9EB8-5C856FA3CBC9

| ----------------------------------------------------

| Index: 0

| Disk: disk1s6

| Status: Online

| Size: 800920764416 B (800.9 GB)

+-> Logical Volume Family DAF7E49E-8405-41C4-9AB9-E7DD7A502EF4

----------------------------------------------------------

Encryption Status: Unlocked

Encryption Type: None

Conversion Status: NoConversion

Conversion Direction: -none-

Has Encrypted Extents: No

Fully Secure: No

Passphrase Required: No

+-> Logical Volume 23F9F7E6-44F1-4319-ABC2-073D43948E38

---------------------------------------------------

Disk: disk2

Status: Online

Size (Total): 800562724864 B (800.6 GB)

Conversion Progress: -none-

Revertible: No

LV Name: Untitled

Volume Name: Untitled

Content Hint: Apple_HFS

-bash-3.2#

Loner T

Level 9

59,513 points

Nov 7, 2014 10:47 AM in response to Baron MARTo

Please post diskutil list as well. 😉

Nov 7, 2014 11:09 AM in response to Loner T

Oups... That's what you need?

-bash-3.2# diskutil list

/dev/disk0

#: TYPE NAME SIZE IDENTIFIER

0: GUID_partition_scheme *121.3 GB disk0

1: EFI EFI 209.7 MB disk0s1

2: Apple_HFS Untitled 120.5 GB disk0s2

3: Apple_Boot Recovery HD 650.0 MB disk0s3

/dev/disk1

#: TYPE NAME SIZE IDENTIFIER

0: GUID_partition_scheme *3.0 TB disk1

1: EFI EFI 209.7 MB disk1s1

2: Apple_CoreStorage 2.0 TB disk1s2

3: Apple_Boot Boot OS X 134.2 MB disk1s3

4: Apple_CoreStorage 219.9 GB disk1s4

5: Apple_Boot Boot OS X 134.2 MB disk1s5

6: Apple_CoreStorage 800.9 GB disk1s6

7: Apple_Boot Recovery HD 650.0 MB disk1s7

/dev/disk2

#: TYPE NAME SIZE IDENTIFIER

0: Apple_HFS Untitled *800.6 GB disk2

Logical Volume on disk1s6

23F9F7E6-44F1-4319-ABC2-073D43948E38

Unencrypted

/dev/disk3

#: TYPE NAME SIZE IDENTIFIER

0: Apple_HFS Untitled *2.0 TB disk3

Logical Volume on disk1s2

97357AE4-B74B-4CD7-9738-86D3F8D16D79

Unencrypted

/dev/disk5

#: TYPE NAME SIZE IDENTIFIER

0: GUID_partition_scheme *16.0 GB disk5

1: EFI EFI 209.7 MB disk5s1

2: Apple_HFS Yosemite Install Dis... 15.7 GB disk5s2

/dev/disk6

#: TYPE NAME SIZE IDENTIFIER

0: untitled *5.2 MB disk6

/dev/disk7

#: TYPE NAME SIZE IDENTIFIER

0: untitled *524.3 KB disk7

/dev/disk8

#: TYPE NAME SIZE IDENTIFIER

0: untitled *524.3 KB disk8

/dev/disk9

#: TYPE NAME SIZE IDENTIFIER

0: untitled *524.3 KB disk9

/dev/disk10

#: TYPE NAME SIZE IDENTIFIER

0: untitled *524.3 KB disk10

/dev/disk11

#: TYPE NAME SIZE IDENTIFIER

0: untitled *524.3 KB disk11

/dev/disk12

#: TYPE NAME SIZE IDENTIFIER

0: untitled *6.3 MB disk12

/dev/disk13

#: TYPE NAME SIZE IDENTIFIER

0: untitled *2.1 MB disk13

/dev/disk14

#: TYPE NAME SIZE IDENTIFIER

0: untitled *1.0 MB disk14

/dev/disk15

#: TYPE NAME SIZE IDENTIFIER

0: untitled *524.3 KB disk15

/dev/disk16

#: TYPE NAME SIZE IDENTIFIER

0: untitled *524.3 KB disk16

/dev/disk17

#: TYPE NAME SIZE IDENTIFIER

0: untitled *1.0 MB disk17

/dev/disk18

#: TYPE NAME SIZE IDENTIFIER

0: untitled *6.3 MB disk18

-bash-3.2#

Loner T

Level 9

59,513 points

Nov 7, 2014 11:23 AM in response to Baron MARTo

1. Erase "Untitled" CS Volume - diskutil cs deleteVolume 97357AE4-B74B-4CD7-9738-86D3F8D16D79

2. Erase "Untitled" CS Volume group - diskutil cs deleteVolume 82C44DC3-EC88-4ACE-B344-738362EEAE7E

3. Erase "Untitled" CS Volume - diskutil cs deleteVolume 23F9F7E6-44F1-4319-ABC2-073D43948E38

4. Erase "Untitled" CS Volume group - diskutil cs delete DA966991-9CE6-4108-B738-CCE9F5B330CC

5. Erase "BOOTCAMP" CS Volume group - diskutil cs delete D28B755F-B6F4-49D7-8B26-9B1782F1E2E4

These commands will delete all CS volumes and volume groups. Please run diskutil cs list to confirm. Do not touch Disk Utility UI, otherwise we will need to start all over again.

Please re-run diskutil list because OSX will change /dev/diskN where N will change.

Nov 7, 2014 11:54 AM in response to Loner T

Work for two of them:

-bash-3.2# diskutil cs deleteVolume 97357AE4-B74B-4CD7-9738-86D3F8D16D79

The Core Storage Logical Volume UUID is 97357AE4-B74B-4CD7-9738-86D3F8D16D79

Started CoreStorage operation on disk3 Untitled

Unmounting disk3

Removing Logical Volume from Logical Volume Group

Finished CoreStorage operation on disk3 Untitled

-bash-3.2# diskutil cs deleteVolume 23F9F7E6-44F1-4319-ABC2-073D43948E38

The Core Storage Logical Volume UUID is 23F9F7E6-44F1-4319-ABC2-073D43948E38

Started CoreStorage operation on disk2 Untitled

Unmounting disk2

Removing Logical Volume from Logical Volume Group

Finished CoreStorage operation on disk2 Untitled

It does not work for:

-bash-3.2# diskutil cs deleteVolume 82C44DC3-EC88-4ACE-B344-738362EEAE7E

82C44DC3-EC88-4ACE-B344-738362EEAE7E does not appear to be a valid Core Storage Logical Volume UUID or disk

-bash-3.2# diskutil cs deleteVolume DA966991-9CE6-4108-B738-CCE9F5B330CC

DA966991-9CE6-4108-B738-CCE9F5B330CC does not appear to be a valid Core Storage Logical Volume UUID or disk

-bash-3.2# diskutil cs deleteVolume D28B755F-B6F4-49D7-8B26-9B1782F1E2E4

D28B755F-B6F4-49D7-8B26-9B1782F1E2E4 does not appear to be a valid Core Storage Logical Volume UUID or disk

Now, the new diskutil cs list:

CoreStorage logical volume groups (3 found)

+-- Logical Volume Group 82C44DC3-EC88-4ACE-B344-738362EEAE7E

| =========================================================

| Name: Untitled

| Status: Online

| Size: 1978162249728 B (2.0 TB)

| Free Space: 1977809924096 B (2.0 TB)

| |

| +-< Physical Volume 965CC19F-1664-4CA6-9535-13F6E8360A5C

| ----------------------------------------------------

| Index: 0

| Disk: disk1s2

| Status: Online

| Size: 1978162249728 B (2.0 TB)

+-- Logical Volume Group D28B755F-B6F4-49D7-8B26-9B1782F1E2E4

| =========================================================

| Name: BOOTCAMP

| Status: Online

| Size: 219865403392 B (219.9 GB)

| Free Space: 219513077760 B (219.5 GB)

| |

| +-< Physical Volume 14D8374C-CA87-46A7-8E19-C4EDC9B6701D

| ----------------------------------------------------

| Index: 0

| Disk: disk1s4

| Status: Online

| Size: 219865403392 B (219.9 GB)

+-- Logical Volume Group DA966991-9CE6-4108-B738-CCE9F5B330CC

=========================================================

Name: Untitled

Status: Online

Size: 800920764416 B (800.9 GB)

Free Space: 800568438784 B (800.6 GB)

+-< Physical Volume 64797298-74F4-4330-9EB8-5C856FA3CBC9

----------------------------------------------------

Index: 0

Disk: disk1s6

Status: Online

Size: 800920764416 B (800.9 GB)

And the new diskutil list:

/dev/disk0

#: TYPE NAME SIZE IDENTIFIER

0: GUID_partition_scheme *121.3 GB disk0

1: EFI EFI 209.7 MB disk0s1

2: Apple_HFS Untitled 120.5 GB disk0s2

3: Apple_Boot Recovery HD 650.0 MB disk0s3

/dev/disk1

#: TYPE NAME SIZE IDENTIFIER

0: GUID_partition_scheme *3.0 TB disk1

1: EFI EFI 209.7 MB disk1s1

2: Apple_CoreStorage 2.0 TB disk1s2

3: Apple_Boot Boot OS X 134.2 MB disk1s3

4: Apple_CoreStorage 219.9 GB disk1s4

5: Apple_Boot Boot OS X 134.2 MB disk1s5

6: Apple_CoreStorage 800.9 GB disk1s6

7: Apple_Boot Recovery HD 650.0 MB disk1s7

/dev/disk4

#: TYPE NAME SIZE IDENTIFIER

0: GUID_partition_scheme *4.0 GB disk4

1: EFI EFI 209.7 MB disk4s1

2: Apple_HFS Sans titre 3.7 GB disk4s2

/dev/disk5

#: TYPE NAME SIZE IDENTIFIER

0: GUID_partition_scheme *16.0 GB disk5

1: EFI EFI 209.7 MB disk5s1

2: Apple_HFS Yosemite Install Dis... 15.7 GB disk5s2

/dev/disk6

#: TYPE NAME SIZE IDENTIFIER

0: untitled *5.2 MB disk6

/dev/disk7

#: TYPE NAME SIZE IDENTIFIER

0: untitled *524.3 KB disk7

/dev/disk8

#: TYPE NAME SIZE IDENTIFIER

0: untitled *524.3 KB disk8

/dev/disk9

#: TYPE NAME SIZE IDENTIFIER

0: untitled *524.3 KB disk9

/dev/disk10

#: TYPE NAME SIZE IDENTIFIER

0: untitled *524.3 KB disk10

/dev/disk11

#: TYPE NAME SIZE IDENTIFIER

0: untitled *524.3 KB disk11

/dev/disk12

#: TYPE NAME SIZE IDENTIFIER

0: untitled *6.3 MB disk12

/dev/disk13

#: TYPE NAME SIZE IDENTIFIER

0: untitled *2.1 MB disk13

/dev/disk14

#: TYPE NAME SIZE IDENTIFIER

0: untitled *1.0 MB disk14

/dev/disk15

#: TYPE NAME SIZE IDENTIFIER

0: untitled *524.3 KB disk15

/dev/disk16

#: TYPE NAME SIZE IDENTIFIER

0: untitled *524.3 KB disk16

/dev/disk17

#: TYPE NAME SIZE IDENTIFIER

0: untitled *1.0 MB disk17

/dev/disk18

#: TYPE NAME SIZE IDENTIFIER

0: untitled *6.3 MB disk18

/dev/disk19

#: TYPE NAME SIZE IDENTIFIER

0: CD_partition_scheme *68.8 MB disk19

1: CD_ROM_Mode_1 U3 System 59.9 MB disk19s0

-bash-3.2#

Can't format former Boot Camp partition
