Yosemite "problem resizing Core Storage" upgrade error?

Not a great amount of luck upgrading from Mavericks to Yosemite here.


Download and start install, restart, see the progress bar, then the install screen with "about 18 minutes remaining". It moves along, and then boom...

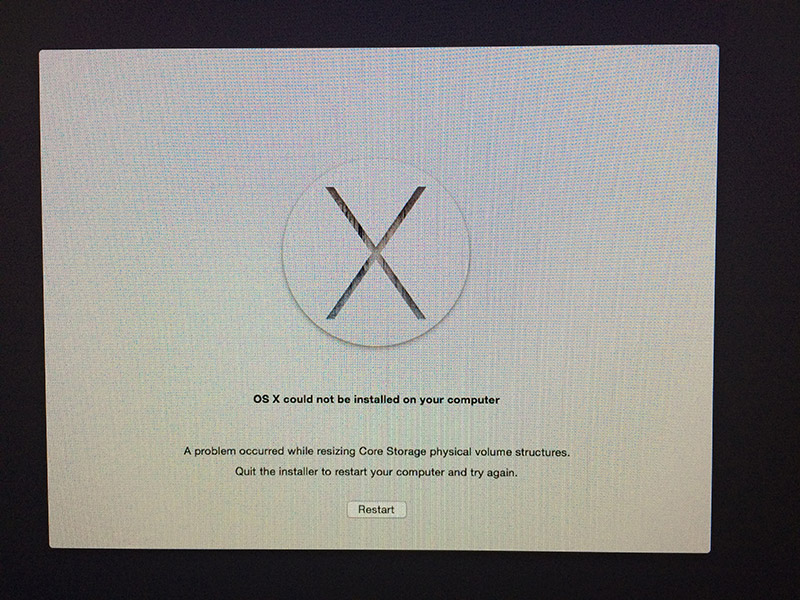

User uploaded file


OS X could not be installed on your computer

A problem occurred while resizing Core Storage physical volume structures.

Quit the installer to restart your computer and try again.


Restarting several times, as well as returning to Mavericks and trying again has so far failed. Live Chat suggestions of verifying and repairing disks and trying in Safe Mode also unsuccessful.


3TB Fusion Drive has over 450GB free space, just the single "iMac" partition within the Macintosh HD.


Any help greatly appreciated! Otherwise looks like it's a wait to see if a fix appears...


iMac 27-inch, Late 2012

3TB Fusion Drive

3.4GHz Intel Core i7

16GB Memory

iMac (27-inch, Late 2012), OS X Mavericks (10.9.5)

Posted on Oct 17, 2014 11:19 AM

Reply
11 replies

Oct 20, 2014 8:20 AM in response to aaaaaa87

I have the same problem with MacBook Pro (Early 2011) with HDD & SSD as Fusion Drive.

I think the problem is the recovery partion, it is not here?!


fjd:~ fjd$ diskutil list

/dev/disk0

#: TYPE NAME SIZE IDENTIFIER

0: GUID_partition_scheme *240.1 GB disk0

1: EFI EFI 209.7 MB disk0s1

2: Apple_CoreStorage 239.7 GB disk0s2

3: Apple_Boot Boot OS X 134.2 MB disk0s3

/dev/disk1

#: TYPE NAME SIZE IDENTIFIER

0: GUID_partition_scheme *640.1 GB disk1

1: EFI EFI 209.7 MB disk1s1

2: Apple_CoreStorage 639.3 GB disk1s2

3: Apple_Boot Boot OS X 650.0 MB disk1s3

/dev/disk2

#: TYPE NAME SIZE IDENTIFIER

0: Apple_HFS FusionDrive *871.9 GB disk2

Logical Volume on disk0s2, disk1s2

11DFE616-72CD-46BC-A3F5-5E2F533F6CB7

Unlocked Encrypted Fusion Drive

Oct 26, 2014 5:58 AM in response to aaaaaa87

Original poster returning to say Yosemite now installed successfully!


Can't say I did a single thing differently nor has my iMac been changed at all since the problems - all I happened to do was download the whole update again from scratch and click install. It began at "18 minutes" again but then actually started counting down, and success.


So if you've had the same issue, perhaps it's worth just deleting and trying the download again, could be they've fixed something somewhere.


Good luck!

Oct 26, 2014 7:29 AM in response to aaaaaa87

The problem is the Fusion Drive.

After some experimentation it was found that the installer of Yosemite is not able to delete the recovery partition of Mavericks correctly. It remains after installation of Yosemite and disturbs the other processes. The self-created Fusion Drive is thus useless for further use under Yosemite and also fails to return to Mavericks.

So ...

Yosemite bootable on USB stick or SD card copy (instructions in the network).

Of Stick or SD card boot - but not install anything. Now stand including the terminal and disk utility available without an operating system to be loaded. This constellation is important for subsequent work on the Fusion Drive.

Calling terminal.

Fusion Drive on the command line first unravel again in SSD and magnetic disk (instructions in the network).

Deleting both drives separately by disk utility and format. It may only have a single partition each remain left, everything else must be completely gone.

Create new Fusion Drive on the command line of the terminal by SSD and magnetic disk are joined again (instructions in the network).

Start installation of Yosemite on the new Fusion Drive.


The installation starts now relatively fast and is completed in no longer than 30 min. - As with all previous versions also. In general, the time required is a good indication that everything runs as it should.

The return migration of 1.5 TB of data via Time Machine should be via USB 2.0 through in 2-3 hours, then everything is okay.

Reboot and lo and behold - all fast and fresh.



This should also work with a factory Fusion Drive.

Oct 26, 2014 7:46 AM in response to apalca

http://de.wikipedia.org/wiki/Fusion_Drive



Fusion Drive is a technology developed by Apple Computer Engineering, with a SSD and a mechanical hard drive be connected to a logical drive. [1]



Description and function [Edit]

Fusion Drive called Apple a technique in which an SSD and a mechanical hard disk are transparently connected to a logical drive. The user sees the combination as a single drive. [2] With Fusion Drive is also in large storage volume can be benefited at a moderate price of the speed of the SSD.



Fusion Drive connects not only two physical drives into one logical, but still used in addition to a technology that tiering is called. When tiering, in German as "staggering", data on frequently accessed, the fastest drive (SSD here) saved, the other to the slower, here on the mechanical drive. What data is stored where, the operating system decides on the basis of a thorough analysis of the data access itself and can not be influenced by the user. Optionally coated the operating system in the background to data. The operating system itself is always on the SSD. [3] [4] tiering is used in mainframe computers for some time, with Fusion Drive this technology now comes for the first time in a personal computer for use.



Fusion Drive must not be confused with conventional hybrid drives. While in the latter case the SSD part only serves as a data buffer and all data is ultimately always stored on the mechanical disk in Fusion Drive SSD is a full-fledged part of the logical drive (except a small part of 4 GB [3], which also serves as a buffer).



Fusion Drive is since November 2012 integrated with all new Macs with SSD and mechanical hard drive. [5] The first corresponding Macs were equipped with a 128 GB SSD and a 1 TB or 3 TB of mechanical hard disk. [6] Currently (April 2013 ), Apple provides no utility available with which Fusion Drive install on older Macs could. But this can be done via the terminal, this requirement is OS X 10.8 Lion Mountain. [7]
