In continuation of another post above a bootcamp disk problem, i ask to now how to crate a Bootcamp partition on a 3To. Fusion drive using command on terminal like:
diskutil list
diskutil cs list
sudo gpt -vv -r show /dev/disk0
sudo gpt -vv -r show /dev/disk1
sudo fdisk /dev/disk0
sudo fdisk /dev/disk1
The end of the first thread:
Can't format former Boot Camp partition
Thanks.
iMac, OS X Yosemite (10.10)
Sorry, did not get a chance to post on this before.
There are two options,
1. Use diskutil cs resizeStack, or,
2. Re-install Yosemite by using the steps from the previous thread, but this time create a Bootcamp-suitable volume also.

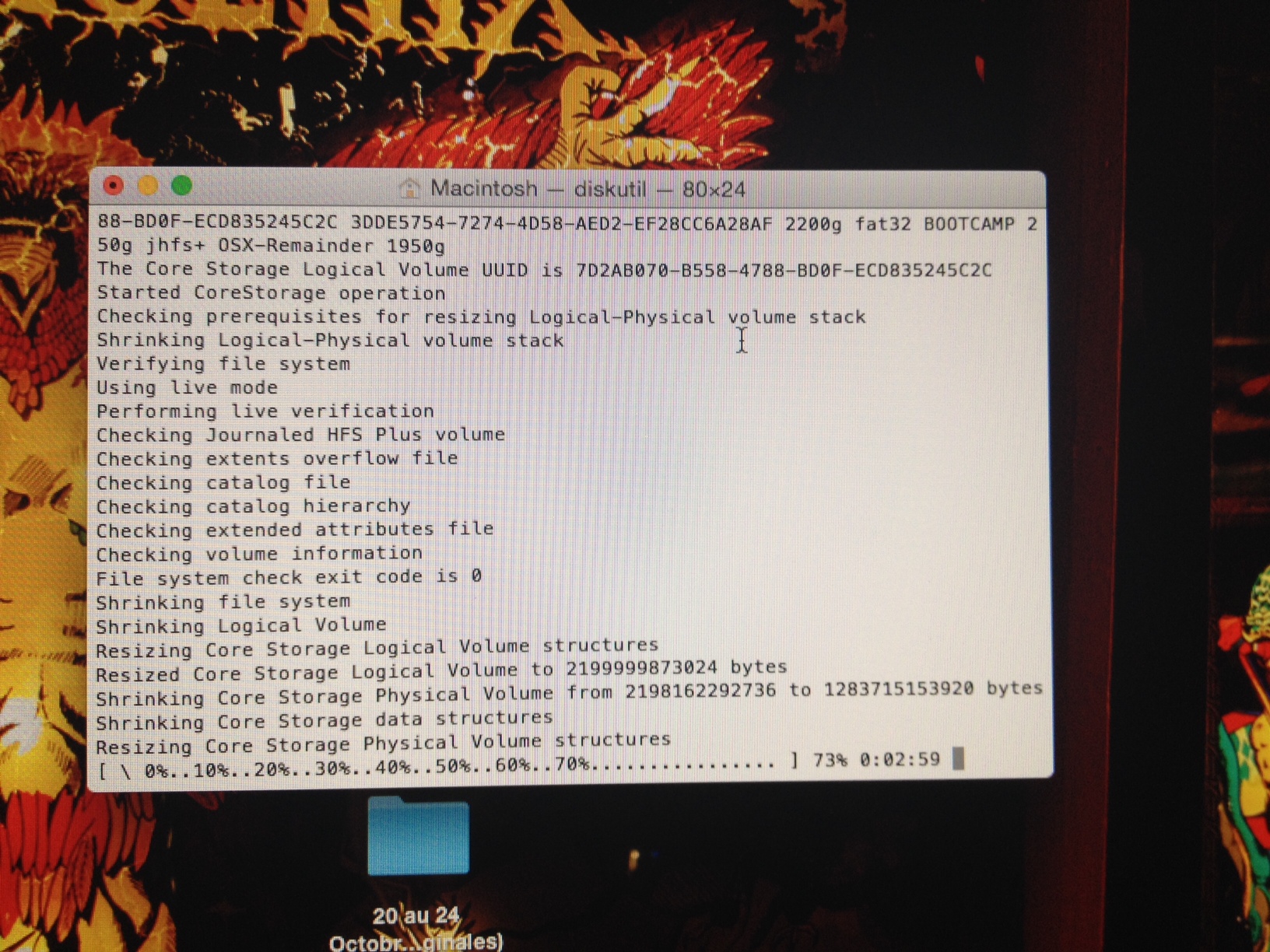

Nothing move anymore, i have this:
The computer is very, very slow.
MAJ: Correction, it move at 74%, the operation is very slow but still working.
Once it finishes, can you post the output of
diskutil list
diskutil cs list?
Ok, he finish but...
Problem:
Macintosh$ diskutil cs resizeStack 7D2AB070-B558-4788-BD0F-ECD835245C2C 3DDE5754-7274-4D58-AED2-EF28CC6A28AF 2200g fat32 BOOTCAMP 250g jhfs+ OSX-Remainder 1950g
The Core Storage Logical Volume UUID is 7D2AB070-B558-4788-BD0F-ECD835245C2C
Started CoreStorage operation
Checking prerequisites for resizing Logical-Physical volume stack
Shrinking Logical-Physical volume stack
Verifying file system
Using live mode
Performing live verification
Checking Journaled HFS Plus volume
Checking extents overflow file
Checking catalog file
Checking catalog hierarchy
Checking extended attributes file
Checking volume information
File system check exit code is 0
Shrinking file system
Shrinking Logical Volume
Resizing Core Storage Logical Volume structures
Resized Core Storage Logical Volume to 2199999873024 bytes
Shrinking Core Storage Physical Volume from 2198162292736 to 1283715153920 bytes
Shrinking Core Storage data structures
Resizing Core Storage Physical Volume structures
Resized Core Storage Physical Volume to 1283715153920 bytes
Copying booter
Shrinking partition for Physical Volume and adding new partitions
A problem occurred; undoing all changes
Copying booter
Growing Core Storage data structures
A problem occurred; undoing all changes
Growing Logical Volume
Resizing Core Storage Logical Volume structures
Resized Core Storage Logical Volume to 3114447011840 bytes
Growing file system
Error: -5344: MediaKit reports not enough space on device for requested operation
Macintosh$ diskutil list
/dev/disk0
#: TYPE NAME SIZE IDENTIFIER
0: GUID_partition_scheme *121.3 GB disk0
1: EFI EFI 209.7 MB disk0s1
2: Apple_CoreStorage 121.0 GB disk0s2
3: Apple_Boot Boot OS X 134.2 MB disk0s3
/dev/disk1
#: TYPE NAME SIZE IDENTIFIER
0: GUID_partition_scheme *3.0 TB disk1
1: EFI EFI 209.7 MB disk1s1
2: Apple_CoreStorage 2.2 TB disk1s2
3: Apple_Boot Recovery HD 650.1 MB disk1s3
4: Apple_CoreStorage 801.4 GB disk1s4
5: Apple_Boot Boot OS X 134.2 MB disk1s5
/dev/disk2
#: TYPE NAME SIZE IDENTIFIER
0: Apple_HFS Macintosh HD *3.1 TB disk2
Logical Volume on disk0s2, disk1s2, ...
7D2AB070-B558-4788-BD0F-ECD835245C2C
Unencrypted Fusion Drive
/dev/disk3
#: TYPE NAME SIZE IDENTIFIER
0: GUID_partition_scheme *2.0 TB disk3
1: EFI EFI 209.7 MB disk3s1
2: Apple_HFS Time Machine 2.0 TB disk3s2
/dev/disk4
#: TYPE NAME SIZE IDENTIFIER
0: GUID_partition_scheme *2.0 TB disk4
1: EFI EFI 209.7 MB disk4s1
2: Apple_HFS Archives 2.0 TB disk4s2
Macintosh$ diskutil cs list
CoreStorage logical volume groups (1 found)
|
+-- Logical Volume Group FE01F854-51A7-441B-9BBE-B903BA3E5262
=========================================================
Name: OSX-MacintoshLVG
Status: Online
Size: 3120587710464 B (3.1 TB)
Free Space: 94208 B (94.2 KB)
|
+-< Physical Volume D4097F0C-E8B6-4457-8764-76D78EEB4A96
| ----------------------------------------------------
| Index: 0
| Disk: disk0s2
| Status: Online
| Size: 120988852224 B (121.0 GB)
|
+-< Physical Volume 3DDE5754-7274-4D58-AED2-EF28CC6A28AF
| ----------------------------------------------------
| Index: 1
| Disk: disk1s2
| Status: Online
| Size: 2198162292736 B (2.2 TB)
|
+-< Physical Volume 272FA37E-4CFD-4B2A-853B-6F901149E844
| ----------------------------------------------------
| Index: 2
| Disk: disk1s4
| Status: Online
| Size: 801436565504 B (801.4 GB)
|
+-> Logical Volume Family 433CF0FC-85A1-4316-A0D0-701590C503F7
----------------------------------------------------------
Encryption Status: Unlocked
Encryption Type: None
Conversion Status: NoConversion
Conversion Direction: -none-
Has Encrypted Extents: No
Fully Secure: No
Passphrase Required: No
|
+-> Logical Volume 7D2AB070-B558-4788-BD0F-ECD835245C2C
---------------------------------------------------
Disk: disk2
Status: Online
Size (Total): 3114447011840 B (3.1 TB)
Conversion Progress: -none-
Revertible: No
LV Name: Macintosh HD
Volume Name: Macintosh HD
Content Hint: Apple_HFS
Looks like the numbers being used are being rounded and cause some issues.
Using size in bytes 2198162292736 (2.2TB) - 262144000 (250Gb) = 2197900148736
The same thing probably happened to BCA as well. Try exact bytes rather than GB, or leave a gap.
So i try again with Boot camp entering for exemple 300 Gigas?
The following syntax specifies a shrink from 2200g to 1800g and create a BOOTCAMP of 250g in freed-up space.
diskutil cs resizeStack 7D2AB070-B558-4788-BD0F-ECD835245C2C 3DDE5754-7274-4D58-AED2-EF28CC6A28AF 1800g fat32 BOOTCAMP 250g
If there is an error, it will rollback.
Sorry but i dont understand clearly, so i enter this?
diskutil cs resizeStack 7D2AB070-B558-4788-BD0F-ECD835245C2C 3DDE5754-7274-4D58-AED2-EF28CC6A28AF 1800g fat32 BOOTCAMP 250g
Or do i try another time with Bootcamp and another disk value?
Because of lack of documentation, reduce the current 2200g to 1800g and ask diskutil to create 250g fat32 Bootcamp in the freed-up space. The problem with this method is that it may create the BC partition at the end of 1800g, not at the beginning of disk1s2, which is my preference.
Ok so let's go for:
diskutil cs resizeStack 7D2AB070-B558-4788-BD0F-ECD835245C2C 3DDE5754-7274-4D58-AED2-EF28CC6A28AF 1800g fat32 BOOTCAMP 250g
Yes, please execute and post the output of diskutil list and diskutil cs list.
We miss 1 To.
Diskutil cs list
CoreStorage logical volume groups (1 found)
|
+-- Logical Volume Group FE01F854-51A7-441B-9BBE-B903BA3E5262
=========================================================
Name: OSX-MacintoshLVG
Status: Online
Size: 1806140678144 B (1.8 TB)
Free Space: 94208 B (94.2 KB)
|
+-< Physical Volume D4097F0C-E8B6-4457-8764-76D78EEB4A96
| ----------------------------------------------------
| Index: 0
| Disk: disk0s2
| Status: Online
| Size: 120988852224 B (121.0 GB)
|
+-< Physical Volume 3DDE5754-7274-4D58-AED2-EF28CC6A28AF
| ----------------------------------------------------
| Index: 1
| Disk: disk1s2
| Status: Online
| Size: 883715260416 B (883.7 GB)
|
+-< Physical Volume 272FA37E-4CFD-4B2A-853B-6F901149E844
| ----------------------------------------------------
| Index: 2
| Disk: disk1s5
| Status: Online
| Size: 801436565504 B (801.4 GB)
|
+-> Logical Volume Family 433CF0FC-85A1-4316-A0D0-701590C503F7
----------------------------------------------------------
Encryption Status: Unlocked
Encryption Type: None
Conversion Status: NoConversion
Conversion Direction: -none-
Has Encrypted Extents: No
Fully Secure: No
Passphrase Required: No
|
+-> Logical Volume 7D2AB070-B558-4788-BD0F-ECD835245C2C
---------------------------------------------------
Disk: disk2
Status: Online
Size (Total): 1799999979520 B (1.8 TB)
Conversion Progress: -none-
Revertible: No
LV Name: Macintosh HD
Volume Name: Macintosh HD
Content Hint: Apple_HFS
Macintosh$ diskutil list
/dev/disk0
#: TYPE NAME SIZE IDENTIFIER
0: GUID_partition_scheme *121.3 GB disk0
1: EFI EFI 209.7 MB disk0s1
2: Apple_CoreStorage 121.0 GB disk0s2
3: Apple_Boot Boot OS X 134.2 MB disk0s3
/dev/disk1
#: TYPE NAME SIZE IDENTIFIER
0: GUID_partition_scheme *3.0 TB disk1
1: EFI EFI 209.7 MB disk1s1
2: Apple_CoreStorage 883.7 GB disk1s2
3: Apple_Boot Recovery HD 650.1 MB disk1s3
4: Microsoft Basic Data BOOTCAMP 250.0 GB disk1s4
5: Apple_CoreStorage 801.4 GB disk1s5
6: Apple_Boot Boot OS X 134.2 MB disk1s6
/dev/disk2
#: TYPE NAME SIZE IDENTIFIER
0: Apple_HFS Macintosh HD *1.8 TB disk2
Logical Volume on disk0s2, disk1s2, ...
7D2AB070-B558-4788-BD0F-ECD835245C2C
Unencrypted Fusion Drive
/dev/disk3
#: TYPE NAME SIZE IDENTIFIER
0: GUID_partition_scheme *2.0 TB disk3
1: EFI EFI 209.7 MB disk3s1
2: Apple_HFS Time Machine 2.0 TB disk3s2
/dev/disk5
#: TYPE NAME SIZE IDENTIFIER
0: GUID_partition_scheme *2.0 TB disk5
1: EFI EFI 209.7 MB disk5s1
2: Apple_HFS Archives 2.0 TB disk5s2
iMac-de-Sebastien-MARTINEZ:~ Macintosh$
A new logical volume can be created in the Free Space as the following GPT command output should show. The current LVG is 1.8TB (the remaining 1.2TB is Free Space on the physical disk).
We miss 1 To.
...
Size (Total): 1799999979520 B (1.8 TB)
The next step is to create the Hybrid MBR using disk1 such that the following can be included for the Windows installer to use.
4: Microsoft Basic Data BOOTCAMP 250.0 GB disk1s4
Can you post the output of sudo gpt -vv -r show /dev/disk1? You may also want to download GPT Fdisk (http://sourceforge.net/projects/gptfdisk/)
Ok done:
sudo gpt -vv -r show /dev/disk1
gpt show: /dev/disk1: mediasize=3000592982016; sectorsize=512; blocks=5860533168
gpt show: /dev/disk1: Suspicious MBR at sector 0
gpt show: /dev/disk1: Pri GPT at sector 1
gpt show: /dev/disk1: Sec GPT at sector 5860533167
start size index contents
0 1 MBR
1 1 Pri GPT header
2 32 Pri GPT table
34 6
40 409600 1 GPT part - C12A7328-F81F-11D2-BA4B-00A0C93EC93B
409640 1726006368 2 GPT part - 53746F72-6167-11AA-AA11-00306543ECAC
1726416008 1269760 3 GPT part - 426F6F74-0000-11AA-AA11-00306543ECAC
1727685768 888
1727686656 488280064 4 GPT part - EBD0A0A2-B9E5-4433-87C0-68B6B72699C7
2215966720 2078998472
4294965192 1565305792 5 GPT part - 53746F72-6167-11AA-AA11-00306543ECAC
5860270984 262144 6 GPT part - 426F6F74-0000-11AA-AA11-00306543ECAC
5860533128 7
5860533135 32 Sec GPT table
5860533167 1 Sec GPT header
The following free space
2215966720 2078998472
is roughy 1039G or ~1TB.
This is your Bootcamp partition.
1727686656 488280064 4 GPT part - EBD0A0A2-B9E5-4433-87C0-68B6B72699C7
Before you can install Windows, a new MBR needs to be created. Can you post the output of sudo fdisk /dev/disk1 to check if there is an MBR that exists? If there is no MBR, you will need one. To create one, you will need to download and install GPT Fdisk (Gdisk) from http://sourceforge.net/projects/gptfdisk/.
sudo fdisk /dev/disk1
Disk: /dev/disk1 geometry: 97451/255/63 [1565565872 sectors]
Signature: 0xAA55
Starting Ending
#: id cyl hd sec - cyl hd sec [ start - size]
------------------------------------------------------------------------
1: EE 1023 254 63 - 1023 254 63 [ 1 - 409639] <Unknown ID>
2: AC 1023 254 63 - 1023 254 63 [ 409640 - 1726006368] <Unknown ID>
3: AB 1023 254 63 - 1023 254 63 [1726416008 - 1269760] Darwin Boot
4: 0B 1023 254 63 - 1023 254 63 [1727686656 - 488280064] Win95 FAT-32
GPT Fdisk downloaded and installed. 😉
