Can't find Bootcamp partition after installing Yosemite

Question

Can't find Bootcamp partition after installing Yosemite

So here is my new thread regarding to a question I asked to user Loner T: I've been reading some of your posts about the bootcamp problem after upgrading to Yosemite, but I couldn't figure my problem cause it wasn't the same as the one I was reading. This is what my Disk Utility shows after I followed your instructions, could you please help me? Thanks!

gpt show: /dev/disk0: mediasize=750156374016; sectorsize=512; blocks=1465149168

gpt show: /dev/disk0: Suspicious MBR at sector 0

gpt show: /dev/disk0: Pri GPT at sector 1

gpt show: /dev/disk0: Sec GPT at sector 1465149167

start size index contents

0 1 MBR

1 1 Pri GPT header

2 32 Pri GPT table

34 6

40 409600 1 GPT part - C12A7328-F81F-11D2-BA4B-00A0C93EC93B

409640 1065599160 2 GPT part - 53746F72-6167-11AA-AA11-00306543ECAC

1066008800 1269536 3 GPT part - 426F6F74-0000-11AA-AA11-00306543ECAC

1067278336 397869056 4 GPT part - EBD0A0A2-B9E5-4433-87C0-68B6B72699C7

1465147392 1743

1465149135 32 Sec GPT table

1465149167 1 Sec GPT header

MacBook-Pro-de-Mariel-Ordorica:~ marielordorica$

MacBook Pro, OS X Yosemite (10.10.1)

Posted on Dec 21, 2014 9:45 PM

Reply

Answer 1

Loner T

Level 9

59,471 points

Dec 21, 2014 9:52 PM in response to marielordorica

It would be good to see the output of the following commands...

diskutil list

diskutil cs list (your GPT2 entry indicates a CS volume)

sudo fdisk /dev/disk0

sudo dd if=/dev/rdisk0s4 count=1 2>/dev/null | hexdump -C

Reply

Answer 2

Dec 21, 2014 9:56 PM in response to marielordorica

I entered on the Terminal what you told me to in the other thread, which was:

Loner T (to marielordorica) 47 minutes ago

Can you start a new thread (this will help the OP and us, both) and post this GPT output and output from the following commands in the new thread?

diskutil list

diskutil cs list (your GPT2 entry indicates a CS volume)

sudo fdisk /dev/disk0

sudo dd if=/dev/rdisk0s4 count=1 2>/dev/null | hexdump -C

------------------------------

MacBook-Pro-de-Mariel-Ordorica:~ marielordorica$ diskutil list

/dev/disk0

#: TYPE NAME SIZE IDENTIFIER

0: GUID_partition_scheme *750.2 GB disk0

1: EFI EFI 209.7 MB disk0s1

2: Apple_CoreStorage 545.6 GB disk0s2

3: Apple_Boot Recovery HD 650.0 MB disk0s3

4: Microsoft Basic Data 203.7 GB disk0s4

/dev/disk1

#: TYPE NAME SIZE IDENTIFIER

0: Apple_HFS Macintosh HD *545.2 GB disk1

Logical Volume on disk0s2

78C2CE24-9407-4D1F-A0D7-5CA870ACD8FF

Unencrypted

MacBook-Pro-de-Mariel-Ordorica:~ marielordorica$

MacBook-Pro-de-Mariel-Ordorica:~ marielordorica$ diskutil cs list

CoreStorage logical volume groups (1 found)

|

+-- Logical Volume Group EC0BC09F-913F-4E08-9915-96F35EA4A8B4

=========================================================

Name: Macintosh HD

Status: Online

Size: 545586769920 B (545.6 GB)

Free Space: 18968576 B (19.0 MB)

|

+-< Physical Volume 94E9D8CD-F535-4E0A-AC02-B9E7275F5727

| ----------------------------------------------------

| Index: 0

| Disk: disk0s2

| Status: Online

| Size: 545586769920 B (545.6 GB)

|

+-> Logical Volume Family B7EDD316-5778-4193-88D3-B8E4D37A7837

----------------------------------------------------------

Encryption Status: Unlocked

Encryption Type: None

Conversion Status: NoConversion

Conversion Direction: -none-

Has Encrypted Extents: No

Fully Secure: No

Passphrase Required: No

|

+-> Logical Volume 78C2CE24-9407-4D1F-A0D7-5CA870ACD8FF

---------------------------------------------------

Disk: disk1

Status: Online

Size (Total): 545215479808 B (545.2 GB)

Conversion Progress: -none-

Revertible: Yes (no decryption required)

LV Name: Macintosh HD

Volume Name: Macintosh HD

Content Hint: Apple_HFS

MacBook-Pro-de-Mariel-Ordorica:~ marielordorica$

MacBook-Pro-de-Mariel-Ordorica:~ marielordorica$ sudo fdisk /dev/disk0

Password:

Sorry, try again.

Password:

Disk: /dev/disk0 geometry: 91201/255/63 [1465149168 sectors]

Signature: 0xAA55

Starting Ending

#: id cyl hd sec - cyl hd sec [ start - size]

------------------------------------------------------------------------

1: EE 1023 254 63 - 1023 254 63 [ 1 - 409639] <Unknown ID>

2: AC 1023 254 63 - 1023 254 63 [ 409640 - 1065599160] <Unknown ID>

3: AB 1023 254 63 - 1023 254 63 [1066008800 - 1269536] Darwin Boot

4: 0C 1023 254 63 - 1023 254 63 [1067278336 - 397869056] Win95 FAT32L

MacBook-Pro-de-Mariel-Ordorica:~ marielordorica$

MacBook-Pro-de-Mariel-Ordorica:~ marielordorica$ sudo dd if=/dev/rdisk0s4 count=1 2>/dev/null | hexdump -C

00000000 d1 e5 df 25 8e a0 c4 6d 7c 8c cc 76 dd 4b d0 b0 |...%...m|..v.K..|

00000010 5a af bc 08 83 ee a2 92 14 29 23 5c 10 3d a2 b8 |Z........)#\.=..|

00000020 81 6d 40 22 bc 68 4f 12 48 e2 45 31 4a 9e 39 f5 |.m@".hO.H.E1J.9.|

00000030 e9 fd a8 da df dc 3b 95 05 d3 85 4f 01 81 5a 79 |......;....O..Zy|

00000040 13 4e b3 fc da ea f6 ec 0e b8 5e 82 c1 4d 98 ca |.N........^..M..|

00000050 6f 8e dc a8 a0 c2 61 71 bb 43 35 98 d9 18 bd b5 |o.....aq.C5.....|

00000060 43 88 c8 c3 90 ce ef 1a 44 db b5 09 2c 71 c0 d1 |C.......D...,q..|

00000070 d3 09 27 af a8 a9 56 76 d0 52 45 95 e0 93 76 57 |..'...Vv.RE...vW|

00000080 17 16 f7 a2 ec 69 31 a8 38 65 04 d6 94 cd 41 a8 |.....i1.8e....A.|

00000090 23 cb 1e b9 22 bd 1a ee 72 c0 9b 6a d8 da 21 fa |#..."...r..j..!.|

000000a0 b7 7c 1a f6 e8 fc 55 18 d3 4c 1a d4 d6 b4 e0 40 |.|....U..L.....@|

000000b0 35 e5 f2 c3 e1 fe c8 f8 89 d4 1f 1a 3a 1b ab e9 |5...........:...|

000000c0 f7 b6 f7 de 55 1b cf 2b bc 73 39 28 29 a7 dc 7b |....U..+.s9()..{|

000000d0 a7 77 d4 d1 6d fa 9c 45 74 15 92 c4 af f6 74 42 |.w..m..Et.....tB|

000000e0 af 2d 4a b4 d4 ea 23 a4 12 78 83 3a 4c 51 de c6 |.-J...#..x.:LQ..|

000000f0 fa 6b fd da eb 70 bc 64 48 8c 2a bf c2 88 c5 81 |.k...p.dH.*.....|

00000100 c0 c0 d4 55 0d 78 b5 2b e4 0d 0c ef 36 8f 13 93 |...U.x.+....6...|

00000110 e2 da f6 98 43 dd cd 39 2e 54 00 ce aa b4 05 89 |....C..9.T......|

00000120 35 d2 1d 94 0a 9a 54 81 c6 80 89 95 5f 06 b1 bb |5.....T....._...|

00000130 23 bc 7e 37 f6 ae dc ca 56 63 f7 d7 5f ed 8d cd |#.~7....Vc.._...|

00000140 06 ea a7 c7 d6 d6 54 e6 32 3b aa b5 e4 a7 c4 d1 |......T.2;......|

00000150 c7 14 2f f6 d1 c0 b4 f9 2c 8c 53 87 80 b4 d0 c7 |../.....,.S.....|

00000160 06 b0 88 5d 18 ab 6d dd ff 00 78 6d d7 f0 5f af |...]..m...xm.._.|

00000170 f8 ab 32 95 24 00 0a f1 39 f8 8f c2 a7 26 80 ea |..2.$...9....&..|

00000180 c9 c7 46 3b ae c8 79 39 f6 bb 2d 87 3b 99 47 f1 |..F;..y9..-.;.G.|

00000190 4a 12 cf e2 37 6d 40 e1 f8 d8 02 45 68 ab 51 4a |J...7m@....Eh.QJ|

000001a0 f4 32 7c 86 e9 6d c5 57 27 52 d6 e7 32 10 24 2b |.2|..m.W'R..2.$+|

000001b0 bd 6a f3 39 0c 42 1f 3d 6d 4b d2 e1 27 5a 5f bb |.j.9.B.=mK..'Z_.|

000001c0 95 bd 3a 15 e5 0e f6 04 96 0a b7 51 7d 4a b6 7d |..:........Q}J.}|

000001d0 ea ca f2 79 6d ac c1 21 17 e2 a5 07 11 80 0e 6b |...ym..!.......k|

000001e0 f6 f1 1e 5e 84 1c c3 c9 bb b6 cb 61 0e e5 bb b0 |...^.......a....|

000001f0 12 5c 48 57 c3 ad 58 76 96 25 88 c7 a0 c5 72 78 |.\HW..Xv.%....rx|

00000200

MacBook-Pro-de-Mariel-Ordorica:~ marielordorica$

Reply

Answer 3

Loner T

Level 9

59,471 points

Dec 22, 2014 1:33 AM in response to marielordorica

This is what my Disk Utility shows after I followed your instructions, could you please help me? Thanks!

Was your GPT4 entry modified in any way after the Yosemite upgrade?

Did you use Testdisk to locate the NTFS header? If yes, do you have the same information (output of the same commands) after the Yosemite upgrade and before getting into this state?

Reply

Answer 4

Dec 22, 2014 9:16 AM in response to Loner T

Hi, I'm sorry I really don't know what my GPT4 was before, this is the second time I've heard about it and I actually don't know what it means. I have just installed Testdisk, but i don't know how to use the program, how should I locate the NTFS header? Thank you for your help.

Reply

Answer 5

Loner T

Level 9

59,471 points

Dec 22, 2014 10:24 AM in response to marielordorica

marielordorica wrote:

Hi, I'm sorry I really don't know what my GPT4 was before, this is the second time I've heard about it and I actually don't know what it means.

The following is the output of the GPT command

40 409600 1 GPT part - C12A7328-F81F-11D2-BA4B-00A0C93EC93B

409640 1065599160 2 GPT part - 53746F72-6167-11AA-AA11-00306543ECAC

1066008800 1269536 3 GPT part - 426F6F74-0000-11AA-AA11-00306543ECAC

1067278336 397869056 4 GPT part - EBD0A0A2-B9E5-4433-87C0-68B6B72699C7

Each of these parts has an ordinal position. They are referred to as GPT 1, GPT 2, GPT 3, GPT 4 and so on.

I have just installed Testdisk, but i don't know how to use the program, how should I locate the NTFS header? Thank you for your help.

You may want to look at Bootcamp disk0s4 gone after Yosemite update as an example.

Testdisk scans your disk to locate partition headers which may not match the GPT [1...n] entries and show 'lost' partitions.

There is also a http://www.cgsecurity.org/wiki/TestDisk_Step_By_Step guide, which helps. Yosemite may have caused some issues. If you have attempted to resize your Windows partition using Disk Utility and/or a third-party partitioning tool, Yosemite can get confused and create entries that cause Windows not to work properly.

Reply

Answer 6

Dec 22, 2014 3:33 PM in response to Loner T

Ok, I followed the Step by Step guide for TestDisk and I got stuck here:

Reply

Answer 7

Loner T

Level 9

59,471 points

Dec 22, 2014 6:34 PM in response to marielordorica

You do not seem to be using the EFI/GPT partition map. Can you switch to that?

Reply

Answer 8

Dec 22, 2014 8:56 PM in response to Loner T

I'm sorry I can't keep up, I don't know a lot about this stuff, how should I know which one is the right partition map?

Reply

Answer 9

Loner T

Level 9

59,471 points

Dec 23, 2014 5:39 AM in response to marielordorica

No worries. 😉

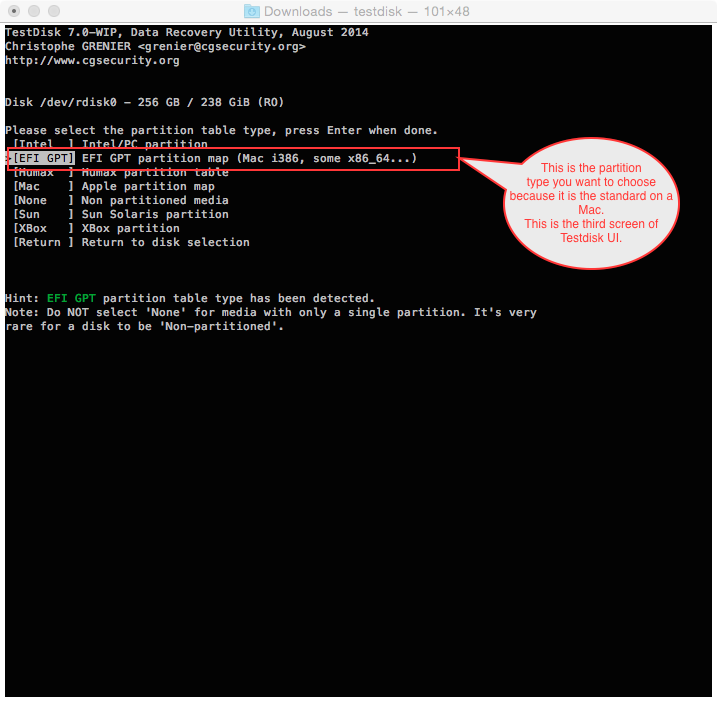

When you start Testdisk, it asks to you choose the type of partitioning scheme the disk is. Choose EFI/GPT.

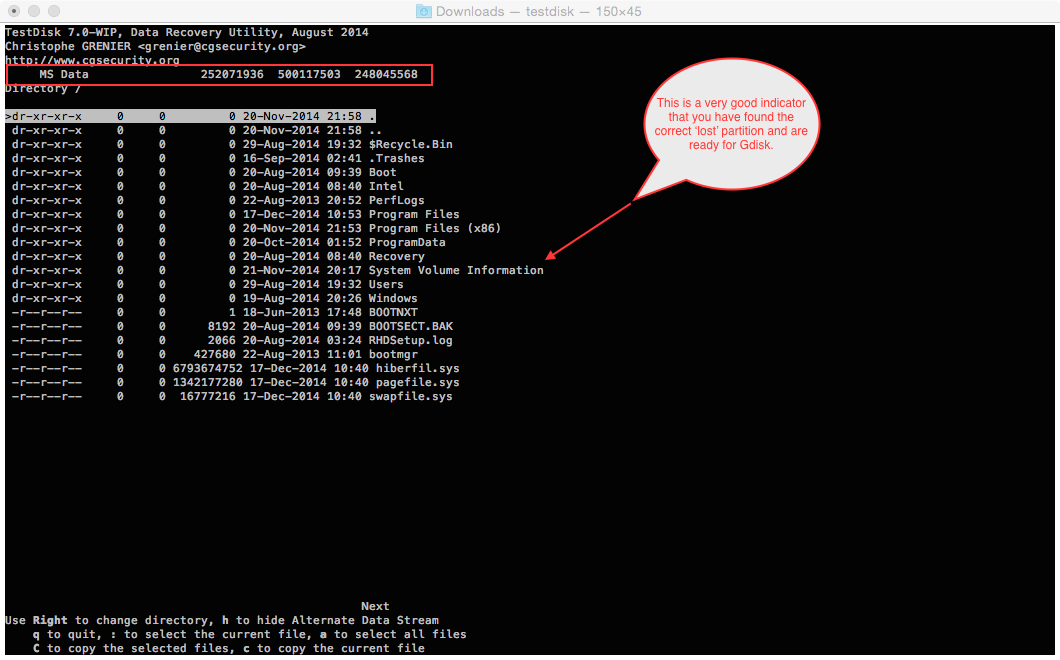

If you find the correct partition, it would look similar to

Reply

Answer 10

Jan 2, 2015 11:19 AM in response to Loner T

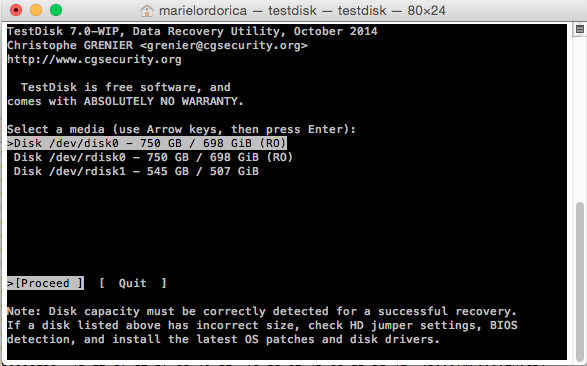

Sorry! I was away for the holidays and couldn't bring my Mac with me. I'll start again cause I wanna do it right. When I choose the disk I'm gonna scan, which one should it be? I think I made the partition for about 180 GB, so should I choose the third disk (545GB)? Just to be sure 🙂, btw happy new year!

Reply

Answer 11

Loner T

Level 9

59,471 points

Jan 2, 2015 3:07 PM in response to marielordorica

Disk1 is a Logical volume. Use /dev/rdisk0, which has the BC volume.

Reply

Answer 12

Jan 3, 2015 6:36 PM in response to Loner T

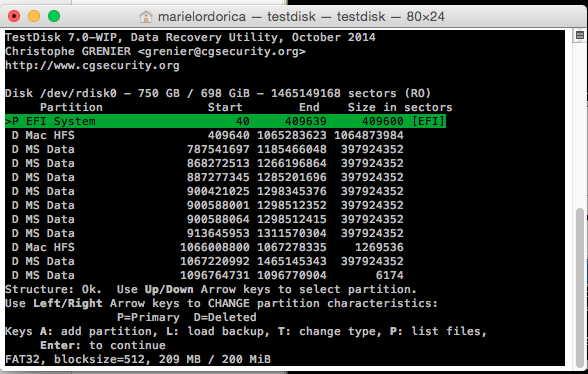

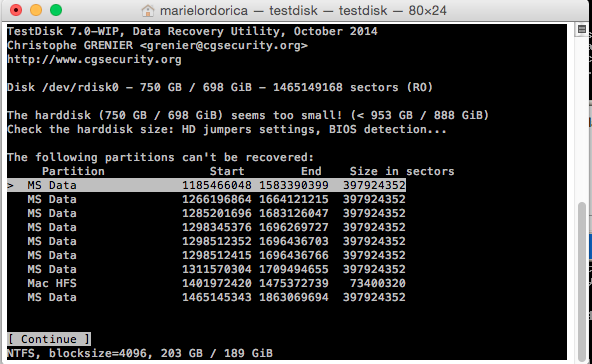

It took a lot of time, this appeared, the only thing I can do is to continue, but what makes me wonder is that it doesn't show what the next step on the http://www.cgsecurity.org/wiki/TestDisk_Step_By_Step tutorial shows, am I on the right track?
