Q: Windows 7 Removed after update Yosemite

Hi,

I updated my iMac 21 inch to Yosemite 10.10 After that I restarted my iMac then I hold [alt] but only disks I saw is : Macintosh HD, Recovery 10.10, Windows 7 is disappeared ! I found some solutions Thanks to : Loner T he helping people to solve this problem, but for me? I tried a lot to solve it but I can't



So I opened Disk Utility and the only disks appear was: Macintosh HD and disk0s4, I cannot control disk0s4, I downloaded  Testdrive and try to do something from step-by-step page but nothing work !!



RAM:8GB

Capacity:1TB

Software:Yosemite 10.10



Please guys I have a files in my windows cost me more than 500 USD.



Thanks.

iMac, OS X Mavericks (10.9.1)

Posted on Dec 23, 2014 8:59 AM

Close

Q: Windows 7 Removed after update Yosemite

  • All replies
  • Helpful answers

Page 1 Next
  • by Loner T,

    Loner T Loner T Dec 23, 2014 10:09 AM in response to Msh3lany
    Level 7 (24,307 points)
    Safari
    Dec 23, 2014 10:09 AM in response to Msh3lany

    Can you post the text version of output of the following commands from Terminal?



    diskutil list

    diskutil cs list

    sudo gpt -vv -r show /dev/disk0

    sudo fdisk /dev/disk0

  • by Msh3lany,

    Msh3lany Msh3lany Dec 23, 2014 11:03 AM in response to Loner T
    Level 1 (5 points)
    Dec 23, 2014 11:03 AM in response to Loner T

       0:      GUID_partition_scheme                        *1.0 TB     disk0

       1:                        EFI EFI                     209.7 MB   disk0s1

       2:                  Apple_HFS Macintosh HD            778.6 GB   disk0s2

       3:                 Apple_Boot Recovery HD             650.0 MB   disk0s3

       4:       Microsoft Basic Data                         102.0 GB   disk0s4

    mshls-iMac:~ Msh3L$ diskutil cs list

    No CoreStorage logical volume groups found

    mshls-iMac:~ Msh3L$ sudo gpt -vv -r show /dev/disk0

    Password:

    Sorry, try again.

    Password:

    gpt show: /dev/disk0: mediasize=1000204886016; sectorsize=512; blocks=1953525168

    gpt show: /dev/disk0: Suspicious MBR at sector 0

    gpt show: /dev/disk0: Pri GPT at sector 1

    gpt show: /dev/disk0: Sec GPT at sector 1953525167

           start        size  index  contents

               0           1         MBR

               1           1         Pri GPT header

               2          32         Pri GPT table

              34           6

              40      409600      1  GPT part - C12A7328-F81F-11D2-BA4B-00A0C93EC93B

          409640  1520622760      2  GPT part - 48465300-0000-11AA-AA11-00306543ECAC

      1521032400     1269536      3  GPT part - 426F6F74-0000-11AA-AA11-00306543ECAC

      1522301936   232004624

      1754306560   199217152      4  GPT part - EBD0A0A2-B9E5-4433-87C0-68B6B72699C7

      1953523712        1423

      1953525135          32         Sec GPT table

      1953525167           1         Sec GPT header


    And please Be more clear because i'm windows user I didn't use Macintosh so much

  • by Loner T,

    Loner T Loner T Dec 23, 2014 2:22 PM in response to Msh3lany
    Level 7 (24,307 points)
    Safari
    Dec 23, 2014 2:22 PM in response to Msh3lany

    Msh3lany wrote:



      1522301936   232004624

      1754306560   199217152      4  GPT part - EBD0A0A2-B9E5-4433-87C0-68B6B72699C7

    In most cases, this can be recovered. There are two tools used for this.



    1. Testdisk - http://www.cgsecurity.org/wiki/TestDisk_Step_By_Step

    2. GPT Fdisk - http://sourceforge.net/projects/gptfdisk/



    The steps are...

    1. Use Testdisk to locate the 'lost' NTFS header in the gap between GPT3 and GPT4.

    2. Once located, GPT4 is deleted/recreated using GPT Fdisk (aka gdisk).

    3. The gap between GPT3 and GPT4 seems to indicate a resized Windows partition using either a third-party tool, or Disk Utility and GPT/MBR manipulation.

    4. The Gap + GPT4 are 431221776 sectors (roughly 215+GB).

    5. Windows resizing is not recommended/supported by BCA when using the Hybrid MBR method (pure EFI/GPT are resizeable and are supported on 2013+ Macs).

    6. Yosemite causes problems, because there is a deleted NTFS header prior to resizing, and a new one. It uses the older version and causes a gap and causes problems. If you do not resize Windows, once it is fixed now, future versions will respect the current configuration since GPT and MBR will be in sync.



    Testdisk needs to be run in Deeper Search to look for deleted NTFS Headers.

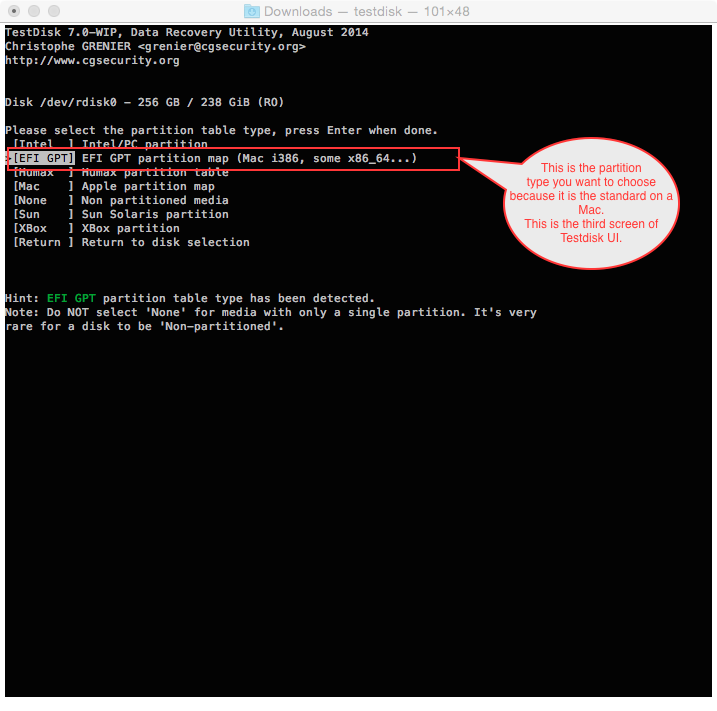

    Choose an EFI/GPT partition type...

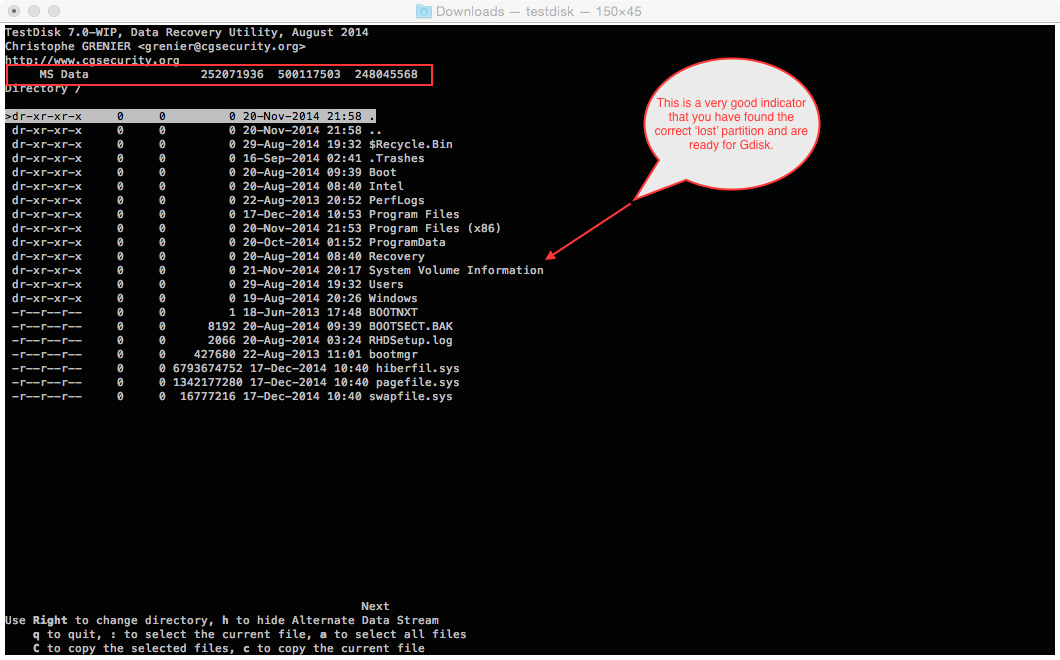

    The 'lost' partition should look very similar to this.


  • by Msh3lany,

    Msh3lany Msh3lany Dec 23, 2014 7:21 PM in response to Loner T
    Level 1 (5 points)
    Dec 23, 2014 7:21 PM in response to Loner T

    Oh thanks god I can recover it, OK, I reached to this, then what?

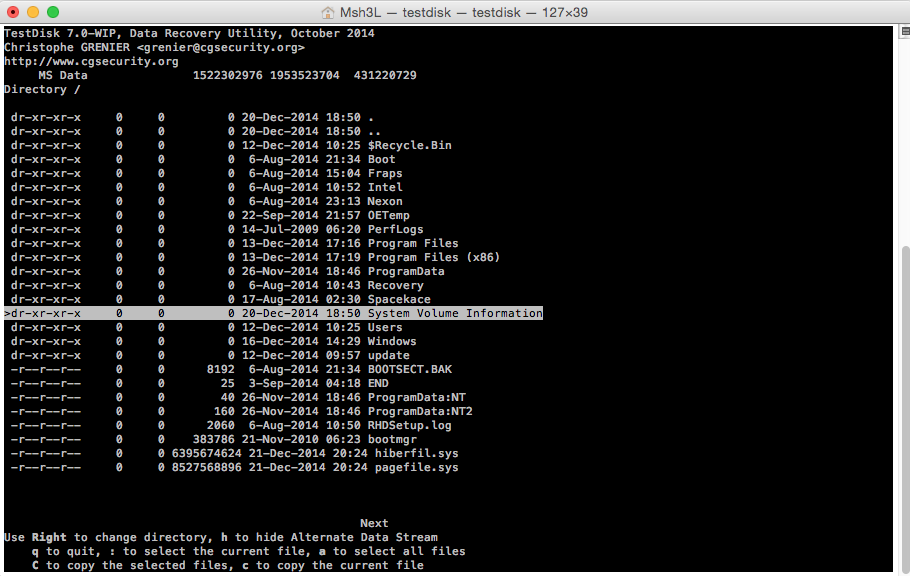

    Screen Shot 1436-03-02 at 6.20.15 AM.png

    what is the next step

  • by Loner T,

    Loner T Loner T Dec 24, 2014 6:52 AM in response to Msh3lany
    Level 7 (24,307 points)
    Safari
    Dec 24, 2014 6:52 AM in response to Msh3lany
    GPT 3 StartGPT 3 SizeGPT 3 EndNTFS StartSector OffsetNTFS SizeNTFS End
    152103240012695361522301936152230297610404312207291953523704



    The 'Sector Offset' being positive is good. A negative value means you lose GPT#3. The NTFS size is roughly 215GB which is good.



    You need to use the following steps. If you see any error messages during the following steps, please stop and post back here with the error message. The following steps have values from your Testdisk output (and you can verify) in Steps 7 and 8.



    Rebuild GPT4 using start/end offsets



    1. Sudo gdisk /dev/rdisk0
    2. P  (print the full list of parts)
    3. D  (delete)
    4. 4  (part 4)
    5. N  (new part)
    6. 4   (part 4)
    7. 1522302976 - Start offset in bytes  (start point for Bootcamp part)
    8. +431220729 (Size offset as opposed to End offset)
    9. 0700     (Windows part type)
    10. P           (print list of all parts just to see what changes will be made)
    11. W         (Write the new GPT)
    12. Y           (Yes! really write the new GPT)

      This will delete and re-write the GPT partition info for /dev/disk0s4.


    Rebuild MBR to match the new GPT information thus resetting the Hybrid MBR. Use defaults for other questions (like partition codes).

    1. Sudo gdisk /dev/disk0
    2. P  (Print list of parts)
    3. R   (Recover)
    4. H (chooses Hybrid)
    5. Partitions numbers to be hybridized: 2 3 4
    6. Y (Good for GRUB question)
    7. N (part 2 boot flag)
    8. N (part 3 boot flag)
    9. Y  (part 4 boot flag make NTFS bootable partition)
    10. W  (Write the new MBR)
    11. Y    (Yes! write the new MBR)
    12. Reboot



    Test 1 - Does Bootcamp Volume show up in Finder?

    Test 2 - Can you see files in Bootcamp Volume?

    Test 3 - Can you select Bootcamp in System Preferences -> Startup Disk?

    Test 4 - If Test 3 is successful, select Bootcamp and Click Restart



    If you see a hanging underline cursor at the top left on a black screen, and it does not proceed further, you may need Windows Startup Repair or a tool called EasyBCD.

  • by Msh3lany,

    Msh3lany Msh3lany Dec 24, 2014 8:04 AM in response to Loner T
    Level 1 (5 points)
    Dec 24, 2014 8:04 AM in response to Loner T

    Loner i'm so sorry I tried to do the steps but it's not clear to me



    i'm windows 7 user as I said, I using Testdisk



    1. Sudo gdisk /dev/rdisk0

    How could I do this step

  • by Msh3lany,

    Msh3lany Msh3lany Dec 25, 2014 5:49 AM in response to Loner T
    Level 1 (5 points)
    Dec 25, 2014 5:49 AM in response to Loner T

    Loner i'm so sorry I tried to do the steps but it's not clear to me



    i'm windows 7 user as I said, I using Testdisk



    1. Sudo gdisk /dev/rdisk0

    How could I do this step

  • by Loner T,

    Loner T Loner T Dec 25, 2014 11:09 AM in response to Msh3lany
    Level 7 (24,307 points)
    Safari
    Dec 25, 2014 11:09 AM in response to Msh3lany

    You will need to download GPT Fdisk (http://sourceforge.net/projects/gptfdisk/). It will downloaded as a package. Once the disk image (.dmg) is opened (double click on it in the Downloads directory), it will show a package, that you can double-click on to install it. Once the GPT Fdisk (aka gdisk) is installed, run it, and follow the steps.

  • by Msh3lany,

    Msh3lany Msh3lany Jan 6, 2015 7:46 AM in response to Loner T
    Level 1 (5 points)
    Jan 6, 2015 7:46 AM in response to Loner T

    Sorry Im too late I have exams



    ok, I did all the steps and I stop In the last one

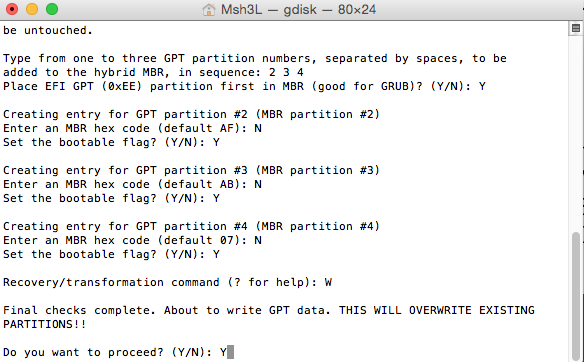

    Screen Shot 1436-03-15 at 6.44.06 PM.png

    Should I Overwrite the existing partition?



    Loner T I appreciate your help, Thanks

  • by Loner T,

    Loner T Loner T Jan 6, 2015 9:02 AM in response to Msh3lany
    Level 7 (24,307 points)
    Safari
    Jan 6, 2015 9:02 AM in response to Msh3lany

    Please say no. You need to only change the "bootable" flag for 2,3,4. The MBR hex code should be default, otherwise it will cause more grief.

  • by Msh3lany,

    Msh3lany Msh3lany Jan 6, 2015 1:49 PM in response to Loner T
    Level 1 (5 points)
    Jan 6, 2015 1:49 PM in response to Loner T

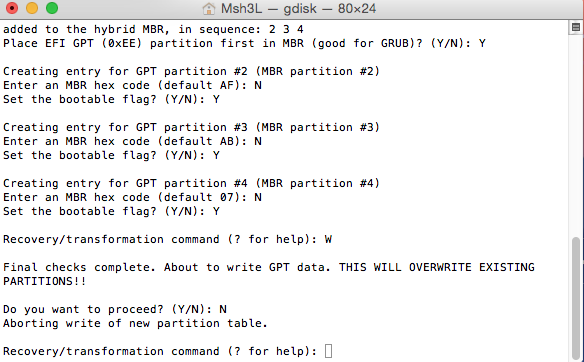

    Screen Shot 1436-03-16 at 12.47.29 AM.png

    Ok I write "N", Should I restart now?

  • by Msh3lany,

    Msh3lany Msh3lany Jan 7, 2015 7:02 AM in response to Msh3lany
    Level 1 (5 points)
    Jan 7, 2015 7:02 AM in response to Msh3lany

    Oh my god :L, I forget to do the first step:

    1. Sudo gdisk /dev/rdisk0

    I Directly Do this step:-

    1. Sudo gdisk /dev/disk0

    So I start from the beginning with this step:

    1. Sudo gdisk /dev/rdisk0

    And I stopped On the last step:

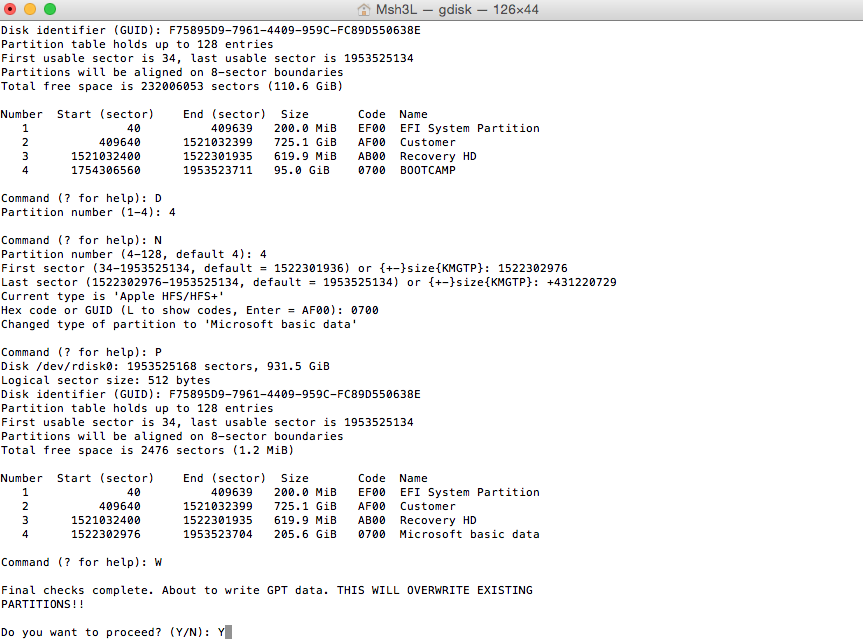

    Screen Shot 1436-03-16 at 5.57.55 PM.png

    So Now what?

  • by Loner T,

    Loner T Loner T Jan 7, 2015 7:49 AM in response to Msh3lany
    Level 7 (24,307 points)
    Safari
    Jan 7, 2015 7:49 AM in response to Msh3lany

    Please confirm 'Y' and press enter. Recreate the MBR and test.

  • by Msh3lany,

    Msh3lany Msh3lany Jan 7, 2015 8:05 AM in response to Loner T
    Level 1 (5 points)
    Jan 7, 2015 8:05 AM in response to Loner T

    Do you want to proceed? (Y/N): Y

    OK; writing new GUID partition table (GPT) to /dev/rdisk0.

    Warning: Devices opened with shared lock will not have their

    partition table automatically reloaded!

    Warning: The kernel may continue to use old or deleted partitions.

    You should reboot or remove the drive.

    The operation has completed successfully.


    Should I reboot now or do the step:

    1. Sudo gdisk /dev/disk0

    ??
