Loner T,
My bootcamp does not load after Yosemite install.
Thanks
iMac, OS X Yosemite (10.10), Also Windows 7
Can you post the output of

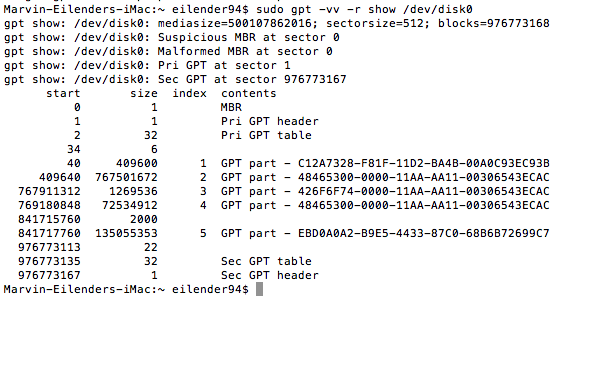

sudo gpt -vv -r show /dev/disk0

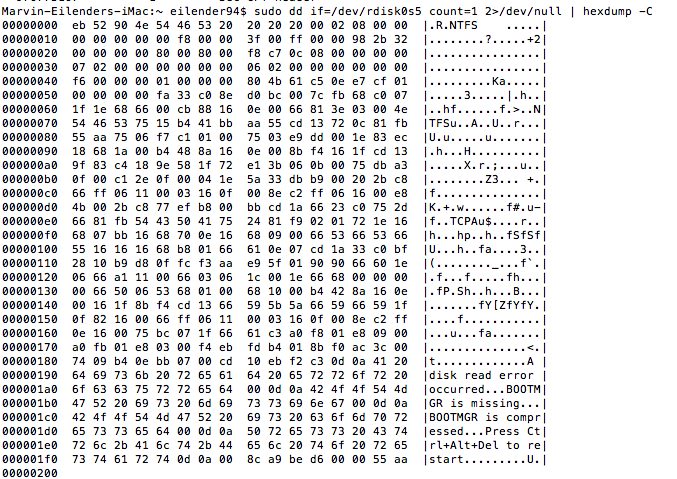

sudo dd if=/dev/rdisk0s5 count=1 2>/dev/null | hexdump -C
As long as the NTFS header shows up, the next step would be to create a new Hybrid MBR which is different from the standard. The above two commands will help in that procedure.
The following steps are not the same as a standard Hybrid MBR build. Please ensure that you accept the default values for MBR hex codes for partitions otherwise you will not be able to use OS X or Windows. You are updating ONLY the boot flags, nothing else. Do no partition the disk using ANY utility, otherwise you will lose data. If you see any errors, please stop and stay at the step you are at. It would also be helpful to capture the screen completely before the Reboot step and post it for validation. Please post the output of sudo fdisk /dev/disk0 before the reboot as well.
Rebuild MBR to match the new GPT information thus resetting the Hybrid MBR. Use defaults for other questions (like partition MBR hex codes).
Test 1 - Does Bootcamp Volume show up in Finder?
Test 2 - Can you see files in Bootcamp Volume?
Test 3 - Can you select Bootcamp in System Preferences -> Startup Disk?
Test 4 - If Test 3 is successful, select Bootcamp and Click Restart
If you see a hanging underline cursor at the top left on a black screen, and it does not proceed further, you may need Windows Startup Repair or a tool called EasyBCD.
it boots windows however, it stays frozen and doesn't proceed to login just stays on the starting windows page.... Tried running windows startup repair (holding F8) but it said that it could repair the problem... Sending images or error codes
tthanks
sso close
Apple tech God Loner T what shall I do next?
Do you have the Windows Installer media? You may have a corrupted BCD.
Please take a look at https://neosmart.net/wiki/bootrec/

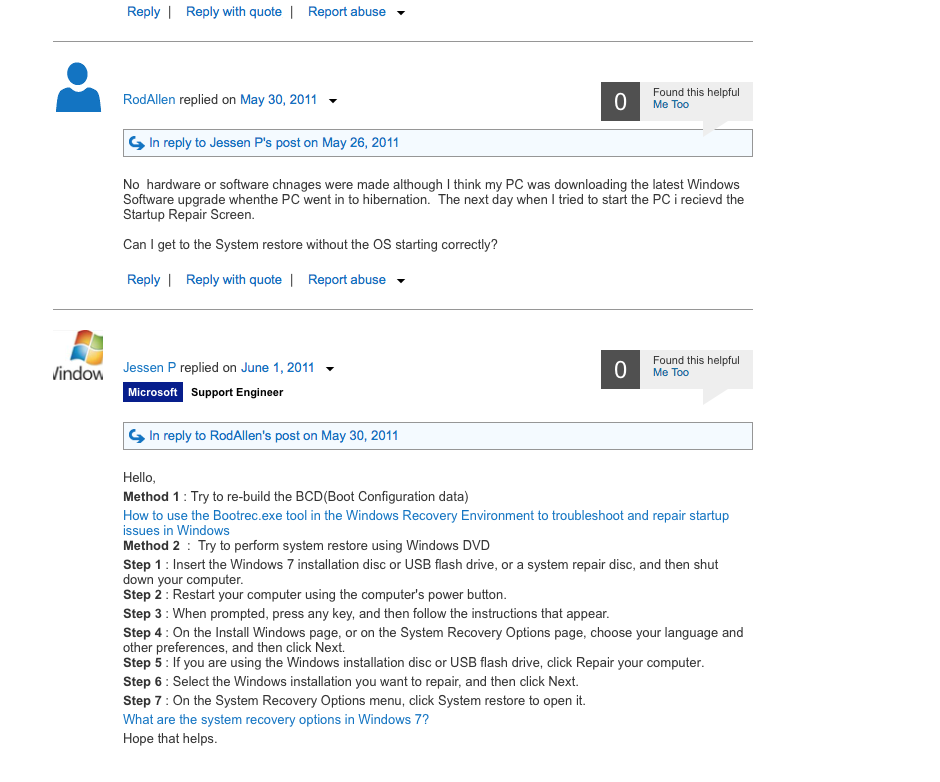

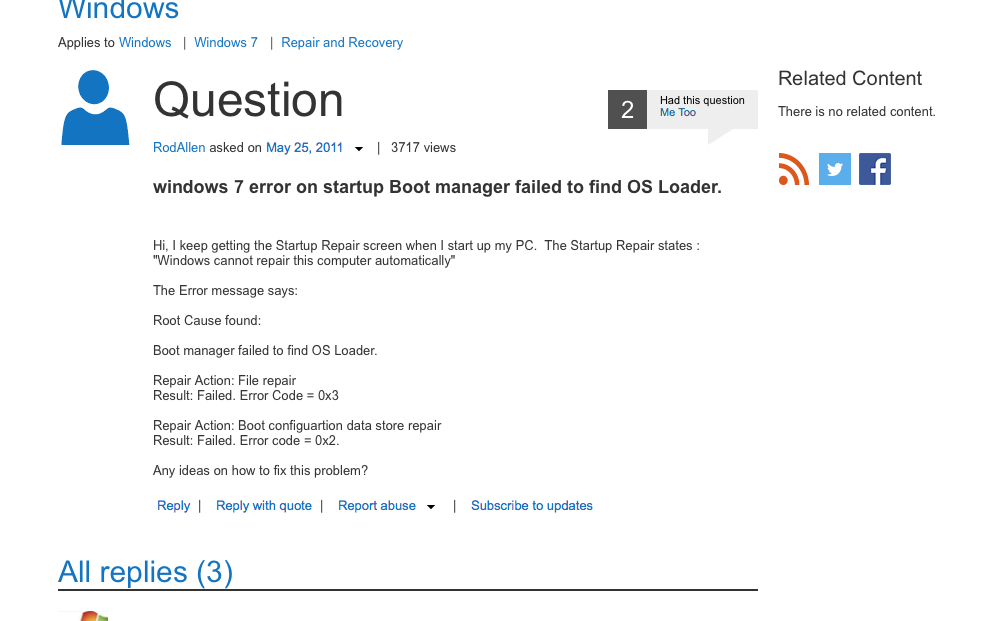

I do have the installer media for Windows 7 Home Premium however, I tried and ran all of the commands from the wiki link you recommend that I view, but still nothing. I did get all of these error codes and it told me that these are the problems. Maybe you can make something of this.
With that said, these are my thoughts and questions.
A.) Will I be able to run windows and have all of my applicatiosna nd programs from before?
B.) Can I copy all of my fiels and prgroams (basically copy everything on bootcamp to a folder and then wipe the windows partition an dthen reinstall windows and then drag all of these back to bootcamp on the apple side again in order to have it back to normal? or will that not work? I have adobe products an di dont have the access keys anymore... I also dont have the access keys for other programs instaled too... really need it to wortk.
thanks
My exact error
1. Can you post the error codes (or screen shots) of the errors you get when Windows is trying to restart?
2. A. If the current installation can be recovered, then yes.
B. The OSX side provides a default NTFS driver, which allows read access, but not read-write. There are third-party products like Tuxera,
Paragon, NTFS-3g, which do allow read-write access.
3. There may be a way to extract keys. Look at BelArc Advisor.
In http://support.microsoft.com/kb/927392 there is a procedure to delete the old BCD and re-build it. Can you use this to rebuild your BCD?
Hi LonerT
I have been reading your posts on te Yosemite Bootcamp issue, unfortunately ihave not been able to follow the isntructions successfully, i think it is because osme of teh results i get are different from teh otehr poeple you have helped. Are you please able to look at the results below and point me in the right direction?
Thanks
I had not used TestDisk before. This is the first screen i get:
estDisk 7.0-WIP, Data Recovery Utility, March 2015
Christophe
TestDisk is free software, and
comes with ABSOLUTELY NO WARRANTY.
Select a media (use Arrow keys, then press Enter):
>Disk /dev/disk3 - 3900 MB / 3720 MiB (RO)
Disk /dev/rdisk3 - 3900 MB / 3720 MiB (RO)
Disk /dev/rdisk7 - 1359 MB / 1296 MiB (RO)
>[Proceed ] [ Sudo ] [ Quit ]
Note: Some disks won't appear unless you are root user.
Disk capacity must be correctly detected for a successful recovery.
If a disk listed above has incorrect size, check HD jumper settings, BIOS
detection, and install the latest OS patches and disk drivers.
diskutil list
#: TYPE NAME SIZE IDENTIFIER
0: GUID_partition_scheme *500.3 GB disk0
1: EFI EFI 209.7 MB disk0s1
2: Apple_CoreStorage 450.0 GB disk0s2
3: Apple_Boot Recovery HD 650.0 MB disk0s3
4: Microsoft Basic Data 04 20.0 GB disk0s4
/dev/disk1
#: TYPE NAME SIZE IDENTIFIER
0: Apple_HFS Macintosh HD *449.6 GB disk1
Logical Volume on disk0s2
7B48D2B8-717A-4670-874E-E42D48F9D5F3
Unencrypted
/dev/disk2
#: TYPE NAME SIZE IDENTIFIER
0: FDisk_partition_scheme *8.0 GB disk2
1: DOS_FAT_32 WININSTALL 8.0 GB disk2s1
/dev/disk3
#: TYPE NAME SIZE IDENTIFIER
0: IRM_CCSA_X64FRE_EN-... *3.9 GB disk3
/dev/disk6
#: TYPE NAME SIZE IDENTIFIER
0: Apple_partition_scheme *998.1 GB disk6
1: Apple_partition_map 32.3 KB disk6s1
2: Apple_HFSX Time Machine Backups 998.1 GB disk6s2
/dev/disk7
#: TYPE NAME SIZE IDENTIFIER
0: Boot Camp *1.4 GB disk7
diskutil cs list
CoreStorage logical volume groups (1 found)
|
+-- Logical Volume Group 49807B43-4DBA-4106-82C2-C3516ECCBEA1
=========================================================
Name: Macintosh HD
Status: Online
Size: 449999998976 B (450.0 GB)
Free Space: 18944000 B (18.9 MB)
|
+-< Physical Volume 90B8F8F5-338A-4A04-9B3A-F9085AEF566E
| ----------------------------------------------------
| Index: 0
| Disk: disk0s2
| Status: Online
| Size: 449999998976 B (450.0 GB)
|
+-> Logical Volume Family 16DE9FF1-3B3B-4D00-B8C0-7B11F39ACAC1
----------------------------------------------------------
Encryption Status: Unlocked
Encryption Type: None
Conversion Status: NoConversion
Conversion Direction: -none-
Has Encrypted Extents: No
Fully Secure: No
Passphrase Required: No
|
+-> Logical Volume 7B48D2B8-717A-4670-874E-E42D48F9D5F3
---------------------------------------------------
Disk: disk1
Status: Online
Size (Total): 449628733440 B (449.6 GB)
Conversion Progress: -none-
Revertible: Yes (no decryption required)
LV Name: Macintosh HD
Volume Name: Macintosh HD
Content Hint: Apple_HFS
sudo gpt -vv -r show /dev/disk0
gpt show: /dev/disk0: mediasize=500277790720; sectorsize=512; blocks=977105060
gpt show: /dev/disk0: Suspicious MBR at sector 0
gpt show: /dev/disk0: Pri GPT at sector 1
gpt show: /dev/disk0: Sec GPT at sector 977105059
start size index contents
0 1 MBR
1 1 Pri GPT header
2 32 Pri GPT table
34 6
40 409600 1 GPT part - C12A7328-F81F-11D2-BA4B-00A0C93EC93B
409640 878906248 2 GPT part - 53746F72-6167-11AA-AA11-00306543ECAC
879315888 1269536 3 GPT part - 426F6F74-0000-11AA-AA11-00306543ECAC
880585424 57457968
938043392 39061504 4 GPT part - EBD0A0A2-B9E5-4433-87C0-68B6B72699C7
977104896 131
977105027 32 Sec GPT table
977105059 1 Sec GPT header
sudo fdisk /dev/disk0
Signature: 0xAA55
Starting Ending
#: id cyl hd sec - cyl hd sec [ start - size]
------------------------------------------------------------------------
1: EE 0 0 2 - 25 127 14 [ 1 - 409639] <Unknown ID>
2: AF 25 127 15 - 1023 254 63 [ 409640 - 878906248] HFS+
3: AB 1023 254 63 - 1023 254 63 [ 879315888 - 1269536] Darwin Boot
*4: 07 1023 254 63 - 1023 254 63 [ 938043392 - 39061504] HPFS/QNX/AUX
sudo dd if=/dev/disk0s4 count=1 2>/dev/null | hexdump -C
I get no result from this pasting this text in.
1. For Testdisk use /dev/rdisk0. Use the "sudo" and you can safely ignore the read-only disk message. Please see https://imgur.com/a/PjmnK for the initial Testdisk screens.
2. The DD command needs /dev/rdisk0s4.
3. The Gap between GPT3 and GPT4 is most likely you culprit. Did this happen after the Yosemite upgrade?
4. Your disk layout seems very strange. What is the 1.4GB /dev/disk7?
1. i followed the test screens, after close to 24 hours it got this far (different to the test screenshots you linked to)
TestDisk 7.0-WIP, Data Recovery Utility, March 2015
Christophe GRENIER <grenier@cgsecurity.org>
Disk /dev/rdisk0 - 500 GB / 465 GiB - 977105060 sectors (RO)
The harddisk (500 GB / 465 GiB) seems too small! (< 1229 GB / 1144 GiB)
Check the harddisk size: HD jumpers settings, BIOS detection...
The following partitions can't be recovered:
Partition Start End Size in sectors
> Mac HFS 255087513 1133268632 878181120
Mac HFS 288243747 1224607090 936363344
Mac HFS 289847884 1168029003 878181120
Mac HFS 374781568 2324112287 1949330720
Mac HFS 375071415 1253252534 878181120
Mac HFS 377329408 2326660127 1949330720
Mac HFS 379526288 2328857007 1949330720
Mac HFS 390503654 1268684773 878181120
Mac HFS 390739696 2340070415 1949330720
Mac HFS 411419112 1289600231 878181120
[ Continue ]
HFS+ blocksize=4096, 449 GB / 418 GiB
2.
sudo dd if=/dev/rdisk0s4 count=1 2>/dev/null | hexdump -C
00000000 eb 58 90 42 53 44 20 20 34 2e 34 00 02 20 20 00 |.X.BSD 4.4.. .|
00000010 02 00 00 00 00 f8 00 00 20 00 ff 00 00 68 e9 37 |........ ....h.7|
00000020 00 08 54 02 40 25 00 00 00 00 00 00 02 00 00 00 |..T.@%..........|
00000030 01 00 06 00 00 00 00 00 00 00 00 00 00 00 00 00 |................|
00000040 80 00 29 df 1d e3 65 30 34 20 20 20 20 20 20 20 |..)...e04 |
00000050 20 20 46 41 54 33 32 20 20 20 fa 31 c0 8e d0 bc | FAT32 .1....|
00000060 00 7c fb 8e d8 e8 00 00 5e 83 c6 19 bb 07 00 fc |.|......^.......|
00000070 ac 84 c0 74 06 b4 0e cd 10 eb f5 30 e4 cd 16 cd |...t.......0....|
00000080 19 0d 0a 4e 6f 6e 2d 73 79 73 74 65 6d 20 64 69 |...Non-system di|
00000090 73 6b 0d 0a 50 72 65 73 73 20 61 6e 79 20 6b 65 |sk..Press any ke|
000000a0 79 20 74 6f 20 72 65 62 6f 6f 74 0d 0a 00 00 00 |y to reboot.....|
000000b0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |................|
*
000001f0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 55 aa |..............U.|
00000200
3.
I think it happened after the Yosemite upgrade. I haven't used Bootcamp for months, lots of Googling led me to conclude Yosemite was the culprit.
4.
/dev/disk7
I have no idea. How would i find out?
My goal is to get Bootcamp and Windows working again. I'd much prefer not to have to start from scratch if possible but need to find a solution reasonably soon.
Thx
In the Testdisk output, the list you have is for unrecoverable partitions. Press Enter/Return to Continue. You will get a final list of recoverable partitions.
Do not use left right arrow keys anywhere in Testdisk. You are looking for MS Data entries with Start addresses in the the following range
880585424 57457968
Use 'P - List Files' to look for familiar Windows files. You are looking for a listing similar to the following.
