Installed Yosemite (OS X 10.10), Windows 7 Partition/Bootcamp does not work.

Hello,


I recently installed Yosemite (OS X 10.10). When I was going to boot my Windows 7 partition (by holding down 'alt' when booting) I realized that it dissappeared.


I did not back up my mac as I thought this would not effect my bootcamp. Needless to say, I regret upgrading to this yosemite. I have very important files that i need to recover on my windows.


Could someone please help me with step by steps on how to recover my windows. Please let me know what info you need and how I get these info. Please send me a message or post if you could kindly help my situation. Thank you

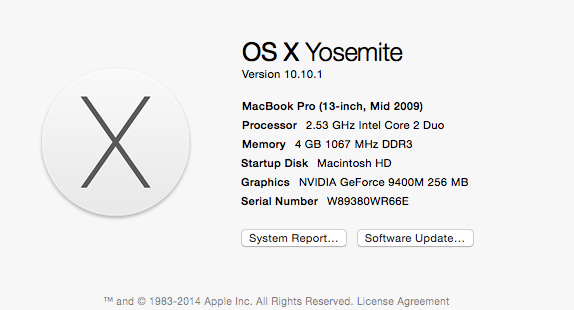

Here is the info of my mac

User uploaded file

When I checked Disk Utility this is what I found:


User uploaded file

The Boot Camp partition is not there. But there's a new partition (Have not seen it before) called disk0s4


What should I do to get the Windows 7/Boot Camp partition back?

Posted on Feb 9, 2015 2:38 PM

Reply
13 replies

Feb 9, 2015 8:33 PM in response to Loner T

Woken-Wes-MacBook-Pro:~ kxn$ diskutil list

/dev/disk0

#: TYPE NAME SIZE IDENTIFIER

0: GUID_partition_scheme *250.1 GB disk0

1: EFI EFI 209.7 MB disk0s1

2: Apple_HFS Macintosh HD 123.9 GB disk0s2

3: Apple_Boot Recovery HD 650.0 MB disk0s3

4: Microsoft Basic Data 125.3 GB disk0s4

/dev/disk3

#: TYPE NAME SIZE IDENTIFIER

0: FDisk_partition_scheme *2.1 GB disk3

1: DOS_FAT_16 2.1 GB disk3s1

/dev/disk4

#: TYPE NAME SIZE IDENTIFIER

0: FDisk_partition_scheme *62.5 GB disk4

1: Windows_FAT_32 Sony_64GM 62.5 GB disk4s1

Woken-Wes-MacBook-Pro:~ kxn$ diskutil cs list

No CoreStorage logical volume groups found

Woken-Wes-MacBook-Pro:~ kxn$ sudo gpt -vv -r show /dev/disk0


WARNING: Improper use of the sudo command could lead to data loss

or the deletion of important system files. Please double-check your

typing when using sudo. Type "man sudo" for more information.


To proceed, enter your password, or type Ctrl-C to abort.


Password:

Sorry, try again.

Password:

gpt show: /dev/disk0: mediasize=250059350016; sectorsize=512; blocks=488397168

gpt show: /dev/disk0: Suspicious MBR at sector 0

gpt show: /dev/disk0: Pri GPT at sector 1

gpt show: /dev/disk0: Sec GPT at sector 488397167

start size index contents

0 1 MBR

1 1 Pri GPT header

2 32 Pri GPT table

34 6

40 409600 1 GPT part - C12A7328-F81F-11D2-BA4B-00A0C93EC93B

409640 242002104 2 GPT part - 48465300-0000-11AA-AA11-00306543ECAC

242411744 1269536 3 GPT part - 426F6F74-0000-11AA-AA11-00306543ECAC

243681280 244715520 4 GPT part - EBD0A0A2-B9E5-4433-87C0-68B6B72699C7

488396800 335

488397135 32 Sec GPT table

488397167 1 Sec GPT header

Woken-Wes-MacBook-Pro:~ kxn$ sudo fdisk /dev/disk0

Disk: /dev/disk0 geometry: 30401/255/63 [488397168 sectors]

Signature: 0xAA55

Starting Ending

#: id cyl hd sec - cyl hd sec [ start - size]

------------------------------------------------------------------------

1: EE 1023 254 63 - 1023 254 63 [ 1 - 409639] <Unknown ID>

2: AF 1023 254 63 - 1023 254 63 [ 409640 - 242002104] HFS+

3: AB 1023 254 63 - 1023 254 63 [ 242411744 - 1269536] Darwin Boot

4: 0C 1023 254 63 - 1023 254 63 [ 243681280 - 244715520] Win95 FAT32L


Hope this works, please let me know if you need any other info. Thanks so much Loner T!!!

Feb 10, 2015 3:42 PM in response to Loner T

sudo dd if=/dev/rdisk0s4 count=1 2>/dev/null | hexdump -C

Woken-Wes-MacBook-Pro:~ kxn$ sudo dd if=/dev/rdisk0s4 count=1 2>/dev/null | hexdump -C

Password:

00000000 97 e9 ff ff 96 e6 ff ff 95 e3 ff ff 95 e1 ff ff |................|

00000010 95 dd ff ff 95 db ff ff 94 d7 ff ff 98 d0 f9 ff |................|

00000020 ba ab b9 ff c6 95 95 f6 8b 68 68 75 00 00 00 12 |.........hhu....|

00000030 00 00 00 03 00 00 00 00 00 00 00 00 00 00 00 00 |................|

00000040 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |................|

*

000000a0 c0 90 90 11 ca 98 98 d1 c2 ac ac ff 9c f6 f9 ff |................|

000000b0 98 f9 ff ff 98 f6 ff ff 98 f3 ff ff 97 f0 ff ff |................|

000000c0 97 ed ff ff 97 ea ff ff 96 e7 ff ff 96 e4 ff ff |................|

000000d0 95 e2 ff ff 95 de ff ff a6 c6 df ff c9 9d 9f ff |................|

000000e0 b2 86 86 c8 44 33 33 30 00 00 00 08 00 00 00 01 |....D330........|

000000f0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |................|

*

00000160 00 00 00 00 c0 90 90 11 ca 97 97 c1 c2 ac ac ff |................|

00000170 a2 ea ec ff 98 fa ff ff 98 f7 ff ff 98 f4 ff ff |................|

00000180 97 f1 ff ff 97 ee ff ff 97 eb ff ff 96 e8 ff ff |................|

00000190 99 e0 f9 ff bb b0 b9 ff c6 95 95 f6 8d 6a 6a 74 |.............jjt|

000001a0 00 00 00 12 00 00 00 03 00 00 00 00 00 00 00 00 |................|

000001b0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |................|

*

00000200

Feb 17, 2015 2:33 PM in response to k3ntrol

Sorry. This fell off my list. 😟

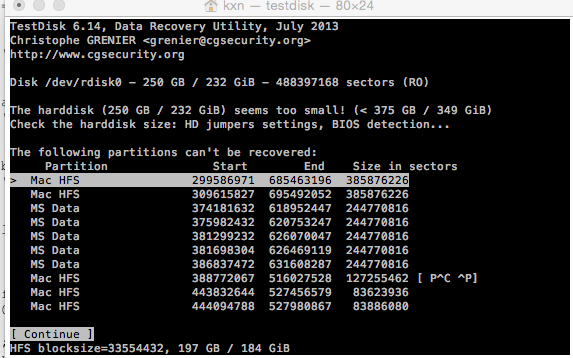

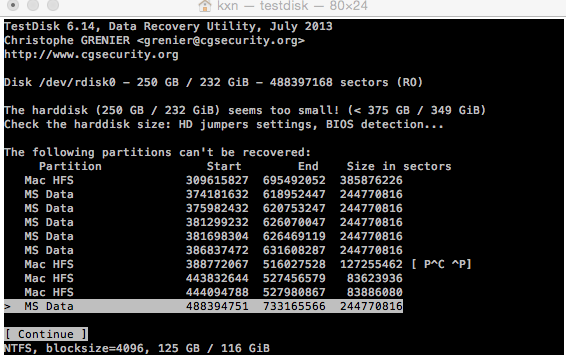

Will you be able to use Testdisk (http://www.cgsecurity.org/wiki/TestDisk) and GPT Fdisk (http://sourceforge.net/projects/gptfdisk/) and start with a Testdisk scan.


Please see http://imgur.com/a/PjmnK for the starting Testdisk. If you download Testdisk in your download directory, you can start it with


sudo ~/Downloads/testdisk-6.14/testdisk /dev/rdisk0


Your version number may not be 6.14, but may be higher.

Feb 24, 2015 5:14 AM in response to k3ntrol

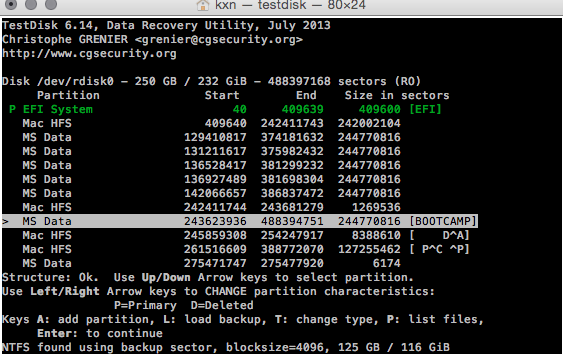

For each of the MS Data partitions, use 'P - List files' . Please be careful with keys. Start with the MS Data that is highlighted, it is the most likely candidate given that your GPT4 is at


243681280 244715520 4 GPT part - EBD0A0A2-B9E5-4433-87C0-68B6B72699C7


This is about 57K sectors within your Recovery HD, so you may lose Recovery HD temporarily.

Feb 27, 2015 6:43 AM in response to k3ntrol

Hi All -


I have the same kind of problem as described.


There are a few things that are different though.

I have two partitions one GUID and one NTFS using Tuxera NTFS version 2014 driver.

I had Windows 7 64 bit professional installed on a separate partition.


I ran W7 in two ways.

1- boot camp with the option boot key and selecting the windows 7 drive

OR

2 - Via parallels


After the yosemite upgrade, the boot camp option disappeared, the parallels option is fine.

I suspect the MBR is screwed up in the bootcamp side.


Following the suggestions above, I have done some of the diagnostics -


$ diskutil list

/dev/disk0

#: TYPE NAME SIZE IDENTIFIER

0: GUID_partition_scheme *1.0 TB disk0

1: EFI EFI 209.7 MB disk0s1

2: Apple_HFS MacintoshHD 799.5 GB disk0s2

3: Apple_Boot Recovery HD 650.0 MB disk0s3

4: Microsoft Basic Data BootCamp 199.9 GB disk0s4

/dev/disk2

#: TYPE NAME SIZE IDENTIFIER

0: GUID_partition_scheme *3.0 TB disk2

1: EFI EFI 209.7 MB disk2s1

2: Apple_HFS Time Machine Backups 3.0 TB disk2s2

$ diskutil cs list

No CoreStorage logical volume groups found

$ sudo gpt -vv -r show /dev/disk0

gpt show: /dev/disk0: mediasize=1000204886016; sectorsize=512; blocks=1953525168

gpt show: /dev/disk0: Suspicious MBR at sector 0

gpt show: /dev/disk0: Pri GPT at sector 1

gpt show: /dev/disk0: Sec GPT at sector 1953525167

start size index contents

0 1 MBR

1 1 Pri GPT header

2 32 Pri GPT table

34 6

40 409600 1 GPT part - C12A7328-F81F-11D2-BA4B-00A0C93EC93B

409640 1561493680 2 GPT part - 48465300-0000-11AA-AA11-00306543ECAC

1561903320 1269544 3 GPT part - 426F6F74-0000-11AA-AA11-00306543ECAC

1563172864 390350848 4 GPT part - EBD0A0A2-B9E5-4433-87C0-68B6B72699C7

1953523712 1423

1953525135 32 Sec GPT table

1953525167 1 Sec GPT header

$ sudo gpt -vv -r show /dev/disk2

gpt show: /dev/disk2: mediasize=2998445457408; sectorsize=512; blocks=5856338784

gpt show: /dev/disk2: PMBR at sector 0

gpt show: /dev/disk2: Pri GPT at sector 1

gpt show: /dev/disk2: Sec GPT at sector 5856338783

start size index contents

0 1 PMBR

1 1 Pri GPT header

2 32 Pri GPT table

34 6

40 409600 1 GPT part - C12A7328-F81F-11D2-BA4B-00A0C93EC93B

409640 5855666960 2 GPT part - 48465300-0000-11AA-AA11-00306543ECAC

5856076600 262151

5856338751 32 Sec GPT table

5856338783 1 Sec GPT header

$ sudo fdisk /dev/disk0

Disk: /dev/disk0 geometry: 121601/255/63 [1953525168 sectors]

Signature: 0xAA55

Starting Ending

#: id cyl hd sec - cyl hd sec [ start - size]

------------------------------------------------------------------------

1: EE 1023 254 63 - 1023 254 63 [ 1 - 409639] <Unknown ID>

2: AF 1023 254 63 - 1023 254 63 [ 409640 - 1561493680] HFS+

3: AB 1023 254 63 - 1023 254 63 [1561903320 - 1269544] Darwin Boot

4: 0C 1023 254 63 - 1023 254 63 [1563172864 - 390350848] Win95 FAT32L

$ sudo fdisk /dev/disk2

Disk: /dev/disk2 geometry: 97190/255/63 [1561371488 sectors]

Signature: 0xAA55

Starting Ending

#: id cyl hd sec - cyl hd sec [ start - size]

------------------------------------------------------------------------

1: EE 1023 254 63 - 1023 254 63 [ 1 - 4294967294] <Unknown ID>

2: 00 0 0 0 - 0 0 0 [ 0 - 0] unused

3: 00 0 0 0 - 0 0 0 [ 0 - 0] unused

4: 00 0 0 0 - 0 0 0 [ 0 - 0] unused

$ sudo dd if=/dev/rdisk0s4 count=1 2>/dev/null | hexdump -C

00000000 eb 52 90 4e 54 46 53 20 20 20 20 00 02 08 00 00 |.R.NTFS .....|

00000010 00 00 00 00 00 f8 00 00 3f 00 ff 00 00 20 2c 5d |........?.... ,]|

00000020 00 00 00 00 80 00 80 00 f8 47 44 17 00 00 00 00 |.........GD.....|

00000030 00 00 0c 00 00 00 00 00 7f 21 65 00 00 00 00 00 |.........!e.....|

00000040 f6 00 00 00 01 00 00 00 c6 ea 6b 66 0a 6c 66 14 |..........kf.lf.|

00000050 00 00 00 00 fa 33 c0 8e d0 bc 00 7c fb 68 c0 07 |.....3.....|.h..|

00000060 1f 1e 68 66 00 cb 88 16 0e 00 66 81 3e 03 00 4e |..hf......f.>..N|

00000070 54 46 53 75 15 b4 41 bb aa 55 cd 13 72 0c 81 fb |TFSu..A..U..r...|

00000080 55 aa 75 06 f7 c1 01 00 75 03 e9 dd 00 1e 83 ec |U.u.....u.......|

00000090 18 68 1a 00 b4 48 8a 16 0e 00 8b f4 16 1f cd 13 |.h...H..........|

000000a0 9f 83 c4 18 9e 58 1f 72 e1 3b 06 0b 00 75 db a3 |.....X.r.;...u..|

000000b0 0f 00 c1 2e 0f 00 04 1e 5a 33 db b9 00 20 2b c8 |........Z3... +.|

000000c0 66 ff 06 11 00 03 16 0f 00 8e c2 ff 06 16 00 e8 |f...............|

000000d0 4b 00 2b c8 77 ef b8 00 bb cd 1a 66 23 c0 75 2d |K.+.w......f#.u-|

000000e0 66 81 fb 54 43 50 41 75 24 81 f9 02 01 72 1e 16 |f..TCPAu$....r..|

000000f0 68 07 bb 16 68 70 0e 16 68 09 00 66 53 66 53 66 |h...hp..h..fSfSf|

00000100 55 16 16 16 68 b8 01 66 61 0e 07 cd 1a 33 c0 bf |U...h..fa....3..|

00000110 28 10 b9 d8 0f fc f3 aa e9 5f 01 90 90 66 60 1e |(........_...f`.|

00000120 06 66 a1 11 00 66 03 06 1c 00 1e 66 68 00 00 00 |.f...f.....fh...|

00000130 00 66 50 06 53 68 01 00 68 10 00 b4 42 8a 16 0e |.fP.Sh..h...B...|

00000140 00 16 1f 8b f4 cd 13 66 59 5b 5a 66 59 66 59 1f |.......fY[ZfYfY.|

00000150 0f 82 16 00 66 ff 06 11 00 03 16 0f 00 8e c2 ff |....f...........|

00000160 0e 16 00 75 bc 07 1f 66 61 c3 a0 f8 01 e8 09 00 |...u...fa.......|

00000170 a0 fb 01 e8 03 00 f4 eb fd b4 01 8b f0 ac 3c 00 |..............<.|

00000180 74 09 b4 0e bb 07 00 cd 10 eb f2 c3 0d 0a 41 20 |t.............A |

00000190 64 69 73 6b 20 72 65 61 64 20 65 72 72 6f 72 20 |disk read error |

000001a0 6f 63 63 75 72 72 65 64 00 0d 0a 42 4f 4f 54 4d |occurred...BOOTM|

000001b0 47 52 20 69 73 20 6d 69 73 73 69 6e 67 00 0d 0a |GR is missing...|

000001c0 42 4f 4f 54 4d 47 52 20 69 73 20 63 6f 6d 70 72 |BOOTMGR is compr|

000001d0 65 73 73 65 64 00 0d 0a 50 72 65 73 73 20 43 74 |essed...Press Ct|

000001e0 72 6c 2b 41 6c 74 2b 44 65 6c 20 74 6f 20 72 65 |rl+Alt+Del to re|

000001f0 73 74 61 72 74 0d 0a 00 8c a9 be d6 00 00 55 aa |start.........U.|

00000200



If anybody has a suggestion for restoring the ability to boot from the option key at startup I'd really appreciate your help.


The other option is to

1 - backup the windows 7 disk.

2 - Remove the partition

3 - Add back the partition

4 - Install Win7 again via boot camp

5 - Restore partition that was backed up in Step 1


All of the is really too much work for the few times when I need more CPI power than I can get from a parallels VM


Thanks

Frank

Feb 27, 2015 6:57 AM in response to Lee Kolakowski

Since the NTFS header is intact, you may be able to run a simpler fix, you can try the following steps. Please ignore the i386 boot error message in the following steps. The following steps change the Windows entry (MBR #4) to be bootable and the MBR Index ID to be NTFS (it is currently FAT).


sudo fdisk -e /dev/disk0

p

setpid 4

07

flag 4

p

w

y


Reboot and test.


Test 1 - Can you see Bootcamp Volume in Finder?

Test 2 - Can you files in Bootcamp files in Finder?

Test 3 - Can you select Bootcamp in System Preferences -> Startup Disk?

Test 4 - If Test 3 is successful, select Bootcamp, and click on Restart.


If you see a black screen with a blinking underline cursor in top left corner and Windows fails to boot, please post back.

Feb 27, 2015 7:26 AM in response to Loner T

Thanks so much Loner T

>Reboot and test.

>Test 1 - Can you see Bootcamp Volume in Finder?

Yes

>Test 2 - Can you files in Bootcamp files in Finder?

Yes

>Test 3 - Can you select Bootcamp in System Preferences -> Startup Disk?

No - I have never been able to do this. Lone ago when bootcamp was first released it was known that since this is a ntfs partition it would not shown up in the startup disk selector

>Test 4 - If Test 3 is successful, select Bootcamp, and click on Restart.

Great. Now I need to test that the parallels invokation still works! Great - All fixed with one command.


The only other weird thing is that the recovery partition is from Mavericks. Not sure why the upgrade to 10.10 did not update that.


Thanks to the Apple Support Communities and Loner T

Feb 27, 2015 7:42 AM in response to Lee Kolakowski

Lee Kolakowski wrote:


No - I have never been able to do this. Lone ago when bootcamp was first released it was known that since this is a ntfs partition it would not shown up in the startup disk selector

Apple provides a read-only NTFS driver for OSX and Windows/Bootcamp. If there are any third-party NTFS drivers installed on the OSX side (Tuxera, Paragon, NTFS-3g, NTFS-3, NTFS-Free,....) then System Preferences will refuse to show the Bootcamp drive. This is what i have on my MBP (I am running 10.9.5 now).


User uploaded file

Installed Yosemite (OS X 10.10), Windows 7 Partition/Bootcamp does not work.

Welcome to Apple Support Community
A forum where Apple customers help each other with their products. Get started with your Apple ID.
