OSX bootcamp not showing on Option key boot up

/dev/disk0

#: TYPE NAME SIZE IDENTIFIER

0: GUID_partition_scheme *500.3 GB disk0

1: EFI EFI 209.7 MB disk0s1

2: Apple_CoreStorage 420.2 GB disk0s2

3: Apple_Boot Recovery HD 650.0 MB disk0s3

4: Microsoft Basic Data 60.0 GB disk0s4

/dev/disk1

#: TYPE NAME SIZE IDENTIFIER

0: Apple_HFS Macintosh HD *419.9 GB disk1

Logical Volume on disk0s2

6915A221-C321-47AD-83EF-79E02DF42F5A

Unlocked Encrypted

Zacharys-Macbook-Pro:~ Zachary$ diskutil cs list

CoreStorage logical volume groups (1 found)

|

+-- Logical Volume Group A28D87B8-FB2F-4E5A-9873-B4D7C3EB37E3

=========================================================

Name: Macintosh HD

Status: Online

Size: 420230041600 B (420.2 GB)

Free Space: 18976768 B (19.0 MB)

|

+-< Physical Volume 17BC8AC6-8DED-4215-994B-0000742E20D3

| ----------------------------------------------------

| Index: 0

| Disk: disk0s2

| Status: Online

| Size: 420230041600 B (420.2 GB)

|

+-> Logical Volume Family BE71DED9-2FF9-4466-AEA4-68583F077C74

----------------------------------------------------------

Encryption Status: Unlocked

Encryption Type: AES-XTS

Conversion Status: Complete

Conversion Direction: -none-

Has Encrypted Extents: Yes

Fully Secure: Yes

Passphrase Required: Yes

|

+-> Logical Volume 6915A221-C321-47AD-83EF-79E02DF42F5A

---------------------------------------------------

Disk: disk1

Status: Online

Size (Total): 419858743296 B (419.9 GB)

Conversion Progress: -none-

Revertible: Yes (unlock and decryption required)

LV Name: Macintosh HD

Volume Name: Macintosh HD

Content Hint: Apple_HFS

Zacharys-Macbook-Pro:~ Zachary$ sudo gpt -vv -r show /dev/disk0

Password:

gpt show: /dev/disk0: mediasize=500277790720; sectorsize=512; blocks=977105060

gpt show: /dev/disk0: Suspicious MBR at sector 0

gpt show: /dev/disk0: Pri GPT at sector 1

gpt show: /dev/disk0: Sec GPT at sector 977105059

start size index contents

0 1 MBR

1 1 Pri GPT header

2 32 Pri GPT table

34 6

40 409600 1 GPT part - C12A7328-F81F-11D2-BA4B-00A0C93EC93B

409640 820761800 2 GPT part - 53746F72-6167-11AA-AA11-00306543ECAC

821171440 1269536 3 GPT part - 426F6F74-0000-11AA-AA11-00306543ECAC

822440976 37477360

859918336 117186560 4 GPT part - EBD0A0A2-B9E5-4433-87C0-68B6B72699C7

977104896 131

977105027 32 Sec GPT table

977105059 1 Sec GPT header

Zacharys-Macbook-Pro:~ Zachary$ sudo fdisk /dev/disk0

Disk: /dev/disk0 geometry: 60821/255/63 [977105060 sectors]

Signature: 0xAA55

Starting Ending

#: id cyl hd sec - cyl hd sec [ start - size]

------------------------------------------------------------------------

1: EE 1023 254 63 - 1023 254 63 [ 1 - 409639] <Unknown ID>

2: AC 1023 254 63 - 1023 254 63 [ 409640 - 820761800] <Unknown ID>

3: AB 1023 254 63 - 1023 254 63 [ 821171440 - 1269536] Darwin Boot

4: 0C 1023 254 63 - 1023 254 63 [ 859918336 - 117186560] Win95 FAT32L

MacBook Pro with Retina display, OS X Mountain Lion (10.8.4)

Posted on Mar 20, 2015 7:03 PM

Reply
Question marked as Best reply

Posted on Mar 20, 2015 7:13 PM

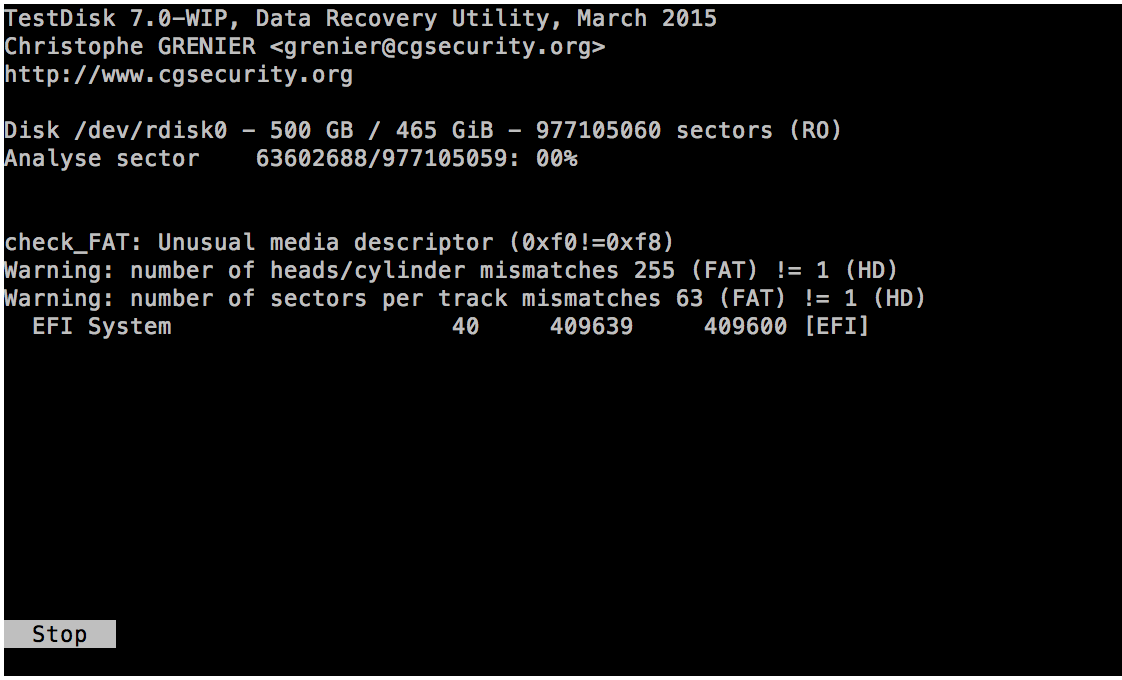

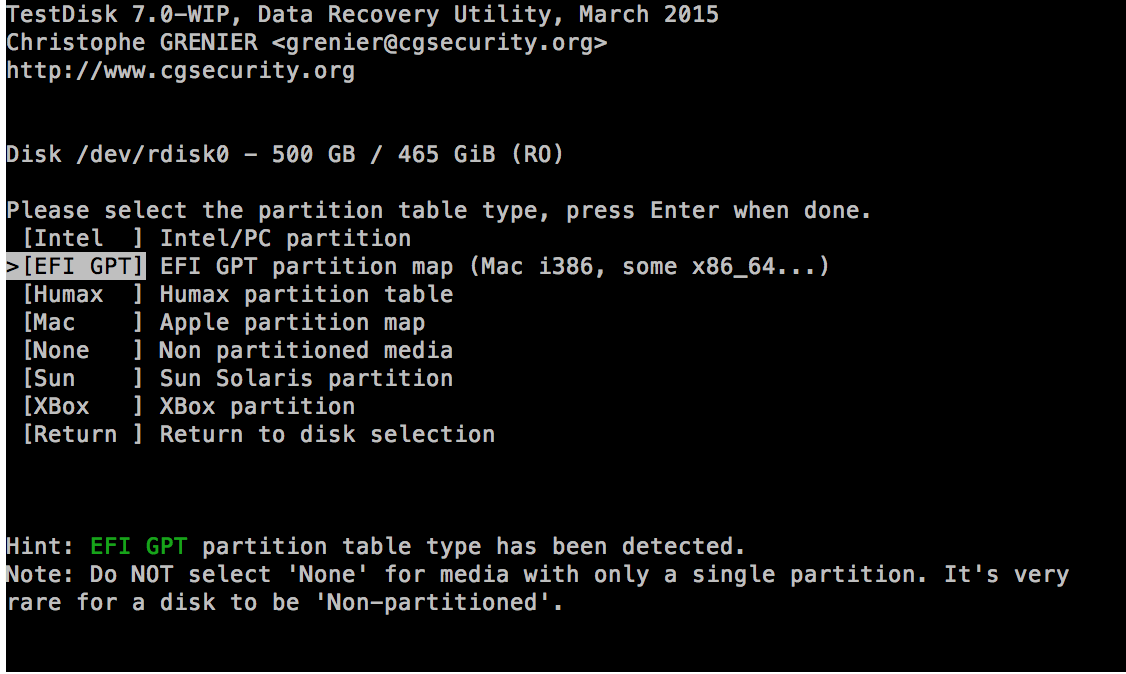

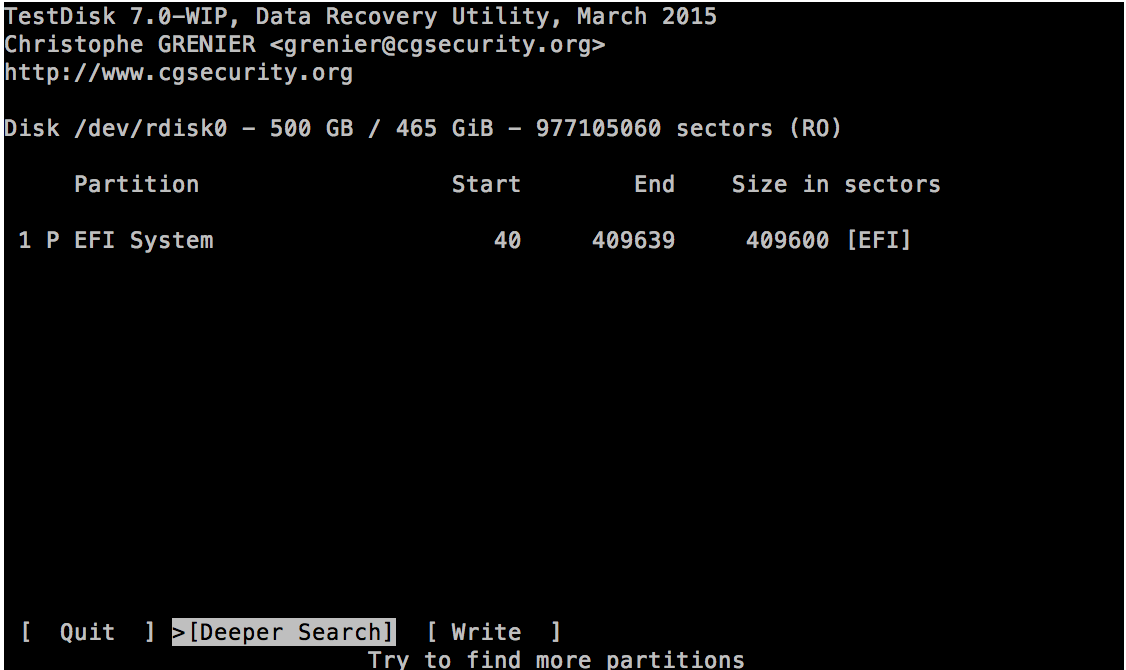

Please download Testdisk (http://www.cgsecurity.org/wiki/TestDisk_Step_By_Step) and GPT Fdisk (http://sourceforge.net/projects/gptfdisk/). Run Testdisk and use the UI flow https://imgur.com/a/PjmnK to look for missing NTFS header in the following gap.


822440976 37477360
34 replies

Mar 21, 2015 7:49 PM in response to hornbymanzpc

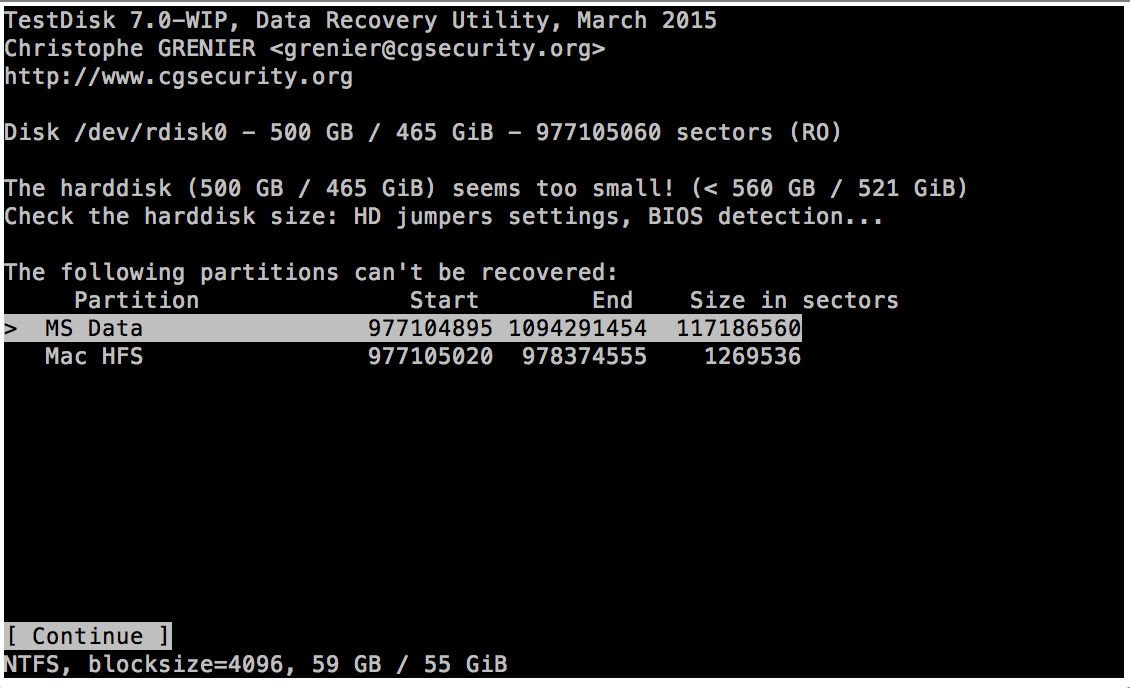

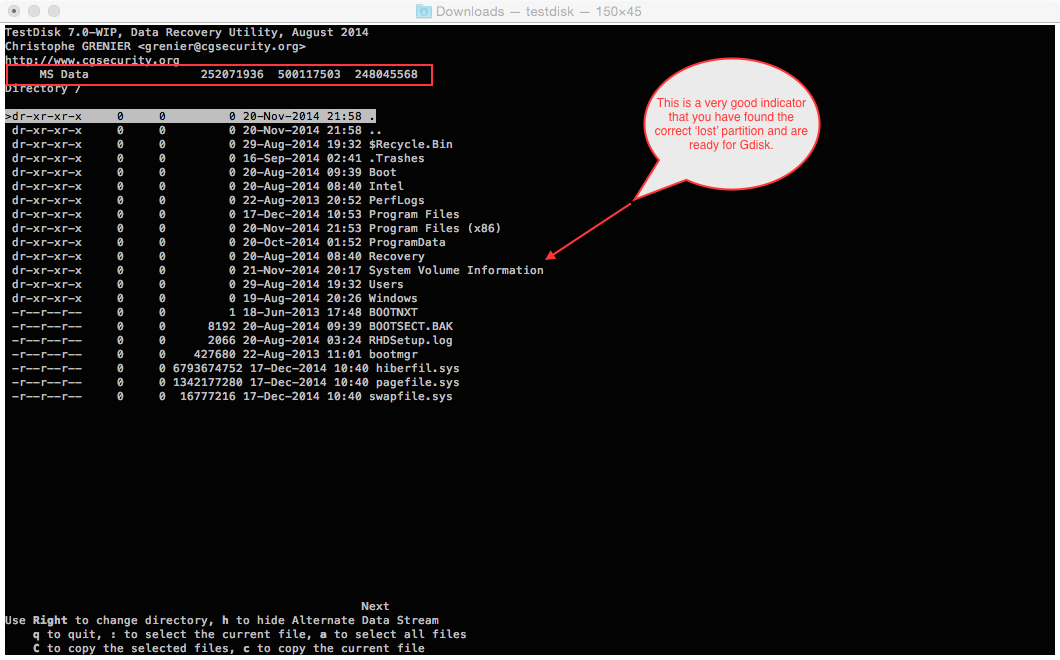

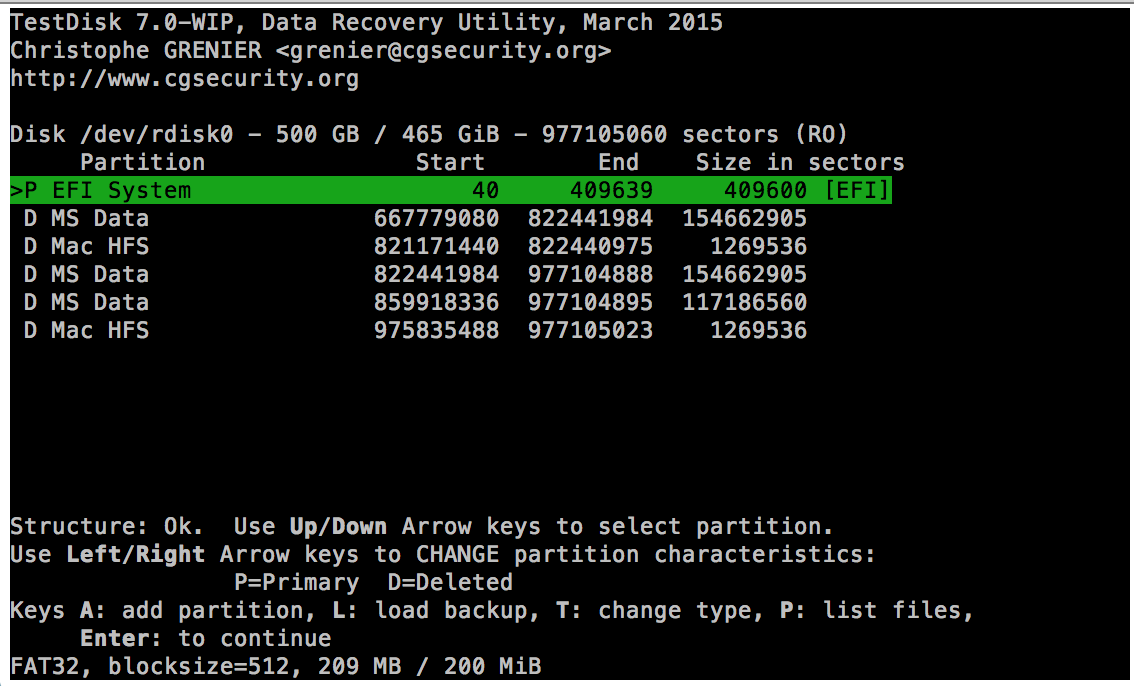

Press Enter to Continue. You will get a large scrolling list, but you should get a final list. In your first screen, you have an MS Data at start 822441984 which is very close to the gap start at 822440976 (1008 sectors further below). It is the most likely candidate. When the list comes back look for this one and use 'P -List Files' to look for familiar Windows Files. This looks very promising.


It will look very similar to the following...


User uploaded file
