Q: Boot Camp missing after upgrade

Odd that I waited so long to upgrade and Apple still hasn't fixed this.  I wasn't even aware of this being an issue until I decided to use up my bandwidth and download the upgrade.  Any help on how to get my Windows Back?  A few work utilities are PC only.



MyMac:~ MyMac$ diskutil list

/dev/disk0

   #:                       TYPE NAME                    SIZE       IDENTIFIER

   0:      GUID_partition_scheme                        *750.2 GB   disk0

   1:                        EFI EFI                     209.7 MB   disk0s1

   2:          Apple_CoreStorage                         719.0 GB   disk0s2

   3:                 Apple_Boot Recovery HD             650.0 MB   disk0s3

   4:       Microsoft Basic Data                         20.3 GB    disk0s4

/dev/disk1

   #:                       TYPE NAME                    SIZE       IDENTIFIER

   0:                  Apple_HFS My Pro           *718.6 GB   disk1

                                 Logical Volume on disk0s2

                                 B1482D1B-4399-47EA-8174-8D36F1B49DCF

                                 Unlocked Encrypted

MyMac:~ MyMac$ diskutil cs list

CoreStorage logical volume groups (1 found)

|

+-- Logical Volume Group EAB54317-E0B3-40F2-8582-D28246F7C5DA

    =========================================================

    Name:         My Pro

    Status:       Online

    Size:         718999998464 B (719.0 GB)

    Free Space:   18960384 B (19.0 MB)

    |

    +-< Physical Volume 2277B92E-D7C8-4D20-86A6-44F1C27576FA

    |   ----------------------------------------------------

    |   Index:    0

    |   Disk:     disk0s2

    |   Status:   Online

    |   Size:     718999998464 B (719.0 GB)

    |

    +-> Logical Volume Family 63BCADCB-5D17-4C81-B3BC-742C9BC311FB

        ----------------------------------------------------------

        Encryption Status:       Unlocked

        Encryption Type:         AES-XTS

        Conversion Status:       Complete

        Conversion Direction:    -none-

        Has Encrypted Extents:   Yes

        Fully Secure:            Yes

        Passphrase Required:     Yes

        |

        +-> Logical Volume B1482D1B-4399-47EA-8174-8D36F1B49DCF

            ---------------------------------------------------

            Disk:                  disk1

            Status:                Online

            Size (Total):          718628716544 B (718.6 GB)

            Conversion Progress:   -none-

            Revertible:            Yes (unlock and decryption required)

            LV Name:               My Pro

            Volume Name:           My Pro

            Content Hint:          Apple_HFS

Posted on Apr 27, 2015 6:40 PM

Close

Q: Boot Camp missing after upgrade

  • All replies
  • Helpful answers

Page 1 Next
  • by Loner T,

    Loner T Loner T Apr 27, 2015 7:18 PM in response to 1011iData
    Level 7 (24,307 points)
    Safari
    Apr 27, 2015 7:18 PM in response to 1011iData

    Please post the output of the following



    sudo gpt -vv -r show /dev/disk0

    sudo fdisk /dev/disk0



    The "sudo" commands will prompt for your password, and it will not be echoed back. You may also see a warning about improper use of "sudo" and potential data loss due to "abuse" of the command.

  • by 1011iData,

    1011iData 1011iData Apr 28, 2015 7:13 PM in response to 1011iData
    Level 1 (0 points)
    Apr 28, 2015 7:13 PM in response to 1011iData

    THANK YOU FOR YOUR HELP!



    MyMac:~ MyMac$ sudo gpt -vv -r show /dev/disk0

    gpt show: /dev/disk0: mediasize=750156374016; sectorsize=512; blocks=1465149168

    gpt show: /dev/disk0: Suspicious MBR at sector 0

    gpt show: /dev/disk0: Pri GPT at sector 1

    gpt show: /dev/disk0: Sec GPT at sector 1465149167

           start        size  index  contents

               0           1         MBR

               1           1         Pri GPT header

               2          32         Pri GPT table

              34           6

              40      409600      1  GPT part - C12A7328-F81F-11D2-BA4B-00A0C93EC93B

          409640  1404296872      2  GPT part - 53746F72-6167-11AA-AA11-00306543ECAC

      1404706512     1269536      3  GPT part - 426F6F74-0000-11AA-AA11-00306543ECAC

      1405976048    19532304

      1425508352    39639040      4  GPT part - EBD0A0A2-B9E5-4433-87C0-68B6B72699C7

      1465147392        1743

      1465149135          32         Sec GPT table

      1465149167           1         Sec GPT header





    MyMac:~ MyMac$ sudo fdisk /dev/disk0

    Disk: /dev/disk0    geometry: 91201/255/63 [1465149168 sectors]

    Signature: 0xAA55

             Starting       Ending

    #: id  cyl  hd sec -  cyl  hd sec [     start -       size]

    ------------------------------------------------------------------------

    1: EE 1023 254  63 - 1023 254  63 [         1 -     409639] <Unknown ID>

    2: AC 1023 254  63 - 1023 254  63 [    409640 - 1404296872] <Unknown ID>

    3: AB 1023 254  63 - 1023 254  63 [1404706512 -    1269536] Darwin Boot

    4: 0C 1023 254  63 - 1023 254  63 [1425508352 -   39639040] Win95 FAT32L

  • by Loner T,

    Loner T Loner T Apr 28, 2015 7:44 PM in response to 1011iData
    Level 7 (24,307 points)
    Safari
    Apr 28, 2015 7:44 PM in response to 1011iData

    The gap between GPT3 and GPT4 is where a lost NTFS header is sitting.



    Please download the following two utilities



    Testdisk is available at http://www.cgsecurity.org/wiki/TestDisk_Step_By_Step.

    GPT Fdisk is available at http://sourceforge.net/projects/gptfdisk/.



    Start Terminal from Applications -Utilities -> Terminal and run Testdisk from the directory where it is downloaded. For example, I have it in the Downloads directory,



    ls ~/Downloads/testdisk-7.0-WIP/testdisk

    /Users/MyName/Downloads/testdisk-7.0-WIP/testdisk



    and I run it as

    sudo ~/Downloads/testdisk-7.0-WIP/testdisk /dev/rdisk0



    You should see a UI similar to https://imgur.com/a/PjmnK .

  • by 1011iData,

    1011iData 1011iData Apr 30, 2015 4:10 PM in response to Loner T
    Level 1 (0 points)
    Apr 30, 2015 4:10 PM in response to Loner T

    I tried to follow the images on https://imgur.com/a/PjmnK -



    After it took almost 24 hours to do a scan, I got to the 'Deeper Search'.  That ran another 24 hours... after that, I continued until I got back to what looks like the main menu.  I went to disk utility and saw disk0s4 - So I rebooted the computer and held the option key down to try to boot to windows.  No windows partition found.



    Did I do something wrong?  or am I out of luck?







    Thanks again. iD

  • by Loner T,

    Loner T Loner T Apr 30, 2015 5:19 PM in response to 1011iData
    Level 7 (24,307 points)
    Safari
    Apr 30, 2015 5:19 PM in response to 1011iData

    Testdisk allows you to inspect partitions that are recoverable. It does not fix any issues. Once you finish Deeper Search, the list of partitions need to be inspected using 'P - List Files' option to check if any of the partitions listed may be viable and contain the correct Windows header. Unfortunately, you will have to get to this list, before any further recovery is possible. Can you post a screen shot of the list of partitions as displayed after the Deeper Search completes? Please stop at this point and post back here.

  • by 1011iData,

    1011iData 1011iData May 1, 2015 5:37 PM in response to Loner T
    Level 1 (0 points)
    May 1, 2015 5:37 PM in response to Loner T

    Hey Loner T.



    Thanks for your continued support...



    xxxxxxxxxxxxxxxxxxxxxxx

    FIRST SCREEEN

    xxxxxxxxxxxxxxxxxxxxxxx

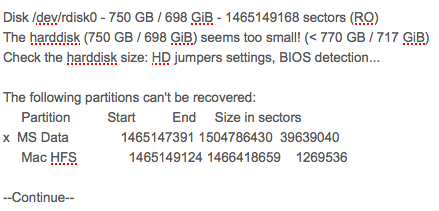

    Screen Shot 2015-05-01 at 8.33.34 PM.png


    I Pressed Enter to Continue


    xxxxxxxxxxxxxxxxxxxxxxx

    Second Screen

    xxxxxxxxxxxxxxxxxxxxxxx

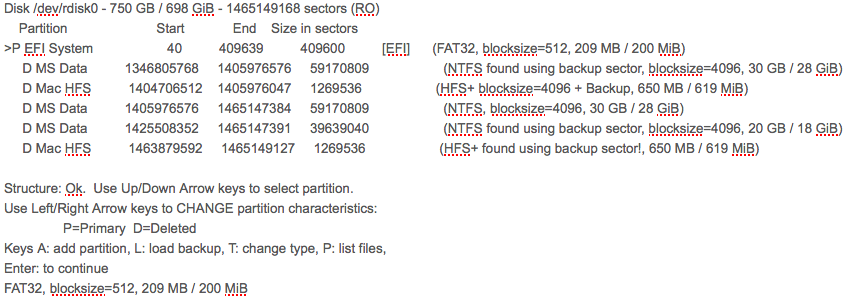

    Screen Shot 2015-05-01 at 8.34.03 PM.png

    I can scroll between the EFI, MS Data, and Mac HFS.  The very last line changes for each one I select - I included in brackets above.



    Which one do I select and what do I press?





    iD

  • by Loner T,

    Loner T Loner T May 1, 2015 6:28 PM in response to 1011iData
    Level 7 (24,307 points)
    Safari
    May 1, 2015 6:28 PM in response to 1011iData

    Your GPT3 (aka Recovery HD) ends at 1405976048 . The other clue is the gap is 19532304 and 39639040 which adds up to 59171344 sectors (one sector is 512-bytes each) and the two MS Data entries are 59170809. I suggest you select the second MS Data entry and enter 'P' to list files.



    Here is a table which lays the numbers out.




  • by Loner T,

    Loner T Loner T May 1, 2015 6:58 PM in response to 1011iData
    Level 7 (24,307 points)
    Safari
    May 1, 2015 6:58 PM in response to 1011iData

    You are looking for  something similar to this.




  • by 1011iData,

    1011iData 1011iData May 1, 2015 10:27 PM in response to Loner T
    Level 1 (0 points)
    May 1, 2015 10:27 PM in response to Loner T

    Perfect!  I do see a similar screen.  How can I make it bootable again?

  • by Loner T,

    Loner T Loner T May 2, 2015 5:46 AM in response to 1011iData
    Level 7 (24,307 points)
    Safari
    May 2, 2015 5:46 AM in response to 1011iData

    Leave your Testdisk display and start a new Terminal Window. You need to use the following steps.



    If you see any error messages during the following steps, please stop and post back here with the error message. The following steps have values from your Testdisk output (and you can verify) in Steps 7 and 8.



    Rebuild GPT4 using start/end offsets



    1. Sudo gdisk /dev/rdisk0
    2. P  (print the full list of parts)
    3. D  (delete)
    4. 4  (part 4)
    5. N  (new part)
    6. 4  (part 4)
    7. 1405976048 - Start offset in bytes  (start point for Bootcamp part)
    8. +59170809  (Size offset as opposed to End offset)
    9. 0700 (Windows part type)
    10. P  (print list of all parts just to see what changes will be made)
    11. W (Write the new GPT)
    12. Y  (Yes! really write the new GPT)

    This will delete and re-write the GPT partition info for /dev/disk0s4.



    Rebuild MBR to match the new GPT information thus resetting the Hybrid MBR. Use defaults for other questions (like partition codes). The only values that need modifications are the Boot flags and step 10. Accept all other defaults that Gdisk offers.


    1. Sudo gdisk /dev/disk0
    2. P  (Print list of parts)
    3. R  (Recover)
    4. H (chooses Hybrid)
    5. O (print current Hybrid MBR)
    6. Partitions numbers to be hybridized: 2 3 4
    7. Y  (Good for GRUB question)
    8. N  (part 2 boot flag)
    9. N  (part 3 boot flag)
    10. Y  (part 4 boot flag make NTFS bootable partition)
    11. O  (print current Hybrid MBR)
    12. W (Write the new MBR)
    13. Y (Yes! write the new MBR)
    14. Reboot



    Here is sample Q&A for this section. Please notice the Press Enter/Return.



    Place EFI GPT (0xEE) partition first in MBR (good for GRUB)? (Y/N): Y



    Creating entry for GPT partition #2 (MBR partition #2)

    Enter an MBR hex code (default AF): Press Enter/Return

    Set the bootable flag? (Y/N): N



    Creating entry for GPT partition #3 (MBR partition #3)

    Enter an MBR hex code (default AB): Press Enter/Return

    Set the bootable flag? (Y/N): N



    Creating entry for GPT partition #4 (MBR partition #4)

    Enter an MBR hex code (default 07): Press Enter/Return

    Set the bootable flag? (Y/N): Y



    Test 1 - Does Bootcamp Volume show up in Finder?

    Test 2 - Can you see files in Bootcamp Volume?

    Test 3 - Can you select Bootcamp in System Preferences -> Startup Disk?

    Test 4 - If Test 3 is successful, select Bootcamp and Click Restart.

  • by 1011iData,

    1011iData 1011iData May 2, 2015 6:42 PM in response to Loner T
    Level 1 (0 points)
    May 2, 2015 6:42 PM in response to Loner T

    Hey Loner T.



    I followed all the steps and no error messages.  But after reboot...



    Test 1 - No, therefore... Test 2 - No.

    Test 3 - No.

  • by Loner T,

    Loner T Loner T May 2, 2015 6:53 PM in response to 1011iData
    Level 7 (24,307 points)
    Safari
    May 2, 2015 6:53 PM in response to 1011iData

    Please post the output of



    sudo gpt -vv -r show /dev/disk0

    sudo fdisk /dev/disk0

  • by 1011iData,

    1011iData 1011iData May 2, 2015 7:24 PM in response to Loner T
    Level 1 (0 points)
    May 2, 2015 7:24 PM in response to Loner T

    gpt show: /dev/disk0: mediasize=750156374016; sectorsize=512; blocks=1465149168

    gpt show: /dev/disk0: Suspicious MBR at sector 0

    gpt show: /dev/disk0: Pri GPT at sector 1

    gpt show: /dev/disk0: Sec GPT at sector 1465149167

           start        size  index  contents

               0           1         MBR

               1           1         Pri GPT header

               2          32         Pri GPT table

              34           6

              40      409600      1  GPT part - C12A7328-F81F-11D2-BA4B-00A0C93EC93B

          409640  1404296872      2  GPT part - 53746F72-6167-11AA-AA11-00306543ECAC

      1404706512     1269536      3  GPT part - 426F6F74-0000-11AA-AA11-00306543ECAC

      1405976048    59170809      4  GPT part - EBD0A0A2-B9E5-4433-87C0-68B6B72699C7

      1465146857        2278

      1465149135          32         Sec GPT table

      1465149167           1         Sec GPT header









    ---------







    Disk: /dev/disk0    geometry: 91201/255/63 [1465149168 sectors]

    Signature: 0xAA55

             Starting       Ending

    #: id  cyl  hd sec -  cyl  hd sec [     start -       size]

    ------------------------------------------------------------------------

    1: EE    0   0   2 -   25 127  14 [         1 -     409639] <Unknown ID>

    2: AF   25 127  15 - 1023 254  63 [    409640 - 1404296872] HFS+

    3: AB 1023 254  63 - 1023 254  63 [1404706512 -    1269536] Darwin Boot

    *4: 07 1023 254  63 - 1023 254  63 [1405976048 -   59170809] HPFS/QNX/AUX

  • by Loner T,

    Loner T Loner T May 2, 2015 7:37 PM in response to 1011iData
    Level 7 (24,307 points)
    Safari
    May 2, 2015 7:37 PM in response to 1011iData

    The GPT and MBR look correct. Do you have any third-party NTFS software?

Page 1 Next
