Bootcamp Broken after Resizing and OSX Update

Hello, so after updating to Yosemite 10.10.3, my bootcamp partition, which was previously resized, has become unbootable. I can't read the partition in finder and can't see it in Startup Disk. It, however appears as "disk0s4" in disk utility. I've posted some outputs of commands suggested in another thread. Hopefully this will help fix this issue.


Adams-MacBook-Pro:~ Adam$ sudo fdisk /dev/disk0

Password:

Disk: /dev/disk0 geometry: 30515/255/63 [490234752 sectors]

Signature: 0xAA55

Starting Ending

#: id cyl hd sec - cyl hd sec [ start - size]

------------------------------------------------------------------------

1: EE 0 0 2 - 25 127 14 [ 1 - 409639] <Unknown ID>

2: 03 25 127 15 - 1023 254 63 [ 409640 - 255104784] XENIX /usr

*3: 03 1023 254 63 - 1023 254 63 [ 255514424 - 1269536] XENIX /usr

4: 00 0 0 0 - 0 0 0 [ 0 - 0] unused

Adams-MacBook-Pro:~ Adam$ diskutil list

/dev/disk0

#: TYPE NAME SIZE IDENTIFIER

0: GUID_partition_scheme *251.0 GB disk0

1: EFI EFI 209.7 MB disk0s1

2: Apple_HFS Macintosh HD 130.6 GB disk0s2

3: Apple_Boot Recovery HD 650.0 MB disk0s3

4: Microsoft Basic Data 70.0 GB disk0s4

Adams-MacBook-Pro:~ Adam$ sudo gpt -vv -r show /dev/disk0

gpt show: /dev/disk0: mediasize=251000193024; sectorsize=512; blocks=490234752

gpt show: /dev/disk0: Suspicious MBR at sector 0

gpt show: /dev/disk0: Pri GPT at sector 1

gpt show: /dev/disk0: Sec GPT at sector 490234751

start size index contents

0 1 MBR

1 1 Pri GPT header

2 32 Pri GPT table

34 6

40 409600 1 GPT part - C12A7328-F81F-11D2-BA4B-00A0C93EC93B

409640 255104784 2 GPT part - 48465300-0000-11AA-AA11-00306543ECAC

255514424 1269536 3 GPT part - 426F6F74-0000-11AA-AA11-00306543ECAC

256783960 96733608

353517568 136716288 4 GPT part - EBD0A0A2-B9E5-4433-87C0-68B6B72699C7

490233856 863

490234719 32 Sec GPT table

490234751 1 Sec GPT header

Adams-MacBook-Pro:~ Adam$

Output of the command suggested:

Adams-MacBook-Pro:~ Adam$ sudo dd if=/dev/rdisk0s4 count=1 2>/dev/null | hexdump -C

00000000 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |................|

*

00000200


Thanks in advance.

MacBook Pro (Retina, 13-inch, Early 2013), OS X Yosemite (10.10.3), Windows 8.1

Posted on May 7, 2015 9:56 AM

Reply
Question marked as Best reply

Posted on May 7, 2015 10:51 AM

Can you use Lost my Windows 7 Boot Camp partition after upgrading to Yosemite. Help! as a reference (you have the same issue) and download Testdisk and GPT Fdisk and get started with a Testdisk scan?

54 replies

May 7, 2015 10:38 AM in response to Loner T

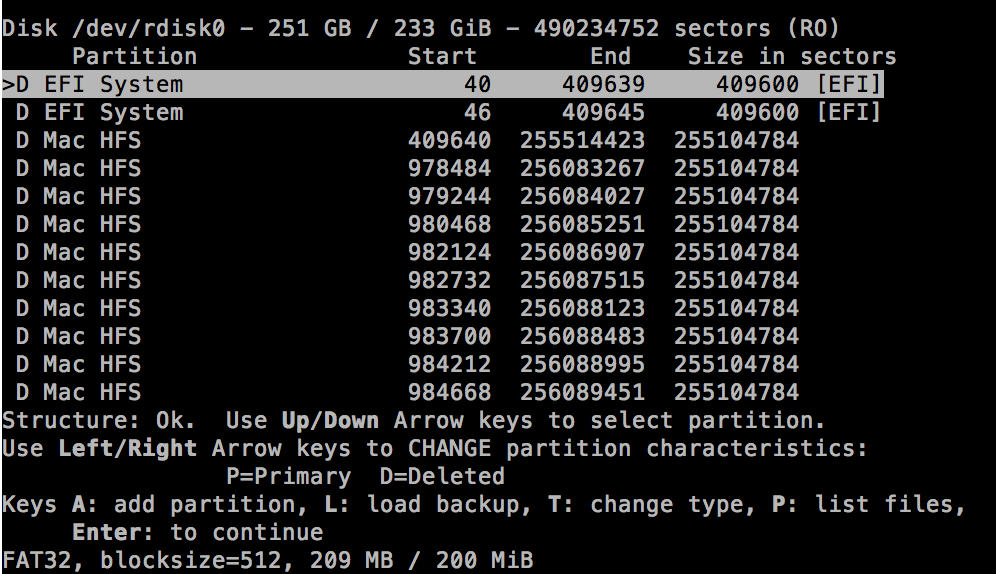

Just started with a TestDisk scan, would this be of any concern?


check_FAT: Unusual media descriptor (0xf0!=0xf8)

Warning: number of heads/cylinder mismatches 16 (FAT) != 1 (HD)

Warning: number of sectors per track mismatches 32 (FAT) != 1 (HD)


EFI System 40 409639 409600 [EFI]

Mac HFS 409640 255514423 255104784

Mac HFS 255514424 256783959 1269536

May 8, 2015 1:29 PM in response to adamsouthern

Here is a table which is useful.


GPT 3 StartGPT 3 SizeGPT 3 EndNTFS StartSector OffsetNTFS SizeNTFS EndSector Offset (MB)
255514424126953625678396028040396823620008209829881490233848 11,533


I am using the very first MS Data entry's start as NTFS Start in this table. It shows a gap of ~11.5GB. Was any partition resized (Windows or OSX) by roughly this amount?
