I can't boot into my windows after resizing my partition

Question

I can't boot into my windows after resizing my partition

I'm running OS X 10.10.3 & Windows 7 Home Premium x64

iMac 27 Inch Late 2012 model

I need more space on my windows partition so i decreased the size of my mac partition from 800gb to 675. After this was done i was going to boot into my windows partition and expand it using minitool wizard. I tried this once before and it worked fine but this time my windows partition disappeared once i decreased the size of my mac partition. I did this without backing up any of my windows files and i now i'm worried they might be lost. I tried to fix it using this information i found in this threadI can't boot to Windows after resizing my Mac partition.

I tried some commands in terminal and now the windows partition shows up once i re boot and use the option key but it says the operating system is missing. I had some really important files on my windows partition and i might not be able to replace them. Is there any way i can i get it back to normal ? I apologize if my post lacks detail it's just that i'm not really good at solving issues like these.

iMac (27-inch, Late 2012), Mac OS X (10.1.x)

Posted on Jun 21, 2015 8:00 PM

Reply

Answer 1

Loner T

Level 9

59,477 points

Jun 22, 2015 5:06 AM in response to TheCommerceComet

Can you post the output of the following Terminal commands?

diskutil list

diskutil cs list

sudo gpt -vv -r show /dev/disk0

sudo fdisk /dev/disk0

The "sudo" commands will prompt for your password, and it will not be echoed back. You may also see a warning about improper use of "sudo" and potential data loss due to "abuse" of the command.

Reply

Answer 2

Jun 22, 2015 8:04 AM in response to Loner T

i entered the commands and these are my results.

diskutil list-

diskutil cs list

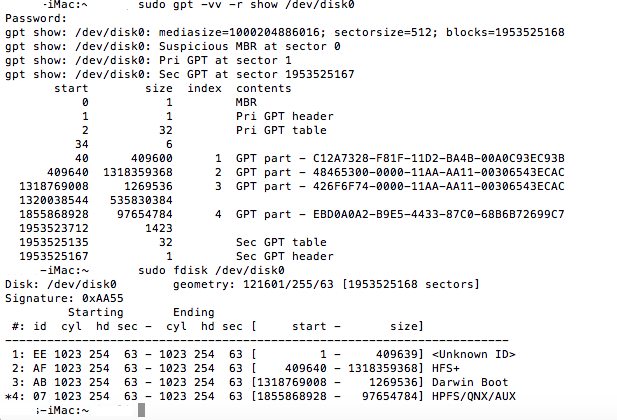

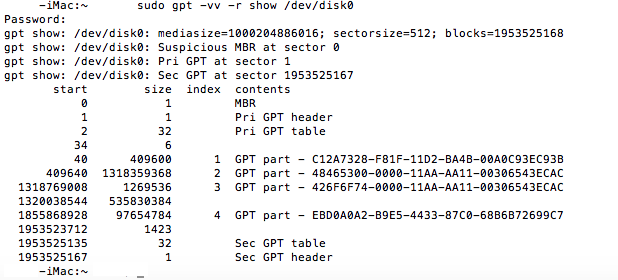

sudo gpt -vv -r show /dev/disk0

sudo fdisk /dev/disk0

Reply

Answer 3

Loner T

Level 9

59,477 points

Jun 22, 2015 8:33 AM in response to TheCommerceComet

The large gap between GPT3 and GPT4 has a lost NTFS header that we need to find this gap.

Can you use Unable to boot windows bootcamp after updating to yosemite as a reference and download Testdisk and GPT Fdisk and start a Testdisk scan?

Reply

Answer 4

Jun 22, 2015 8:56 AM in response to Loner T

Thanks for the help. I've downloaded both programs but i don't know how to proceed. Do i follow the instructions you gave in the thread you linked ?

Reply

Answer 5

Loner T

Level 9

59,477 points

Jun 22, 2015 9:05 AM in response to TheCommerceComet

Yes, you can follow the instructions in the link. You can also see the Testdisk starting UI screens at http://imgur.com/a/PjmnK .

Reply

Answer 6

Jun 22, 2015 9:19 AM in response to Loner T

Okay i'm running the scan now.

Reply

Answer 7

Loner T

Level 9

59,477 points

Jun 22, 2015 9:22 AM in response to TheCommerceComet

This can take a while. Once you get to the first screen which has the list of recoverable partitions, please post a screen shot.

Reply

Answer 8

Jun 22, 2015 9:23 AM in response to Loner T

Will do.

Reply

Answer 9

Jun 22, 2015 11:50 AM in response to Loner T

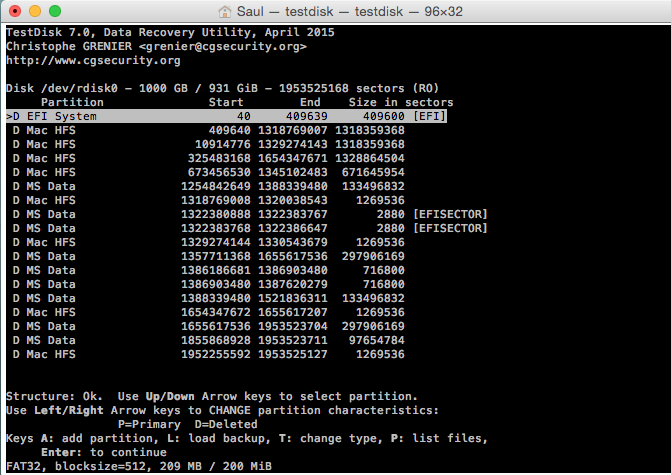

The scan finished and this is what i got.

Reply

Answer 10

Loner T

Level 9

59,477 points

Jun 22, 2015 11:51 AM in response to TheCommerceComet

These are unrecoverable partitions. Press Enter to get to the next screen and post a screen shot.

Reply

Answer 11

Jun 22, 2015 12:02 PM in response to Loner T

I pressed enter and this is the screen i got. Is this the correct one ?

Reply

Answer 12

Loner T

Level 9

59,477 points

Jun 22, 2015 12:20 PM in response to TheCommerceComet

Here is a table with the most likely candidate. You may lose about 19GB disk space between Recovery HD and Windows. You will also end up with a large gap after the NTFS partition. Is your Windows partition about 140+ GB?

GPT 3 Start	GPT 3 Size	GPT 3 End	NTFS Start	Sector Offset	NTFS Size	NTFS End	Sector Offset (MB)	NTFS(Gb)
1318769008	1269536	1320038544	1357711368	37672824	297906169	1655617536	18,395	142.052731

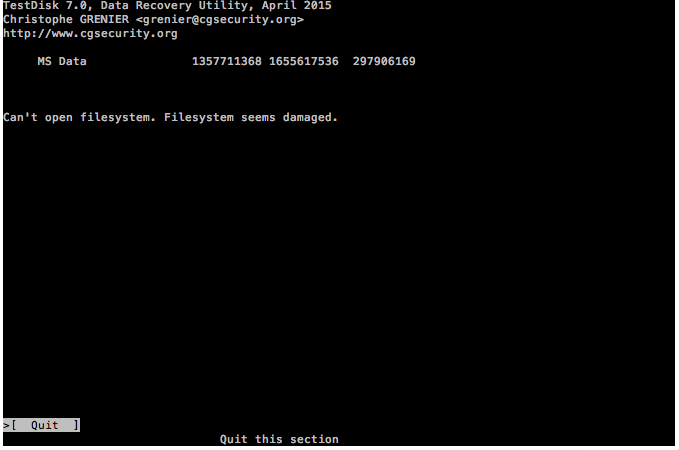

The first MS Data entry is inside OSX part, so it is not valid. The two EFI sectors are too small to be Windows. The fourth MS Data is the best candidate. Can you scroll down to the MS Data starting at 1357711368 use 'P' to list files and post a screen shot.

Reply
