Can't boot into Bootcamp/deleted EFI file

Question

Level 1

0 points

Can't boot into Bootcamp/deleted EFI file

I deleted my EFI files/partition and couldn't start in Bootcamp. I was able to make a new EFI partition, but I still can't start in Bootcamp. I see it as a startup disk in System Preferences, it shows up as a device in Finder, but I don't see it when I use the OPTION key to start my computer.

When I run diskutil list, this is what I get:

/dev/disk0 (internal, physical):

#: TYPE NAME SIZE IDENTIFIER

0: GUID_partition_scheme *750.2 GB disk0

1: EFI EFI 209.7 MB disk0s1

2: Apple_HFS Macintosh HD 449.3 GB disk0s2

3: Apple_Boot Recovery HD 650.0 MB disk0s3

4: Microsoft Basic Data BOOTCAMP 300.0 GB disk0s4

When I run sudo gpt -vv -r show /dev/disk0, I get:

gpt show: /dev/disk0: mediasize=750156374016; sectorsize=512; blocks=1465149168

gpt show: /dev/disk0: PMBR at sector 0

gpt show: /dev/disk0: Pri GPT at sector 1

gpt show: /dev/disk0: Sec GPT at sector 1465149167

start size index contents

0 1 PMBR

1 1 Pri GPT header

2 32 Pri GPT table

34 6

40 409600 1 GPT part - C12A7328-F81F-11D2-BA4B-00A0C93EC93B

409640 877533368 2 GPT part - 48465300-0000-11AA-AA11-00306543ECAC

877943008 1269536 3 GPT part - 426F6F74-0000-11AA-AA11-00306543ECAC

879212544 585934848 4 GPT part - EBD0A0A2-B9E5-4433-87C0-68B6B72699C7

1465147392 1743

1465149135 32 Sec GPT table

1465149167 1 Sec GPT header

When I run sudo fdisk /dev/disk0, I get this:

Disk: /dev/disk0 geometry: 91201/255/63 [1465149168 sectors]

Signature: 0xAA55

Starting Ending

#: id cyl hd sec - cyl hd sec [ start - size]

------------------------------------------------------------------------

1: EE 1023 254 63 - 1023 254 63 [ 1 - 1465149167] <Unknown ID>

2: 00 0 0 0 - 0 0 0 [ 0 - 0] unused

3: 00 0 0 0 - 0 0 0 [ 0 - 0] unused

4: 00 0 0 0 - 0 0 0 [ 0 - 0] unused

Is there any way I can fix this, or do I have to destroy my Bootcamp partition and start from scratch?

MacBook Pro, OS X El Capitan (10.11.1)

Posted on Nov 9, 2015 11:35 AM

Reply

Answer 1

Loner T

Level 9

59,513 points

Nov 9, 2015 1:59 PM in response to boomdeyada

Please post the output of

sudo dd if=/dev/rdisk0s4 count=1 2>/dev/null | hexdump -C

Reply

Answer 2

boomdeyada Author

Level 1

0 points

Nov 9, 2015 2:02 PM in response to Loner T

This is the result I got:

00000000 eb 52 90 4e 54 46 53 20 20 20 20 00 02 08 00 00 |.R.NTFS

.....|

00000010 00 00 00 00 00 f8 00 00 3f 00 ff 00 00 b8 67 34 |........?.....g4|

00000020 00 00 00 00 80 00 80 00 ff a7 ec 22 00 00 00 00 |..........."....|

00000030 00 00 0c 00 00 00 00 00 02 00 00 00 00 00 00 00 |................|

00000040 f6 00 00 00 01 00 00 00 d1 57 5a a6 6b 5a a6 ca |.........WZ.kZ..|

00000050 00 00 00 00 fa 33 c0 8e d0 bc 00 7c fb 68 c0 07 |.....3.....|.h..|

00000060 1f 1e 68 66 00 cb 88 16 0e 00 66 81 3e 03 00 4e |..hf......f.>..N|

00000070 54 46 53 75 15 b4 41 bb aa 55 cd 13 72 0c 81 fb |TFSu..A..U..r...|

00000080 55 aa 75 06 f7 c1 01 00 75 03 e9 dd 00 1e 83 ec |U.u.....u.......|

00000090 18 68 1a 00 b4 48 8a 16 0e 00 8b f4 16 1f cd 13 |.h...H..........|

000000a0 9f 83 c4 18 9e 58 1f 72 e1 3b 06 0b 00 75 db a3 |.....X.r.;...u..|

000000b0 0f 00 c1 2e 0f 00 04 1e 5a 33 db b9 00 20 2b c8 |........Z3... +.|

000000c0 66 ff 06 11 00 03 16 0f 00 8e c2 ff 06 16 00 e8 |f...............|

000000d0 4b 00 2b c8 77 ef b8 00 bb cd 1a 66 23 c0 75 2d |K.+.w......f#.u-|

000000e0 66 81 fb 54 43 50 41 75 24 81 f9 02 01 72 1e 16 |f..TCPAu$....r..|

000000f0 68 07 bb 16 68 70 0e 16 68 09 00 66 53 66 53 66 |h...hp..h..fSfSf|

00000100 55 16 16 16 68 b8 01 66 61 0e 07 cd 1a 33 c0 bf |U...h..fa....3..|

00000110 28 10 b9 d8 0f fc f3 aa e9 5f 01 90 90 66 60 1e |(........_...f`.|

00000120 06 66 a1 11 00 66 03 06 1c 00 1e 66 68 00 00 00 |.f...f.....fh...|

00000130 00 66 50 06 53 68 01 00 68 10 00 b4 42 8a 16 0e |.fP.Sh..h...B...|

00000140 00 16 1f 8b f4 cd 13 66 59 5b 5a 66 59 66 59 1f |.......fY[ZfYfY.|

00000150 0f 82 16 00 66 ff 06 11 00 03 16 0f 00 8e c2 ff |....f...........|

00000160 0e 16 00 75 bc 07 1f 66 61 c3 a0 f8 01 e8 09 00 |...u...fa.......|

00000170 a0 fb 01 e8 03 00 f4 eb fd b4 01 8b f0 ac 3c 00 |..............<.|

00000180 74 09 b4 0e bb 07 00 cd 10 eb f2 c3 0d 0a 41 20 |t.............A |

00000190 64 69 73 6b 20 72 65 61 64 20 65 72 72 6f 72 20 |disk read error |

000001a0 6f 63 63 75 72 72 65 64 00 0d 0a 42 4f 4f 54 4d |occurred...BOOTM|

000001b0 47 52 20 69 73 20 6d 69 73 73 69 6e 67 00 0d 0a |GR is missing...|

000001c0 42 4f 4f 54 4d 47 52 20 69 73 20 63 6f 6d 70 72 |BOOTMGR is compr|

000001d0 65 73 73 65 64 00 0d 0a 50 72 65 73 73 20 43 74 |essed...Press Ct|

000001e0 72 6c 2b 41 6c 74 2b 44 65 6c 20 74 6f 20 72 65 |rl+Alt+Del to re|

000001f0 73 74 61 72 74 0d 0a 00 8c a9 be d6 00 00 55 aa |start.........U.|

Reply

Answer 3

Loner T

Level 9

59,513 points

Nov 9, 2015 3:07 PM in response to boomdeyada

In Finder, do you see all your Windows files in the Bootcamp volume?

Reply

Answer 4

boomdeyada Author

Level 1

0 points

Nov 9, 2015 4:06 PM in response to Loner T

Yes, I can access my Windows files on Bootcamp via Finder (and open them).

Reply

Answer 5

Loner T

Level 9

59,513 points

Nov 9, 2015 4:15 PM in response to boomdeyada

You need to disable System Integrity Protection.

1. Boot into local Recovery (Command+R).

2. Run csrutil status.

3. Run csrutil disable.

4. Run csrutil status.

5. Boot normally.

6. Run csrutil status and confirm that it matches step 4 output.

7. Run the following Gdisk steps.

Please download GPT Fdisk from http://sourceforge.net/projects/gptfdisk/ and install it. It should be version 1.0.1.

Rebuild MBR to match the new GPT information thus resetting the Hybrid MBR. Use defaults for other questions (like partition codes). The only values that need modifications are the Boot flags and step 10. Accept all other defaults that Gdisk offers. Please see thesample Q&A as an example. These steps can be repeated if you make a mistake before you get to Step 12, otherwise start from Step 1 for these steps. Step 6 has numbers which are typed with a space between the numbers. Please see the sample Q&A before you execute these steps.

Sudo gdisk /dev/rdisk0
P (Print list of parts)
R (Recover)
O (print current Hybrid MBR)
H (chooses Hybrid)
Partitions numbers to be hybridized: 2 3 4
Y (Good for GRUB question)
N (part 2 boot flag)
N (part 3 boot flag)
Y (part 4 boot flag make NTFS bootable partition)
O (print current Hybrid MBR)
W (Write the new MBR)
Y (Yes! write the new MBR)
Reboot

Here is sample Q&A for this section. Please notice the Press Enter/Return.

Place EFI GPT (0xEE) partition first in MBR (good for GRUB)? (Y/N): Y

Creating entry for GPT partition #2 (MBR partition #2)

Enter an MBR hex code (default AF): Press Enter/Return

Set the bootable flag? (Y/N): N

Creating entry for GPT partition #3 (MBR partition #3)

Enter an MBR hex code (default AB): Press Enter/Return

Set the bootable flag? (Y/N): N

Creating entry for GPT partition #4 (MBR partition #4)

Enter an MBR hex code (default 07): Press Enter/Return

Set the bootable flag? (Y/N): Y

Test 1 - Does Bootcamp Volume show up in Finder?

Test 2 - Can you see files in Bootcamp Volume?

Test 3 - Can you select Bootcamp in System Preferences -> Startup Disk?

Test 4 - If Test 3 is successful, select Bootcamp and Click Restart.

Reply

Answer 6

boomdeyada Author

Level 1

0 points

Dec 3, 2015 5:56 PM in response to Loner T

Loner T,

Sorry for the late, late response, and thanks for your help! The Bootcamp volume shows up in Finder and I can see files in the Bootcamp volume. I can select Bootcamp in System Preferences -> Startup Disk. However, I still have a problem: when I restart the computer, it doesn't actually go into Bootcamp and instead goes back to OS X. However, if I start my computer and hold the option click, I am able to select Bootcamp and start it that way.

Why doesn't my computer start in Bootcamp even though I select it as the startup disk in System Preferences? Do you know how to fix this?

Reply

Answer 7

Loner T

Level 9

59,513 points

Dec 3, 2015 6:52 PM in response to boomdeyada

Can you look at Boot Camp: Set the default operating system and test the steps to check if it works the way you want it to?

Reply

Answer 8

boomdeyada Author

Level 1

0 points

Dec 5, 2015 11:37 AM in response to Loner T

When I click on Bootcamp Control Panel, the only tabs I see are for "Trackpad" and "Keyboard". Am I missing something...?

Reply

Answer 9

Loner T

Level 9

59,513 points

Dec 5, 2015 11:54 AM in response to boomdeyada

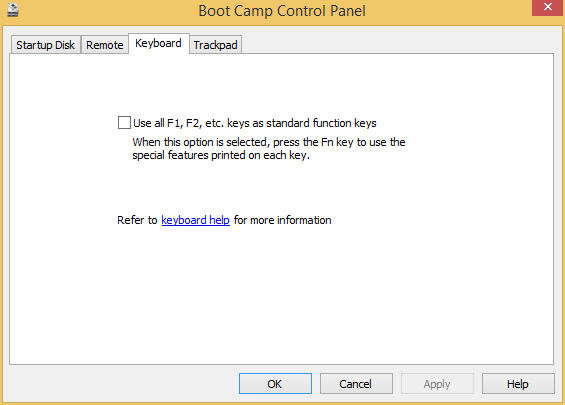

Do you see something like this? Notice the tabs.

Reply

Answer 10

boomdeyada Author

Level 1

0 points

Dec 5, 2015 5:53 PM in response to Loner T

No. Like I said before, I only see Trackpad and Keyboard.

edit: Spelling.

Reply

Answer 11

Loner T

Level 9

59,513 points

Dec 5, 2015 6:37 PM in response to boomdeyada

In Administrator Tools -> Services, do you see any Apple services installed? If not, can you download BC drivers for your specific year/model and Windows version, and run the setup.exe in Bootcamp folder to repair BC drivers.

It would be good to know your Mac year/model and Windows version.

Reply

Answer 12

boomdeyada Author

Level 1

0 points

Jan 23, 2016 9:52 AM in response to Loner T

Yes, I see "Apple OS Switch Manager" when I look at Administrator Tools -> Services.

I have a 13" MacBook Pro, late 2011 version, and I am running Windows 6 64-bit on Bootcamp. Please tell me if you need any other specs, and my apologies for a late reply!

Edited to add: Also, I did run setup.exe and that didn't add any tabs to my Bootcamp menu.

Reply
