Mac mini mid 2011 display issue AMD radeon 6630m

I got a used mac mini. Works fine except; randomly the display breaks. After countless times of rebooting, resetting, hard resetting etc, I figured replugging the HDMI cable sort of fixes it.

Display is Samsung s27d360

I tried HDMI to HDMI, HDMI to thunderbolt, VGA to lightning. Best one so far seems to be HDMI-HDMI cable.


I ran a full hardware test (pressing D at boot), no issues were found.

The monitor works fine with either cable configuration on Macbook air 2012

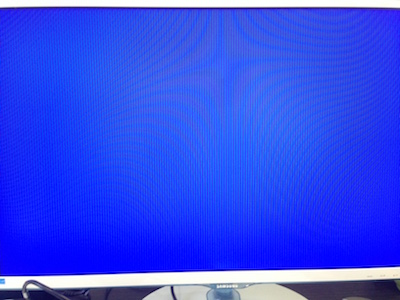

I got this blue screen after reboot before login screen

I also got it once after the login screen

I randomly get screen dividing / clipping into two

Randomly get grey screen with vertical bars (no pink or green bars)


Is it the monitor? Cables? (They are not Apple original) Firmware? GPU? I really want to keep using this.

I hope someone had similar issues and was able to fix it simply by a firmware upgrade or display setting or a cable or something. Help please.

Thanks

User uploaded fileUser uploaded file

Mac mini, OS X El Capitan (10.11.3)

Posted on Mar 15, 2016 1:12 PM

Reply
Question marked as Top-ranking reply

Posted on Mar 15, 2016 1:42 PM

I suspect it is GPU problem similar to the ones on the similar MacBook Pro

Mac mini mid 2011 won't boot

2011 mac mini video issue

Try disabling the discrete GPU

http://apple.stackexchange.com/questions/128180/how-to-disable-discrete-graphics -card-and-use-only-integrated-graphics-macbook-p

3 replies

Mar 15, 2016 1:29 PM in response to ardav

Model Name: Mac mini

Model Identifier: Macmini5,2

Processor Name: Intel Core i5

Processor Speed: 2.5 GHz

Number of Processors: 1

Total Number of Cores: 2

L2 Cache (per Core): 256 KB

L3 Cache: 3 MB

Memory: 4 GB

Boot ROM Version: MM51.0077.B14

SMC Version (system): 1.75f0



AMD Radeon HD 6630M:


Chipset Model: AMD Radeon HD 6630M

Type: GPU

Bus: PCIe

PCIe Lane Width: x8

VRAM (Total): 256 MB

Vendor: ATI (0x1002)

Device ID: 0x6741

Revision ID: 0x0000

ROM Revision: 113-C0171H-561

EFI Driver Version: 01.00.561

Displays:

S27D360:

Resolution: 1920 x 1080 @ 60Hz (1080p)

Pixel Depth: 32-Bit Color (ARGB8888)

Main Display: Yes

Mirror: Off

Online: Yes

Rotation: Supported

Television: Yes
