Macbook pro 8,1 late not booting after SMC flash via rEFIt

Question

martel_420 Author

Level 1

13 points

Macbook pro 8,1 late not booting after SMC flash via rEFIt

Dear all,

To be synthetic:

I had kernel_task running over 300% with my HDD WD Blue

I replaced it with a SSD and the problem was still here...

I looked up into settings and found that i didn"t had the correct SMC and EFI version: see below:

Nom du modèle : MacBook Pro

Identifiant du modèle : MacBookPro8,1

Nom du processeur : Intel Core i5

Vitesse du processeur : 2,4 GHz

Nombre de processeurs : 1

Nombre total de cœurs : 2

Cache de niveau 2 (par cœur) : 256 Ko

Cache de niveau 3 : 3 Mo

Mémoire : 4 Go

Version de la ROM de démarrage : MBP81.0047.B2C

Version SMC (système) : 1.68f99

As you can see i dont have the correct SMC installed, and have an unknow EFI ... 😮 I dont know how i have the wrong SMC and EFI ..

I tried to install the correct SMC and EFI from el capitan but it said that i needed 10.9.5 version, so i moved on and downgraded to mavericks and when i tried to install i got a message that i can't upgrade the version ... (or it was not needed )

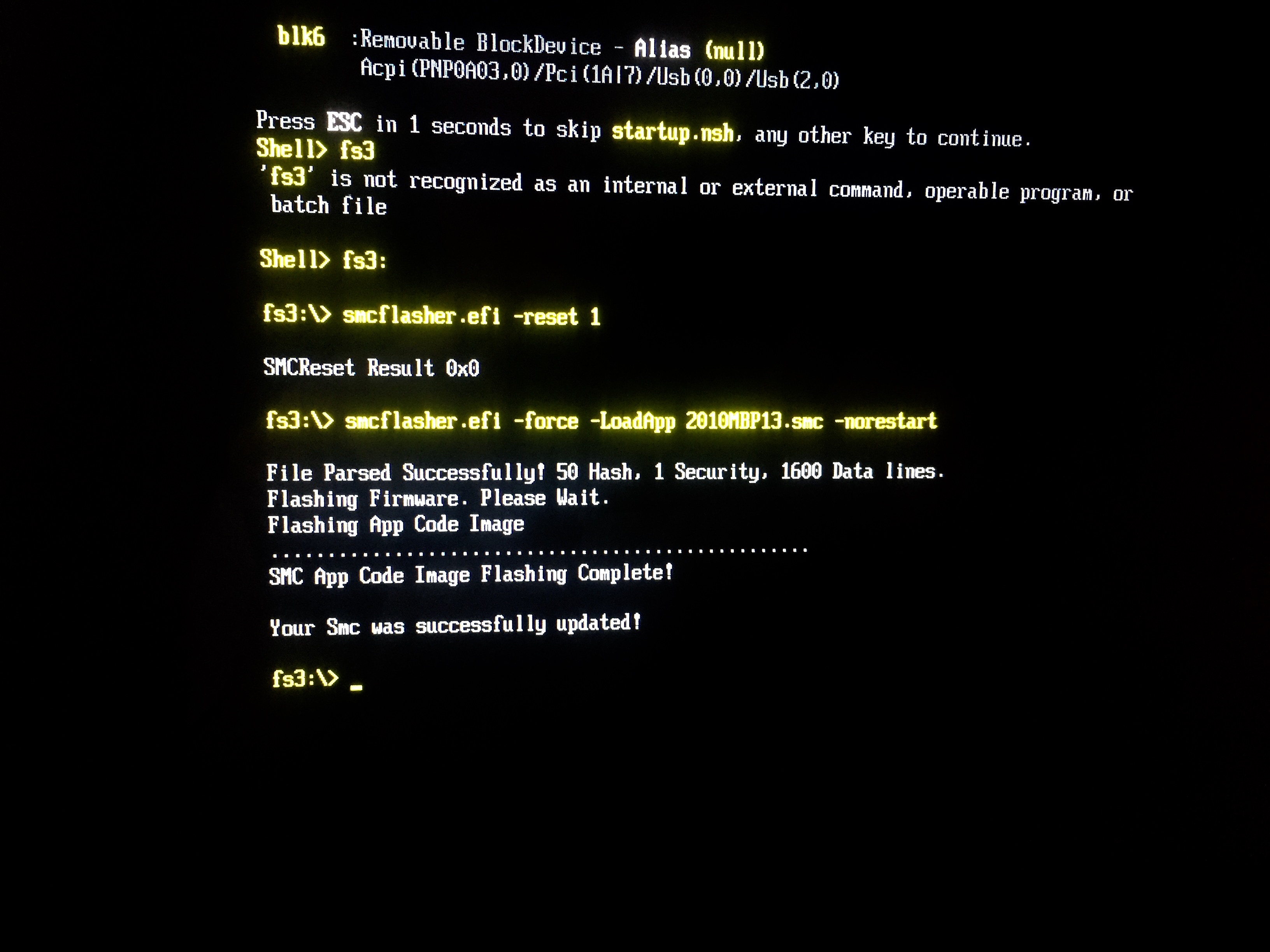

I tried to flash the SMC with rEFIt and it has succeed:

I used the 201MBP13.smc which is located on the .pkg of the MBP late 2011 update here:

https://support.apple.com/kb/DL1474?locale=fr_FR

Ofc i have a blackscreen so can't do anything..

Tried SMC, PRAM reset, nothing

Now when i'm booting, the fans starting at full speed 10 second after the boot, then turns about 6-7 seconds and then the mbp shut down ..

The mbp is out of waranty

Thanks for the help!

MacBook Pro, OS X Mavericks (10.9.5), 8,1 late 2011

Posted on Mar 29, 2016 11:16 AM

Reply

Answer 1

martel_420 Author

Level 1

13 points

Mar 29, 2016 12:54 PM in response to martel_420

up

should i try a method like this?

http://ho.ax/posts/2012/06/unbricking-a-macbook/

Reply

Answer 2

martel_420 Author

Level 1

13 points

Mar 30, 2016 1:30 AM in response to martel_420

up

Reply

Answer 3

martel_420 Author

Level 1

13 points

Mar 30, 2016 10:56 AM in response to martel_420

up

Reply

Answer 4

martel_420 Author

Level 1

13 points

Mar 30, 2016 1:41 PM in response to martel_420

up

Reply

Answer 5

Loner T

Level 9

59,536 points

Mar 30, 2016 2:55 PM in response to martel_420

1. Can you mount the EFI volume in Single user mode and check the available files?

2. From How to identify MacBook Pro models - Apple Support, there are two 8,1 MBPs, not one.

MacBook Pro models

MacBook Pro 13-inch

Model

Model Identifier

Model Number

Configuration

MacBook Pro (13-inch, Late 2011)

MacBookPro8,1

MD314xx/A

MD313xx/A

13.3"/2.8 i7/2x2GB/750-5400

13.3"/2.4 i5/2x2GB/500-5400

MacBook Pro (13-inch, Early 2011)

MacBookPro8,1

MC724xx/A

13.3"/2.7 i7/2x2GB/500-5400

MC700xx/A

13.3"/2.3 i5/2x2GB/320-5400

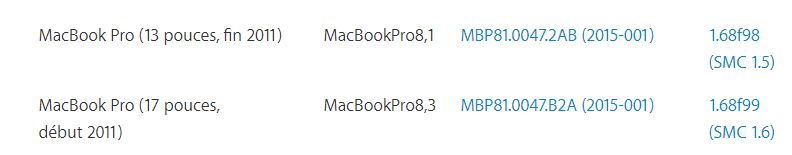

3. The download link you used seems to be incorrect. From About EFI and SMC firmware updates for Intel-based Mac computers - Apple Support, the link is Mac EFI Security Update 2015-001 which has the System requirements as

Post Date: Jun 30, 2015

File Size: 105.4 MB

System Requirements

OS X 10.8.5
OS X 10.9.5

The French version of this update is at Mac EFI Security Update 2015-001 .

but from your link - MÀJ du programme interne de la SMC du MacBook Pro 1.5 , it is dated

Paru le : 10 nov. 2011

Taille du fichier : 730 Ko

Configuration système requise

Mac OS X v10.6.8
OS X v10.7.2

4. You have the incorrect SMC firmware applied. You will need to find an Apple Genius Bar, or the correct firmware and apply it yourself.

Reply

Answer 6

martel_420 Author

Level 1

13 points

Mar 30, 2016 3:05 PM in response to Loner T

Hi 🙂

My mbp is not booting, fans running in high speed only, and comp turns off couples seconds after that..

I have :

MacBook Pro (13-inch, Late 2011)

MacBookPro8,1

MD313xx/A

A1278

13.3"/2.4 i5/2x2GB/500-5400

So, i cant do anything, i tried PRAM, SMC reset, also cmd V (for verbose) cmd R (for internet recovery), nothing works..

I used this tutorial: MacBook Pro 15" Late 2011, How-to Downgrade SMC 1.69f4 --> 1.69f3

And it looks like bricked.

If i go to a genius bar, will they be able to apply the correct firmware? And will it be free as the macbook is out of warranty?

Reply

Answer 7

Loner T

Level 9

59,536 points

Mar 30, 2016 3:14 PM in response to martel_420

Can you boot the Mac in Target Disk Mode - Share files between two computers with target disk mode - Apple Support ? If yes, and you have a second Mac, try to connect it.

If you still have your old HDD, it has the older firmware in EFI partition, replace the SSD with HDD, and try SMC/NVRAM Reset and test if the Mac will boot.

I do not know if there is a cost involved. If you get a nice person at the Genius Bar, he may be willing to help you without any financial implications.

Reply

Answer 8

martel_420 Author

Level 1

13 points

Mar 30, 2016 3:25 PM in response to Loner T

Ok i'll try with the oldest HDD and see what happen,

I dont know if i can start in target disk mode as i cant even boot into it! (i mean i cant set up the target disk mode ...)

If i get any chance i'll try an genius bar 🙂

Reply

Answer 9

martel_420 Author

Level 1

13 points

Mar 31, 2016 2:49 AM in response to Loner T

Ok with the older HDD its not working at all.. but the HDD have activity!

Reply

Answer 10

Loner T

Level 9

59,536 points

Mar 31, 2016 3:30 AM in response to martel_420

Can you power up your Mac and hold the T key? The Mac should try and reboot in Target Disk Mode.

Reply

Answer 11

martel_420 Author

Level 1

13 points

Mar 31, 2016 3:35 AM in response to Loner T

Do i need a 2nd mbp to have access to it? or can i use target disk mode with ethernet (and windows?)

Reply

Answer 12

Loner T

Level 9

59,536 points

Mar 31, 2016 3:49 AM in response to martel_420

If you get a screen with a bouncing Firewire sign, then any client with a Thunderbolt-to-FW or FW400/FW800 port and appropriate cable should be able to access the hard disk.

Reply

Answer 13

martel_420 Author

Level 1

13 points

Apr 1, 2016 6:15 AM in response to Loner T

Looks like the Target mode its not working.. (mbp rebooting after holding T then fans runs at full speed..)

So i went to an Apple Store (Paris - opera), they were out of place, and advice me to go to an Apple resseller (iCare) who was beside the Apple Store. The resseler gave me a quotation to change the motherboard for 657€ 😎😎😎😎😎😎😎 (Its an April fool no? 😝) I told them that i had an incorrect firmware installed but didnt pay attention... I'll get back my macbook and try the Apple Store, i have an appointement at Apple Store next Thursday to check the macbook pro at Genius Bar.

Should i buy a bus pirate and try with flashroom anyway?

See below: http://ho.ax/posts/2012/06/unbricking-a-macbook/

Thanks!!

Reply

Answer 14

martel_420 Author

Level 1

13 points

Apr 2, 2016 5:00 AM in response to martel_420

up

Reply

Answer 15

Loner T

Level 9

59,536 points

Apr 2, 2016 6:27 AM in response to martel_420

I have no experience with Bus Pirate? If you have another computer, try to look at the old HDD and look at the EFI partition. Can you post a listing of it's contents?
