bootcamp partition renamed untitled after booting in MacOS

Can anybody please help me ?

I had succesfully installed Windows 10 on my Macbook Pro and ran Windows already several weeks smoothly.

Unfortunately I did not make a backup of my windows files yet.

Today when I booted to El Capitan to connect my iPad to iTunes Windows gave me a message that it needed repair when I tried to reboot to the bootcamp Windows version.

It did not succeed in repairing and only gave my an advanced options menu.

I booted back into MacOS to find that the windows partition was renamed to 'Untitled' and that no files were visible in Finder.

I than ran Disk Utility and selected First Aid on this partition, I thought this was read only to check for disk errors.

Now when booting from Windows it says no operation system available and Disk Utility shows 496 GB empty space on this partition !

I hope not all my files are lost !!

What can I do to repair the bootcamp partition ? I tried to install setup bootcamp files on USB but cannot boot from USB (does not show the USB drive)

thank you !

Olivier

MacBook Pro, OS X El Capitan (10.11.3), Bootcamp Windows 10

Posted on Apr 5, 2016 11:34 AM

297 replies

ozeegers Author

Level 1

5 points

Apr 24, 2016 10:16 PM in response to Loner T

ok, will do but the other days that I ran testdisk I got the impression that it presented the same windows installation no matter which entry I chose to do a deeper search on ?

Will this be any different since we changed the GPT and MBR ?

thank you

Is it a lost case ?

ozeegers Author

Level 1

5 points

Apr 24, 2016 10:21 PM in response to ozeegers

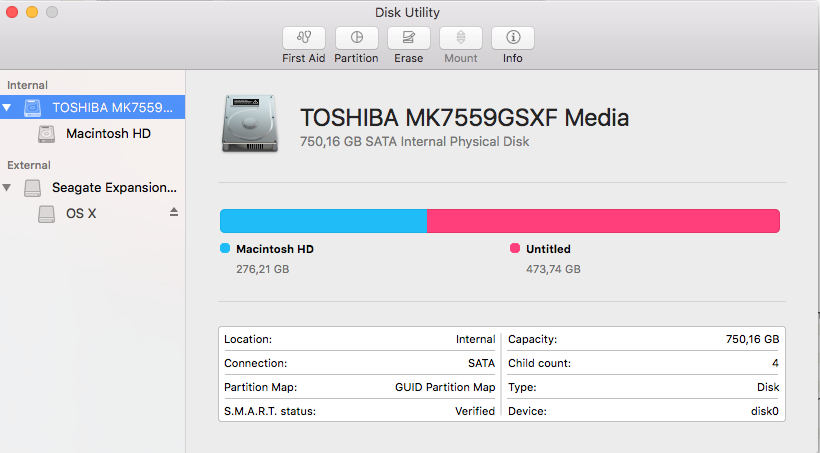

this is I think how it started, the partition untitled. This is screenshot Disk Utility of this moment. I also think this was the size of my partition...

ozeegers Author

Level 1

5 points

Apr 24, 2016 10:27 PM in response to ozeegers

I am a complete zero when it comes to this stuff but still going to ask dumb questions:

Why does testdisk show partition 4 two times ?

TestDisk 7.0, Data Recovery Utility, April 2015

Christophe GRENIER <grenier@cgsecurity.org>

http://www.cgsecurity.org

Disk /dev/rdisk0 - 750 GB / 698 GiB - 1465149168 sectors (RO)

Current partition structure:

Partition Start End Size in sectors

1 P EFI System 40 409639 409600 [EFI System]

2 P Mac HFS 409640 538608447 538198808 [Apple HFS/HFS+]

3 P Mac Boot 538608448 539877983 1269536 [Recovery HD]

No FAT, NTFS, ext2, JFS, Reiser, cramfs or XFS marker

4 P MS Data 539879424 1465145343 925265920 [Microsoft basic data]

Loner T

Level 9

59,536 points

Apr 25, 2016 5:48 AM in response to ozeegers

Please continue and run a Quick Search.

ozeegers Author

Level 1

5 points

Apr 25, 2016 11:48 AM in response to Loner T

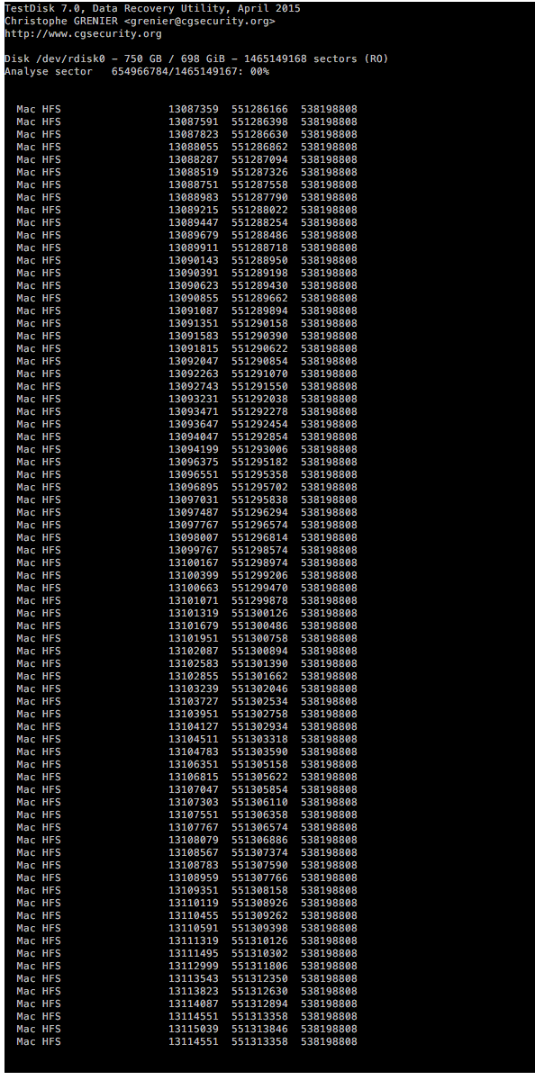

I was already doing a deep search....

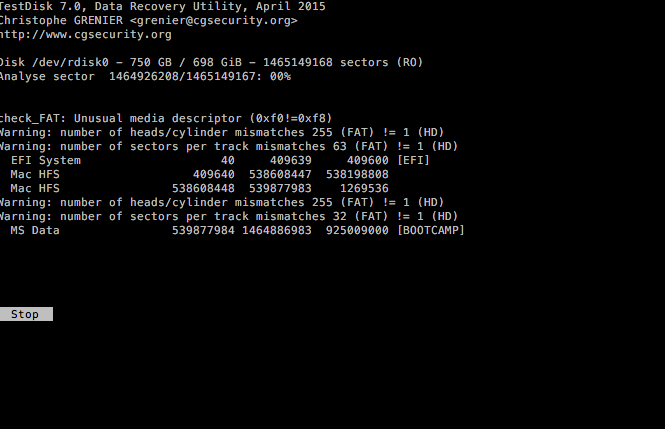

This is a quick search in another window:

TestDisk 7.0, Data Recovery Utility, April 2015

Christophe GRENIER <grenier@cgsecurity.org>

http://www.cgsecurity.org

Disk /dev/rdisk0 - 750 GB / 698 GiB - 1465149168 sectors (RO)

Current partition structure:

Partition Start End Size in sectors

1 P EFI System 40 409639 409600 [EFI System]

2 P Mac HFS 409640 538608447 538198808 [Apple HFS/HFS+]

3 P Mac Boot 538608448 539877983 1269536 [Recovery HD]

No FAT, NTFS, ext2, JFS, Reiser, cramfs or XFS marker

4 P MS Data 539879424 1465145343 925265920 [Microsoft basic data]

ozeegers Author

Level 1

5 points

Apr 25, 2016 11:52 AM in response to ozeegers

ozeegers Author

Level 1

5 points

Apr 25, 2016 11:57 AM in response to ozeegers

Loner T

Level 9

59,536 points

Apr 25, 2016 12:03 PM in response to ozeegers

ozeegers wrote:

Did you check these MS Data entries with the 'p' command? The second one looks promising.

ozeegers Author

Level 1

5 points

Apr 25, 2016 10:29 PM in response to Loner T

this is the p listing of the second MSDATA entry:

TestDisk 7.0, Data Recovery Utility, April 2015

Christophe GRENIER <grenier@cgsecurity.org>

http://www.cgsecurity.org

MS Data 539879424 1465145343 925265920

Directory /

>dr-xr-xr-x 0 0 0 5-Apr-2016 23:59 .

dr-xr-xr-x 0 0 0 5-Apr-2016 23:59 ..

-r--r--r-- 0 0 4294967296 5-Apr-2016 13:52 pagefile.sys

ozeegers Author

Level 1

5 points

Apr 25, 2016 10:30 PM in response to Loner T

P listing of third:

TestDisk 7.0, Data Recovery Utility, April 2015

Christophe GRENIER <grenier@cgsecurity.org>

http://www.cgsecurity.org

MS Data 1075445760 1465147391 389701632

Can't open filesystem. Filesystem seems damaged.

P listing of first:

TestDisk 7.0, Data Recovery Utility, April 2015

Christophe GRENIER <grenier@cgsecurity.org>

http://www.cgsecurity.org

MS Data 539877984 1464886983 925009000 [BOOTCAMP]

Directory /

>-r-xr-xr-x 0 0 0 1-Aug-1980 00:56 2010-06-.23.

drwxr-xr-x 0 0 808529970 26-Aug-1902 05:50 _com/pki./ce

-r-xr-xr-x 0 0 0 11-Aug-1908 10:15 -06-23.c.rt0

-r-xr-xr-x 0 0 0 22-Aug-2004 00:08 +^F^A^D^A~B7..^C0~A

drwxr-xr-x 0 0 4980765 20-Jan-1995 05:00 _efault..htm

-rwxr-xr-x 0 0 32768 18-Feb-1980 23:03 e

-rwxr-xr-x 0 0 0 1-Aug-1985 00:08 e

-rwxr-xr-x 0 0 4096 5-Apr-2016 19:52 ._.Trashes

drwxr-xr-x 0 0 0 5-Apr-2016 19:52 _RASHE~1.8W7

drwxr-xr-x 0 0 0 5-Apr-2016 19:52 .Trashes

drwxr-xr-x 0 0 0 5-Apr-2016 19:52 .Spotlight-V100

drwxr-xr-x 0 0 0 11-Apr-2016 09:02 .fseventsd

ozeegers Author

Level 1

5 points

Apr 25, 2016 11:44 PM in response to ozeegers

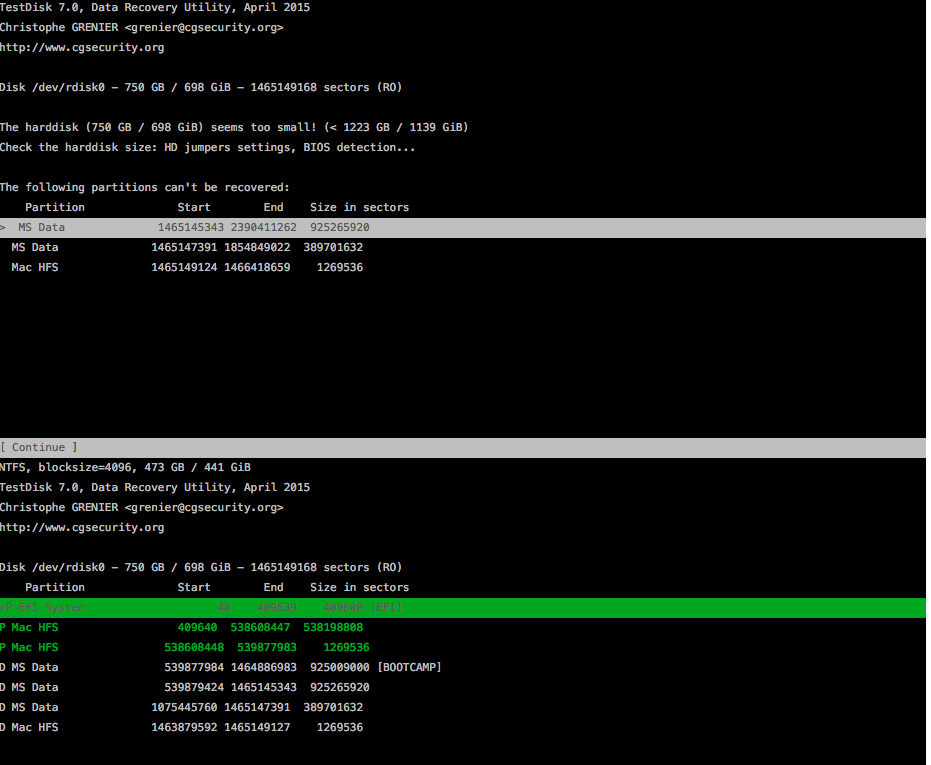

TestDisk 7.0, Data Recovery Utility, April 2015

Christophe GRENIER <grenier@cgsecurity.org>

http://www.cgsecurity.org

Disk /dev/rdisk0 - 750 GB / 698 GiB - 1465149168 sectors (RO)

The harddisk (750 GB / 698 GiB) seems too small! (< 1223 GB / 1139 GiB)

Check the harddisk size: HD jumpers settings, BIOS detection...

The following partitions can't be recovered:

Partition Start End Size in sectors

> MS Data 593424048 1518689967 925265920

MS Data 1002545568 1927811487 925265920

MS Data 1002550984 1927816903 925265920

MS Data 1007778816 1933044735 925265920

MS Data 1008244360 1933510279 925265920

MS Data 1011616287 1936882206 925265920

Mac HFS 1073254596 1611453403 538198808

MS Data 1100750760 1491373991 390623232

Mac HFS 1463879727 1465149262 1269536

Mac HFS 1463879880 1465149415 1269536

[ Continue ]

NTFS, blocksize=4096, 473 GB / 441 GiB

TestDisk 7.0, Data Recovery Utility, April 2015

Christophe GRENIER <grenier@cgsecurity.org>

http://www.cgsecurity.org

MS Data 539879424 1464223743 924344320

Directory /

>dr-xr-xr-x 0 0 0 5-Apr-2016 23:59 .

dr-xr-xr-x 0 0 0 5-Apr-2016 23:59 ..

-r--r--r-- 0 0 4294967296 5-Apr-2016 13:52 pagefile.sys

estDisk 7.0, Data Recovery Utility, April 2015

Christophe GRENIER <grenier@cgsecurity.org>

http://www.cgsecurity.org

MS Data 539879424 1465145343 925265920

Directory /

>dr-xr-xr-x 0 0 0 5-Apr-2016 23:59 .

dr-xr-xr-x 0 0 0 5-Apr-2016 23:59 ..

-r--r--r-- 0 0 4294967296 5-Apr-2016 13:52 pagefile.sys

MS Data 552677296 552683469 6174 [Boot]

Directory /

>dr-xr-xr-x 0 0 0 15-Feb-2005 22:33 .

dr-xr-xr-x 0 0 0 15-Feb-2005 22:33 ..

dr-xr-xr-x 0 0 0 15-Feb-2005 22:33 System Volume Information

ozeegers Author

Level 1

5 points

Apr 25, 2016 11:41 PM in response to ozeegers

TestDisk 7.0, Data Recovery Utility, April 2015

Christophe GRENIER <grenier@cgsecurity.org>

http://www.cgsecurity.org

MS Data 539877984 1464886983 925009000 [BOOTCAMP]

Directory /

>-r-xr-xr-x 0 0 0 1-Aug-1980 00:56 2010-06-.23.

drwxr-xr-x 0 0 808529970 26-Aug-1902 05:50 _com/pki./ce

-r-xr-xr-x 0 0 0 11-Aug-1908 10:15 -06-23.c.rt0

-r-xr-xr-x 0 0 0 22-Aug-2004 00:08 +^F^A^D^A~B7..^C0~A

drwxr-xr-x 0 0 4980765 20-Jan-1995 05:00 _efault..htm

-rwxr-xr-x 0 0 32768 18-Feb-1980 23:03 e

-rwxr-xr-x 0 0 0 1-Aug-1985 00:08 e

-rwxr-xr-x 0 0 4096 5-Apr-2016 19:52 ._.Trashes

drwxr-xr-x 0 0 0 5-Apr-2016 19:52 _RASHE~1.8W7

drwxr-xr-x 0 0 0 5-Apr-2016 19:52 .Trashes

drwxr-xr-x 0 0 0 5-Apr-2016 19:52 .Spotlight-V100

drwxr-xr-x 0 0 0 11-Apr-2016 09:02 .fseventsd

ozeegers Author

Level 1

5 points

Apr 25, 2016 11:47 PM in response to ozeegers

this is the OLD windows installation, currently i am doing a deeper search on the second entry that you mentioned....

MS Data 1074524160 1464225791 389701632

Directory /

>dr-xr-xr-x 0 0 0 21-Apr-2016 10:11 .

dr-xr-xr-x 0 0 0 21-Apr-2016 10:11 ..

dr-xr-xr-x 0 0 0 23-Jan-2016 09:03 $Recycle.Bin

dr-xr-xr-x 0 0 0 22-Jan-2016 18:37 $Windows.~WS

dr-xr-xr-x 0 0 0 23-Jan-2016 09:21 AMD

dr-xr-xr-x 0 0 0 21-Apr-2016 17:31 Boot

dr-xr-xr-x 0 0 0 22-Jan-2016 18:56 ESD

dr-xr-xr-x 0 0 0 19-Jan-2014 20:45 Intel

dr-xr-xr-x 0 0 0 10-Mar-2014 14:59 MSOCache

dr-xr-xr-x 0 0 0 30-Oct-2015 08:24 PerfLogs

dr-xr-xr-x 0 0 0 21-Apr-2016 20:32 Program Files

dr-xr-xr-x 0 0 0 21-Apr-2016 20:34 Program Files (x86)

dr-xr-xr-x 0 0 0 21-Apr-2016 20:34 ProgramData

dr-xr-xr-x 0 0 0 23-Jan-2016 00:33 Recovery

dr-xr-xr-x 0 0 0 17-Apr-2016 20:50 System Volume Information

dr-xr-xr-x 0 0 0 23-Jan-2016 00:36 Users

dr-xr-xr-x 0 0 0 21-Apr-2016 10:08 Windows

dr-xr-xr-x 0 0 0 23-Jan-2016 09:20 inetpub

-r--r--r-- 0 0 36864 21-Apr-2016 17:30 BCD_Backup

-r--r--r-- 0 0 36864 21-Apr-2016 17:30 BCD_Backup.LOG

-r--r--r-- 0 0 0 21-Apr-2016 17:30 BCD_Backup.LOG1

-r--r--r-- 0 0 0 21-Apr-2016 17:30 BCD_Backup.LOG2

-r--r--r-- 0 0 1 30-Oct-2015 08:18 BOOTNXT

-r--r--r-- 0 0 8192 23-Jan-2016 00:04 BOOTSECT.BAK

-r--r--r-- 0 0 232960 7-Nov-2007 07:12 VC_RED.MSI

-r--r--r-- 0 0 1442522 7-Nov-2007 07:09 VC_RED.cab

-r--r--r-- 0 0 400302 29-Mar-2016 12:07 bootmgr

-r--r--r-- 0 0 1110 7-Nov-2007 07:00 globdata.ini

-r--r--r-- 0 0 3151020032 21-Apr-2016 07:42 hiberfil.sys

-r--r--r-- 0 0 562688 7-Nov-2007 07:03 install.exe

-r--r--r-- 0 0 843 7-Nov-2007 07:00 install.ini

-r--r--r-- 0 0 76304 7-Nov-2007 07:03 install.res.1028.dll

-r--r--r-- 0 0 96272 7-Nov-2007 07:03 install.res.1031.dll

-r--r--r-- 0 0 91152 7-Nov-2007 07:03 install.res.1033.dll

-r--r--r-- 0 0 97296 7-Nov-2007 07:03 install.res.1036.dll

-r--r--r-- 0 0 95248 7-Nov-2007 07:03 install.res.1040.dll

-r--r--r-- 0 0 81424 7-Nov-2007 07:03 install.res.1041.dll

-r--r--r-- 0 0 79888 7-Nov-2007 07:03 install.res.1042.dll

-r--r--r-- 0 0 75792 7-Nov-2007 07:03 install.res.2052.dll

-r--r--r-- 0 0 96272 7-Nov-2007 07:03 install.res.3082.dll

-r--r--r-- 0 0 4294967296 21-Apr-2016 07:42 pagefile.sys

-r--r--r-- 0 0 268435456 21-Apr-2016 07:42 swapfile.sys

-r--r--r-- 0 0 5686 7-Nov-2007 07:00 vcredist.bmp

ozeegers Author

Level 1

5 points

Apr 26, 2016 10:32 PM in response to ozeegers

The harddisk (750 GB / 698 GiB) seems too small! (< 1223 GB / 1139 GiB)

Check the harddisk size: HD jumpers settings, BIOS detection...

The following partitions can't be recovered:

Partition Start End Size in sectors

> MS Data 593424048 1518689967 925265920

MS Data 1002545568 1927811487 925265920

MS Data 1002550984 1927816903 925265920

MS Data 1007778816 1933044735 925265920

MS Data 1008244360 1933510279 925265920

MS Data 1011616287 1936882206 925265920

Mac HFS 1073254596 1611453403 538198808

MS Data 1100750760 1491373991 390623232

Mac HFS 1463879727 1465149262 1269536

Mac HFS 1463879880 1465149415 1269536

[ Continue ]

NTFS, blocksize=4096, 473 GB / 441 GiB

Loner T

Level 9

59,536 points

Apr 27, 2016 6:12 AM in response to ozeegers

This is a list of unrecoverable partitions. Press Enter/return to Continue and you should see a list of viable partitions.
