User profile for user: im_baalu
im_baalu Author
User level: Level 1
12 points

Re-Partitoned Macbook Pro After Repairing BootCamp Windows Stuck At Black Screen.

i have same problem as all of you guys have, wen i re-partitioned my mac then boot camp was disappeared and i followed your commands As i'm on El Capitan enabled csrutil in recovery used osx install media to boot into recovery as my recovery didn't boot and after that i followed the commands and get the message of successful repair of MBR and now i can select windows as startup disk and i can see windows(windows 10) disk in recovery but when i try to boot windows 10(clicked windows disk to enter) it stuck at black screen with blinking horizontal cursor please help i've been observing ur posts and replies to the users they were so helpful to them.


diskutil list

diskutil cs list

sudo gpt -vv -r show /dev/disk0

sudo fdisk /dev/disk0

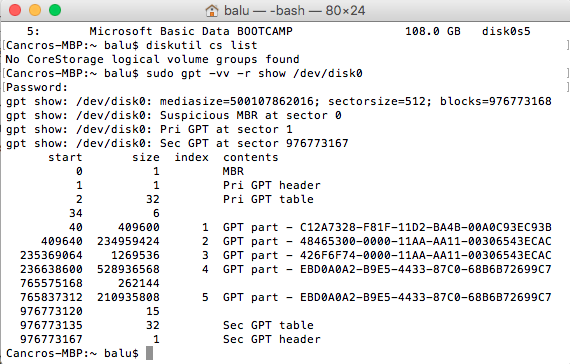

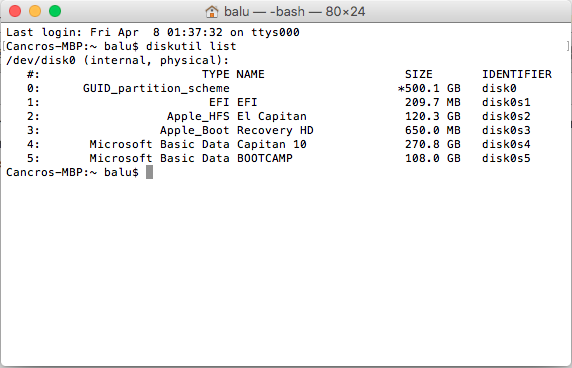

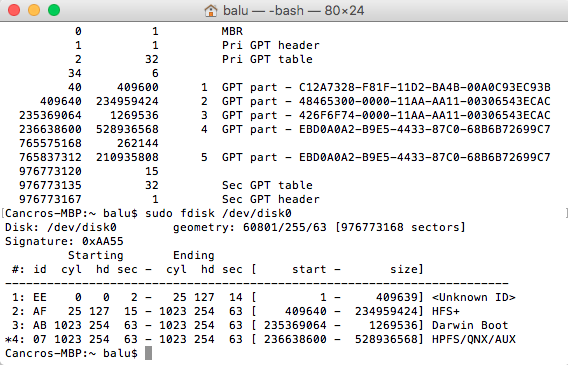

below are my mac responses for above commands:--

User uploaded file


User uploaded file


User uploaded file

MacBook Pro, OS X El Capitan (10.11.4)

Posted on Apr 7, 2016 8:04 PM

Reply
11 replies
User profile for user: Loner T
Loner T
User level: Level 9
59,513 points

Apr 7, 2016 8:37 PM in response to im_baalu

Was this W10 installation an upgrade from W7/W8+?


Can you follow the Re: [Help] Can't boot to windows (8.1) after resizing partition, because your current MBR points to GPT 4 as bootable disk, not GPT 5? This may not work because you may not have a BIOS/MBR installation of W10 to begin with, but this is worth a test. It only modifies your MBR, but does not change any data.

Reply
User profile for user: Loner T
Loner T
User level: Level 9
59,513 points

Apr 7, 2016 9:05 PM in response to im_baalu

The current MBR that you have will give you a black screen because there is no OS on GPT 4.


Look at the last line of your Fdisk output, and compare the start/size column values to the entry which is GPT 5 in your GPT output? Do they match?


When you rebuilt the MBR, you used '2 3 4' as your partition list to be hybridized, but you need to use '3 4 5' as your hybrid partition list. Windows will not boot unless you correct this.

Reply
User profile for user: im_baalu
im_baalu Author
User level: Level 1
12 points

Apr 7, 2016 9:47 PM in response to Loner T

thanku alot brothe mistake was mine as yu said i tried by hybridizing 2 3 4 but yes brother i corrected it and hybridized 3 4 5 and now i can boot into windows but i wasn't able to boot mac recovey after 96% of progress bar with apple logo the stuck at this point also the mac partition not visible in windows explorer any solution to these two??

Reply
User profile for user: Loner T
Loner T
User level: Level 9
59,513 points

Apr 8, 2016 6:27 AM in response to im_baalu

Good to see it working. The MBR has a limit of four entries. Under normal circumstances, there is a 1-to-1 mapping between GPT and MBR entries, but you have 5 GPT and 4 MBR entries.


This requires one of the GPT entries to be combined with another contiguous one. In your case, the OS X and Recovery HD are combined to make it look like on MBR entry. You will not be able to see OS X as a separate volume anymore. You have only two usable MBR entries after each of your Windows and Capitan 10 entries are put in separate MBR entries.

Reply
