Mainstage 3.2 - Patch change jumps many patches

hi


I'm getting rather frustrated, trying to get the "Next Patch" to work, using a Footswitch (pedal) from my Midi Keyboard - Kawai MP6 Stage Piano.


I have set the keyboard to send CC32 when using the Footswitch.

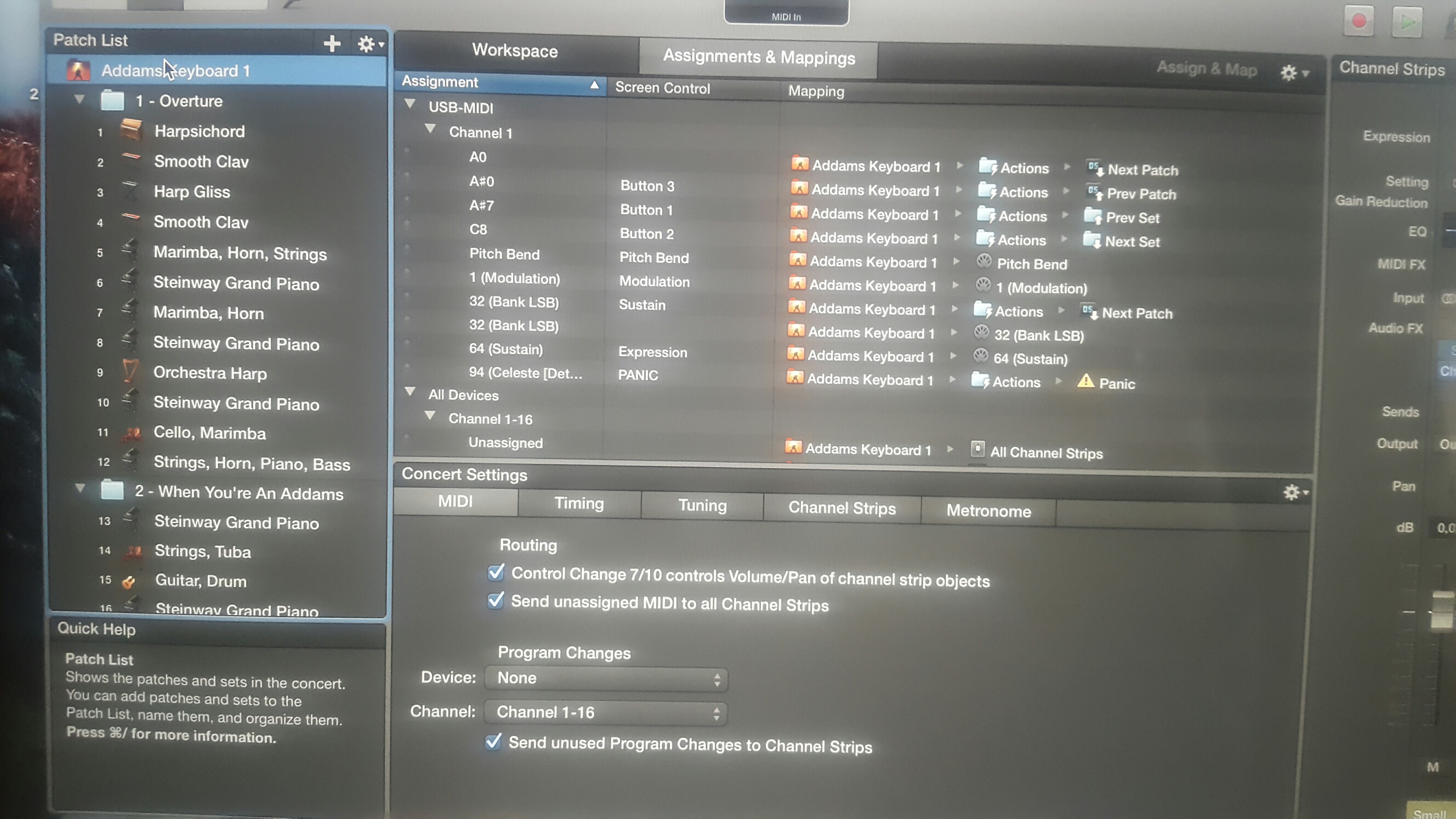

I have set, at Concert Level - on the Concert Inspector "Send Program Changes" to None.


The "Next Patch" is also mapped now to A0 on the keyboard, and when I press the key, the patches increment one at a time.

However, when I use the pedal, it jumps multiple patches at a time (more than 3 even).

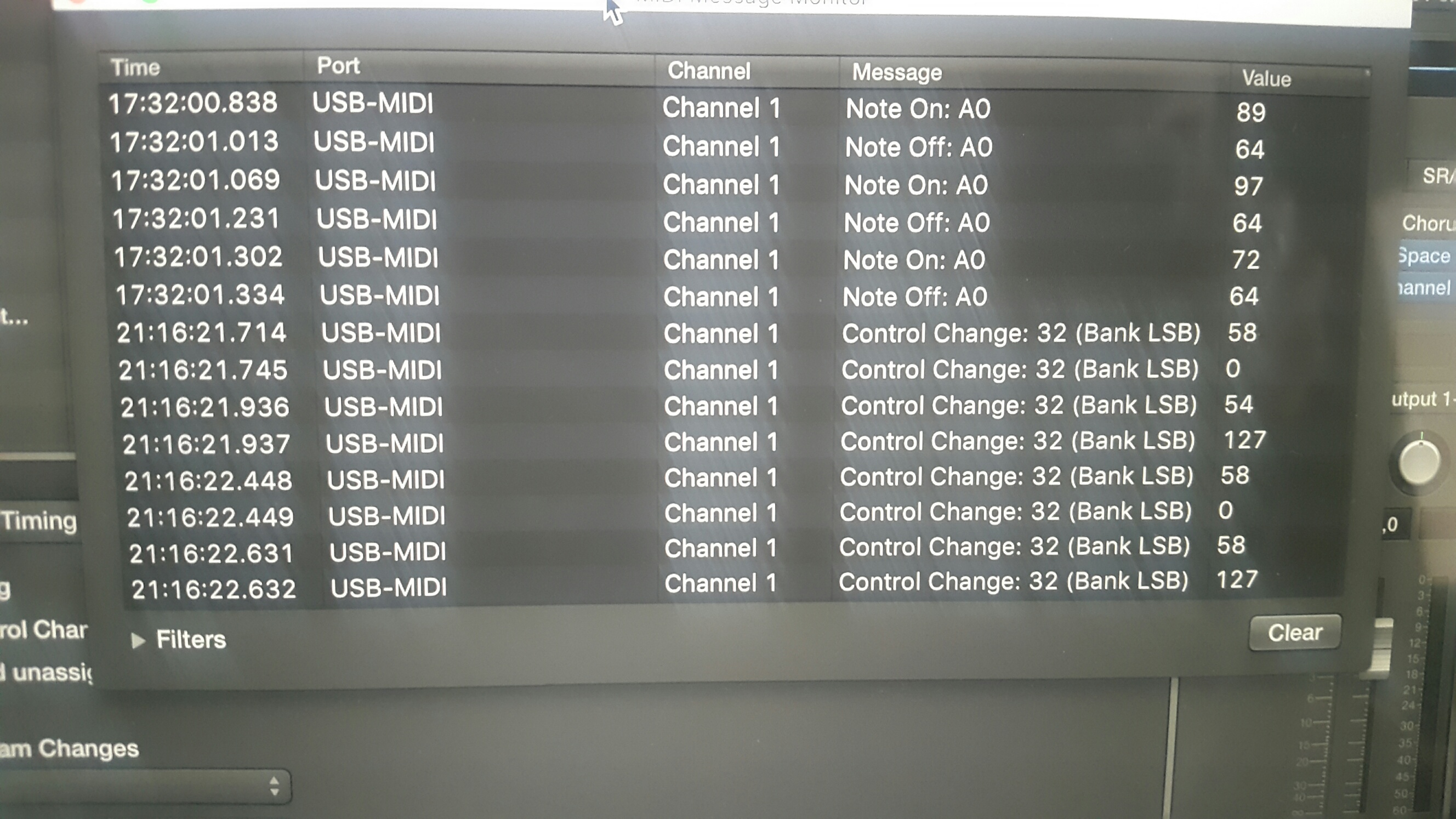

I have checked the midi monitor - usually 2 commands come when pressing the key; but with the pedal I get 3 (0; 54; 127 or 0;58;127). With the Key i get 89;64 or 97;64...

I can't figure out how to make the pedal only send 2 commands like that?

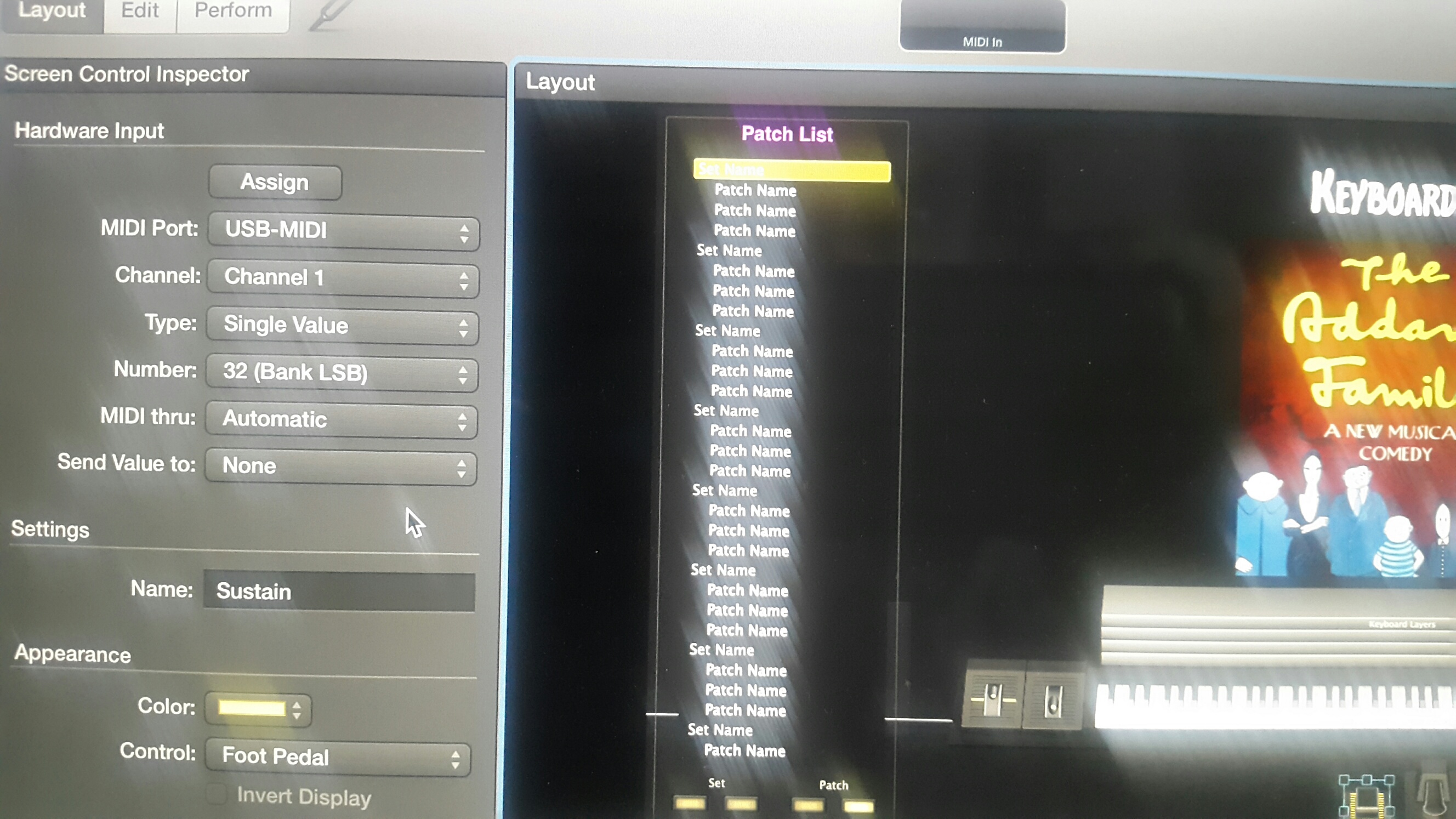

The pedal is set to "Single Value"; 32 on Layout. It is then assigned in the Concert Mapping to "Next Patch".


Please can someone help? I have a rehearsal in a week, and the poor keyboard player cannot change these patches with a note, they changes are too busy for that, we need the pedal option.


I attach screenshots as well.


User uploaded file

User uploaded file


User uploaded file

MacBook Pro (Retina, 13-inch,Early 2015), OS X El Capitan (10.11.4), Mainstage 3.2.4

Posted on Apr 28, 2016 1:15 PM

Reply
Question marked as Top-ranking reply

Posted on Apr 28, 2016 1:38 PM

Probably the footswitch. Damper pedal style footswitches throw this extra data all the time.


Get a Boss unlatching footswitch and I'll bet it clears right up.
