how to blur multiple images and faces in same shot

I'd like to blur multiple faces in a video I'm editing.


As far as I can tell, I can only blur one face/image using the Censor tool.


Is there a simple way to blur more than one image/face in the same video shot?


Thanks so much for your help!!


My best,

Nick

Final Cut Pro X, IOS 10.11.3, FCP 10.2.3

Posted on May 19, 2016 3:32 PM

Reply
14 replies

May 19, 2016 5:57 PM in response to mayqlaf

Use a Gaussian blur filter.

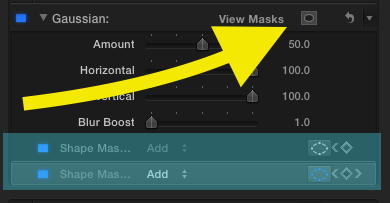

Add a Shape mask for every face you want to blur. (When you mouse over the Effect name "plate", the Add Mask icon will appear. There is an option for a Color mask as well... you won't need that here.)

User uploaded file

Go to the beginning of the clip and Set a keyframe on each mask.


A fast way to "track" is to Shift - right arrow (double or triple tap is usually good enough for smooth motions) through the clip and reposition the masks as necessary.


Almost all Effects have this option available (except a few specialized effects like the Keyer, Luma keyer, and Apple supplied Masks.)

May 19, 2016 5:48 PM in response to mayqlaf

Grab it from the Effects browser and drag-drop it on your clip. Once you've done that, a panel (as in the attached image) will appear in the Video inspector in the Effects section (top of the list). You will start there and mouse over "Gaussian" and where the mask icon appears, click on it and Select Add Shape Mask from the popup menu. To add a keyframe, mouse over the "Shape Mask" layer that appears at the bottom of the pane and a yellow diamond shape will appear - click on that diamond to initiate keyframing. Move the playhead to different times (use the shift-right arrow to advance the playhead 10 frames at a time) and all you need to do is grab the shape's control in the view to a new position. Any changes in the shape's size and shape (circular, oval, rectangular, etc.) are also recorded as keyframed changes. You can pretty much add as many shape masks as you need. The "active mask" for editing will have an onscreen control. You activate any mask in the viewer by clicking on either the layer in the inspector, or inside the area of the shape mask in the viewer (if any of them are already selected in the viewer).


The default mask is a circle. You can change the size by clicking anywhere on the "path" and dragging to a new size. There is also a "feather ring" that operates the same way. The difference between the two paths is the actual bounds have green dots on the path to control the size. There is also a small white circle near the top center. Dragging on this control will change the shape from a circle to a rectangle or round rectangles "in between" the extremes.


You should have a relatively easy time adapting to the interface. And like I said earlier, this feature is available on almost every Effect in FCPX (it was previously exclusive to the Color board/Color Correction effect.) So, if you'd like to use a different blurring effect, take your pick.

May 19, 2016 10:27 PM in response to mayqlaf

mayqlaf wrote:



Another question. Sometimes I apply the filter to the clip and when I go to replay it, the filter isn't in effect, or in an entirely different place than where I put it.


Nick


Try this:

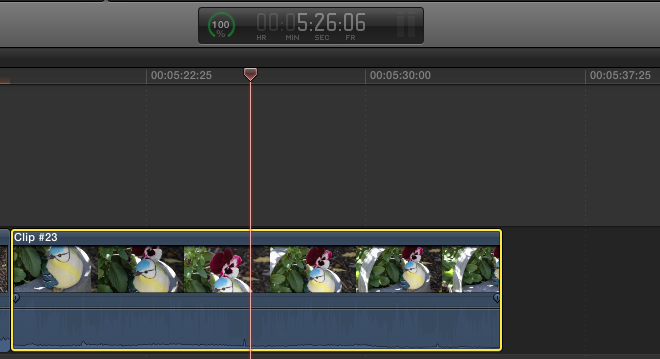

Move the Playhead over the desired clip.

Select the clip, to confirm you see a yellow border.

User uploaded file

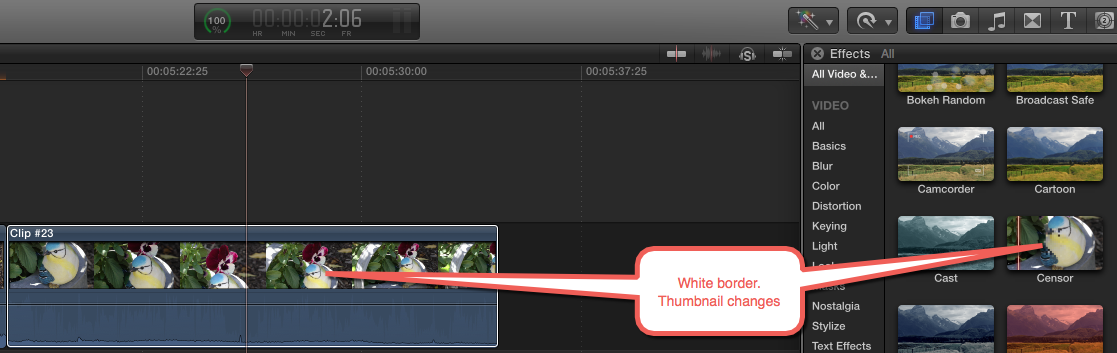

Next, move the cursor over the desired Effect.

The yellow border around the clip will turn white and the Effect Thumbnail will match the clip.

User uploaded file

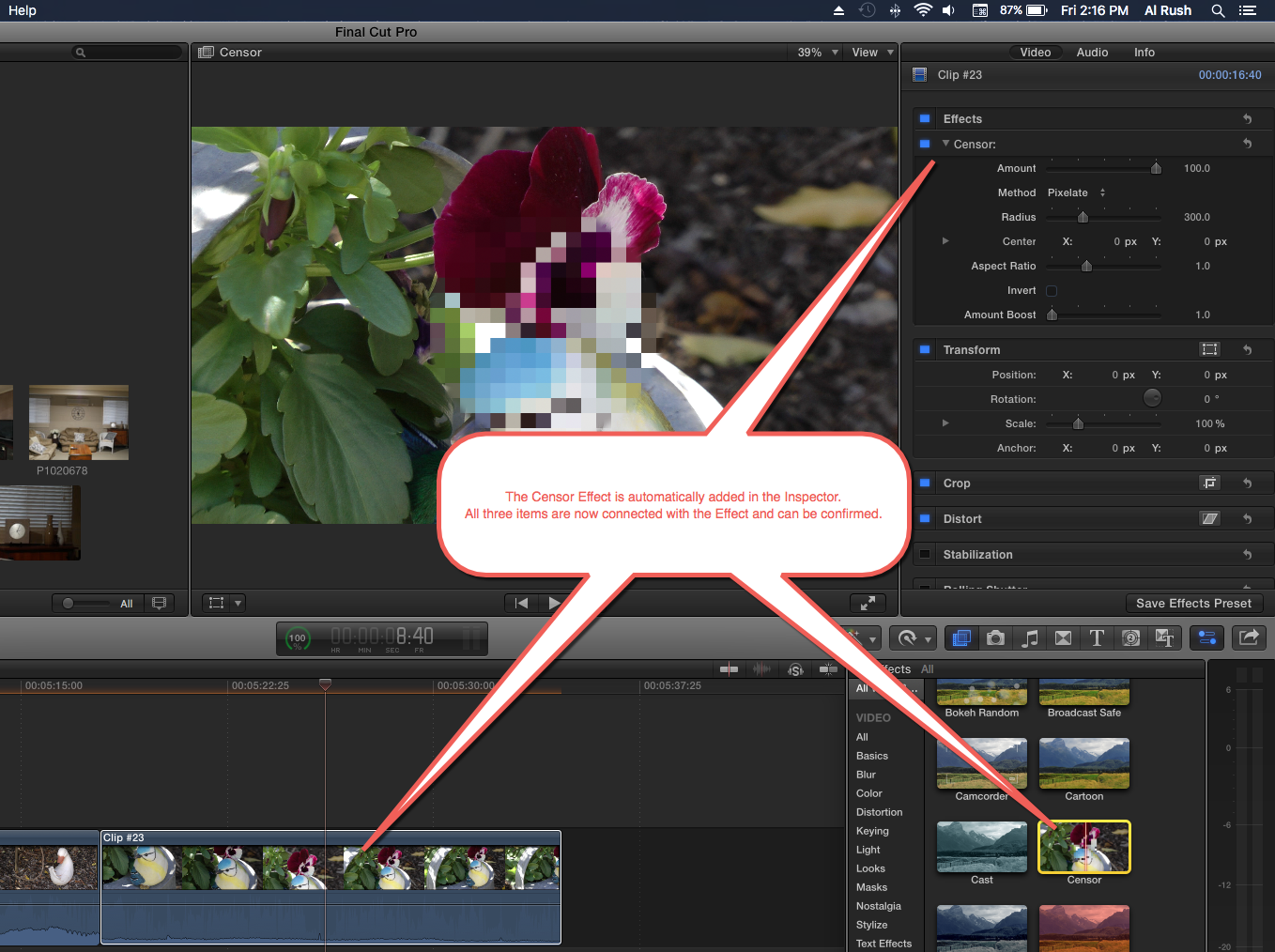

Double click the Effect Thumbnail and that effect is added to the selected clip.

An instance of the Effect is added in the inspector.

User uploaded file

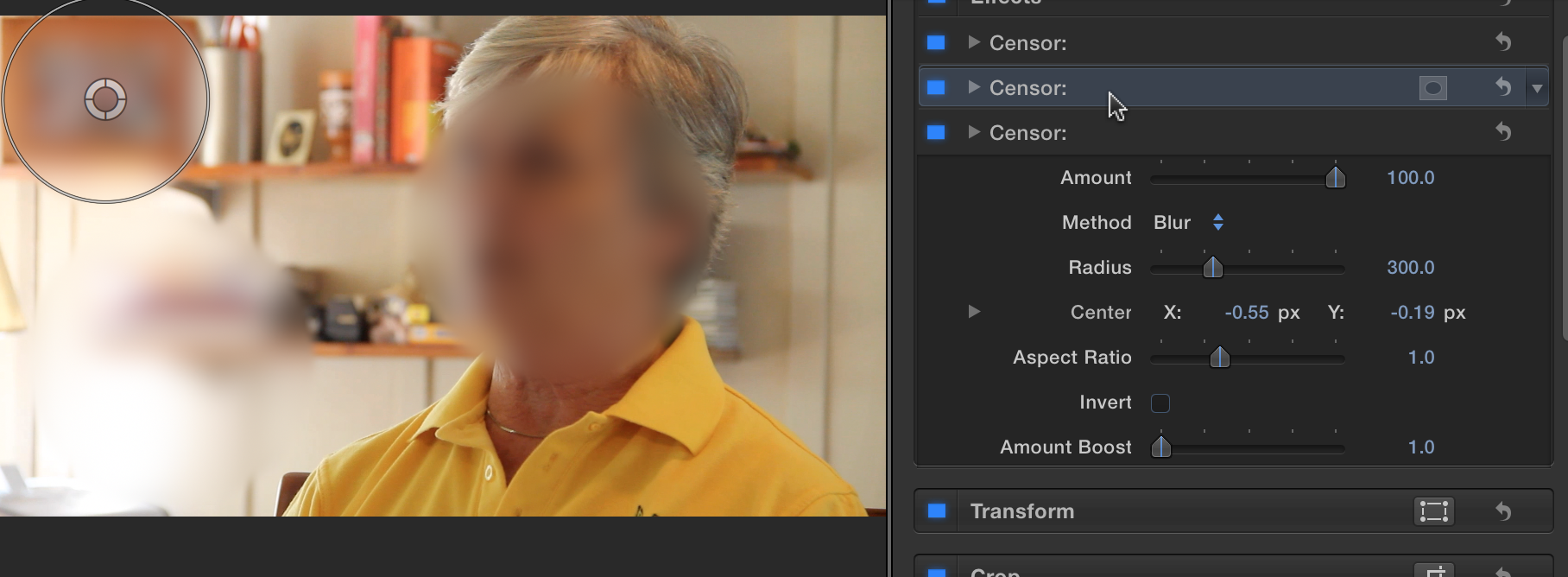

If you double click the Censor Effect again another instance is added and so forth.


Al

May 19, 2016 5:07 PM in response to Tom Wolsky

Hey Tom,


I see that you applied the Censor three times. I'm not able to duplicate that.


When I select the Censor the inspector only shows it once. I'm not able to apply the sensor more than once.


I'm sure I'm just missing a step or two to make this happen.


I'm selecting Video Effects>Censor>iInspector


If I select it again, I still only have one Censor. How were you able to apply 3?


I really appreciate your help!!


My best,

Nick

May 19, 2016 5:28 PM in response to fox_m

Thanks for your solution.


I'm unable to get the Gaussian filter to display as you have in your screenshot.


I found it in the effects section, but when I click on it, nothing happens. I see the Censor and View Masks within the Censor, but I see no Gaussian filter like you have displayed in your screenshot.


How did you get to the Gaussian blur filter menu?


Thanks for your help!

Nick

May 19, 2016 6:01 PM in response to Tom Wolsky

Hey Tom, thanks so much.


Got it working. I did a restart and it's working properly, just the way you said it would!!


A million thanks for your time.


Another question. Sometimes I apply the filter to the clip and when I go to replay it, the filter isn't in effect, or in an entirely different place than where I put it.


Any suggestions on how to avoid that happening would be most appreciated.


Thanks!

Nick
