Installing Windows 10 in native EFI mode on a 2010 MacPro 5,1 (no BootCamp)

Question

Level 1

10 points

Installing Windows 10 in native EFI mode on a 2010 MacPro 5,1 (no BootCamp)

Hello Everyone,

I am hoping someone can solve this once and for all, because I have been going crazy with the conflicting information I keep reading on-line. Here is the issue:

I am trying to install Windows 10 x64 in native EFI mode (not BootCamp) on my MacPro5,1 from 2010 with no luck. Yet I read the article HERE where a user named "2000one" posts a detailed description half way down of how he got it to work on a 2009 model MacPro4,1 upgraded to 5,1.

My MacPro is a native 2010 MacPro5,1 Model, not some hacked 2009 4,1 firmware upgraded to 5,1.
My Boot ROM version is: MP51.007F.B03
My SMC version is: 1.39f11
I removed all disks from my MacPro, except for one fI wanted to install Windows 10 on
The remaining disk was GPT formatted (no MBR present)
Downloaded the Windows 10 x64 ISO directly from my Microsoft business account.
USB stick made bootable using the method described in link above, and then copied all the files from the ISO.
I removed the "bootmgr" and "bootmgr.efi" files from the USB stick to avoid BIOS/CMI boot and force EFI boot.
Booting this USB Windows installer (in EFI mode) in my Mid 2013 MacBook Air 6,2 works just fine, and launches the Windows installer, so I know the USB stick is working just fine.
Booting the same USB stick in the MacPro5,1 as described above, shows a Windows logo for a moment and then a blue error screen called "Recovery" with error 0xc0000225 and "Your PC/Device needs to be Repaired". Never got further than that.

What's very frustrating is that people are saying that they did manage to install Windows 10 in EFI native mode with the same hardware (see link above), while others are saying the EFI version on the MacPro5,1 is not supported by Windows 10.

Can anyone provide any insights to any other workaround and why all the conflicting reports?

Thanks!

Mac Pro, iOS 10.2

Posted on Dec 17, 2016 7:21 AM

Reply

Answer 1

Loner T

Level 9

59,471 points

Dec 17, 2016 8:41 AM in response to SemoTech

For EFI Boot, where are you defining your S: drive? Please post the output of

diskutil list

with your designated Windows drive connected to the MP.

Reply

Answer 2

SemoTech Author

Level 1

10 points

Dec 18, 2016 7:21 AM in response to Loner T

Hello LonerT and thanks for the reply.

Unsure what you mean by the "S: drive"... Macs don't care about drive letters.... Bootable USB drive with Windows 10 and "bootmgr" files removed is inserted in the from USB slot.

Here is the output of "diskutil list", after everything but the drive I want to instal Windows in native mode EFI is left inside.

MACPRO:~ $ diskutil list

/dev/disk0 (external, physical):

#: TYPE NAME SIZE IDENTIFIER

0: GUID_partition_scheme *1.0 TB disk0

1: EFI EFI 209.7 MB disk0s1

2: Microsoft Basic Data WIN10 1.0 TB disk0s2

Can anyone confirm that based on my Boot ROM and SMC listed in my original post that Windows 10 CAN be booted and subsequently installed in EFI mode on a 2010 MacPro5,1?

Thanks.

Reply

Answer 3

Loner T

Level 9

59,471 points

Dec 18, 2016 8:05 AM in response to SemoTech

Please see https://technet.microsoft.com/en-us/library/hh825686.aspx as an example of partitioning. Your MP is a preUEFI Mac.

May I ask if there is a specific set of requirements to install EFI W10? Also, W10 can be installed on a dedicated MBR disk, without using Bootcamp.

Reply

Answer 4

SemoTech Author

Level 1

10 points

Dec 18, 2016 9:46 AM in response to Loner T

Thanks for the link LonerT I will review and try to follow.

The reason to install Windows 10 in EFI mode on my MacPro5,1 is to gain native AHCI performance from the disk. In BootCamp mode Windows gets installed in emulation mode so there is no native AHCI support.

You stated that my MacPro5,1 is pre UEFI support, then how are other people claiming to have successfully installed Windows 10 in EFI mode and achieved native AHCI support?

Thank you.

Reply

Answer 5

Loner T

Level 9

59,471 points

Dec 18, 2016 10:40 AM in response to SemoTech

Victory Schools wrote:

The reason to install Windows 10 in EFI mode on my MacPro5,1 is to gain native AHCI performance from the disk. In BootCamp mode Windows gets installed in emulation mode so there is no native AHCI support.

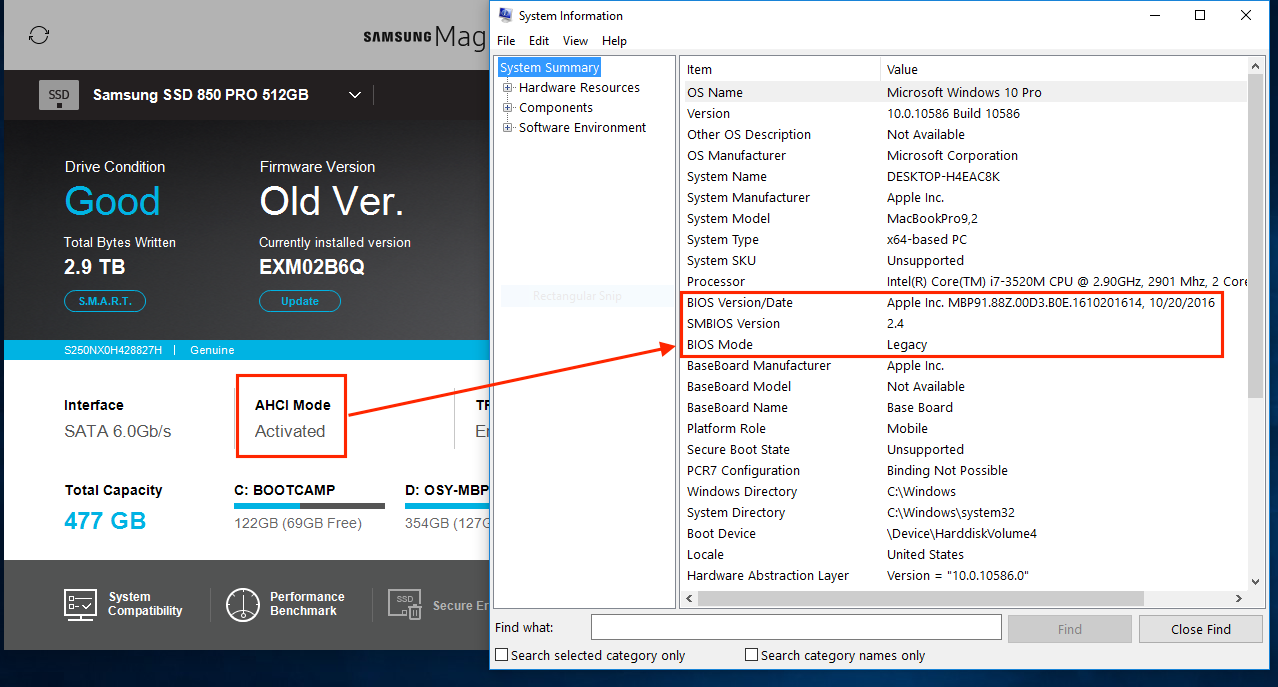

Can you post a link to where this assertion has been made? For example, on a 2012 MBP/Samsung 850Pro/W10 (Legacy BIOS) using Samsung Magician...

Victory Schools wrote:

You stated that my MacPro5,1 is pre UEFI support, then how are other people claiming to have successfully installed Windows 10 in EFI mode and achieved native AHCI support?

The link you posted does indicate putting a MP5,1 firmware on an MP4,1. There are known issues when you do this. There is a discussion on MacRumours on the same subject which you should also look at.

Reply

Answer 6

SemoTech Author

Level 1

10 points

Dec 19, 2016 5:57 AM in response to Loner T

Hi Loner T,

I do not have access to my machine this instance but I did run Samsung Magician and it stated it was not running in AHCI mode. Hence the entire reason for my research and this thread. I will be glad to post a screenshot when I get in.

As for the firmware upgrade, the poster apparently died that in order to upgrade to/emulate a MacPro5,1. Nothing to be condoned there, however the interesting part is after that where the poster describes in detail the process for preparing the USB stick and the Mac Pro, and states he was successful in installing Windows 10 in EFI mode!

Regardless of that article, I ask again, does the MacPro5,1 support installing Windows 10 in pure EFI mode??

Thanks.

Reply

Answer 7

Loner T

Level 9

59,471 points

Dec 19, 2016 6:06 AM in response to SemoTech

A MP 4,1 is a 2009 model while a MP5,1 is a 2010 and a 2012 model, both - How to identify Mac Pro models - Apple Support . A 2012 Model is still a preUEFI model, but is much closer to being EFI-boot capable.

You can install EFI boot, but all your Apple hardware may not work correctly. Please also check the AHCI issue on your specific model.

Reply

Answer 8

SemoTech Author

Level 1

10 points

Dec 19, 2016 2:24 PM in response to Loner T

Hello Loner T, I am well aware of the MP4,1 and MP5,1 (2009 and 2010/2012 models), but nice of you to post the links to educate anyone else reading this.

Let's forget BootCamp and AHCI for now.

So you state that I SHOULD be able to install Windows 10 in EFI mode? In that case why I am getting a "Recovery" screen immediately when attempting to load the Windows 10 installer in EFI mode???

Thanks.

Reply

Answer 9

Loner T

Level 9

59,471 points

Dec 19, 2016 2:34 PM in response to SemoTech

Is there more than one disk in the MP when you try to install in EFI Mode? Can you post the output of diskutil list with the disk(s) in the MP when you try to install in EFI Mode?

Reply

Answer 10

SemoTech Author

Level 1

10 points

Dec 19, 2016 2:45 PM in response to Loner T

Please see my post above. I posted the output of "diskutil list". The MP 5,1 had only Video card, USB card & SSD drive in bay1. Booted from front USB in EFI mode and got "Recovery" error screen almost immediately.

Reply

Answer 11

Loner T

Level 9

59,471 points

Dec 19, 2016 2:55 PM in response to SemoTech

Does your MP have a functional Optical drive? If yes, can you create a DVD from an ISO or Windows Media Creation tool, try to boot from the DVD using Alt/Option and select EFI Boot. The USB method is unlikely to work.

If you do not insist on EFI Boot, then you can install W7/W8.1 normally using a DVD, and then run an in-place upgrade to W10 which will also preserve working Apple BC drivers for Apple hardware.

W7 (Install Windows 7 and earlier on your Mac using Boot Camp - Apple Support) / W8.1 (Use Windows 8.1 on your Mac with Boot Camp - Apple Support) are supported on your Mac model. This method also requires that you do not allow W10 to update any drivers. Security and other Software Updates from W10 are fine.

Reply

Answer 12

SemoTech Author

Level 1

10 points

Dec 19, 2016 3:05 PM in response to Loner T

Yes, it does have a SuperDrive (DVD Drive), however burning the Windows 10 ISO onto a DVD will leave the "bootmgr" files in the root of the disk and the installer will boot in BIOS emulation mode, not EFI! That's the entire reason to use a USB stick. Said USB stick is working and bots fine on my 2013 MacBook Air.

Are you saying that a "customized" Bootable DVD of Windows 10 without the "bootmgr" files in the root would have better luck on the MP5,1 than a USB stick???

Reply

Answer 13

Loner T

Level 9

59,471 points

Dec 19, 2016 3:12 PM in response to SemoTech

Victory Schools wrote:

Yes, it does have a SuperDrive (DVD Drive), however burning the Windows 10 ISO onto a DVD will leave the "bootmgr" files in the root of the disk and the installer will boot in BIOS emulation mode, not EFI! That's the entire reason to use a USB stick. Said USB stick is working and bots fine on my 2013 MacBook Air.

If you use Alt/Option, you get a choice of EFI or BIOS (Windows) boot. There is no real need to remove any files. Your 2013 MBA is a UEFI Mac. As a test, you can build a normal USB installer on the 2013 MBA, boot and hold Alt/Option, and you will see two icons, Windows and EFI Boot.

Are you saying that a "customized" Bootable DVD of Windows 10 without the "bootmgr" files in the root would have better luck on the MP5,1 than a USB stick???

You do not need to remove any files, if the Alt/Option method shows you two separate bootable selections. Removing the files is causing additional confusion.

Reply

Answer 14

SemoTech Author

Level 1

10 points

Dec 19, 2016 4:01 PM in response to Loner T

Good to know Loner T, guess removing the "bootmgr" files on the USB stick helped prevent "accidental" start into BIOS boot.

Anyway, I just tied with a burned DVD of Windows 10, chose "EFI boot" and same result: "Recovery" crash screen with error 0xc0000225.

Can ANYONE confirm proper booting of Windows 10 installer in EFI on a MacPro5,1? Is everyone else getting this boot error??? Is it my MacPro or all 2010 MacPro's. Need to put this to bed....

Reply

Answer 15

Loner T

Level 9

59,471 points

Dec 19, 2016 4:06 PM in response to SemoTech

Is there a specific reason to pursue EFI Boot, knowing that BIOS will support AHCI and BIOS installation is possible without any firmware changes?
