Bootcamp Windows partition not connecting to Wifi

Question

Level 1

8 points

Bootcamp Windows partition not connecting to Wifi

I am using a 2008/2009 iMac and Windows 7. I have been using Windows 7 on this Mac with wifi for a couple years now without apparent problems, but last week my Mac wouldn't boot up (stuck in endless loading at grey screen) (Windows side did boot up and appeared fine). Long story short, the Mac drive was corrupted and I ended up having to erase my Mac HD, reinstall the OS (I stick with Snow Leopard 10.6.8 on that computer), and restore my files with a Time Machine back-up.

Now having done that the Mac side seems to be back to normal, but the Windows 7 now will not connect to the Wifi. It is also running slow. I tried uninstalling broadcom as was suggested in another discussion and doing the hardware scan. Broadcom reappeared on the list but my wifi connection did not return. Any ideas?

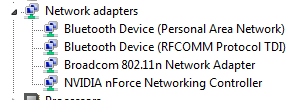

Here is a screenshot of my Network Adapters in Device Manager:

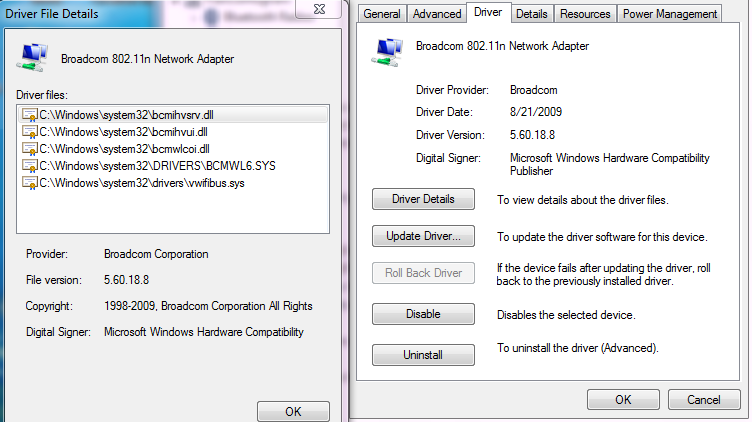

and some details for the Broadcom driver:

iMac, Mac OS X (10.6.8), Bootcamp partition with Windows 7

Posted on Jul 31, 2017 7:25 PM

Reply

Answer 1

Loner T

Level 9

59,536 points

Oct 10, 2017 8:06 AM in response to xuande88

Do you have any Antivirus software or a Firewall configured? Check Windows Defender settings.

Reply

Answer 2

xuande88 Author

Level 1

8 points

Oct 10, 2017 7:24 AM in response to Loner T

Loner T,

I am really sorry for not responding for awhile, I really did appreciate your help. I ran into a new problem that made my old one irrelevant, and I have been nervous about turning on my computer since then.

My Mac suddenly developed a horizontal black line running across the screen, which soon developed to two lines, and has progressively gotten significantly worse every time I turn on the computer. I suspect it is a GPU error. My iMac, in addition to being old, had been running quite hot (especially on the Windows side) and probably has a lot of dust in it that I can't get out with compressed air.

I think the only thing I can do now is take it to a shop that can repair it and hope they don't charge too much. If you have any other suggestions though I would be happy to hear them.

Reply

Answer 3

Loner T

Level 9

59,536 points

Aug 2, 2017 10:17 AM in response to xuande88

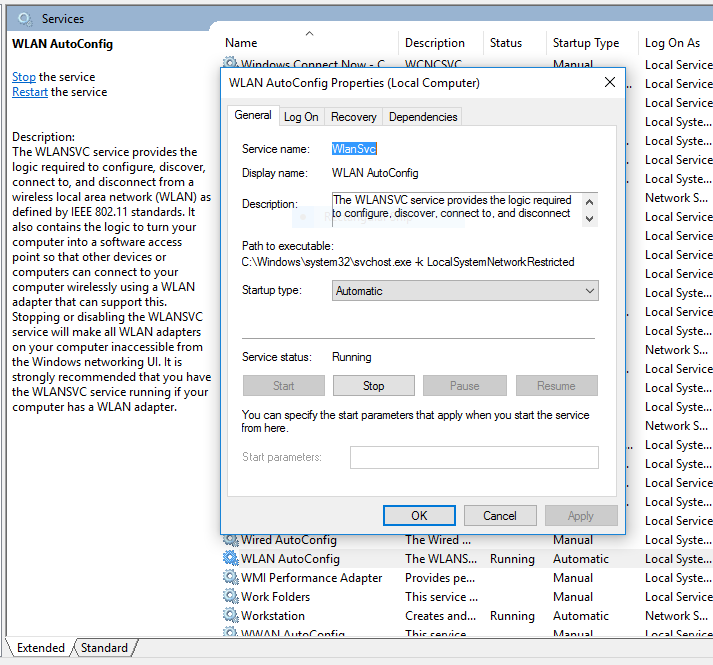

Is the WLAN Autoconfig service set to start Automatically? The EAP is specific to Secure SSIDs, so it is unlikely to address your issue anyway.

If you switch to macOS, are you able to connect the SSID which you want to?

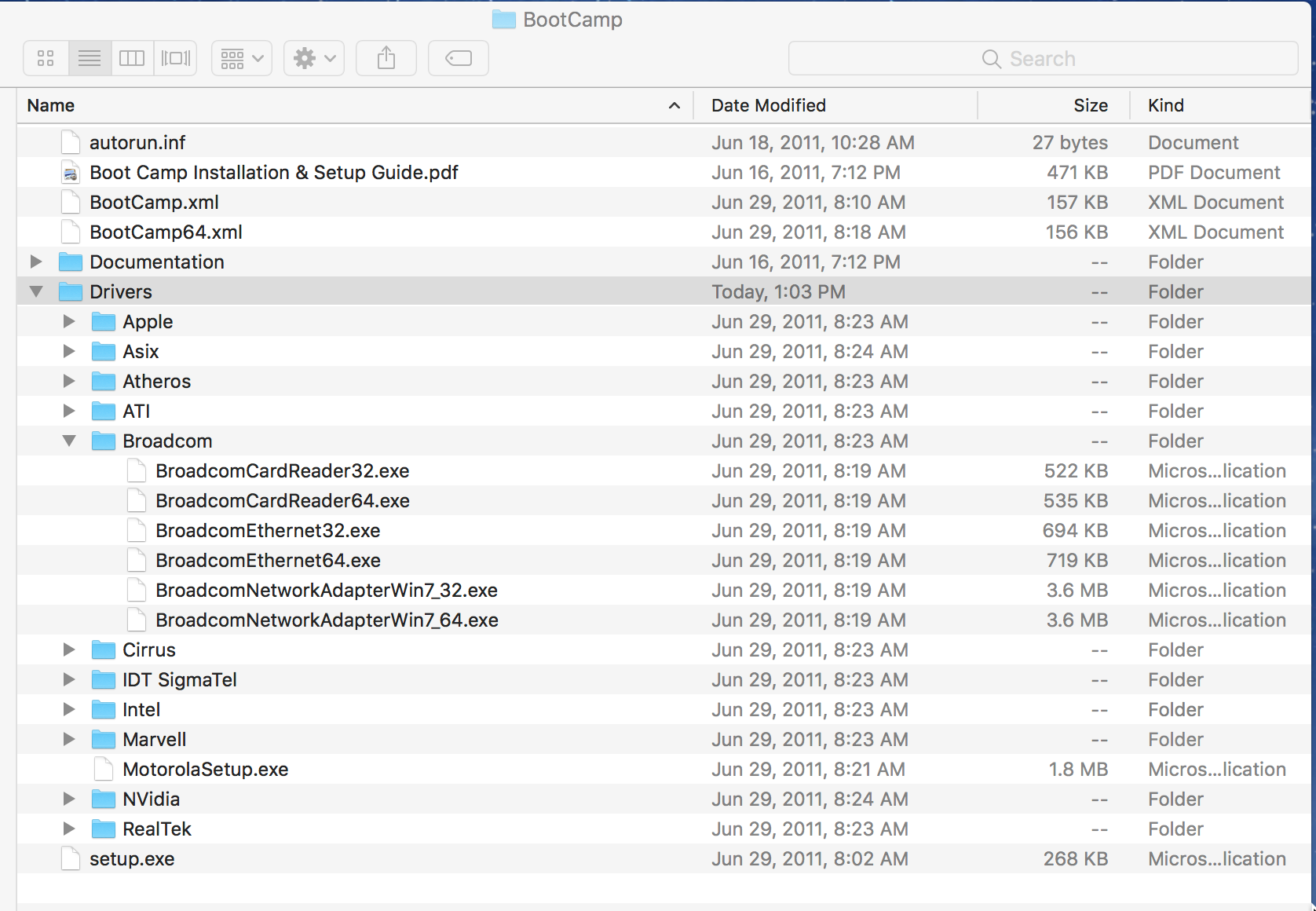

In the 4.0.4033 drivers directory, you have two sets of drivers, 32-bit and 64-bit. Remove the current driver, and run the 32-bit executable as shown in this file structure and test.

Reply

Answer 4

xuande88 Author

Level 1

8 points

Aug 1, 2017 12:14 PM in response to Loner T

Thank you for your response, I am sure I installed all of that when I first set up Boot Camp. Like I said, I had been using internet on the Windows side successfully for awhile now. This morning I downloaded and installed Boot Camp Support Software 4.0.4033 because it supports my version of Windows (Windows 7 32 bit) and my Mac. It was probably already installed from the first time I set up Boot Camp, but I tried it just in case. The installation was successful, but the situation hasn't changed, I still can't connect to my wifi.

Reply

Answer 5

xuande88 Author

Level 1

8 points

Oct 10, 2017 8:05 AM in response to Loner T

I will take a look, thank you! 🙂

Reply

Answer 6

xuande88 Author

Level 1

8 points

Aug 2, 2017 9:31 AM in response to Loner T

I only see the option to connect to a wireless network, it never asks for id or password or shows any SSIDs available. I just click on that option, it very briefly does a little progress bar and promptly returns with "Windows wireless service not running on this computer."

I did a search on that error message and came up with this Microsoft Community forum post. I followed those directions and found that I got another error message ("Windows could not start the WLAN AutoConfig service on the local computer. Error126: The specified module could not be found") when trying to hit the "Start" button as indicated in the procedure.

So I searched that error message too and came up with this post on The Windows Club. I followed that procedure, rebooted, and tried again to hit that Start button for the WLAN AutoConfig service. Still didn't work.

I saw another forum post that suggested this:

"try this. i had the same issue with WLan and EAP and i fixed it:

(goto Control Panel/Administrative Tools/Services) then make sure this services are automatic and started:

CNG Key Isolation.

Remote Procedure Call RPC, and

Remote Procedure Call RPC Locator.

DCOM Server Process Launcher.

RPC Endpoint Mapper.

Network Location Awareness.

After u have started all those services and turned as Automatic start up then select

EAP(extensible Authentication Protocol) and right click set it as Automatic,

and start it. and then the same with WLan Autoconfig."

I did all this, but the error persists.

Reply

Answer 7

Loner T

Level 9

59,536 points

Aug 5, 2017 10:37 AM in response to xuande88

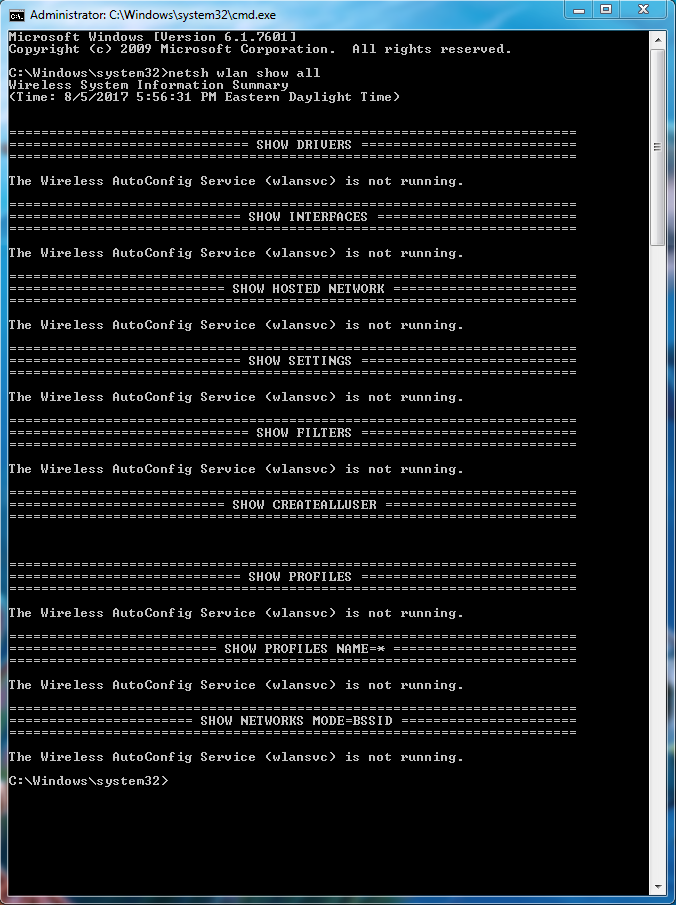

Can you set the autoconfig service to Automatic? Go to an Admin CMD window and run

netsh wlan show all

and post the output. Here is an example.

C:\Windows\system32>netsh wlan show all

Wireless System Information Summary

(Time: 7/30/2017 3:46:50 PM Eastern Daylight Time)

=======================================================================

============================== SHOW DRIVERS ===========================

=======================================================================

Interface name: Wi-Fi

Driver : Broadcom 802.11n Network Adapter

Vendor : Broadcom

Provider : Broadcom

Date : 7/24/2015

Version : 7.35.118.40

INF file : C:\Windows\INF\oem21.inf

Files : 3 total

C:\Windows\system32\DRIVERS\BCMWL63a.SYS

C:\Windows\system32\bcmihvsrv64.dll

C:\Windows\system32\bcmihvui64.dll

Type : Native Wi-Fi Driver

Radio types supported : 802.11n 802.11a 802.11g 802.11b

FIPS 140-2 mode supported : Yes

802.11w Management Frame Protection supported : Yes

Hosted network supported : Yes

Authentication and cipher supported in infrastructure mode:

Open None

Open WEP

WPA-Enterprise TKIP

WPA-Enterprise CCMP

WPA-Personal TKIP

WPA-Personal CCMP

WPA2-Enterprise TKIP

WPA2-Enterprise CCMP

WPA2-Personal TKIP

WPA2-Personal CCMP

Vendor defined Vendor defined

Vendor defined Vendor defined

Authentication and cipher supported in ad-hoc mode:

Open None

Open WEP

WPA2-Personal CCMP

IHV service present : Yes

IHV adapter OUI : [00 10 18], type: [00]

IHV extensibility DLL path: C:\Windows\System32\bcmihvsrv64.dll

IHV UI extensibility ClSID: {aaa6dee9-31b9-4f18-ab39-82ef9b06eb73}

IHV diagnostics CLSID : {00000000-0000-0000-0000-000000000000}

Wireless Display Supported: Yes (Graphics Driver: Yes, Wi-Fi Driver: Yes)

=======================================================================

============================= SHOW INTERFACES =========================

=======================================================================

There is 1 interface on the system:

Name : Wi-Fi

Description : Broadcom 802.11n Network Adapter

GUID : b6e4b48f-9ff6-42ce-bd0c-d7645569dd7a

Physical address : 5c:96:9d:8d:89:53

State : connected

SSID : Apple Network Clarity

BSSID : 34:12:98:0c:08:fb

Network type : Infrastructure

Radio type : 802.11n

Authentication : WPA2-Personal

Cipher : CCMP

Connection mode : Auto Connect

Channel : 0

Receive rate (Mbps) : 450

Transmit rate (Mbps) : 450

Signal : 83%

Profile : Apple Network Clarity

Hosted network status : Not available

=======================================================================

=========================== SHOW HOSTED NETWORK =======================

=======================================================================

Hosted network settings

-----------------------

Mode : Allowed

Settings : <Not configured>

Hosted network status

---------------------

Status : Not available

=======================================================================

============================= SHOW SETTINGS ===========================

=======================================================================

Wireless LAN settings

---------------------

Show blocked networks in visible network list: No

Only use GP profiles on GP-configured networks: No

Hosted network mode allowed in WLAN service: Yes

Allow shared user credentials for network authentication: Yes

Block period: Not Configured.

Auto configuration logic is enabled on interface "Wi-Fi"

MAC randomization not available on interface Wi-Fi

=======================================================================

============================== SHOW FILTERS ===========================

=======================================================================

Allow list on the system (group policy)

---------------------------------------

<None>

Allow list on the system (user)

-------------------------------

<None>

Block list on the system (group policy)

---------------------------------------

<None>

Block list on the system (user)

-------------------------------

<None>

=======================================================================

=========================== SHOW CREATEALLUSER ========================

=======================================================================

Everyone is allowed to create all user profiles.

=======================================================================

============================= SHOW PROFILES ===========================

=======================================================================

Profiles on interface Wi-Fi:

Group policy profiles (read only)

---------------------------------

<None>

User profiles

-------------

All User Profile : Apple Network Clarity

=======================================================================

========================== SHOW PROFILES NAME=* =======================

=======================================================================

Profile Apple Network Clarity on interface Wi-Fi:

=======================================================================

Applied: All User Profile

Profile information

-------------------

Version : 1

Type : Wireless LAN

Name : Apple Network Clarity

Control options :

Connection mode : Connect automatically

Network broadcast : Connect only if this network is broadcasting

AutoSwitch : Do not switch to other networks

MAC Randomization : Disabled

Connectivity settings

---------------------

Number of SSIDs : 1

SSID name : "Apple Network Clarity"

Network type : Infrastructure

Radio type : [ Any Radio Type ]

Vendor extension : Not present

Security settings

-----------------

Authentication : WPA2-Personal

Cipher : CCMP

Security key : Present

Cost settings

-------------

Cost : Unrestricted

Congested : No

Approaching Data Limit : No

Over Data Limit : No

Roaming : No

Cost Source : Default

=======================================================================

======================= SHOW NETWORKS MODE=BSSID ======================

=======================================================================

Interface name : Wi-Fi

There are 8 networks currently visible.

SSID 1 : Apple Network Clarity

Network type : Infrastructure

Authentication : WPA2-Personal

Encryption : CCMP

SSID 2 : DAGChantilly

Network type : Infrastructure

Authentication : WPA2-Personal

Encryption : CCMP

SSID 3 : xfinitywifi

Network type : Infrastructure

Authentication : Open

Encryption : None

SSID 4 : FooBot

Network type : Infrastructure

Authentication : WPA2-Personal

Encryption : CCMP

SSID 5 : Zackattack

Network type : Infrastructure

Authentication : WPA2-Personal

Encryption : CCMP

SSID 6 :

Network type : Infrastructure

Authentication : WPA2-Enterprise

Encryption : CCMP

SSID 7 : THY-NHI

Network type : Infrastructure

Authentication : WPA2-Personal

Encryption : CCMP

SSID 8 : BurrExtreme

Network type : Infrastructure

Authentication : WPA2-Personal

Encryption : CCMP

=======================================================================

======================= SHOW INTERFACE CAPABILITIES ===================

=======================================================================

Wireless System Capabilities

----------------------------

Number of antennas connected to the 802.11 radio (value not available)

Max number of channels the device can operate on, simultaneously (value not available)

Co-existence Support : Unknown

Wireless Device Capabilities

----------------------------

Interface name: Wi-Fi

WDI Version (Windows) : 0.0.0.0

WDI Version (IHV) : 0.0.0.0

Firmware Version :

Station : Supported

Soft AP : Supported

Network monitor mode : Supported

Wi-Fi Direct Device : Supported

Wi-Fi Direct GO : Supported

Wi-Fi Direct Client : Supported

Protected Management Frames : Supported

DOT11k neighbor report : Unknown

ANQP Service Information Discovery : Not Supported

Action Frame : Not Supported

Diversity Antenna : Unknown

IBSS : Supported

Promiscuous Mode : Supported

P2P Device Discovery : Not Supported

P2P Service Name Discovery : Not Supported

P2P Service Info Discovery : Not Supported

P2P Background Discovery : Not Supported

P2P GO on 5 GHz : Unknown

FIPS : Supported

Instant Connect : Not Supported

Dx Standby NLO : Not Supported

Extended Channel Switch Announcement : Unknown

Function Level Reset : Not Supported

Platform Level Reset : Not Supported

Bus Level Reset : Not Supported

MAC Randomization : Not Supported

Fast Transition : Not Supported

MU-MIMO : Unknown

Miracast Sink : Unknown

BSS Transition (802.11v) : Unknown

IHV Extensibility Module Configured : Supported

Number of Tx Spatial Streams : 0

Number of Rx Spatial Streams : 0

Number of Concurrent Channels Supported : 2

P2P GO ports count : 1

P2P Clients Port Count : 1

P2P Max Mobile AP Clients : 128

Max ANQP Service Advertisements Supported : 0

Co-existence Support : Unknown

C:\Windows\system32>

Reply

Answer 8

xuande88 Author

Level 1

8 points

Aug 11, 2017 7:35 AM in response to Loner T

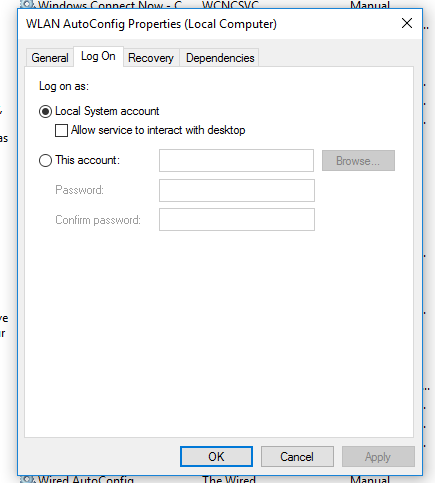

When I said it was set to Manual, I meant that this was what appeared under "Startup type" before I tried changing it. Sorry, I should have clarified that. It isn't running Manual. It refuses to start under either Manual or Automatic, both produce the same Error126. It is expected to run on the Local System account.

Reply
