No CoreStorage logical volume groups found

Question

spaz5752112 Author

Level 1

12 points

No CoreStorage logical volume groups found

Can you please help me as well, Loner T?

Last login: Mon Jan 15 07:24:36 on ttys000

AC02TJ002GL37:~ admin$ diskutil list

/dev/disk0 (internal, physical):

#: TYPE NAME SIZE IDENTIFIER

0: GUID_partition_scheme *251.0 GB
disk0

1: EFI EFI 209.7 MB
disk0s1

2: Apple_APFS Container disk2 125.0 GB
disk0s2

3: Microsoft Basic Data OSXRESERVED 8.0 GB disk0s3

4: Apple_HFS BOOTCAMP 117.7 GB
disk0s4

5: Apple_Boot 134.2 MB
disk0s5

/dev/disk2 (synthesized):

#: TYPE NAME SIZE IDENTIFIER

0: APFS Container Scheme - +125.0 GB
disk2

Physical Store disk0s2

1: APFS Volume Macintosh HD 48.6 GB disk2s1

2: APFS Volume Preboot 18.4 MB disk2s2

3: APFS Volume Recovery 506.6 MB
disk2s3

4: APFS Volume VM 2.1 GB disk2s4

AC02TJ002GL37:~ admin$ diskutil cs list

No CoreStorage logical volume groups found

Posted on Jan 15, 2018 5:45 AM

Reply

Answer 1

Loner T

Level 9

59,536 points

Jan 15, 2018 8:28 AM in response to spaz5752112

This was split as separate discussion, to avoid confusion with multiple such posts across other discussions. Was this disk manipulated via Disk Utility at any point in time?

To get it back to the standard layout, in Terminal, run (only once)

diskutil eraseVolume jhfs+ BC1 disk0s3

diskutil eraseVolume jhfs+ BC2 disk0s4

diskutil eraseVolume jhfs+ BC3 disk0s5

diskutil mergePartitions jhfs+ BCMP disk0s3 disk0s5

diskutil list

If you see only disk0s3, then run

diskutil eraseVolume fat32 BOOTCAMP disk0s3

and now run BC Assistant and click on Restore/Remove.

Reply

Answer 2

spaz5752112 Author

Level 1

12 points

Jan 15, 2018 8:55 AM in response to Loner T

Hi LT,

AC02TJ002GL37:~ admin$ diskutil eraseVolume jhfs+ BC1 disk0s3

Started erase on disk0s3 OSXRESERVED

Unmounting disk

Erasing

Initialized /dev/rdisk0s3 as a 7 GB case-insensitive HFS Plus volume with a 8192k journal

Mounting disk

Finished erase on disk0s3 BC1

AC02TJ002GL37:~ admin$ diskutil eraseVolume jhfs+ BC2 disk0s4

Started erase on disk0s4 BOOTCAMP

Unmounting disk

Erasing

Initialized /dev/rdisk0s4 as a 110 GB case-insensitive HFS Plus volume with a 16384k journal

Mounting disk

Finished erase on disk0s4 BC2

AC02TJ002GL37:~ admin$ diskutil eraseVolume jhfs+ BC3 disk0s5

Unable to find disk for disk0s5

LT, seems Terminus could not find disk, please advise. Thanks.

Reply

Answer 3

Loner T

Level 9

59,536 points

Jan 15, 2018 11:14 AM in response to spaz5752112

Excellent. Please remember to back up macOS, Windows and create a Windows System Restore point after you install Windows.

Reply

Answer 4

spaz5752112 Author

Level 1

12 points

Jan 15, 2018 9:43 AM in response to spaz5752112

Hi LT,

Yes, unfortunately this disk was manipulated by Disk Utility as I attempted to remove Windows and expand partition size. Can I still salvage it and merge partitions and bring back Boot Camp for Windows re-upload?

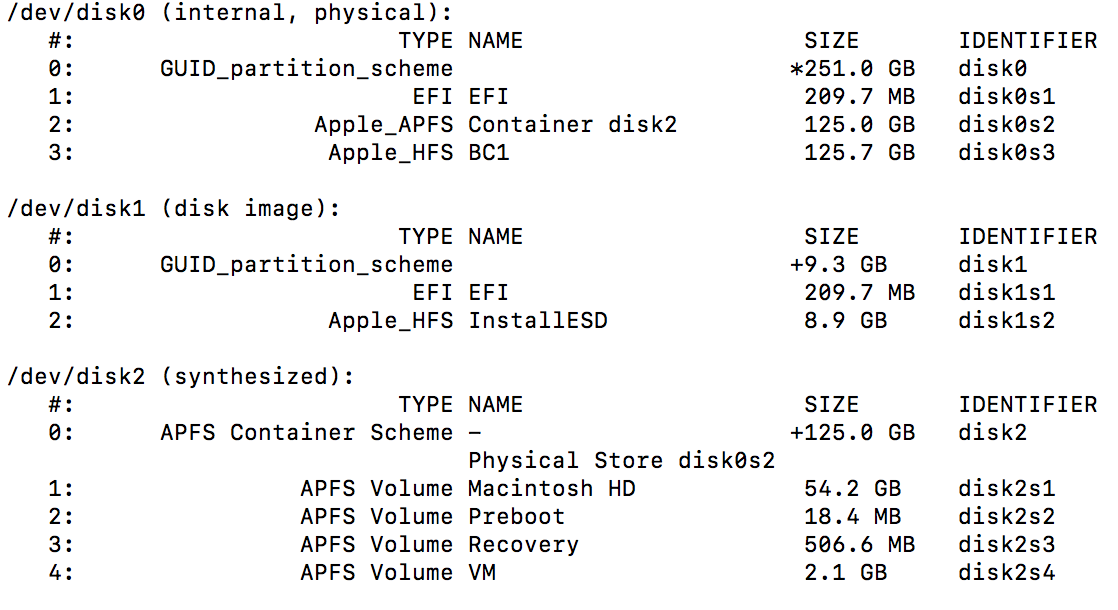

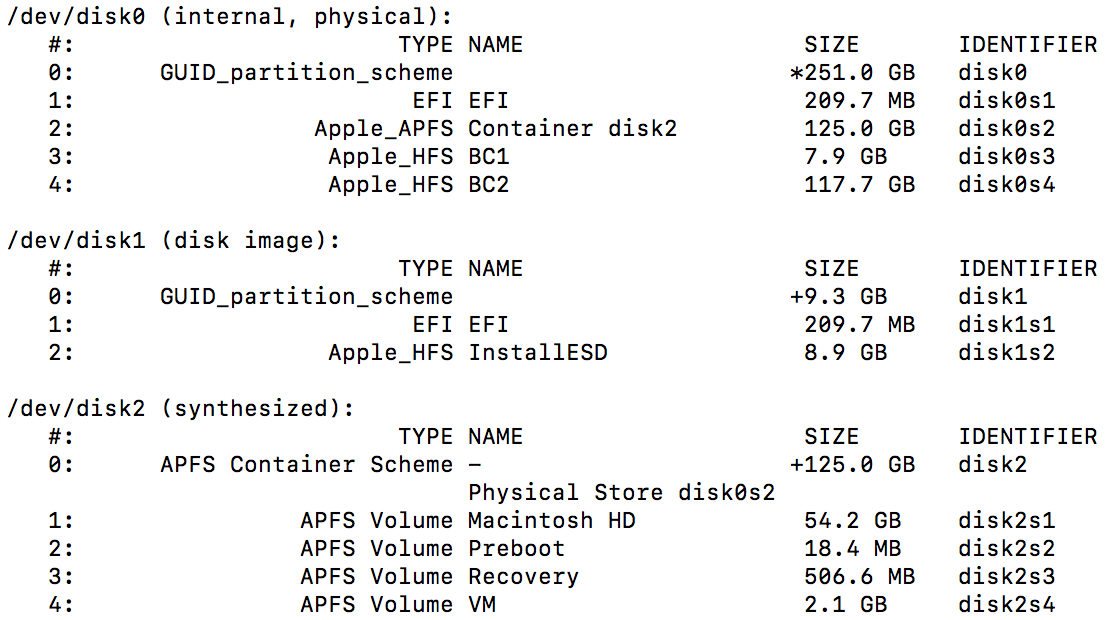

Here is what I have:

Reply

Answer 5

spaz5752112 Author

Level 1

12 points

Jan 15, 2018 10:22 AM in response to Loner T

Have to say, you're amazing, LT!!! Thanks a million.

I was ready to do clean install. (Even figured out how to set up boot disk on the Terminal, which may be useful anyway one day). So now the only option I have is Restore. What should I expect when I click this, since this is unchartered territory for me--but I'm so excited because I believe that you've almost 100% resolved my issue! :-)

Reply

Answer 6

spaz5752112 Author

Level 1

12 points

Jan 15, 2018 10:44 AM in response to spaz5752112

Wow, what a difference this forum makes--and especially you, LT. I humbly thank you for your patience and responsiveness to me. I am forever in debt to your kindness. I urge Apple to hire you ASAP if they haven't already done so and allow you to work from home. :-)
