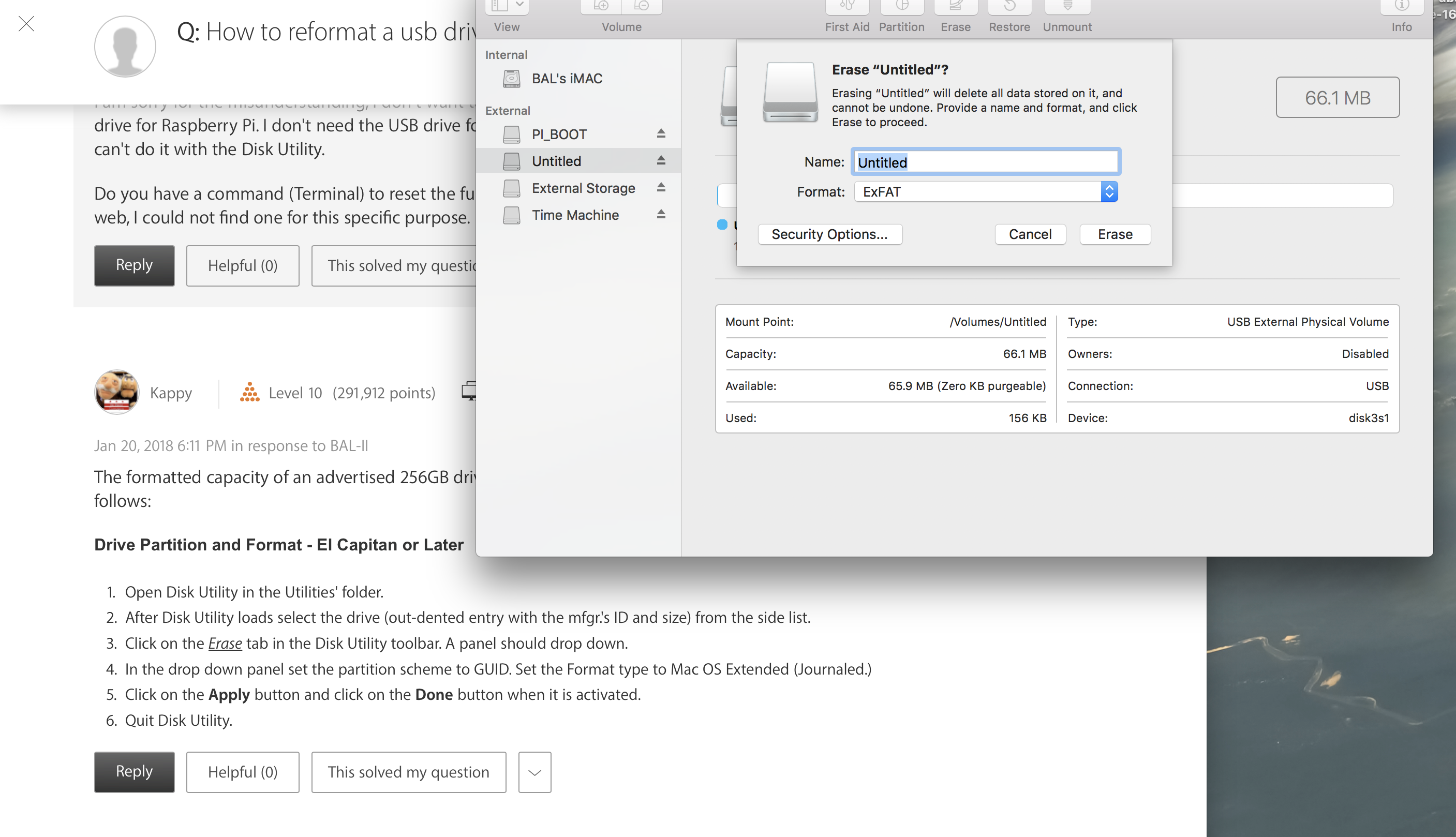

How to reformat a usb drive to its full capacity

The formatted capacity of an advertised 256GB drive is around 240GBs. To partition and format the flash drive on your Mac is as follows:

Drive Partition and Format - El Capitan or Later

1. Open Disk Utility in the Utilities' folder.
2. After Disk Utility loads select the drive (out-dented entry with the mfgr.'s ID and size) from the side list.
3. Click on the Erase tab in the Disk Utility toolbar. A panel should drop down.
4. In the drop down panel set the partition scheme to GUID. Set the Format type to Mac OS Extended (Journaled.)
5. Click on the Apply button and click on the Done button when it is activated.
6. Quit Disk Utility.

A Mac cannot be started from an ExFat formatted disk.

Drive Partition and Format - El Capitan or Later

1. Open Disk Utility in the Utilities' folder.
2. After Disk Utility loads select the drive (out-dented entry with the mfgr.'s ID and size) from the side list.
3. Click on the Erase tab in the Disk Utility toolbar. A panel should drop down.
4. In the drop down panel set the partition scheme to GUID. Set the Format type to Mac OS Extended (Journaled.)
5. Click on the Apply button and click on the Done button when it is activated.
6. Quit Disk Utility.

Bootable USB Installers for OS X Mavericks, Yosemite, El Capitan, and Sierra

First, review this introductory article: Create a bootable installer for macOS. Second, see this How To outline for creating a bootable El Capitan installer. Simply replace the Terminal command with the one from the preceding article by copying it into the Terminal window. You will need an 8GB or larger USB flash drive that has been partitioned and formatted for use with OS X.

Drive Partition and Format

1. Open Disk Utility in the Utilities' folder.
2. After Disk Utility loads select the drive (out-dented entry with the mfg.'s ID and size) from the side list.
3. Click on the Erase tab in the Disk Utility toolbar. Name the drive, "MyVolume". <---- IMPORTANT!
4. In the drop down panel set the partition scheme to GUID. Set the Format type to Mac OS Extended (Journaled.)
5. Click on the Apply button and wait for the Done button to activate. When it does click on it.
6. Quit Disk Utility.

Create Installer

Open the Terminal in the Utilities' folder. Choose the appropriate command line (in red) depending upon what OS X installer you want. Paste that entire command line from below at the Terminal's prompt:

Command for macOS High Sierra:

sudo /Applications/Install\ macOS\ High\ Sierra.app/Contents/Resources/createinstallmedia --volume /Volumes/MyVolume --applicationpath /Applications/Install\ macOS\ High\ Sierra.app

Command for macOS Sierra:

sudo /Applications/Install\ macOS\ Sierra.app/Contents/Resources/createinstallmedia --volume /Volumes/MyVolume --applicationpath /Applications/Install\ macOS\ Sierra.app

Command for El Capitan:

sudo /Applications/Install\ OS\ X\ El\ Capitan.app/Contents/Resources/createinstallmedia --volume /Volumes/MyVolume --applicationpath /Applications/Install\ OS\ X\ El\ Capitan.app

Command for Yosemite:

sudo /Applications/Install\ OS\ X\ Yosemite.app/Contents/Resources/createinstallmedia --volume /Volumes/MyVolume --applicationpath /Applications/Install\ OS\ X\ Yosemite.app

Command for Mavericks:

sudo /Applications/Install\ OS\ X\ Mavericks.app/Contents/Resources/createinstallmedia --volume /Volumes/MyVolume --applicationpath /Applications/Install\ OS\ X\ Mavericks.app

Press RETURN. You will be asked for your admin password. It will not echo to the Terminal window. Then press RETURN again. Wait for the return of the Terminal prompt signifying the process has completed. It takes quite some time to finish. Be patient.

The tool you used to make it a bootable drive probably partitioned the thumb drive.

You can use SD Memory Association's drive format tool to reformat it.

SD Memory Card Formatter - SD Association

The Erase option works slightly differently for a physical disk than a logical volume. When the physical disk is used then Erase partitions the drive with one volume then formats that volume. However, if you choose an existing volume then the Erase option simply formats the volume.

If you want to partition a disk into more than one partition, then you choose an existing volume, click on the Partition button, then you see a different panel in which you can partition the volume.
