My 5K iMac has the screen resolution of a 4K iMac

I have had a second-hand iMac core i7 27-inch 5K (Late 2014) and after fresh installing High Sierra yesterday I noticed that the text on the screen was too small ocompared to what I was used to.
I checked the display settings and tried to change them, but nothing seemed to make it look like all my previous macs did. It was either too little or too small.

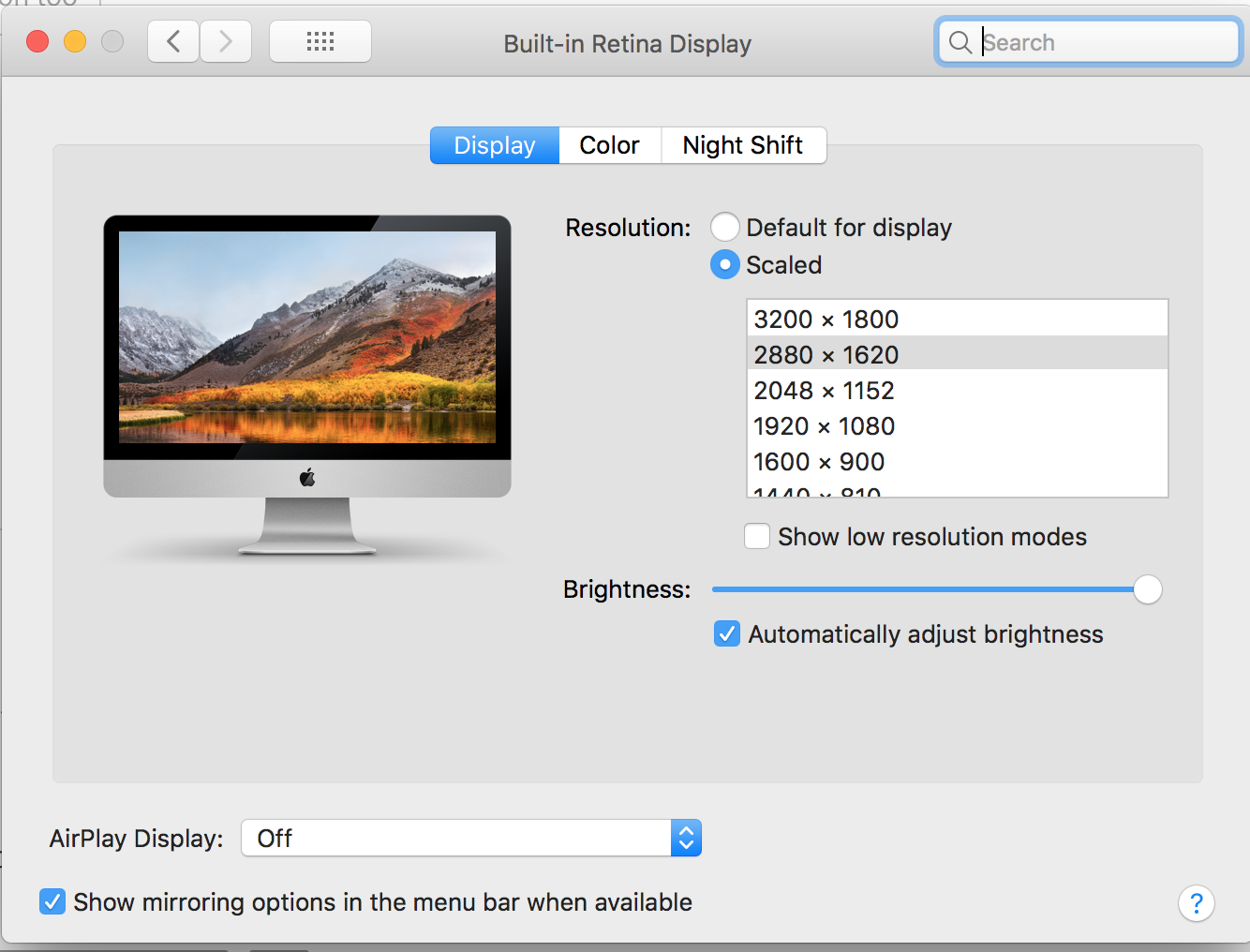

The screen default resolution is 3200x1800 and the next step up is 2048 x 1152. Then I found out how to have more screen resolution options and I set it up to 2880 x 1620, which is close to what I need (the default 2560 x 1440), but not quite!


After some research I noticed that the screen resolution values that I have in front of me are the screen resolution of a 4k iMac, which I find very weird. My iMac is 5K. I freshly installed the OSX and I don't think I've done any mistakes.

I've also reset the NVRAM but nothing has changed.



Do you have any idea of what this could be due to?

iMac with Retina 5K display, macOS 10.13.3

Posted on Mar 24, 2018 10:23 AM

Reply
Question marked as Top-ranking reply

Posted on Apr 5, 2018 10:23 AM

Try a lower resolution to increase the size of everything on the screen. Go to the 1920 x 1080, for example. That should increase size by around 30%, plus or minus. The usual default resolution is 2560 x 1440 which does not appear for some reason.


You could give this a try:


A Troubleshooting Procedure that may Fix Problems with macOS El Capitan or Later


You should try each, one at a time, then test to see if the problem is fixed before going on to the next.


Be sure to backup your files before proceeding if possible.


  1. Shutdown the computer, wait 30 seconds, restart the computer.
  2. Disconnect all third-party peripherals and remove any support software like drivers and plug-ins.
  3. Resetting your Mac’s PRAM and NVRAM
  4. Reset the System Management Controller (SMC)
  5. Start the computer in Safe Mode, then restart normally. This is slower than a standard startup.
  6. Repair the disk by booting from the Recovery HD. Immediately after the chime hold down the Command and R keys until the Utility Menu appears. Choose Disk Utility and click on the Continue button. Select the indented (usually, Macintosh HD) volume entry from the side list. Click on the First Aid button in the toolbar. Wait for the Done button to appear. Quit Disk Utility and return to the Utility Menu. Restart the computer from the Apple Menu.
  7. Create a New User Account Open Users & Groups preferences. Click on the lock icon and enter your Admin password when prompted. On the left under Current User click on the Add [+] button under Login Options. Setup a new Admin user account. Upon completion log out of your current account then log into the new account. If your problems cease, then consider switching to the new account and transferring your files to it - Transferring files from one User Account to another.
  8. Download and install the OS X El Capitan 10.11.6 Combo Update or 10.12.6 Combo Update or Download macOS High Sierra 10.13.4 Combo Update as needed.
  9. Reinstall OS X by booting from the Recovery HD using the Command and R keys. When the Utility Menu appears select Reinstall OS X then click on the Continue button.
  10. Erase and Install OS X Restart the computer. Immediately after the chime hold down the Command and R keys until the Apple logo appears. When the Utility Menu appears:
  1. Select Disk Utility from the Utility Menu and click on Continue button.
  2. When Disk Utility loads select the drive (out-dented entry) from the Device list.
  3. Click on the Erase icon in Disk Utility's toolbar. A panel will drop down.
  4. Set the Format type to Mac OS Extended (Journaled.)
  5. Click on the Apply button, then wait for the Done button to activate and click on it.
  6. Quit Disk Utility and return to the Utility Menu.
  7. Select Reinstall OS X and click on the Continue button.

Similar questions

3 replies
Sort By:
Question marked as Top-ranking reply

Apr 5, 2018 10:23 AM in response to gtria

Try a lower resolution to increase the size of everything on the screen. Go to the 1920 x 1080, for example. That should increase size by around 30%, plus or minus. The usual default resolution is 2560 x 1440 which does not appear for some reason.


You could give this a try:


A Troubleshooting Procedure that may Fix Problems with macOS El Capitan or Later


You should try each, one at a time, then test to see if the problem is fixed before going on to the next.


Be sure to backup your files before proceeding if possible.


  1. Shutdown the computer, wait 30 seconds, restart the computer.
  2. Disconnect all third-party peripherals and remove any support software like drivers and plug-ins.
  3. Resetting your Mac’s PRAM and NVRAM
  4. Reset the System Management Controller (SMC)
  5. Start the computer in Safe Mode, then restart normally. This is slower than a standard startup.
  6. Repair the disk by booting from the Recovery HD. Immediately after the chime hold down the Command and R keys until the Utility Menu appears. Choose Disk Utility and click on the Continue button. Select the indented (usually, Macintosh HD) volume entry from the side list. Click on the First Aid button in the toolbar. Wait for the Done button to appear. Quit Disk Utility and return to the Utility Menu. Restart the computer from the Apple Menu.
  7. Create a New User Account Open Users & Groups preferences. Click on the lock icon and enter your Admin password when prompted. On the left under Current User click on the Add [+] button under Login Options. Setup a new Admin user account. Upon completion log out of your current account then log into the new account. If your problems cease, then consider switching to the new account and transferring your files to it - Transferring files from one User Account to another.
  8. Download and install the OS X El Capitan 10.11.6 Combo Update or 10.12.6 Combo Update or Download macOS High Sierra 10.13.4 Combo Update as needed.
  9. Reinstall OS X by booting from the Recovery HD using the Command and R keys. When the Utility Menu appears select Reinstall OS X then click on the Continue button.
  10. Erase and Install OS X Restart the computer. Immediately after the chime hold down the Command and R keys until the Apple logo appears. When the Utility Menu appears:
  1. Select Disk Utility from the Utility Menu and click on Continue button.
  2. When Disk Utility loads select the drive (out-dented entry) from the Device list.
  3. Click on the Erase icon in Disk Utility's toolbar. A panel will drop down.
  4. Set the Format type to Mac OS Extended (Journaled.)
  5. Click on the Apply button, then wait for the Done button to activate and click on it.
  6. Quit Disk Utility and return to the Utility Menu.
  7. Select Reinstall OS X and click on the Continue button.
