Multiple Monitors on One USB C port

I want to be able to connect my MacBook Pro to two external monitors through one USB C port and charge the Mac at the same time, is this possible?

iPhone 7, iOS 10.2.1

Posted on Jun 7, 2018 1:16 AM

Reply
8 replies

Jun 16, 2018 11:10 PM in response to Malcolm J. Rayfield

Thanks so much for you input Malcolm,

I just cant get it working.


Can you please read the Dell D300 info attached and let me know if it's me, or the D300 is just not supported on mac anymore. Both my HDMI displays are black.


It seems the work around will only support 1 HDMI


What do i need to buy to get this thing working?


NEEDED: 1 plug for: 2 HDMI monitors + Charges the Mac


Or do i Just need to buy USB-C monitors? (preferably not for cost reasons)

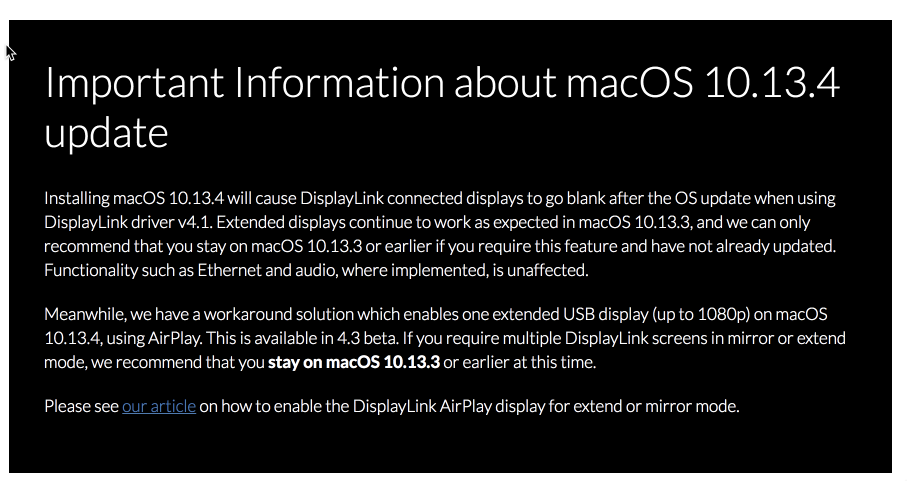

http://www.displaylink.com/downloads/macos

User uploaded file

Jun 16, 2018 6:17 PM in response to alexfisha

it is important to understand that what you are asking for (many displays over one USB-C) is usually implemented in a dock with DisplayLink software and a display link chip in the Dock for the second and subsequent displays. These are not "real" displays, in that they have no hardware acceleration and can be slow to update.


DisplayLink software creates a software display buffer in main RAM memory and sends the data out to the external box over a slower than usual connection. Some say these displays are slow. Some users say mouse-tracking on such a display is nauseating, and others have complained that the amount of data for full-motion Video makes these displays unsuitable for that purpose.


I think full speed daisy chaining is only available for certain ThunderBolt displays, of which there are very few available.

Jun 16, 2018 11:30 PM in response to alexfisha

I can't find any info on the Dell D300. Do you mean the D3000? Anyway, if it's USB, it may not be able to support two displays without using DisplayLink software, which may be slow, and doesn't work with the latest macOS.


Did you look at any of the Thunderbolt-3 Docks? They plug into a USB-C port on the MacBook Pro and should support two displays at full speed without adding software. They use Thunderbolt, so have a lot more bandwidth than USB-C, even though they use the same connector. They require a MacBook Pro, not the MacBook.


A USB-C monitor won't help. You can't connect more than one to one USB-C port.
