How to scale display size on mac pro

I'm a long time 27" iMac user recently got a Mac Pro and connect it via HDMI to an LG Display of the same size. However it really bugs me that application windows, fonts, and icon sizes are gigantic when using my Mac Pro. Apps and plugins that take up a small part of the screen on my iMac take up significantly more space on my Mac Pro. Even the Menu Bar at the top of the screen is much thicker on the Mac Pro. I thought this would be easy to fix or scale in the display options in system preferences but that does not seem to do the trick. I have attached a few screenshots here as examples. Is there any way to make the windows and applications smaller on my Mac Pro display?

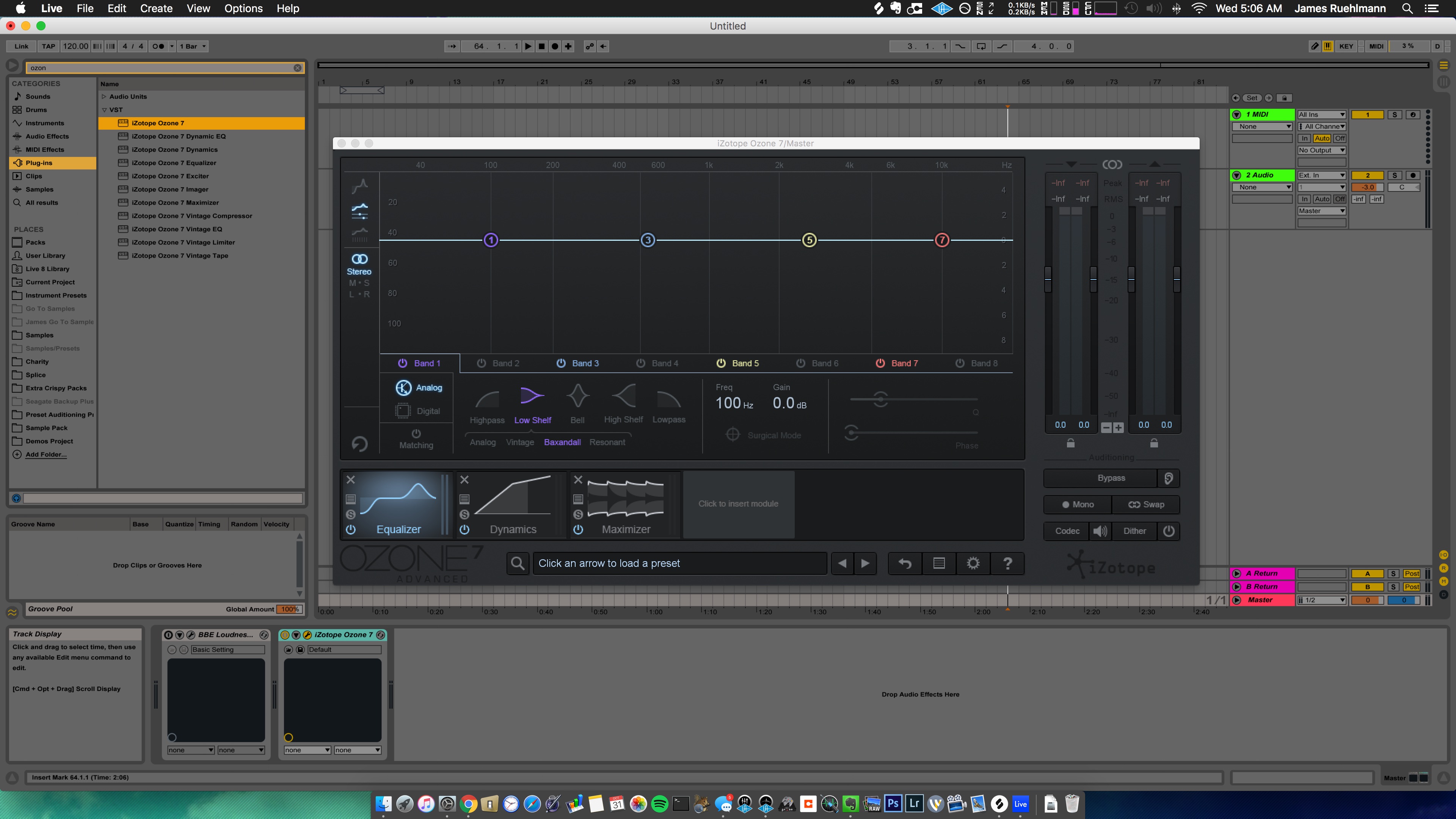

User uploaded fileUser uploaded fileUser uploaded fileUser uploaded file

Mac Pro, macOS Sierra (10.12.6)

Posted on Oct 31, 2018 6:43 AM

Reply

Similar questions

3 replies

Oct 31, 2018 4:06 PM in response to Johnb-one

thanks john! wow. why would they hide the other scaled options? silly. now that i'm in 3840x1260 I'm having the opposite problem - everything is microscopic. Will i be able to find a happy medium using SwitchResX?


My LG monitor only has HDMI - if I connect via thunderbolt - HDMI using a dongle will this give the desired result?


Will look into the high speed HDMI cable as well.


following image is screenshot of tiny windows in 3840x1260.


User uploaded file

Oct 31, 2018 7:53 AM in response to mutrix

I don't quite get what the problem is, but I'll try to help you. For the icons , go to Finder, then View options, and here you can set their size and arrangement. and you can change the text size as well. As for general sizing and scaling, go to system preferences, then Display, then scaled, and hold down the option key while clicking on scaled and it should give you a list of all available display sizes. If that doesn't float your boat, there's always SwitchResX ()but it's not free) you might also want to consider connecting your monitor via Displayport rather than HDMI, or at least using a High Speed HDMI cable rather than just a standard HDMI cable, this should get you 2k as a display option...

well good luck to you


John B

Nov 1, 2018 6:24 PM in response to mutrix

Whoof ! you're right it is hard to see. Luckily there is something you can do. Go to Finder, then View, and choose View Options (or press Cloverleaf and J), There you can make the icons bigger and change the font size (but not the font )

and how things are stacked/sorted. As for the dongle, yeah...should work. Either USB-C or DisplayPort (or MiniDisplayPort) to High speed HDMI should give you 4k, I trust you when you say your monitor only has HDMI...doesn't seem quite possible, HDMI only, but that's all I've got to go on. ((don't know the model of the monitor for sure, so can't say what it does and doesn't have). Just thought I'd mention the whole Hi Speed HDMI thing. Apparently there is a difference, standard HDMI gives you 1080 and that's it, and me being a cheapskate, and not wanting to pay brick n' mortar prices for an HDMI cable, Hi speed or standard, I found another source *cough*monoprice*cough*cough* Gee-must be dry n' dusty in here. There's also the whole HDCP thing as well. The faster cables support the newer HDCP 2.X standard , and as is par for the course, everything must support that standard or else...no 4k. Not a big problem with a monitor and a Mac pro. But...when you get an older reciever with HDMI 1.4, and a couple of modern game consoles, and the previous rule applies, it means that you can't run the hdmi through the reciever and let it do the switching. at least not if you want 4k. The hdmi goes directly to the tv set, and the audio goes to the reciever... not a huge problem, but a pain in the butt for sure.

anyways that's all i got


John B
