bootcamp failed and cannot restore the partition

Question

bootcamp failed and cannot restore the partition

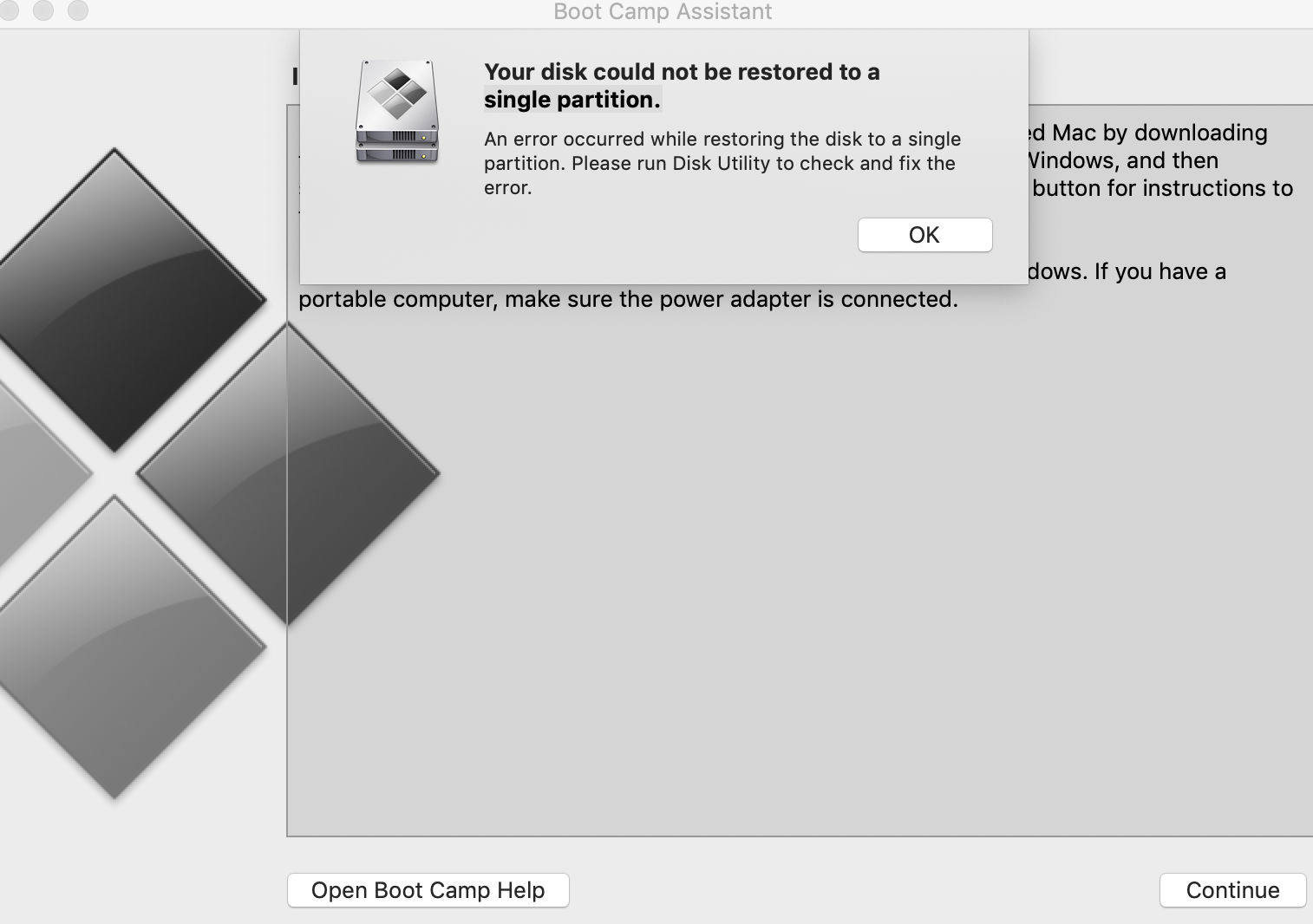

I was installing windows 10 and after it finished there was a popup saying bootcamp something is to be installed...i clicked yes and soon my screen turned black and never came back...i restarted my mac and it says windows has problem and keeps going to automatic repair mode without solution. I went back to Mac OS and try to delete windows and restore partition with bootcamp and disk utility...all failed...

Please can anyone help me restore the partition? bootcamp is terrible and I will not try installing windows on my Mac again...so frustrating...

Thank you for helping me!~~

+-- Container disk1 444D9FAB-E761-42A2-BB83-A169C6158B7C

====================================================

APFS Container Reference: disk1

Size (Capacity Ceiling): 389000699904 B (389.0 GB)

Capacity In Use By Volumes: 201022918656 B (201.0 GB) (51.7% used)

Capacity Not Allocated: 187977781248 B (188.0 GB) (48.3% free)

|

+-< Physical Store disk0s2 2C14E298-2843-49E6-8E47-E68A1E7B28ED

| -----------------------------------------------------------

| APFS Physical Store Disk: disk0s2

| Size: 389000699904 B (389.0 GB)

|

+-> Volume disk1s1 9A131913-6993-4D40-9B65-ADE934F02D7B

| ---------------------------------------------------

| APFS Volume Disk (Role): disk1s1 (No specific role)

| Name: Macintosh HD (Case-insensitive)

| Mount Point: /

| Capacity Consumed: 199239593984 B (199.2 GB)

| FileVault: Yes (Unlocked)

|

+-> Volume disk1s2 45E0B273-1CE2-442D-B8C1-1B7052F4449D

| ---------------------------------------------------

| APFS Volume Disk (Role): disk1s2 (Preboot)

| Name: Preboot (Case-insensitive)

| Mount Point: Not Mounted

| Capacity Consumed: 47964160 B (48.0 MB)

| FileVault: No

|

+-> Volume disk1s3 CAAA732B-D058-4E7D-9E17-C582CAB8B0FA

| ---------------------------------------------------

| APFS Volume Disk (Role): disk1s3 (Recovery)

| Name: Recovery (Case-insensitive)

| Mount Point: Not Mounted

| Capacity Consumed: 510394368 B (510.4 MB)

| FileVault: No

|

+-> Volume disk1s4 F46BD74D-E926-477B-9A80-88EE6CEB37EE

---------------------------------------------------

APFS Volume Disk (Role): disk1s4 (VM)

Name: VM (Case-insensitive)

Mount Point: /private/var/vm

Capacity Consumed: 1073762304 B (1.1 GB)

FileVault: No (Encrypted at rest)

MacBook

Posted on Sep 28, 2019 8:42 AM

Reply

Answer 1

Loner T

Level 9

59,536 points

Sep 28, 2019 10:57 AM in response to lifromthornhill

Run

diskutil apfs resizeContainer disk1 0g

sudo fsck_apfs -n -l /dev/rdisk1

and post the output.

Reply

Answer 2

Loner T

Level 9

59,536 points

Sep 28, 2019 9:34 AM in response to lifromthornhill

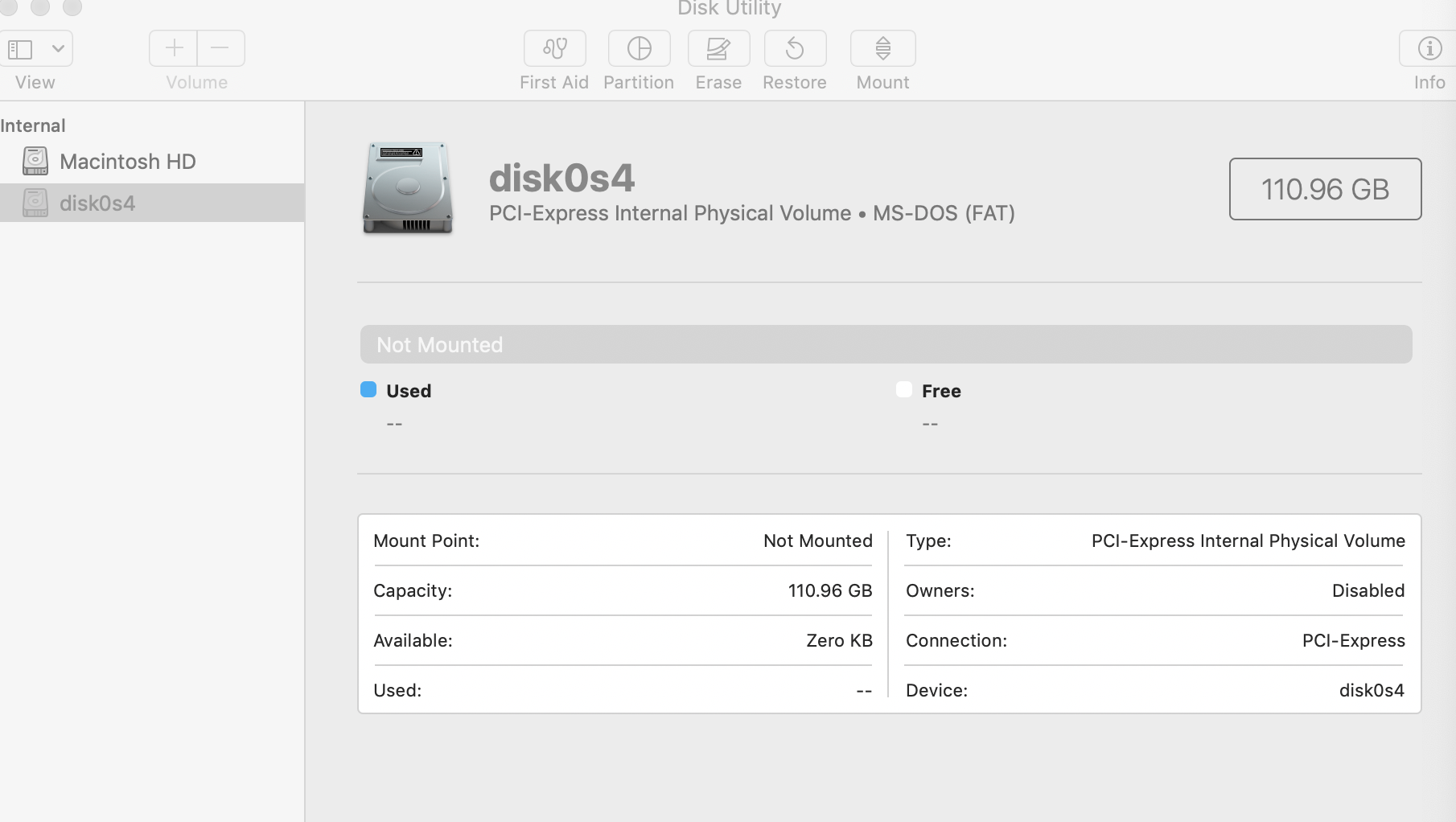

In your diskutil list output, the partition is disk0s4, not the normal disk0s3. Can you reboot and check if the numbering changes?

Post the output of

sudo fsck_apfs -n -l /dev/rdisk1

APFS corruption can also cause issues. This command will not correct corruption, but show it, if any.

Reply

Answer 3

Loner T

Level 9

59,536 points

Sep 28, 2019 1:11 PM in response to lifromthornhill

lifromthornhill wrote:

magic!!yes the disk space is back!

Excellent!

one last problem. my macbook now does not reboot automatically into Mac Os when I restart it...if I don't press the option key and choose Mac Os it will simply be left in black...iz there any cleaning work to be done?

Let us try the simple solution first. Run the following two steps

How to reset the System Management Controller (SMC) on your Mac - Apple Support

Reset NVRAM or PRAM on your Mac - Apple Support

If that does not correct it, then we need to look at your EFI partition.

Reply

Answer 4

Sep 28, 2019 8:48 AM in response to lifromthornhill

looks like the windows partition 110G is not listed in the above?? please let me know what should i do...i'm new mac user...thanks!!

Reply

Answer 5

Sep 28, 2019 9:08 AM in response to lifromthornhill

here is diskutil list

/dev/disk0 (internal):

#: TYPE NAME SIZE IDENTIFIER

0: GUID_partition_scheme 500.3 GB disk0

1: EFI EFI 314.6 MB disk0s1

2: Apple_APFS Container disk1 389.0 GB disk0s2

3: Microsoft Basic Data 111.0 GB disk0s4

/dev/disk1 (synthesized):

#: TYPE NAME SIZE IDENTIFIER

0: APFS Container Scheme - +389.0 GB disk1

Physical Store disk0s2

1: APFS Volume Macintosh HD 199.3 GB disk1s1

2: APFS Volume Preboot 48.0 MB disk1s2

3: APFS Volume Recovery 510.4 MB disk1s3

4: APFS Volume VM 1.1 GB disk1s4

Reply

Answer 6

Sep 28, 2019 9:46 AM in response to Loner T

thank for your help~

now after reboot, the windows partition disappeared...110G lost...

the output you requested:

Lis-MacBook-Pro:~ lichen$ sudo fsck_apfs -n -l /dev/rdisk1

Password:

Sorry, try again.

Password:

dev_init:607: Using /private/var/folders/zz/zyxvpxvq6csfxvn_n0000000000000/T/fsck_apfs.778.1/apfs and /private/var/folders/zz/zyxvpxvq6csfxvn_n0000000000000/T/fsck_apfs.778.1/nx for device-io.

dev_init:607: Using /private/var/folders/zz/zyxvpxvq6csfxvn_n0000000000000/T/fsck_apfs.778.4/apfs and /private/var/folders/zz/zyxvpxvq6csfxvn_n0000000000000/T/fsck_apfs.778.4/nx for device-io.

** Checking the container superblock.

** Checking the EFI jumpstart record.

** Checking the space manager.

** Checking the space manager free queue trees.

** Checking the object map.

** Checking volume.

** Checking the APFS volume superblock.

** The volume Macintosh HD was formatted by newfs_apfs (945.200.84) and last modified by apfs_kext (945.275.7).

** Checking the object map.

** Checking the snapshot metadata tree.

** Checking the snapshot metadata.

** Checking the extent ref tree.

** Checking the fsroot tree.

** Checking volume.

** Checking the APFS volume superblock.

** The volume Preboot was formatted by newfs_apfs (748.77.4) and last modified by apfs_kext (945.275.7).

** Checking the object map.

** Checking the snapshot metadata tree.

** Checking the snapshot metadata.

** Checking the extent ref tree.

** Checking the fsroot tree.

** Checking volume.

** Checking the APFS volume superblock.

** The volume Recovery was formatted by newfs_apfs (748.77.4) and last modified by apfs_kext (945.275.7).

** Checking the object map.

** Checking the snapshot metadata tree.

** Checking the snapshot metadata.

** Checking the extent ref tree.

** Checking the fsroot tree.

** Checking volume.

** Checking the APFS volume superblock.

** The volume VM was formatted by apfs.util (945.241.4) and last modified by apfs_kext (945.275.7).

** Checking the object map.

** Checking the snapshot metadata tree.

** Checking the snapshot metadata.

** Checking the extent ref tree.

** Checking the fsroot tree.

** Verifying allocated space.

** The volume /dev/rdisk1 appears to be OK.

Lis-MacBook-Pro:~ lichen$

Reply

Answer 7

Sep 28, 2019 11:28 AM in response to Loner T

here is the result

Last login: Sat Sep 28 13:39:18 on ttys000

Lis-MacBook-Pro:~ lichen$ diskutil apfs resizeContainer disk1 0g

Started APFS operation

Aligning grow delta to 110,962,475,008 bytes and targeting a new physical store size of 499,963,174,912 bytes

Determined the maximum size for the targeted physical store of this APFS Container to be 499,962,146,816 bytes

Resizing APFS Container designated by APFS Container Reference disk1

The specific APFS Physical Store being resized is disk0s2

Verifying storage system

Using live mode

Performing fsck_apfs -n -x -l -S /dev/disk0s2

Checking the container superblock

Checking the EFI jumpstart record

Checking the space manager

Checking the space manager free queue trees

Checking the object map

Checking volume

Checking the APFS volume superblock

The volume Macintosh HD was formatted by newfs_apfs (945.200.84) and last modified by apfs_kext (945.275.7)

Checking the object map

Checking the snapshot metadata tree

Checking the snapshot metadata

Checking the extent ref tree

Checking the fsroot tree

Checking volume

Checking the APFS volume superblock

The volume Preboot was formatted by newfs_apfs (748.77.4) and last modified by apfs_kext (945.275.7)

Checking the object map

Checking the snapshot metadata tree

Checking the snapshot metadata

Checking the extent ref tree

Checking the fsroot tree

Checking volume

Checking the APFS volume superblock

The volume Recovery was formatted by newfs_apfs (748.77.4) and last modified by apfs_kext (945.275.7)

Checking the object map

Checking the snapshot metadata tree

Checking the snapshot metadata

Checking the extent ref tree

Checking the fsroot tree

Checking volume

Checking the APFS volume superblock

The volume VM was formatted by apfs.util (945.241.4) and last modified by apfs_kext (945.275.7)

Checking the object map

Checking the snapshot metadata tree

Checking the snapshot metadata

Checking the extent ref tree

Checking the fsroot tree

Verifying allocated space

The volume /dev/disk0s2 appears to be OK

Storage system check exit code is 0

Growing APFS Physical Store disk0s2 from 389,000,699,904 to 499,963,174,912 bytes

Modifying partition map

Growing APFS data structures

Finished APFS operation

Lis-MacBook-Pro:~ lichen$ sudo fsck_apfs -n -l /dev/rdisk1

Password:

dev_init:607: Using /private/var/folders/zz/zyxvpxvq6csfxvn_n0000000000000/T/fsck_apfs.1106.1/apfs and /private/var/folders/zz/zyxvpxvq6csfxvn_n0000000000000/T/fsck_apfs.1106.1/nx for device-io.

dev_init:607: Using /private/var/folders/zz/zyxvpxvq6csfxvn_n0000000000000/T/fsck_apfs.1106.4/apfs and /private/var/folders/zz/zyxvpxvq6csfxvn_n0000000000000/T/fsck_apfs.1106.4/nx for device-io.

** Checking the container superblock.

** Checking the EFI jumpstart record.

** Checking the space manager.

** Checking the space manager free queue trees.

** Checking the object map.

** Checking volume.

** Checking the APFS volume superblock.

** The volume Macintosh HD was formatted by newfs_apfs (945.200.84) and last modified by apfs_kext (945.275.7).

** Checking the object map.

** Checking the snapshot metadata tree.

** Checking the snapshot metadata.

** Checking the extent ref tree.

** Checking the fsroot tree.

** Checking volume.

** Checking the APFS volume superblock.

** The volume Preboot was formatted by newfs_apfs (748.77.4) and last modified by apfs_kext (945.275.7).

** Checking the object map.

** Checking the snapshot metadata tree.

** Checking the snapshot metadata.

** Checking the extent ref tree.

** Checking the fsroot tree.

** Checking volume.

** Checking the APFS volume superblock.

** The volume Recovery was formatted by newfs_apfs (748.77.4) and last modified by apfs_kext (945.275.7).

** Checking the object map.

** Checking the snapshot metadata tree.

** Checking the snapshot metadata.

** Checking the extent ref tree.

** Checking the fsroot tree.

** Checking volume.

** Checking the APFS volume superblock.

** The volume VM was formatted by apfs.util (945.241.4) and last modified by apfs_kext (945.275.7).

** Checking the object map.

** Checking the snapshot metadata tree.

** Checking the snapshot metadata.

** Checking the extent ref tree.

** Checking the fsroot tree.

** Verifying allocated space.

** The volume /dev/rdisk1 appears to be OK.

Lis-MacBook-Pro:~ lichen$

Reply

Answer 8

Sep 28, 2019 12:14 PM in response to Loner T

magic!!yes the disk space is back!

one last problem. my macbook now does not reboot automatically into Mac Os when I restart it...if I don't press the option key and choose Mac Os it will simply be left in black...iz there any cleaning work to be done?

Thank you so much for your help!!

Reply
