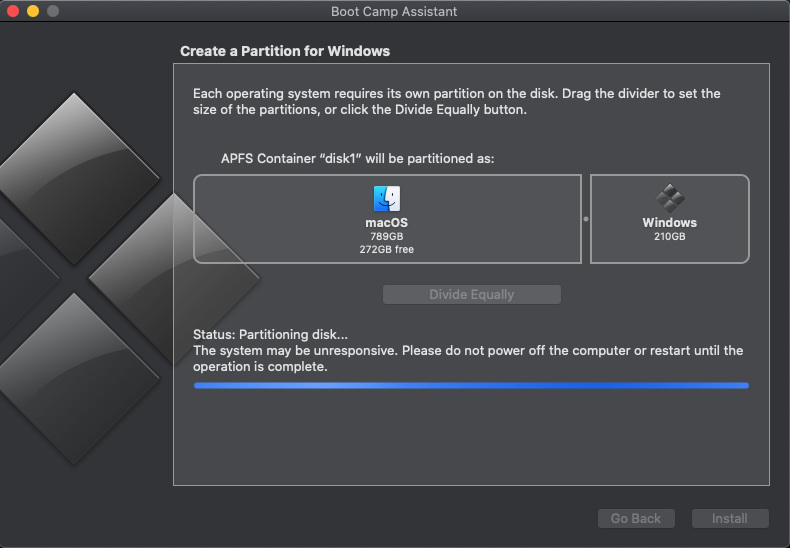

when I get to the partitioning disk part of the bootcamp process, the blue bar which shows the progress of the partitioning goes full and does not change.
iMac 21.5" 4K, macOS 10.13
Rebuild MBR to match the new GPT information thus resetting the Hybrid MBR. Use defaults for other questions (like partition codes). The only values that need modifications are the Boot flags and step 10. Accept all other defaults that Gdisk offers. Please see thesample Q&A as an example. These steps can be repeated if you make a mistake before you get to Step 12, otherwise start from Step 1 for these steps. Step 6 has numbers which are typed with a space between the numbers. Please see the sample Q&A before you execute these steps.
Here is sample Q&A for this section. Please notice the Press Enter/Return.
Place EFI GPT (0xEE) partition first in MBR (good for GRUB)? (Y/N): Y
Creating entry for GPT partition #2 (MBR partition #2)
Enter an MBR hex code (default AF): Press Enter/Return
Set the bootable flag? (Y/N): N
Creating entry for GPT partition #3 (MBR partition #3)
Enter an MBR hex code (default 07): Press Enter/Return
Set the bootable flag? (Y/N): Y
Post the output of
sudo gpt -vv -r show /dev/disk0
sudo fdisk /dev/disk0
for validation.
AndrewPhillips1 wrote:
the screenshot was just after I deleted the local snapshots and before I did the diskutil command.
... and if BCA was run after this cleanup, it would show higher disk space. Is BCA still partitioning?
AndrewPhillips1 wrote:
MacOS 10.13
In a previous post you mentioned macOS Catalina, which is 10.15.x, while macOS High Sierra is 10.13.x. macOS Mojave is 10.14.x.
and how do I make a FAT (or exFAT) partition
Take a look at Partition a physical disk in Disk Utility on Mac - Apple Support.
/dev/disk0 (internal, physical):
#: TYPE NAME SIZE IDENTIFIER
0: GUID_partition_scheme *1.0 TB disk0
1: EFI 209.7 MB disk0s4
2: Apple_APFS Container disk1 505.3 GB disk0s1
3: Microsoft Basic Data W 494.7 GB disk0s5
/dev/disk1 (synthesized):
#: TYPE NAME SIZE IDENTIFIER
0: APFS Container Scheme - +505.3 GB disk1
Physical Store disk0s1
1: APFS Volume Apple - Data 313.3 GB disk1s1
2: APFS Volume Preboot 24.3 MB disk1s2
3: APFS Volume Recovery 523.5 MB disk1s3
4: APFS Volume VM 4.3 GB disk1s4
5: APFS Volume Apple 11.0 GB disk1s5
/dev/disk2 (external, physical):
#: TYPE NAME SIZE IDENTIFIER
0: FDisk_partition_scheme *8.0 GB disk2
1: Windows_NTFS WinInstall 8.0 GB disk2s1
/dev/disk3 (disk image):
#: TYPE NAME SIZE IDENTIFIER
0: GUID_partition_scheme +82.5 MB disk3
1: Apple_APFS Container disk4 82.4 MB disk3s1
/dev/disk4 (synthesized):
#: TYPE NAME SIZE IDENTIFIER
0: APFS Container Scheme - +82.4 MB disk4
Physical Store disk3s1
1: APFS Volume andrewphillips 50.3 MB disk4s1
The TM UI says 'when disk is connected', which implies that it is an external disk.
Can you post the output of
sudo tmutil destinationinfo
The output should be similar to
sudo tmutil destinationinfo
Password:
Sorry, try again.
Password:
====================================================
Name : Backups
Kind : Network
URL : afp://xxxxx@Macmini-i7s._afpovertcp._tcp.local./Backups
ID : 9CE6DC3F-C934-4B09-A4D0-1CA4A3EDDEFA
/dev/disk0 (internal, physical):
#: TYPE NAME SIZE IDENTIFIER
0: GUID_partition_scheme *1.0 TB disk0
1: EFI 209.7 MB disk0s1
2: Apple_APFS Container disk1 749.9 GB disk0s2
3: Microsoft Basic Data 250.1 GB disk0s3
/dev/disk1 (synthesized):
#: TYPE NAME SIZE IDENTIFIER
0: APFS Container Scheme - +749.9 GB disk1
Physical Store disk0s2
1: APFS Volume Apple - Data 320.7 GB disk1s1
2: APFS Volume Preboot 24.3 MB disk1s2
3: APFS Volume Recovery 523.5 MB disk1s3
4: APFS Volume VM 4.3 GB disk1s4
5: APFS Volume Apple 11.4 GB disk1s5
usage: csrutil <command>
Modify the System Integrity Protection configuration. All configuration changes apply to the entire machine.
Available commands:
clear
Clear the existing configuration.
disable
Disable the protection on the machine. Only available in Recovery OS.
enable
Enable the protection on the machine. Only available in Recovery OS.
status
Display the current configuration.
netboot
add <address>
Insert a new IPv4 address in the list of allowed NetBoot sources.
list
Print the list of allowed NetBoot sources.
remove <address>
Remove an IPv4 address from the list of allowed NetBoot sources.
ok, I went through the steps and it went well, her is the outputs of sudo got -vv -r show /dev/disk0 and sudo disk /dev/disk0.
gpt show: /dev/disk0: mediasize=1000204886016; sectorsize=512; blocks=1953525168
gpt show: /dev/disk0: Suspicious MBR at sector 0
gpt show: /dev/disk0: Pri GPT at sector 1
gpt show: /dev/disk0: Sec GPT at sector 1953525167
start size index contents
0 1 MBR
1 1 Pri GPT header
2 32 Pri GPT table
34 6
40 409600 1 GPT part - C12A7328-F81F-11D2-BA4B-00A0C93EC93B
409640 1464684992 2 GPT part - 7C3457EF-0000-11AA-AA11-00306543ECAC
1465094632 1560
1465096192 488427520 3 GPT part - EBD0A0A2-B9E5-4433-87C0-68B6B72699C7
1953523712 1423
1953525135 32 Sec GPT table
1953525167 1 Sec GPT header
Disk: /dev/disk0 geometry: 121601/255/63 [1953525168 sectors]
Signature: 0xAA55
Starting Ending
#: id cyl hd sec - cyl hd sec [ start - size]
------------------------------------------------------------------------
1: EE 0 0 2 - 25 127 14 [ 1 - 409639] <Unknown ID>
2: AF 25 127 15 - 1023 254 63 [ 409640 - 1464684992] HFS+
*3: 07 1023 254 63 - 1023 254 63 [1465096192 - 488427520] HPFS/QNX/AUX
4: 00 0 0 0 - 0 0 0 [ 0 - 0] unused
andrew@jos-imac ~ % sudo fdisk /dev/disk0
Disk: /dev/disk0 geometry: 121601/255/63 [1953525168 sectors]
Signature: 0xAA55
Starting Ending
#: id cyl hd sec - cyl hd sec [ start - size]
------------------------------------------------------------------------
1: EE 0 0 2 - 25 127 14 [ 1 - 409639] <Unknown ID>
2: AF 25 127 15 - 1023 254 63 [ 409640 - 1464684992] HFS+
*3: 07 1023 254 63 - 1023 254 63 [1465096192 - 488427520] HPFS/QNX/AUX
4: 00 0 0 0 - 0 0 0 [ 0 - 0] unused
I went through the installation process and have completely set up windows, there doesn’t seem to be any problems with it. I just want to thank you massively because you have been absolutely amazing at fixing my problem
-OS: Win Xp 32
-Processor: intel Pentium 4 1.6Ghz/AMD athlon XP 1600+
-Graphics: AMD Radeon HD 3200 or NVIDIA GeForce 4 MX 440
-System memory: 500 MB RAM
-Storage: 1GB Hard drive space
-DirectX 8 compatible Graphics Card
What is the year/model of your Mac (do not post the serial number)?
What is the current macOS version?
late 2012 model,
MacOS Catalina 10.13
I removed all the snapshots but bootcamp assistant is still unresponsive.
the screenshot was just after I deleted the local snapshots and before I did the diskutil command.
partitioning disk error
