Mac Pro 2019, newest OS, newest CC versions.
Since a few days (now with DELL U4021QW + 2 LG 24MP88HV), before with (LG_38 UC99 + 2 LG 24MP88HV) the Dell flickers, esp. when using InDesign.
Also some strange photoshop behavior.
Has someone pleeease an explanation for me…
[Link Edited by Moderator]
The classic way to rule out software is to run in Safe Mode, which loads NO third-party extensions.
Works in Safe mode, fails in regular mode implies "It's something you added."
Sometimes when two large displays are using the same thunderbolt controller (typically adjacent ports), one comes up short and gets messed up. If you can spread the load out, sometimes just a little bit, the problem can go away.
Wow, looks like your last tip solved the problems.
DELL U4021QW – was connected on top via Thunderbolt
LG 24MP88HV 1 – connected via Thunderbolt (Mac on back) to HDMI (LG)
LG 24MP88HV 2 – connected via HDMI (Mac–LG)
version A
DELL U4021QW – connected on back via Thunderbolt
LG 24MP88HV 1 – connected via Thunderbolt (Mac back) to HDMI (LG) – wasn’t shown in system at all
LG 24MP88HV 2 – connected via HDMI (Mac–LG)
version B
DELL U4021QW – connected on back via Thunderbolt
LG 24MP88HV 1 – connected via Thunderbolt (Mac top) to HDMI (LG)
LG 24MP88HV 2 – connected via HDMI (Mac–LG)
WORKS no flicker at all at the moment.
Does this mean that the different Thunderbolt ports do have different specifications?!
I never read anything like that… or has the AMD Radeon Pro 580X graphics card a defect?
But first:
A BIG thank you for your tip
from Michael
To "mix up" the hardware situation, try plugging that ThunderBolt cable into a different port on the Mac, including the TOP ports if possible.
those videos seem to be showing problems with fetching the correct information for the display -- as if there were some sort of addressing issue.
Have you run the diagnostic? It might detect gross problems.
Exactly what cables, adapters and docks are in the cabling to the display. Mention EVERY device/cable.
In your second video, I am not seeing what the problem is -- could you elaborate?
Dell UltraSharp 40 Curved WUHD Monitor - U4021QW
Native Resolution
5120 x 2160 at 60Hz
Color Support
1.07 Billion
Input Connectors
1 x DP 1.4 ( HDCP 2.2) ( 10 bit Color @ 60HZ)
2 x HDMI 2.0 ( HDCP 2.2) (10 bit Color @ 30HZ)
1 x Thunderbolt(TM) 3 ; (Alternate Mode with Display Port 1.4, super speed USB 3.2 Gen 2 (10Gbps) Upstream , Power Delivery upto 90W*) , certified for Windows® and Mac®
1 X USB Type B Upstream Port
I did run diagnostics, no problems detected.
Killed all preferences for InDesign + Photoshop. Went well for 2 h.

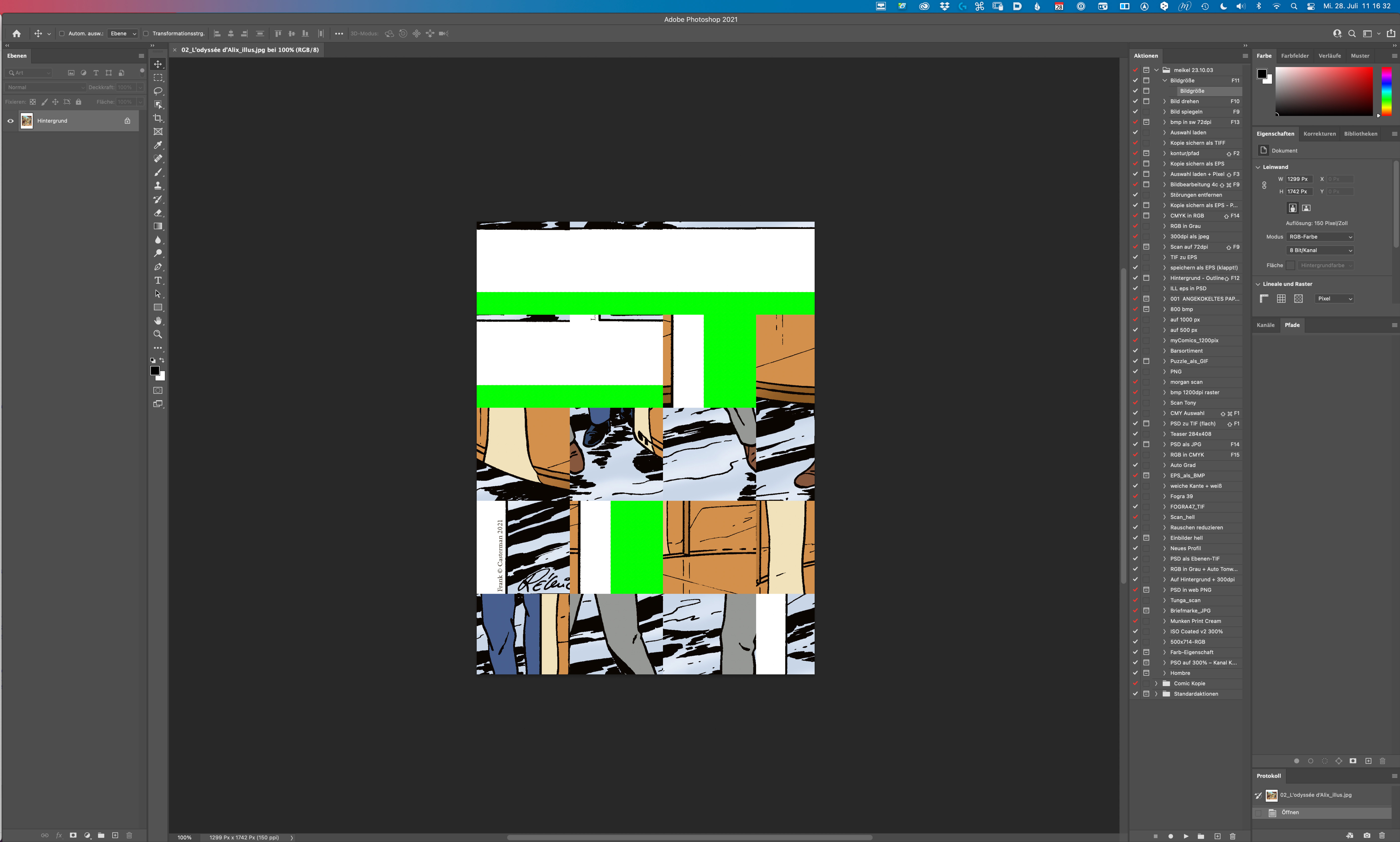

Flickers in ID just started again, an strange file display in PS. Here are 2 screeners:
The display is connected only with the Apple Thunderbolt 3 MWP32ZM/A – 2 meters cable to the MacPro.
Only one and the same file is open.
But you see different images.
First the »real« image, that changes when zooming in.
And changes again, when zooming out.
I never ever had this. Working with it since middle of the 90s…
