GPU "Failed Power Play Resume"

Hey guys, here's just one of the errors that have been plaguing my workflow! Desperately seeking some assistance with this one.

----

panic(cpu 4 caller 0xffffff7fb537b749): GPU Panic: [3:0:0][PPLIB] Failed Power Play Resume. Shutting back down. TTL Error Message: {33167451846805:[3:0:0] Error PSP: event_id=0xd0100204 event_info:type=3 hw_id=0 event_specific_tag=0x2 pData=0 data_size=0 psp_bootloader_load_sos failed

}{33167451869447:[3: 33158589C6,4,2,2,2,0,0,0_0C6,2,0,0,0,0,0,0_0C5,4,2,2,2,0,0,0_0C5,2,0,0,0,0,0,0_0C2,6,0,0,0,0,0,0_0C4,4,2,2,2,0,0,0_0C4,2,0,0,0,0,0,0_0C3,4,2,0,0,0,0,0_0C3,2,0,0,0,0,0,0_0C2,4,134,2,0,0,0,0_0C2,2,0,0,0,0,0,0_0P2,3_512P6,2_50182P9,6_4894P8,9_33C2,5,0,0,0,0,0,0_0C2,3,0,0,0,0,0,0_0C2,1,0,0,0,0,0,0_0C3,3,0,0,0,0,0,0_0C3,1,0,0,0,0,0,0_0C4,3,0,0,0,0,0,0_1C4,1,0,0,0,0,0,0_0C5,3,0,0,0,0,0,0_0C5,1,0,0,0,0,0,0_0P7,8_0p8D5_0p8E5_0p8C5_0p8B5_0p8A5_75P0,7_2C6,3,0,0,0,0,0,0_0C6,1,0,0,0,0,0,0_1P5,0_6001P4,5_0P3,4_0p4D8_0p4E8_0p4C8_0p4B8_0p4A8_267C6,4,2,2,2,0,0,0_0C6,2,0,0,0,0,0,0_0C5,4,2,2,2,0,0,0_0C5,2,0,0,0,0,0,0_0C2,6,0,0,0,0,0,0_0C4,4,2,2,2,0,0,0_0C4,2,0,0,0,0,0,0_0C3,4,2,0,0,0,0,0_0C3,2,0,0,0,0,0,0_0C2,4,134,2,0,0,0,0_0C2,2,0,0,0,0,0,0_0P2,3_511P6,2_23375P9,6_4895P8,


Panicked task 0xffffff9531f86670: 276 threads: pid 0: kernel_task



MacBook Pro 16″, macOS 11.5

Posted on Apr 29, 2022 5:43 PM

Reply

Similar questions

10 replies

Apr 30, 2022 5:15 PM in response to Ben_Z1

I tried everything including reinstalling the mac.


This applies to me - If your Mac restarted because of a problem


Have a look at the latest error earlier today


----ERROR----------------------

panic(cpu 0 caller 0xffffff7faa17b749): GPU Panic: [3:0:0][PPLIB] Failed to send PPLIB IRI to Accelerator. TTL Error Message: {12439462416:[3:0:0] Error PSP: event_id=0xd0100202 event_info:type=3 hw_id=0 event_specific_tag=0x2 pData=0 data_size=0 psp_bootloader_load failed


}{12439480139:[3:0:0] TTL Event: 23044iE1_ : mux-regs 5 3 3 7f 1f 0 0 switch-state 0 IG FBs 0 EG FBs 0:1f power-state 0 3D idle HDA idle system-state 0 power-level 20:20 power-retry 0:0 connect-change 0 WS-ready 0


Panicked task 0xffffff8b8d1a5670: 9 threads: pid 171: WindowServer


Backtrace (CPU 0), panicked thread: 0xffffff8b8dace000, Frame : Return Address

----END (TRUNCATED)-------------------------

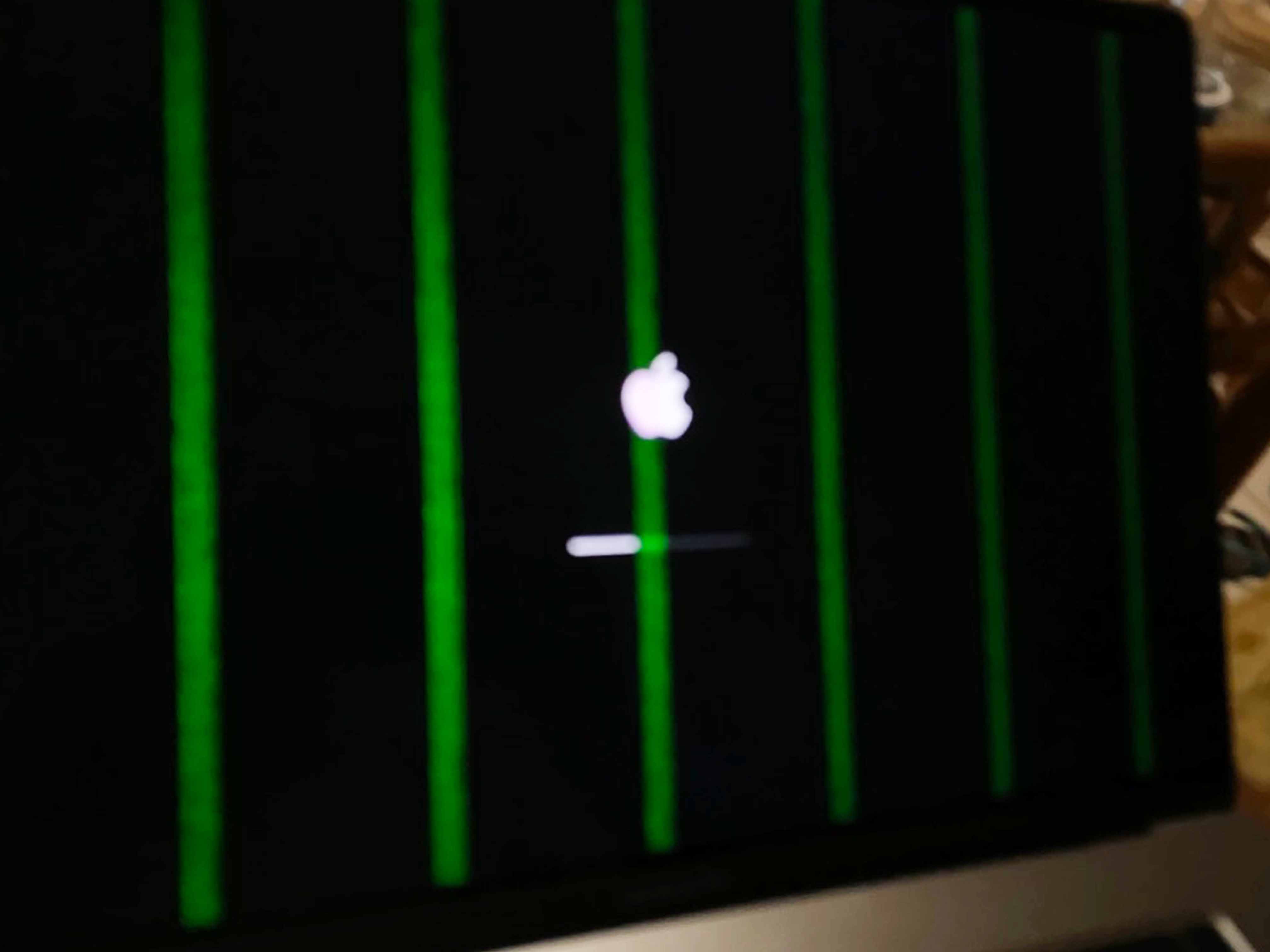

Here's what my screen looks like when the laptop starts. It clears up when the login screen loads and I am able to use the computer for sometime again.



Apr 30, 2022 5:17 PM in response to Gumbs_

Does the alert WindowServer indicate anything about this to you? What app or apps are running when this occurs? Is it occurring only after a specific app or after a specific time, like after 60 minutes of use? Or maybe only after you sleep the device for your lunch break? Anything to help isolate this at all?


Have you tried running diagnostics to see if anything shows up? Use Apple Diagnostics to test your Mac - Apple Support


Thanks.

Apr 30, 2022 10:00 PM in response to bruno75

I am trying to investigate my audio interface, it could be the problem. I observed this in the crash reports earlier tonight when my computer was loading and crashing moments after loging in. I hope this is related/is the culprit even though lot's of the errors referenced the GPU.


---BEGIN---------------

-------------------------------------

Translated Report (Full Report Below)

-------------------------------------


Process: ApogeeMessenger [309]

Path: /Library/Application Support/Apogee/*/ApogeeMessenger.bundle/Contents/ApogeeMessenger.app/Contents/MacOS/ApogeeMessenger

Identifier: com.apogeedigital.Messenger

Version: 1.20.68 (1.20.68)

Code Type: X86-64 (Native)

Parent Process: launchd [1]

User ID: 0


Date/Time: 2022-04-30 22:43:50.8746 -0400

OS Version: macOS 12.3.1 (21E258)

Report Version: 12

Bridge OS Version: 6.4 (19P4243)

Anonymous UUID: FFD399BA-86FD-7CEE-1401-383AB7E91118

--END (TRUMCATED)---------------


I wiped all apogee related files that I could identify and will now see what happens.
