Drop Down Menus referencing tables

Now that I see your table & charts I see you posted the same question a few days ago Use Drop Down Menu to reference different… - Apple Community . I thought I had replied to that one but I guess I forgot to hit "Post".

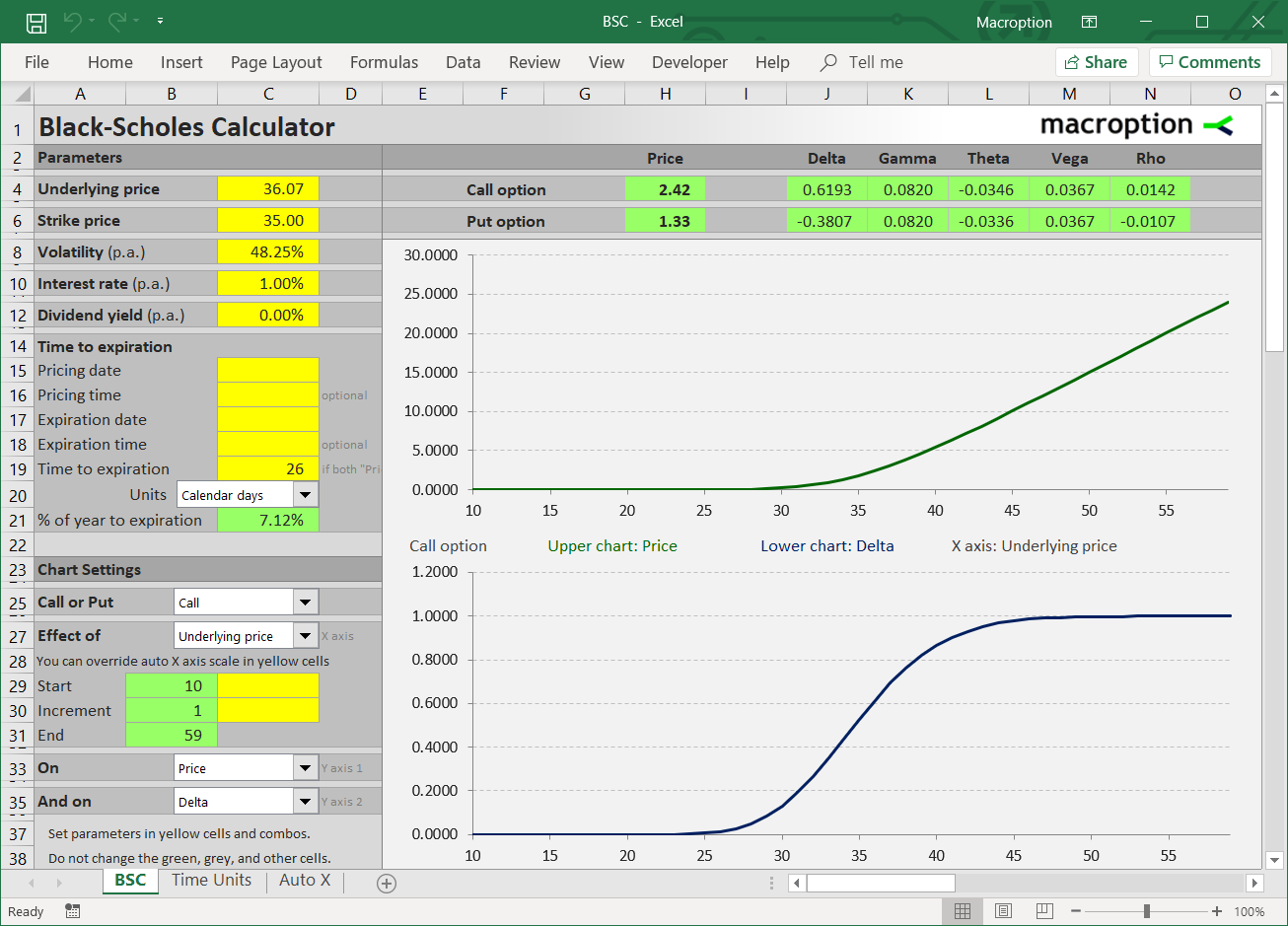

I do not know what that spreadsheet is doing in Excel. Maybe it is using the normal tools of the spreadsheet, maybe it is using VBA to change what you see or some of the work of making things look good. I'll stick with how to do it using the normal tools in a spreadsheet.

A chart gets its data from a table you specify when you create the chart. If you want that chart to plot different data in an automatic-like way, you change the data in the table. That can be done using a pop up menu. The real problem is making the chart look good when the data changes. Often some manual tweaking is required to get the right number of gridlines and min-max axis values and to add "names" to the axes and arrange the legend, etc. Mot of that cannot be done automatically and you'll have to take whatever Numbers gives you.

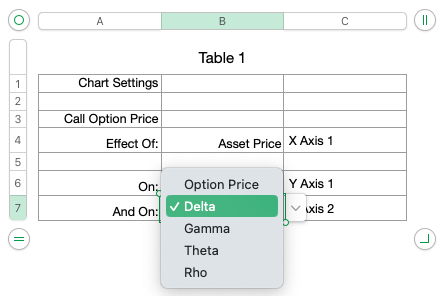

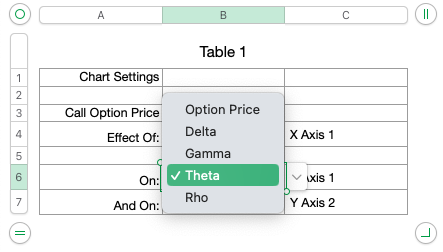

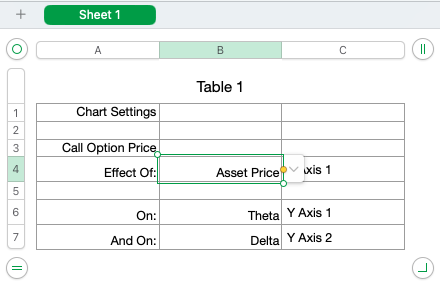

Lets say Table1::A1 has a pop up menu with the values Data1 and Data2

Table 2 has the values (X&Y data and the header labels) for Data1

Table 3 has the values for Data2

Table 4 will be as large as or larger than those tables. You will make the chart from Table 4.

Table 4::A1 =IFERROR(IFS(Table 1::$A$1="Data1",Table 2::A1,Table 1::$A$1="Data 2",Table 3::A1,TRUE,""),"")

Copy/paste that formula to the rest of Table 4

Make your chart from all of Table 4

Set the chart so it does not plot hidden data

Put a filter on Table 4 to hide empty "" rows

Use the pop up menu to select which set of data to plot

If you want to change a chart from a normal 2-axis chart to one that has two Y axes, click on the chart then look over at the Chart tab in the format sidebar on the right and change the chart type to 2D 2-axis.

If you want to add another series to a chart, one way is to click on the chart then click below it where it says "edit data references". It will take you to the table with the data and you can include another series.

In the Help menu is a link to the Numbers users guide (Numbers help) that can help you discover features of Numbers and how to use them.

Additional:

If you have a lot of different tables to choose from, you might want to do it a little differently.Name each table of data the same name as used in the pop up menu.

Table 2 will be named Data1

Table 3 will be named Data2

Table 4 formula in all cells is =IFERROR(INDIRECT(Table 1::$A$1&"::R"&ROW()&"C"&COLUMN(),0),"")

These were just two simple examples with all tables and the pop up on the same sheet. I did not test the formulas to ensure no typos or mistakes. The general idea is you need to use formulas to get the proper data into the table.

Could you describe more? Is this a charting problem? Check out the 'Charting Basics' template at File > New in your menu.

SG
