iPhone 15 keeps coming on and off charge

Do you have charging optimization on in settings? If it’s set to 80% limit and your phone is close to 80% when you plug it up that may be the issue. Same may be true if you selected the Optimized Battery Charging option. Switch it to None and see if the same thing occurs. If it does then definitely take the phone to your nearest Apple Store to be evaluated (or call Apple for assistance if you don’t have a store in your area). You are still in the exchange period so you could also just opt to exchange it.

And it’s not saying you posted from your 12. That’s just the device you have on your profile.

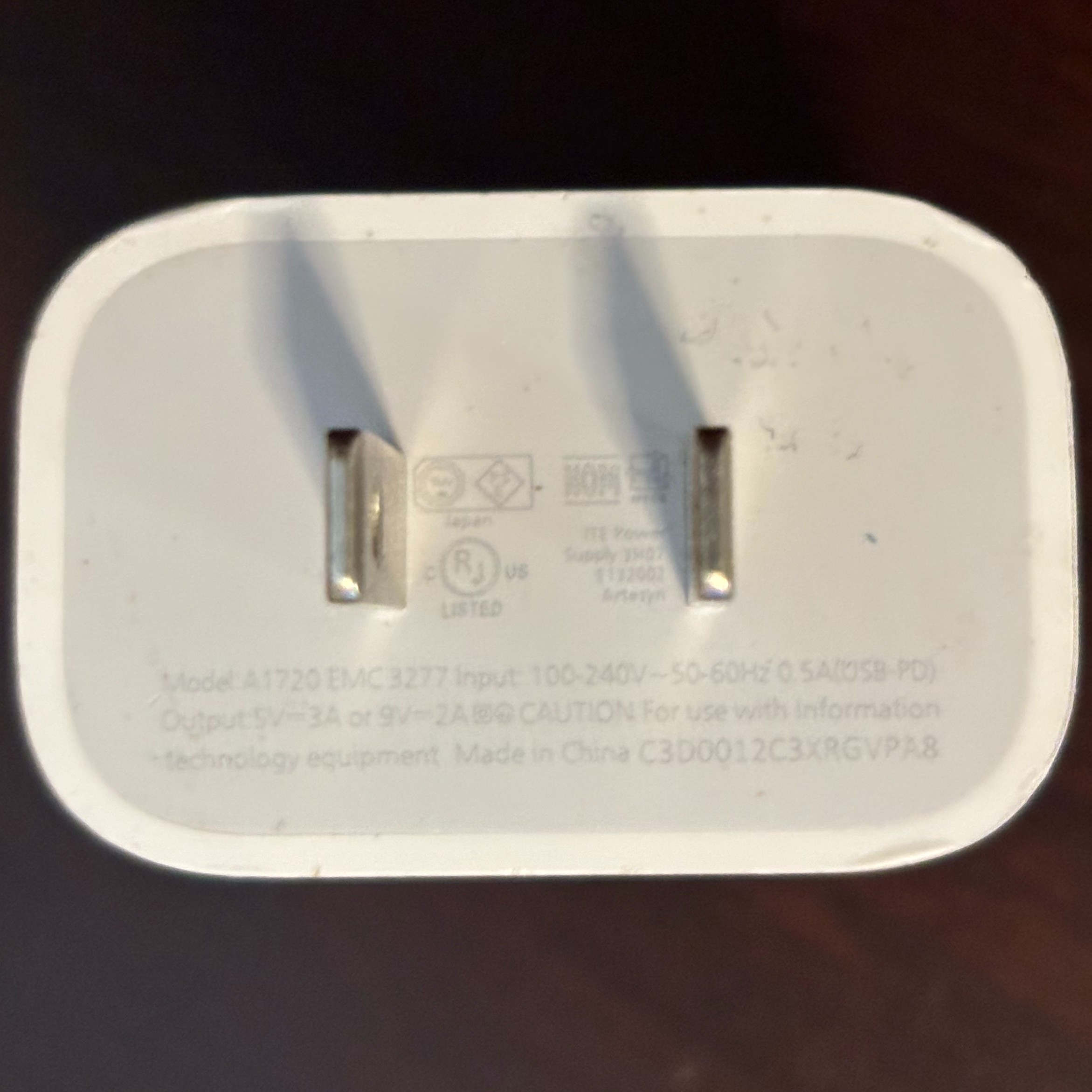

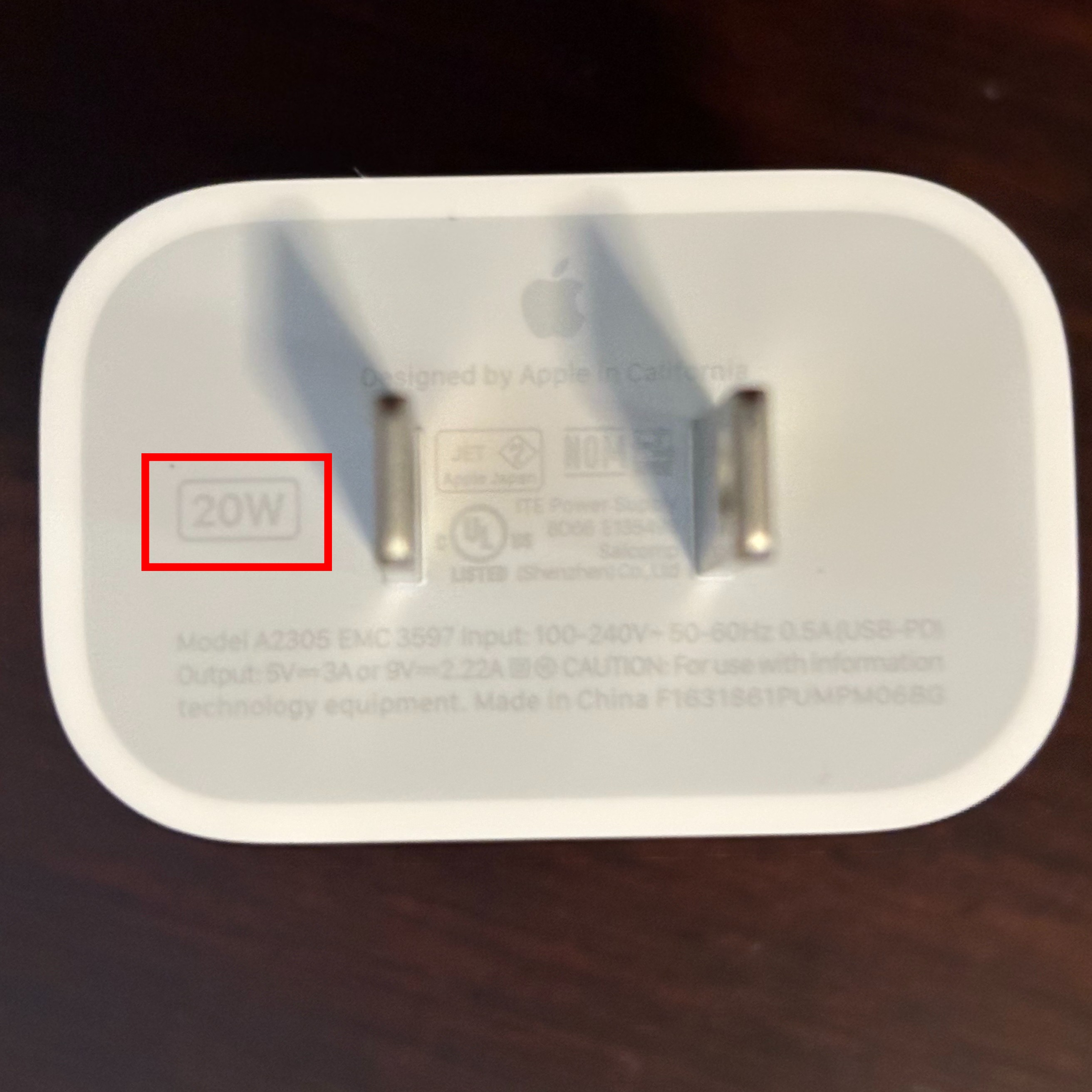

Not all Apple USB-C plugs are created equal. Make sure you are using the 20 watt output version. The output will be printed in VERY SMALL type on the plug side of the adapter. I too had this issue because the older Apple USB-C adapters had a 5 watt output.

9/10 it’s a software glitch. Sometimes when “Charging optimization”, under Settings > Battery > Charging optimization, is turned OFF it charges normally, but sometimes it doesn’t, thus going on/off/on charge. I believe we gotta wait a patch or iOS 18. I personally have it capped at 80% limit, but going on and off charge can damage the battery in the long run. Hope it helps.

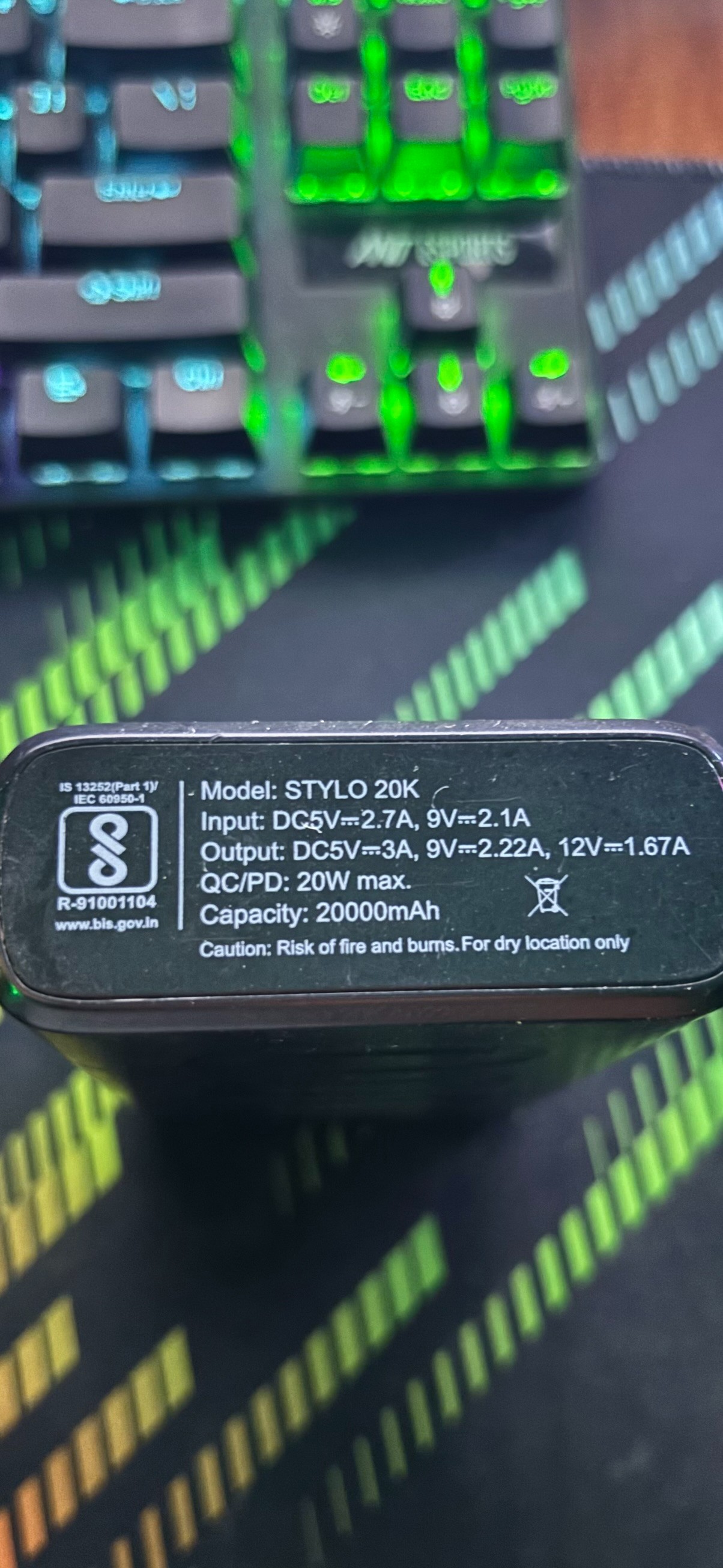

I have been having issues with my powerbank and iPhone, when connecting, it goes on and off continuously like yours, idk why but my other powerbank and charger works just fine. Here is the rated output for all three of them: Powerbank - 1 (Has the on/off problem)

Outputs: 5V/3A=15W, 9V/2.22A=19.98W,12V/1.67A=20.04

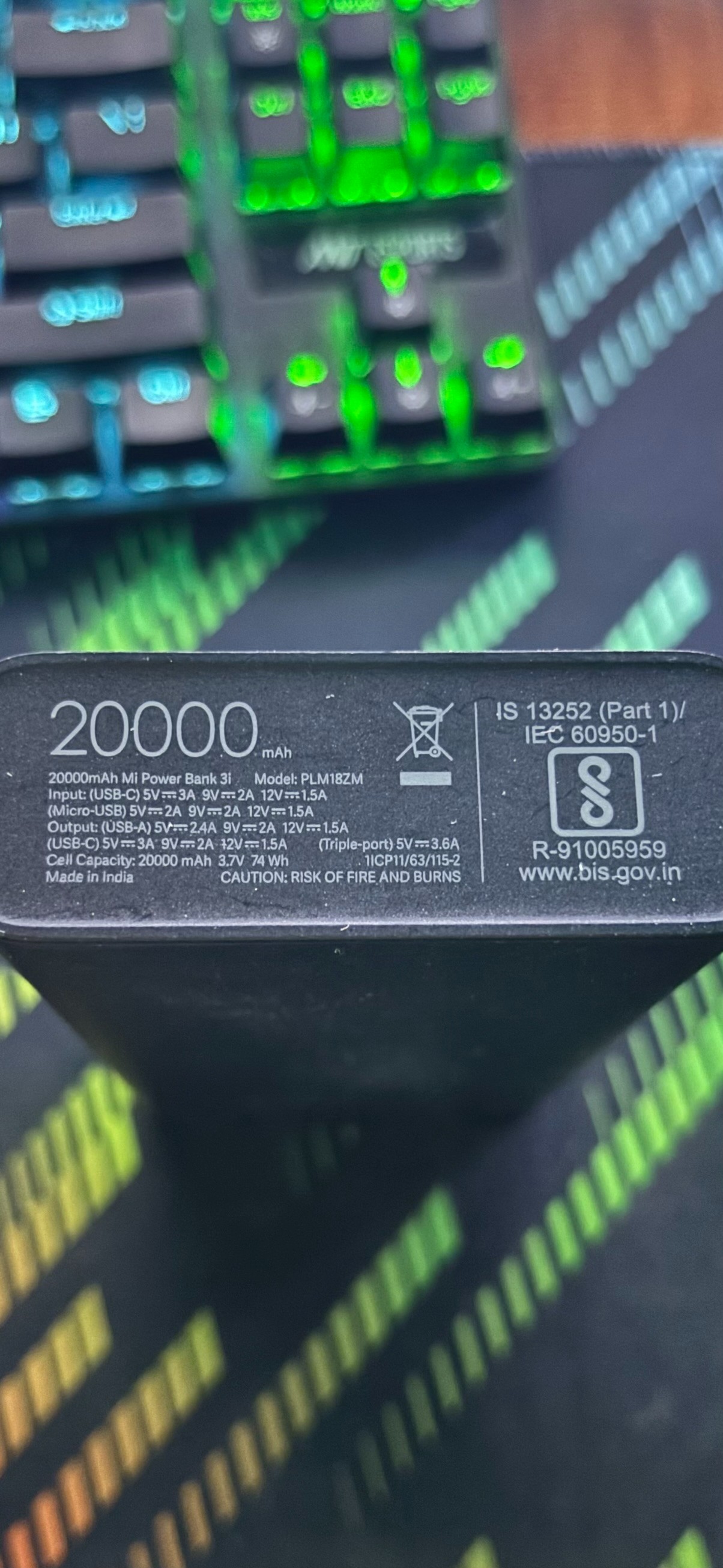

Powerbank - 2 (Doesn't have the on/off problem)

Outputs: 5V/3A=15W, 9V/2A=18W, 12V/1.5A=18W

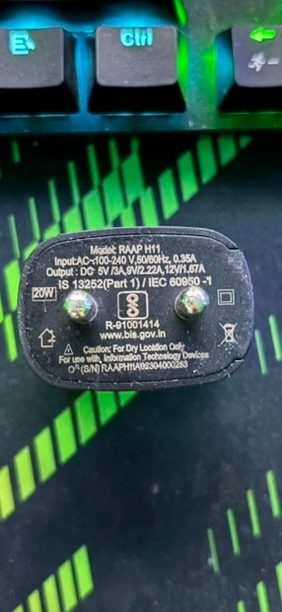

Charger (Doesn't have the on/off problem)

Outputs: 5V/3A=15W, 9V/2.22A=19.98W, 12V/1.67A=20.04W

Note: I have an iPhone 15 and all the chargers and powerbanks I use are rated for PD charging. I have tried Samsung's original charger but a 25W one and I faced the issue. I used any legit available to me with higher rated capacity than 20W and they all had this issue. So my guess is that the charger/powerbanks are trying to deliver a higher wattage to the iPhone and the iPhone is trying to protect it from over-heating or too much wattage being drawn in. Hence, it turns of the charging.

Conclusion/Possible solution: Use any legit charger with max. rated output approximately equals to 20W PD Charging, but not more than that. That worked for me because if you don't give the iPhone enough juice to struggle, it won't have that issue.

Had the same problem here.

Bought an iPhone 15 Pro two days ago and yesterday I noticed the same issue (charging going on and off).

As someone told here, turns out that switching the Optimized Charging on and off handled the problem.

Mine has been doing this and it’s driving me mad! It happens on every iPhone I get (I get the latest every year) around the same time. Be sure to check your charging port is not clogged up with pocket dust as this will stop the charger sitting in flush within the port (you will be surprised how much gets clogged up in there)

im not a fan of USB-C and never was! It’s even more susceptible to clogging up with pocket dust due to the usb C ‘nib’ that sticks out within the port

I think alot of it is due to weak cables and poor charging ports (pretty evident as you have to wiggle and position the cable at a specific angle to get it charging again)

I got mine working, Instead of using the charger the phone came with I used a charger ending with a USB instead of a Type C.

I am having this same problem with apple adapter 20w. I tried other cables and adapters and it worked fine. Then i changed charging optimisation to none and back to optimised and now it’s working fine. I guess we have this issue when the battery is below 20%.

This was happening to me but I was using an off brand plug adapter with a usb and usb-c dual port. I had cables plugged into both, and the iPhone to the usb-c kept disconnecting and reconnecting to the charge. I finally removed the other cable (the usb) and the usb-c cable charge for my iPhone worked fine! It was an issue with sharing power perhaps.

Hello , i was having the same issue with my 15 pro max , i was charging it with apple 20 w adapter and original cable but than i shifted to samsung 25 w adpater and it is a life saver , the issue is gone .

Today, I had problem with PD 25W charger (no issue before). I switched to PD 20W charger, the problem is gone.

Thanks,

Iphone 15 promax here, I've fixed it by setting the do not disturb mode because charge use to tilt on and off between notifications, not sure if this is a software related issue but setting do not disturb mode worked.

For those still searching and trying to understand the issue it has to do with the type of cable and Power Delivery (PD). For those of us using genuine Apple Cable and Adapter this shouldn’t be an issue. 20W Adapter to be specific.

Where I notice the issue the most is when I’m using an Anker Power 240W Multi Charger (20W Port) and an Anker cable I get the on/off charging. I suspect that as it ramps up the charge it looses capacity and resets. This does not occur with an Apple Cable plugged in the same way.

Just to prove it was the cable, with that specific charger I used a 140W Apple Charger and the Anker USB-C Cable and it worked.

Which means that some cables and chargers don’t have the same power that others do. You might need to get a cable rated for 20W.

This started mine one night when charging my 15 pro max. It was connected to a third party charger that had both a usb c and a usb a plug. It has something to do with sharing the power between both ports. I disconnected the item that was charging with the usb a port and the issue stopped.
